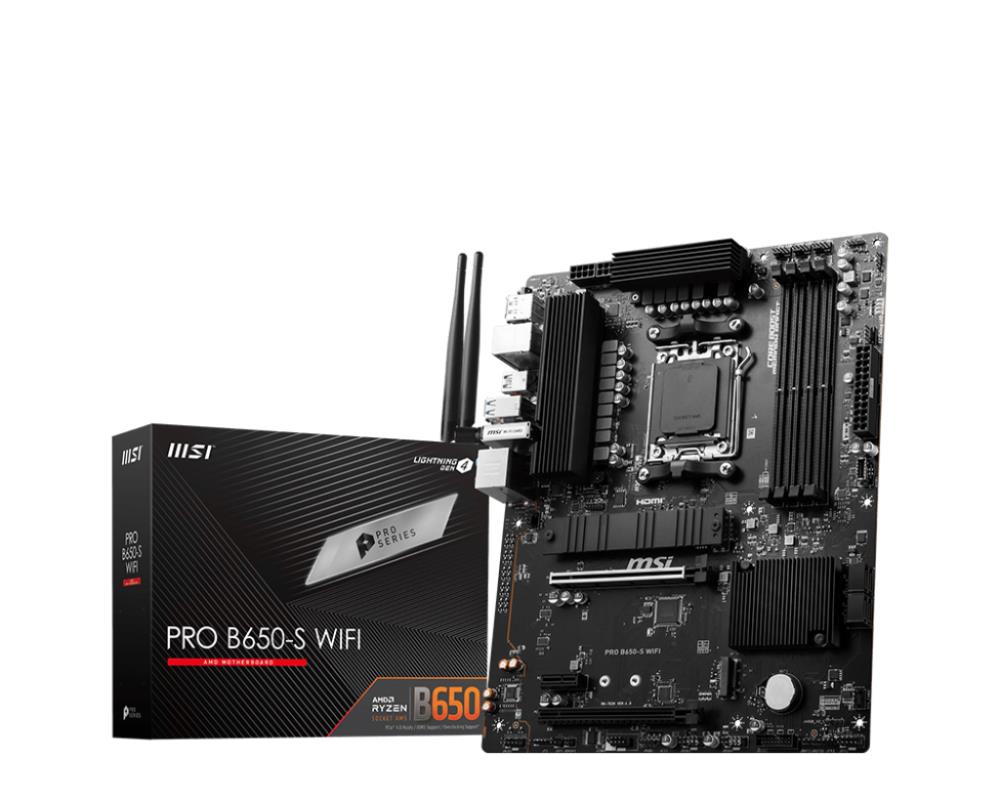

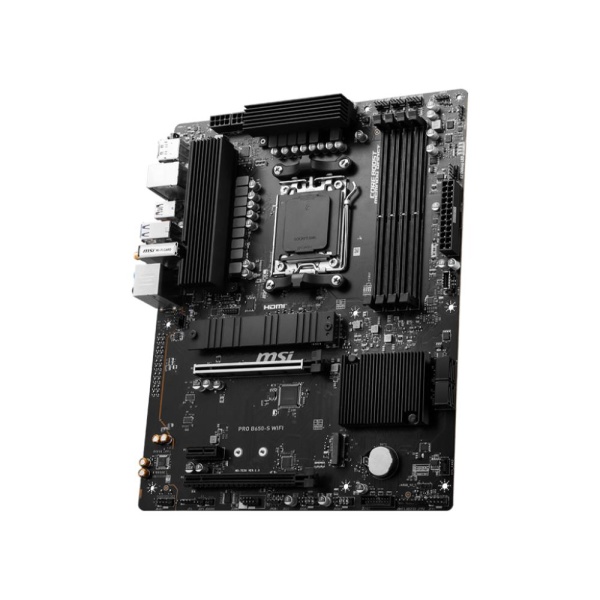

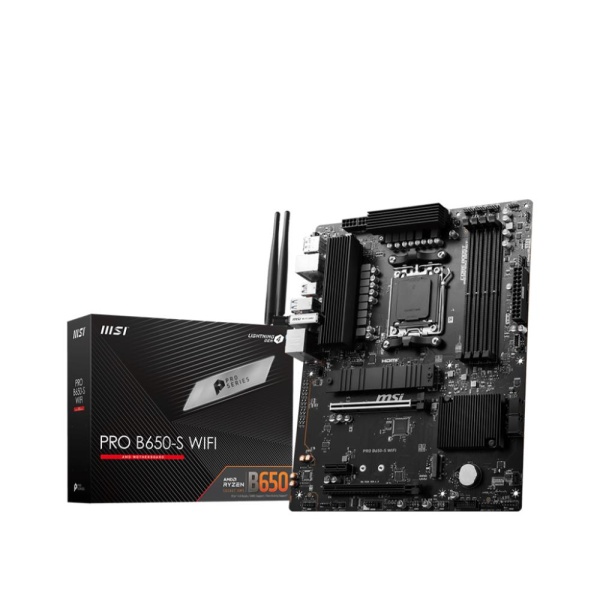

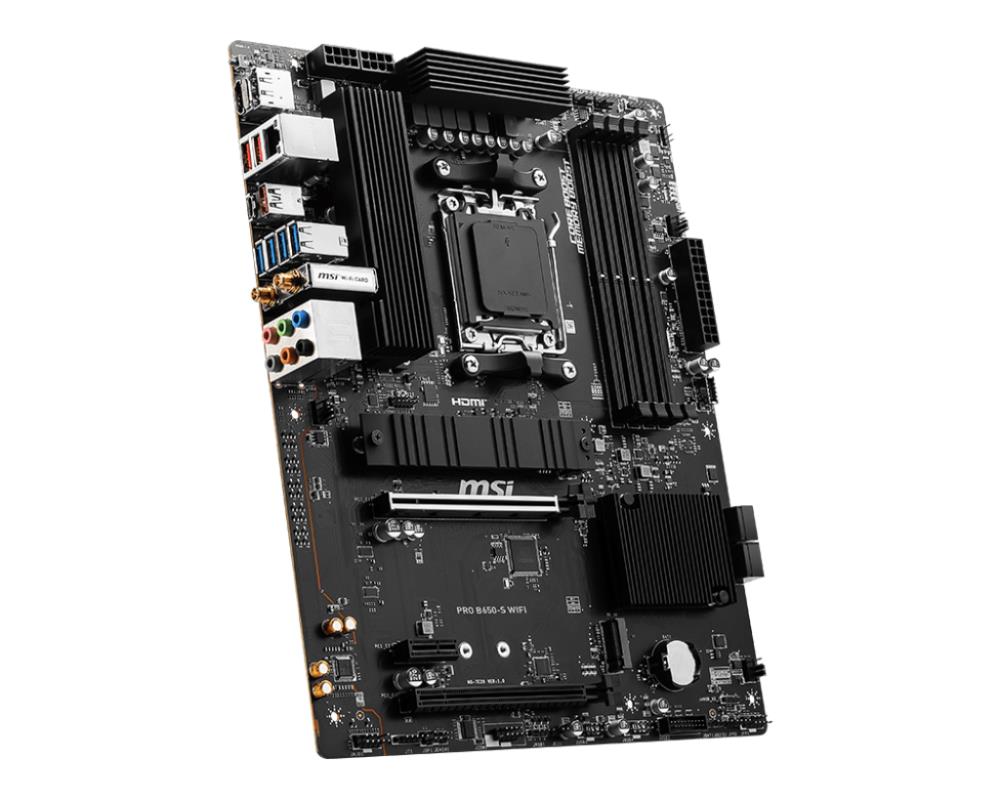

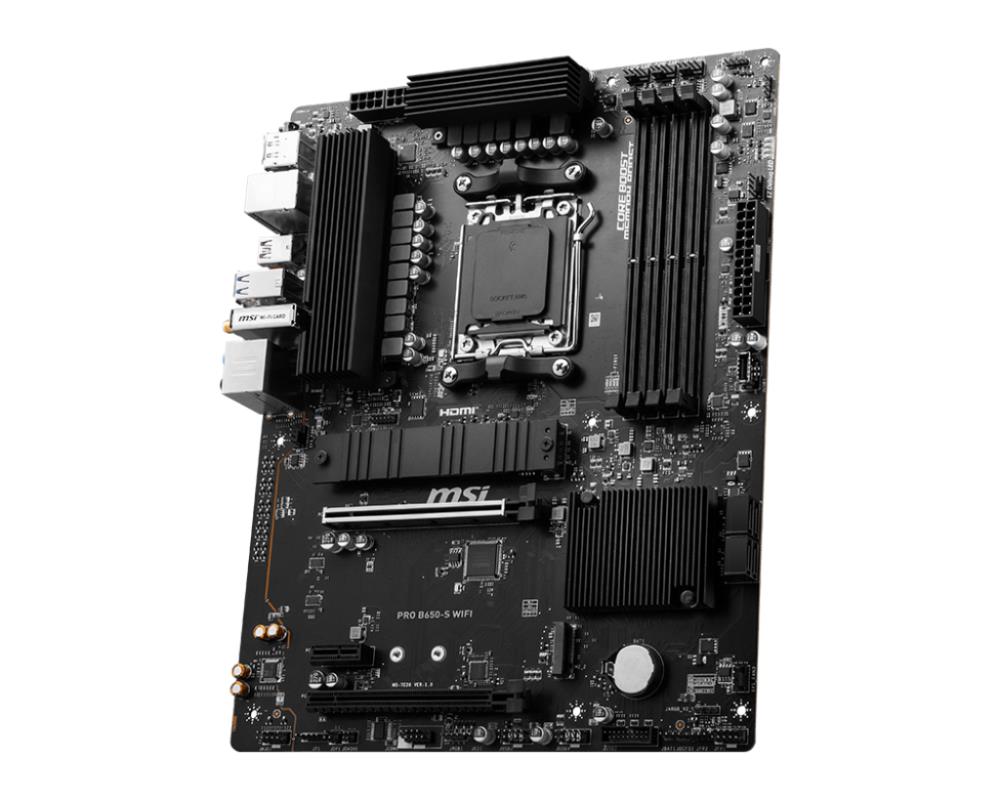

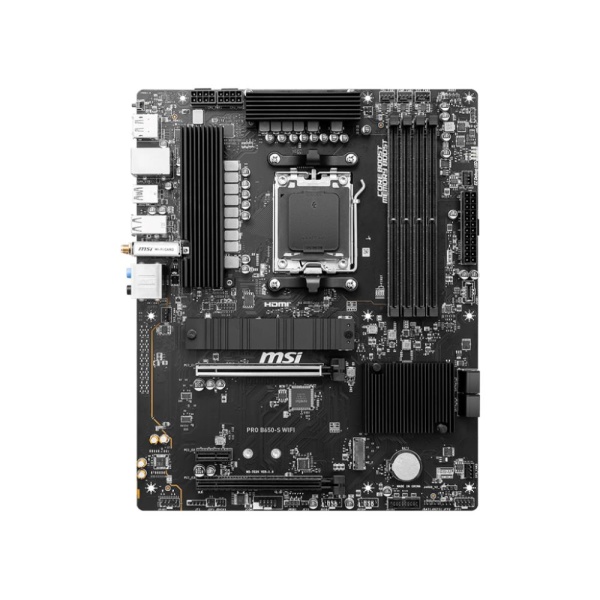

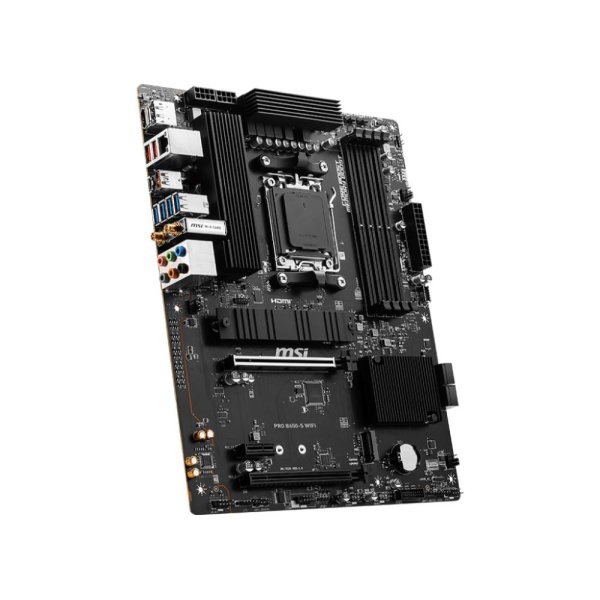

Description: PRO B650-S WIFI
– Supports AMD Ryzen™ 7000 Series Desktop Processors
– Supports DDR5 Memory, Dual Channel DDR5 7200+MHz (OC)
– Enhanced Power Design: 12+2 Duet Rail Power System with P-PAK, dual 8-pin CPU power connectors, Core Boost, Memory Boost
– Premium Thermal Solution: MOSFET thermal pads rated for 7W/mK and M.2 Shield Frozr are built for high performance system and non-stop work
– High Quality PCB: 6-layer PCB made by 2oz thickened copper
– Lightning Fast Game experience: PCIe 4.0 slots, Lightning Gen 4 x4 M.2 with M.2 Shield Frozr, USB 3.2 Gen 2×2
– 2.5G LAN with Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
– AUDIO BOOST: Reward your ears with studio grade sound quality for the most immersive gaming experience
Vendor Homepage: www.msi.com/Motherboard/PRO-B650-S-WIFI
Model: PRO B650-S WIFI
Chipset: AMD B650
Socket: SAM5
Form Factor: ATX
Memory type: DDR5
Frequency speed: 4800/5000/5200/5400/5600/5800/6000/6200/6400/6600/6800/7000/7200
Memory slots: 4
M.2: 2
PCI-Express 16x: 2
PCI-Express 1x: 1

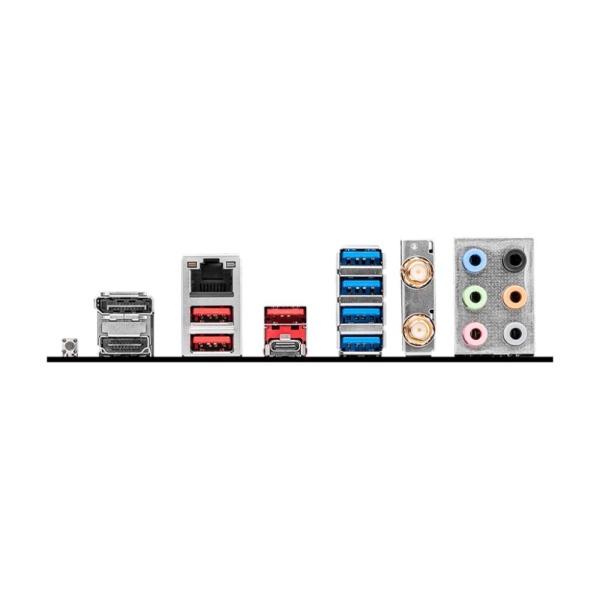

Audio port: 6
DisplayPort: 1
HDMI: 1
RJ45: 1
USB 3.2: 7
USB-C: 1
Bluetooth: Yes
SATA: Yes
WiFi: Yes
Integrated video: Depending on CPU
Integrated audio: Realtek ALC897
Integrated LAN: 2.5 Gigabit
RAID: SATA 0, 1; NVMe 0, 1
TPM: Header
Shipping box quantity: 10
Shipping Box Depth: 56
Shipping Box Height: 37
Shipping Box Weight: 15.7
Shipping Box Width: 35
Unit Brutto Volume: 0.007252
Unit Net Weight: 0.9
Unit Gross Weight: 1.57
CnCode: 84733020
Unit Box Width: 0.27
Unit Box Length: 0.35
Unit Box Height: 0.065
Full Description Line: AMD B650|SAM5|ATX|DDR5|7200/7000/6800/6600/6400/6200/6000/5800/5600/5400/5200/5000/4800 MHz|Memory slots 4|1xPCI-Express 1x|2xPCI-Express 16x|2xM.2|1xHDMI|1xDisplayPort|7xUSB 3.2|1xUSB-C|1xRJ45|6xAudio port|SATA|Bluetooth|WiFi|Video Depending on CPU|Audio Realtek ALC897|LAN 2.5 Gigabit|RAID SATA 0, 1; NVMe 0, 1|TPM Header
Category Code: MBA
