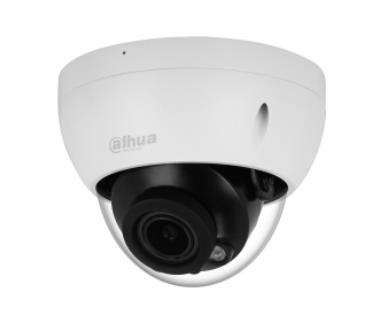

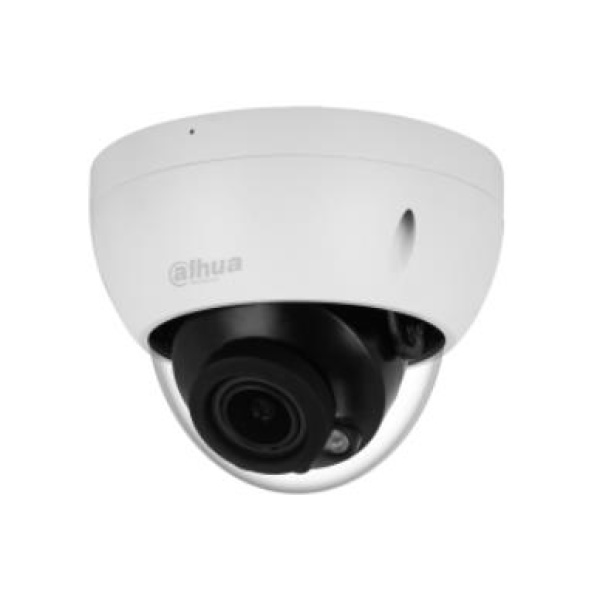

Description: 8MP IR Vari-focal Dome WizSense Network Camera
> 8-MP 1/2.7″ CMOS image sensor, low luminance, and high definition image.
> Outputs max. 8 MP (3840 × 2160) @20 fps, and supports 2688 ×1520 (2688 × 1520) @25/30 fps.
> H.265 codec, high compression rate, ultra-low bit rate.
> Built-in IR LED, and the max. illumination distance is 40 m.
> ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments.
> Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
> Intelligent monitoring: Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human)
> Abnormality detection: Motion detection, video tampering, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection.
> Alarm: 1 in, 1 out (Only – ZAS supports); audio: 1 in, 1 out (Only – ZAS supports); supports max. 256 G Micro SD card; built in MIC.
> 12 VDC/PoE power supply, easy for installation.
> IP67, IK10 protection.
> SMD Plus.
Vendor Homepage: www.dahuasecurity.com/products/All-Products/Network-Cameras/WizSense-Series/2-Series/8MP/IPC-HDBW2841R-ZAS
Model: IPC-HDBW2841R-ZAS-27135
Camera design: Dome
Network Camera Type: Fixed Dome/HDTV/Megapixel/Outdoor
Pixel Resolution: 8
Focal Length: 2.7 mm–13.5 mm
IR Illumination: Yes
Sensor size: 1/2.7″
Microphone: Built-in
Lens Mount: M14
Min. Illumination: 0.0008
Effective pixels: 3840 (H) × 2160 (V)
Electronic Shutter Speed: Auto/Manual 1/3 s–1/100,000 s
Alarm In: 1
Alarm Out: 1
Audio-In: 1
Audio-Out: 1
RJ45: 1
Supports card capacities up to: 256GB
Power options: 12V/PoE
Power supply requirements: 12 VDC/PoE (802.3af)
Power consumption: 3.4
Environment: Outdoor
Operating temperature range: –30 °C to +60 °C
Colour: White
Dimensions: 93.4 mm × Φ122 mm
Shipping box quantity: 1
Shipping Box Depth: 15.5
Shipping Box Height: 13.5
Shipping Box Weight: 0.68
Shipping Box Width: 15.5
Unit Brutto Volume: 0.003243
Unit Net Weight: 0.51
Unit Gross Weight: 0.68
CnCode: 85258900
Unit Box Width: 0.155
Unit Box Length: 0.155
Unit Box Height: 0.135
Full Description Line: Type Fixed Dome/HDTV/Megapixel/Outdoor|Pixel Resolution 8 Mega Pixel|Focal Length 2.7 mm–13.5 mm|IR Illumination|Sensor size 1/2.7″|Microphone Built-in|Lens Mount M14|Min. Illumination 0.0008 Lux|Effective pixels 3840 (H) × 2160 (V)|Electronic Shutter Speed Auto/Manual 1/3 s–1/100,000 s|1xAudio-In|1xAudio-Out|1xRJ45|1xAlarm In|1xAlarm Out|Supports card capacities up to 256GB|Power options PoE/12V|Power supply requirements 12 VDC/PoE (802.3af)|Environment Outdoor|Operating temperature range –30 °C to +60 °C|Colour White|Dimensions 93.4 mm × Φ122 mm
Category Code: FNC
