Description: TP-LINK EAP230-Wall

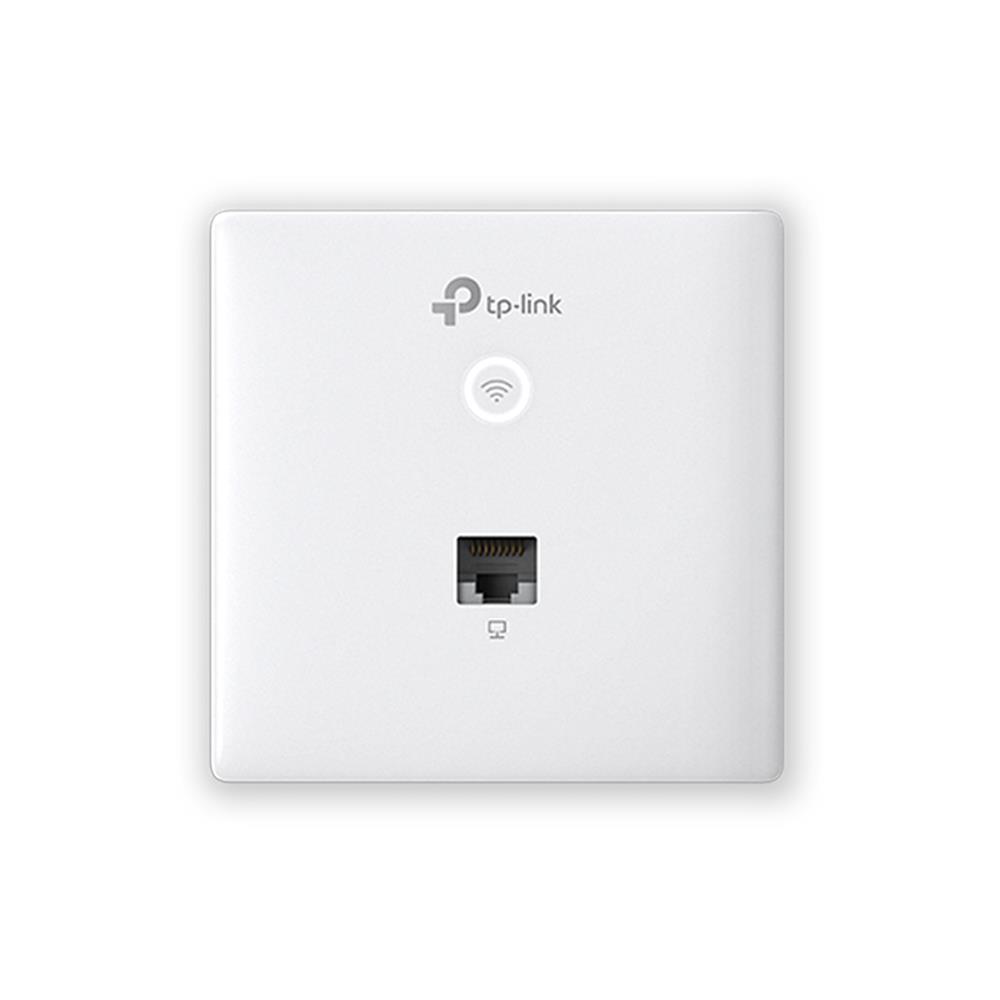

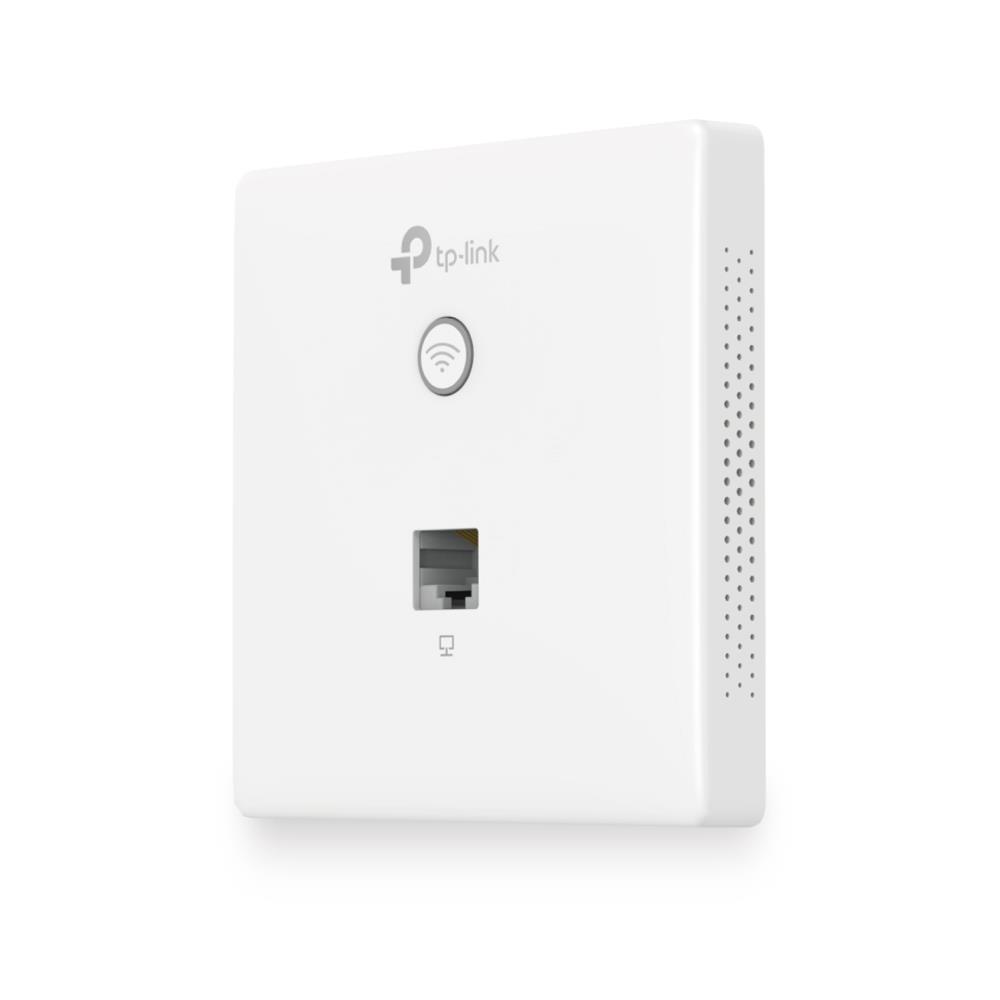

Omada AC1200 Wireless MU-MIMO Gigabit Wall-Plate Access Point
+ Fast Dual-Band Wi-Fi: Simultaneous 300 Mbps on 2.4 GHz and 867 Mbps on 5 GHz totals 1,167 Mbps Wi-Fi speeds with MU-MIMO.
+ Gigabit Ports: 2 Gigabit Ethernet ports (1× uplink + 1× downlink).
+ Integrated into Omada SDN: Zero-Touch Provisioning (ZTP), Centralized Cloud Management, and Intelligent Monitoring.
+ Centralized Management: Cloud access and Omada app for ultra convenience and easy management.
+ Private Connection for Every Room: Designed to meet every network need in environments with numerous separated rooms, like hotels, offices, and dormitories.
+ Elegant Appearance: Unprecedented thin design with just 11 mm, the same size and shape as a light switch or power outlet faceplate to fit perfectly in any room.

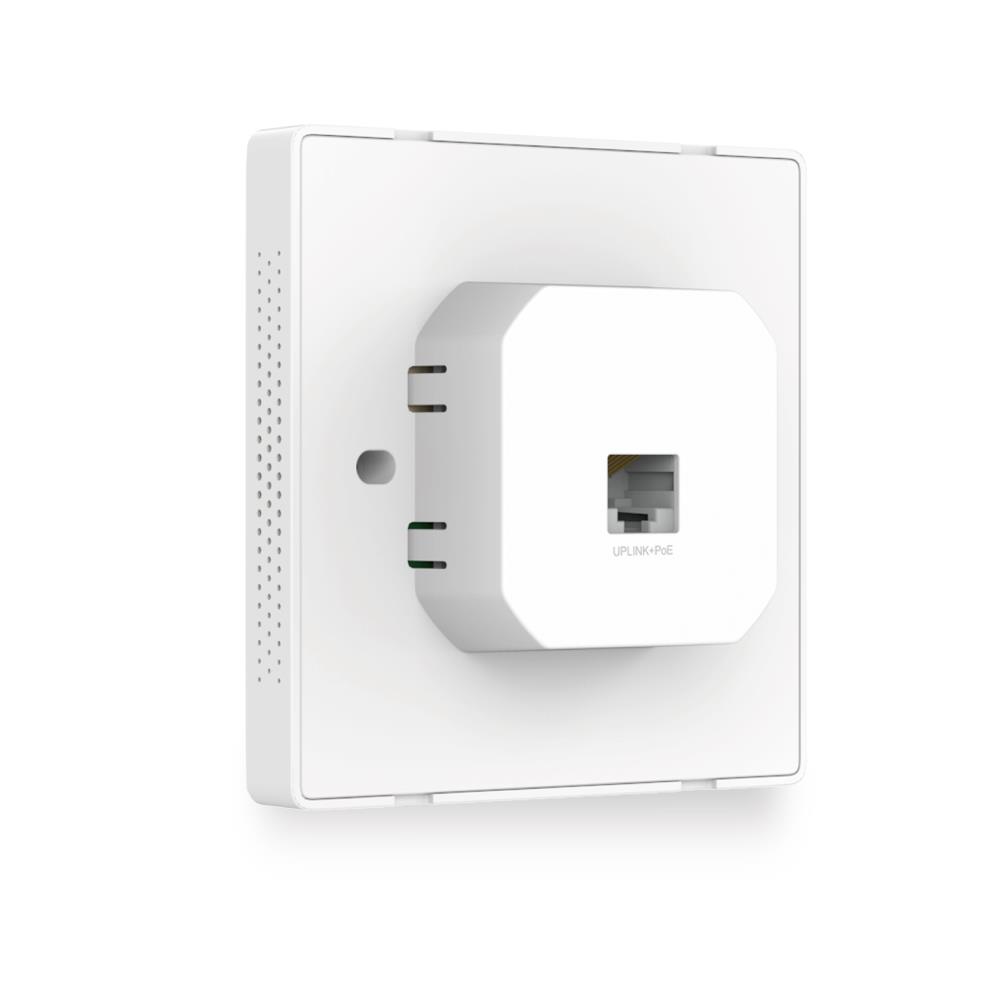

+ Easy Installation and PoE Support: Easy-mount construction, compatible with 86 mm & EU standard junction box, and 802.3af/at PoE support.
+ Secure Guest Network: Along with multiple authentication options (SMS/Facebook Wi-Fi/ Voucher, etc.) and abundant wireless security technologies.
Vendor Homepage: www.tp-link.com/ae/business-networking/wall-plate-ap/eap230-wall/
Series: Omada
Model name: EAP230-WALL
Network Device Type: Wireless Access Point
Data transmission speed: 1167
IEEE 802.11ac: Yes
10/100/1000M: 1
Wireless Frequency Range: 2.4 / 5 GHz
Power supply requirements: 802.3af/802.3at PoE, 7W
Dimensions: 86.8 × 86.8 × 30.2 mm
Units per Shipping Box: 1
Shipping Box Depth: 13
Shipping Box Height: 5
Shipping Box Weight: 0.24
Shipping Box Width: 12
Unit Calculated Volume: 0.00078
Product Net Weight: 0.16
Unit Calculated Weight: 0.24
CnCode: 85176200
Unit Box Width: 0.12
Unit Box Length: 0.13
Unit Box Height: 0.05
Full Description Line: Omada|EAP230-WALL|Type Wireless Access Point|Data transmission speed 1167 Mbps|IEEE 802.11ac|1×10/100/1000M|Wireless Frequency Range 2.4 / 5 GHz|Power supply requirements 802.3af/802.3at PoE, 7W|Dimensions 86.8 × 86.8 × 30.2 mm
Category Code: WAP
