Description:

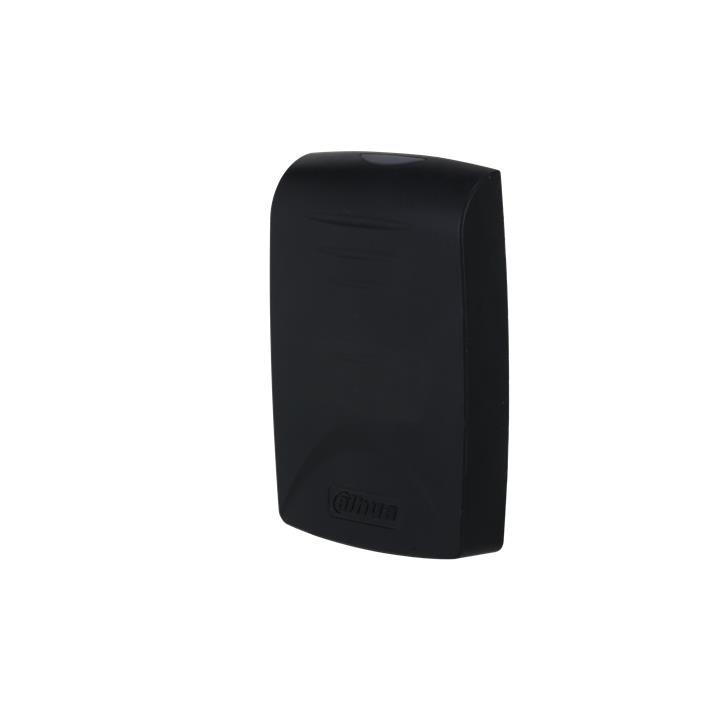

Dahua Card Swiping Access Reader
>Supports unlock through card for ease of use.
>Contactless card reading. Supports reading Mifare cards (IC card).
>Reads card at a 13.56 MHz frequency.
>Supports RS-485 and Wiegand communication.
>The Wiegand port supports W34 protocol and other custom protocols for compatability with third-party products.
>The device can be updated through the webpage.
>Triggers sound alarms and the indicator light.
>All the ports come with overcurrent and overvoltage protection.
>Cables can be installed on surfaces, and the internal segment of the device has a sealant treatment.
>IP67 rated (silicon surface treatment needed). The device is suitable for outdoor scenes.
Vendor Homepage: www.dahuasecurity.com/products/All-Products/Access-Control–Time-Attendance/Access-Control/Readers/ASR1100B-V1
Category Code: CRL
CnCode: 85311030
Unit Box Height: 0.055
Unit Box Length: 0.18
Unit Box Width: 0.125
Operating temperature range: -30°C to +60°C
Power supply requirements: 9–15 VDC, 100 mA
Dimensions: 102 × 72 × 18 mm
Units per Shipping Box: 1
Unit Calculated Volume: 0.001238
Product Net Weight: 0.15
Unit Calculated Weight: 0.17
