Description:
Built to Flow. Made to Show.

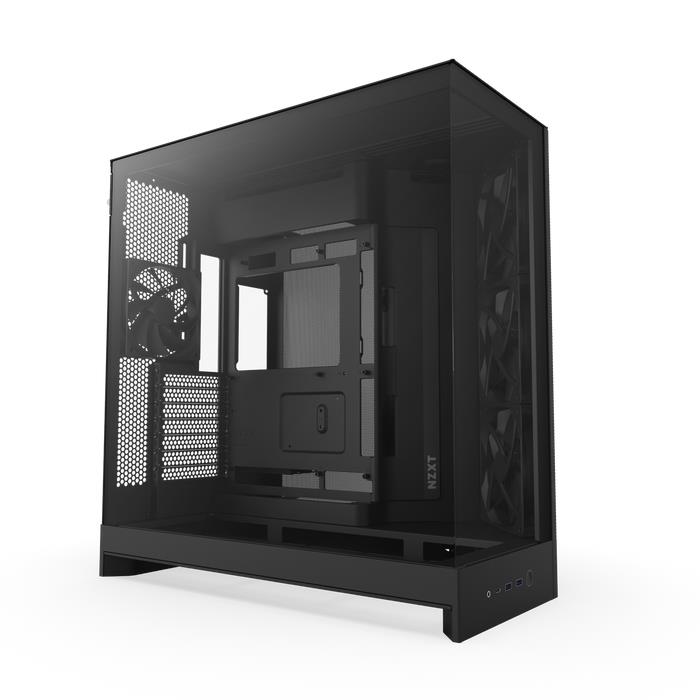

The H9 Flow is a spacious, dual-chamber case built for high-performance builds, featuring extensive cooling support and wraparound glass panels for an uninterrupted view of your build.
Optimized Airflow
Angled front-right fans and an airflow-optimized layout keep temps low and performance steady.
Mesh Panels
Ultra-fine, high-airflow mesh panels maximize airflow while filtering dust.

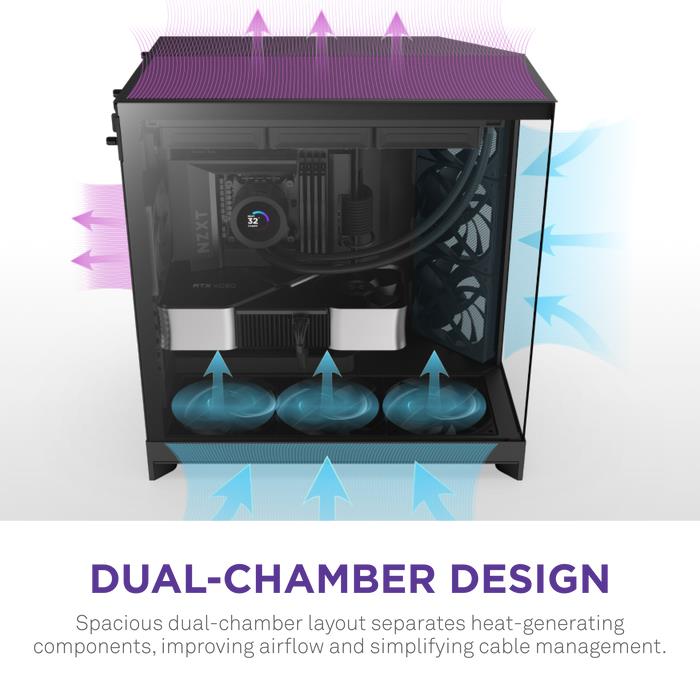

Spacious Dual-Chamber
Separates heat-generating components for improved airflow and a cleaner build.

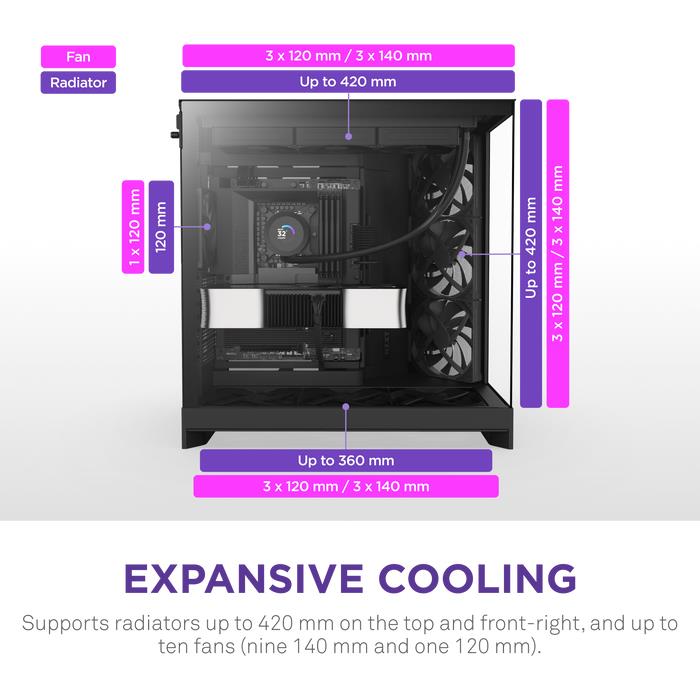

10-Fan Cooling
Fits up to nine 140 mm fans and one 120 mm rear fan.
Large Radiator Support
Holds up to 420 mm radiators on the top and front-right panels for versatile cooling.

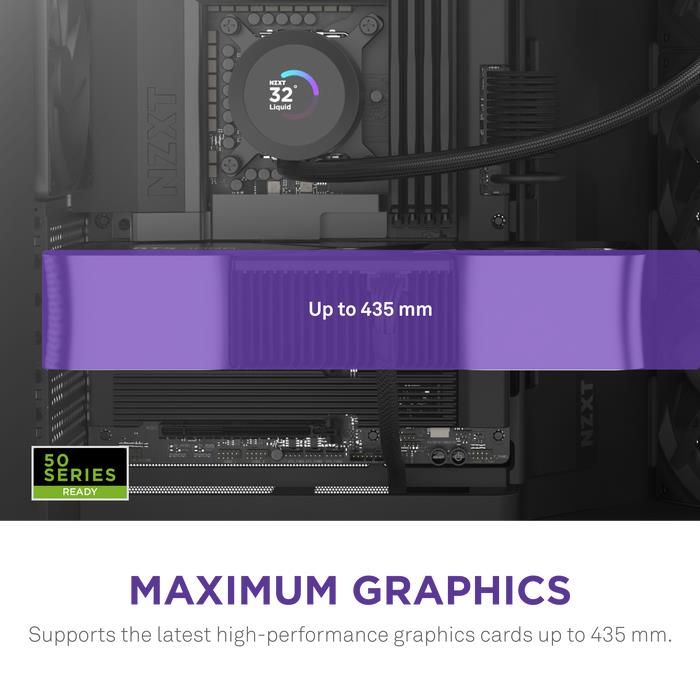

Maximum Graphics
Handles GPUs up to 435 mm, giving plenty of space for top-tier graphics cards.

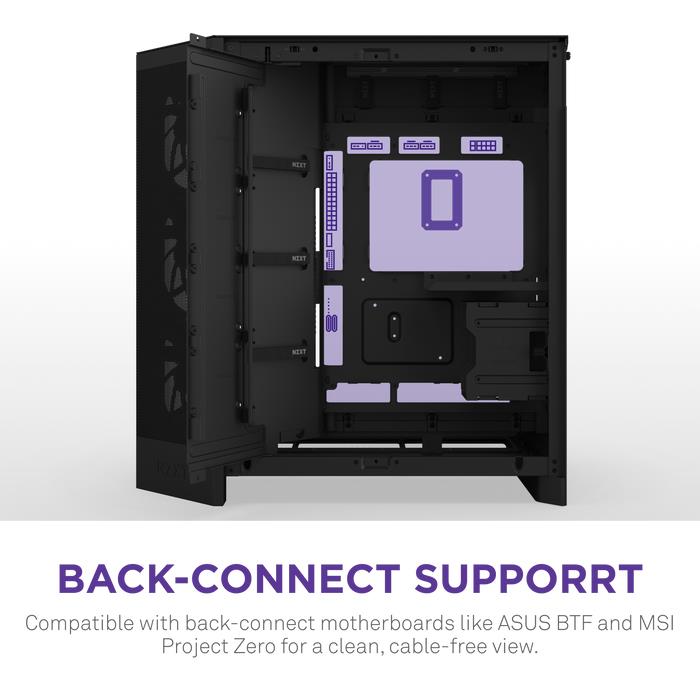

Back-Connect Ready
Compatible with ASUS BTF and MSI Project Zero motherboards for a cable-free look.

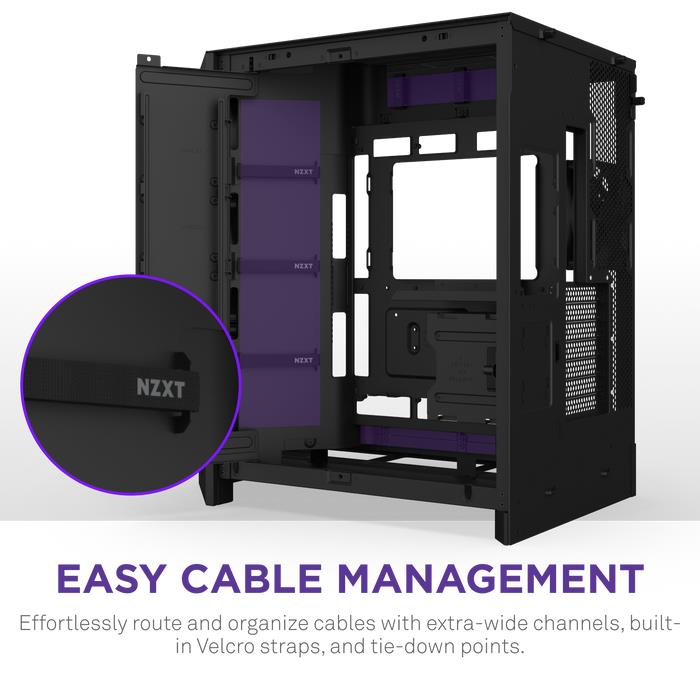

Easy Cable Management
Extra-wide channels, Velcro straps, and tie-down points make cable routing simple.
- Dual-Chamber Design: Separates main components from the PSU and drives for improved thermal performance and cable management
- Optimized Airflow: Perforated steel panels and angled front-right fans ensure efficient cooling for high-performance builds

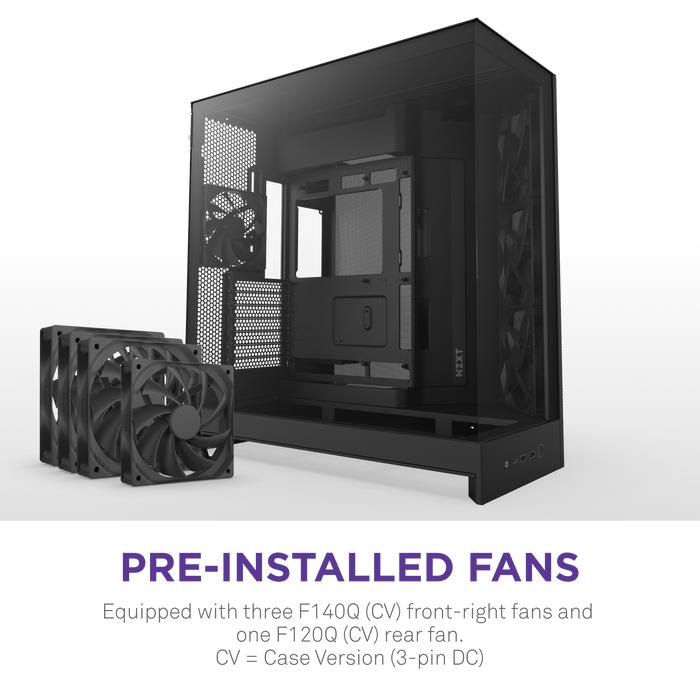

- Pre-Installed Fans: Includes three F140Q (CV) fans in the front-right and one F120Q (CV) fan in the rear. CV = Case Version (3-pin DC)
- Ten-Fan Capacity: Supports up to nine 140mm fans across the top, front-right, and bottom, plus one 120mm fan in the rear

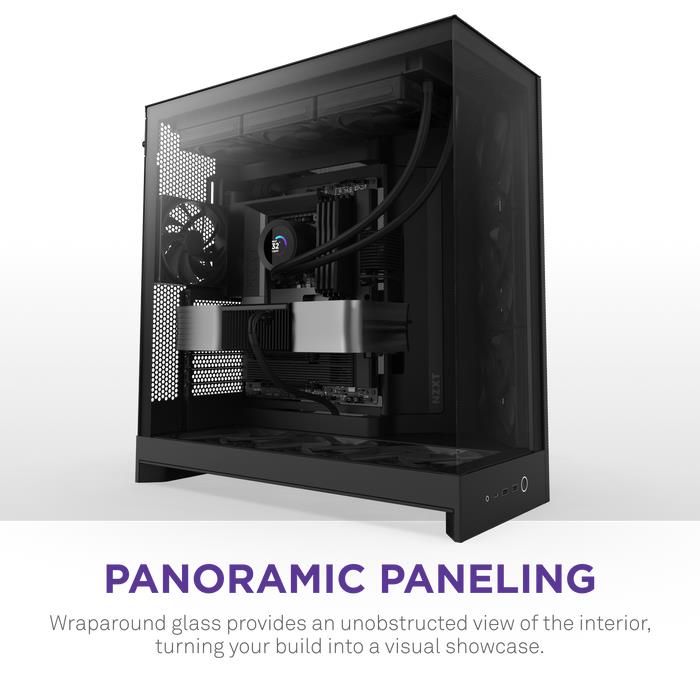

- Panoramic View: Showcase every detail of your build with seamless, wraparound tempered glass paneling
- Large Radiators & GPUs: Fits up to a 420mm radiator on the top and front-right, with plenty of clearance for high-end graphics cards
- Easy Cable Management: Extra-wide channels, built-in Velcro straps, and tie-down points make cable routing effortless
- Back-Connect Ready: Compatible with rear-connecting motherboards like ASUS BTF and MSI Project Zero for a cable-free look

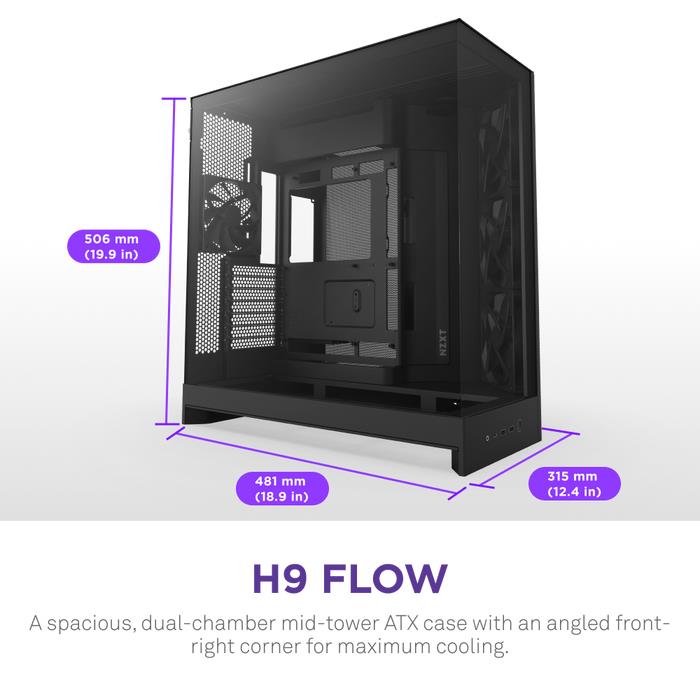

Summary: NZXT H9 Flow. Form factor: Midi Tower, Type: PC, Product colour: Black. Front fans installed: 3x 140 mm, Front fans diameters supported: 120,140 mm, Rear fans installed: 1x 120 mm. Supported HDD sizes: 2.5,3.5". Width: 315 mm, Depth: 481 mm, Height: 506 mm
Vendor Homepage: https://nzxt.com/products/h9-flow
Category Code: CAS
CnCode: 84733080
Unit Box Height: 0.568
Unit Box Length: 0.585
Unit Box Width: 0.405
Cable management: Yes
Form factor: Midi Tower
Material: Mesh/SGCC/Tempered glass
Maximum CPU cooler height: 165
Maximum graphics card length: 459
Maximum PSU length: 200
Number of 2.5″ bays: 6
Number of 3.5″ bays: 2
Number of expansion slots: 7
Product colour: Black
Side window: Yes
Supported motherboard form factors: ATX/EATX/micro ATX/Mini-ITX
Tempered glass panel(s): Yes
Type: PC
Number of power supply units: 1
Combo headphone/mic port: Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
USB 3.2 Gen 2×2 Type-C ports quantity: 1
Bottom fans diameters supported: 120/140
Bottom radiator sizes supported: 360
Front fans diameters supported: 120/140
Front fans installed: 3x 140 mm
Front radiator sizes supported: 420
Number of bottom fans supported (max): 3
Number of front fans supported (max): 3
Number of rear fans supported (max): 1
Number of top fans supported (max): 3
Rear fans diameters supported: 120
Rear fans installed: 1x 120 mm
Rear radiator sizes supported: 120
Top fans diameters supported: 120/140
Top radiator sizes supported: 420
Supported HDD sizes: 2.5/3.5
Depth: 481
Height: 506
Weight: 12460
Width: 315
Units per Pallet: 0
Units per Shipping Box: 1
Unit Calculated Volume: 0.1346
Unit Calculated Weight: 15.3
