Description:

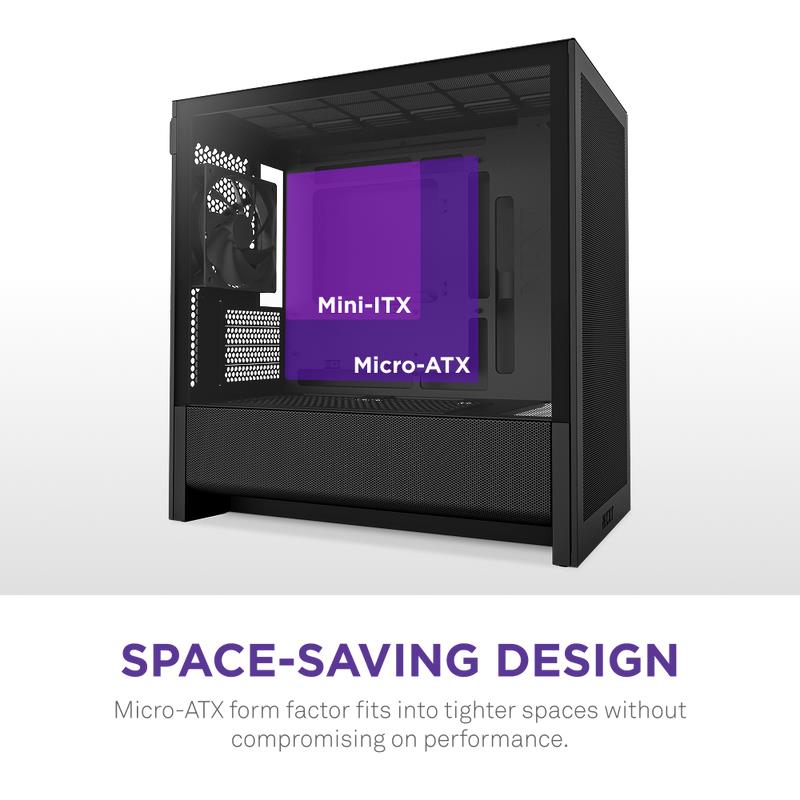

Space-Saving Design
The micro-ATX form factor fits into smaller spaces, maximizing desk space without compromising on performance.

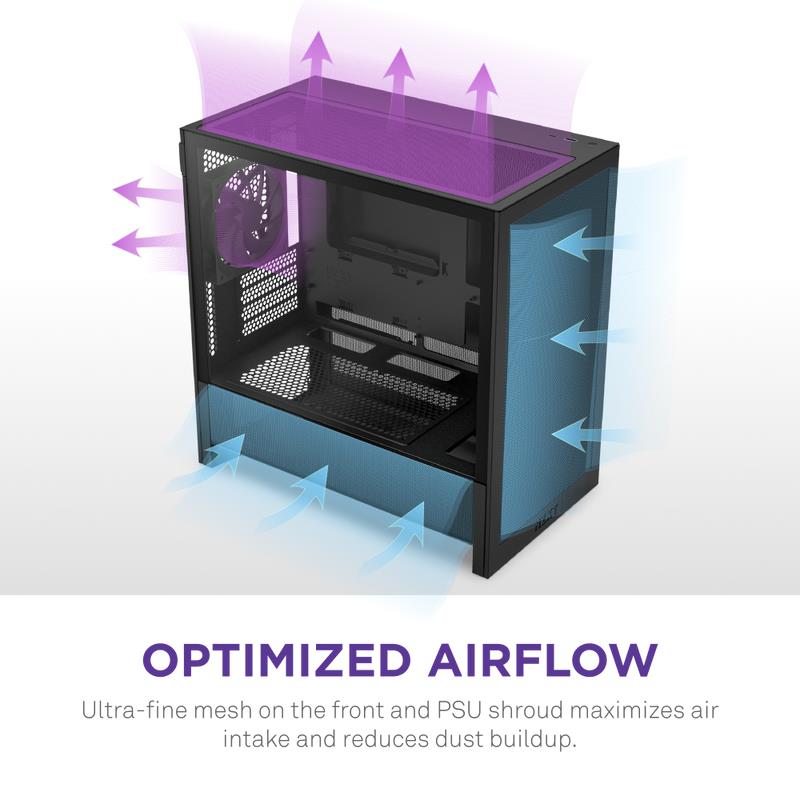

Optimized Airflow
Ultra-fine mesh on the front, top, and sides enhances cooling while filtering dust. The ventilated PSU shroud optimizes intake from bottom-mounted fans.

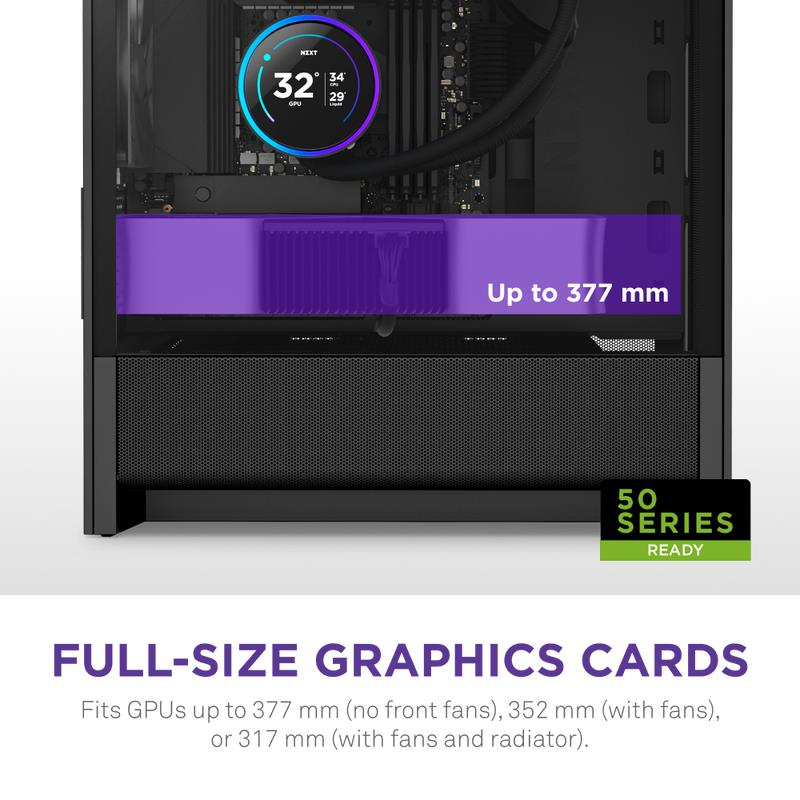

Full-Size GPU Support
Max length of 377 mm (no front fans), 352 mm (with fans), 317 mm (with fans & radiator).

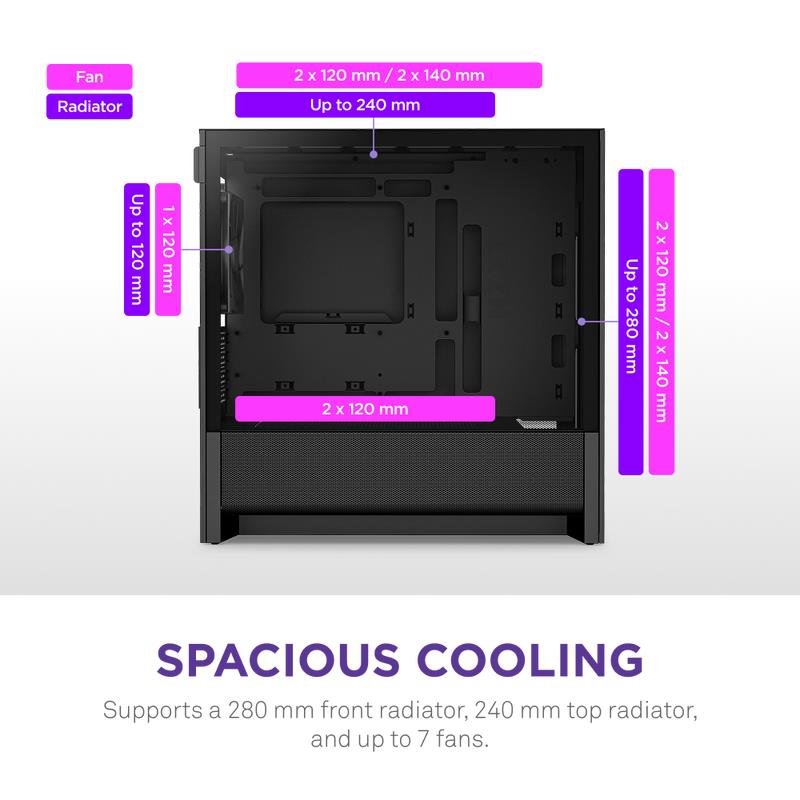

7-Fan Capacity
Supports up to 140 mm fans (two front, two top) and 120 mm fans (two bottom, one rear).
Radiator Ready
Supports a 280 mm front radiator and a 240 mm top radiator for versatile cooling setups.

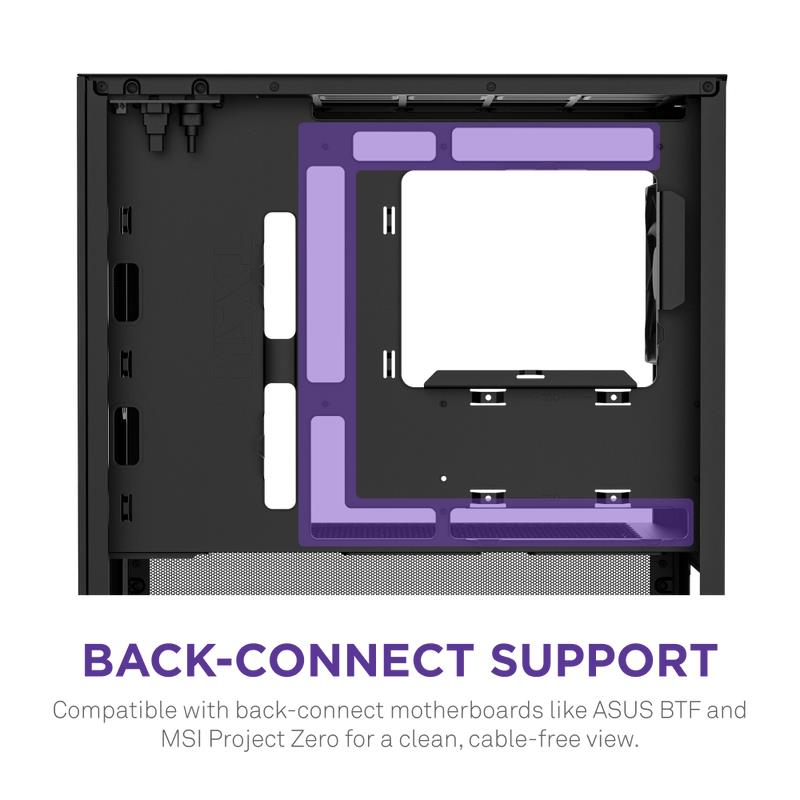

Back-Connect Ready
Compatible with ASUS BTF and MSI Project Zero motherboards for a clean, cable-free build.

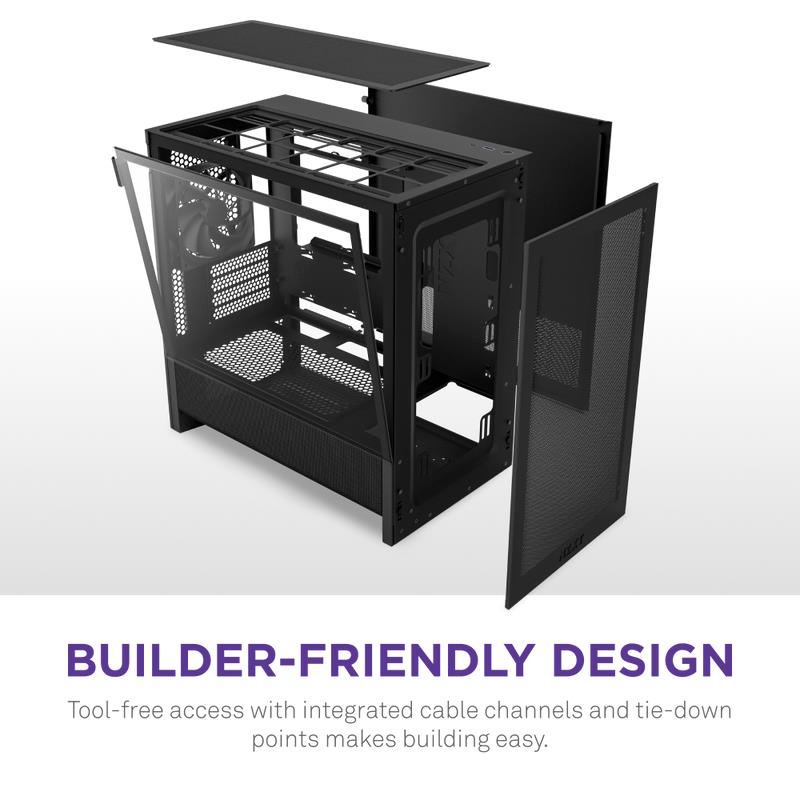

Tool-Free Access
Easily remove panels for building, upgrading, or cleaning.
Easy Cable Management
Integrated cable channels and tie-down points make routing clean and simple.
- Space-Saving Size: A space-efficient micro-ATX chassis that accommodates high-performance components without compromise.
- High-Airflow Design: Ultra-fine steel mesh panels and a ventilated PSU shroud maximize airflow while effectively filtering out dust.
- Extensive Cooling Support: Supports up to a 280 mm radiator in the front, a 240 mm radiator on top, and up to seven fans for powerful, customizable cooling performance.
- Full-Size GPU Support: Fits graphics cards up to 377 mm (without front fans), 352 mm (with front fans), or 317 mm (with front radiator and fans installed).

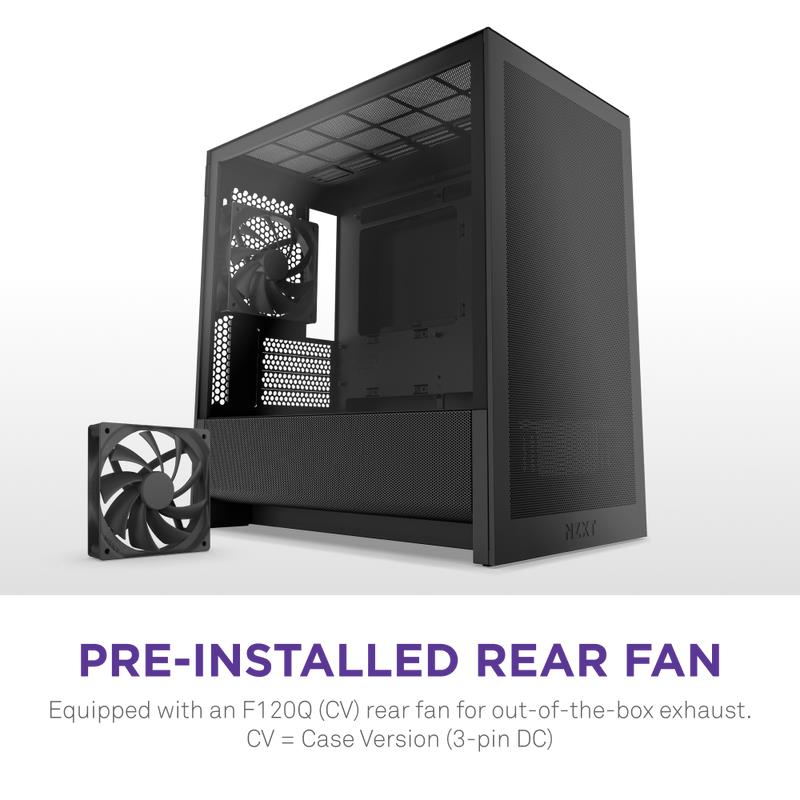

- Pre-Installed Rear Fan: Includes one F120Q (CV) fan at the rear to provide efficient exhaust airflow straight out of the box. CV = Case Version (3-pin DC)
- Simplified Cable Management: Integrated cable channels and multiple tie-down points make it easy to route and organize cables for a clean, organized build.
- Back-Connect Motherboard Compatible: Ready for rear-connector motherboards like ASUS BTF and MSI Project Zero, enabling a clean, cable-free aesthetic.
- Tool-Free Access: Removable top, front, and side panels allow for easy upgrades and cleaning—no tools required.

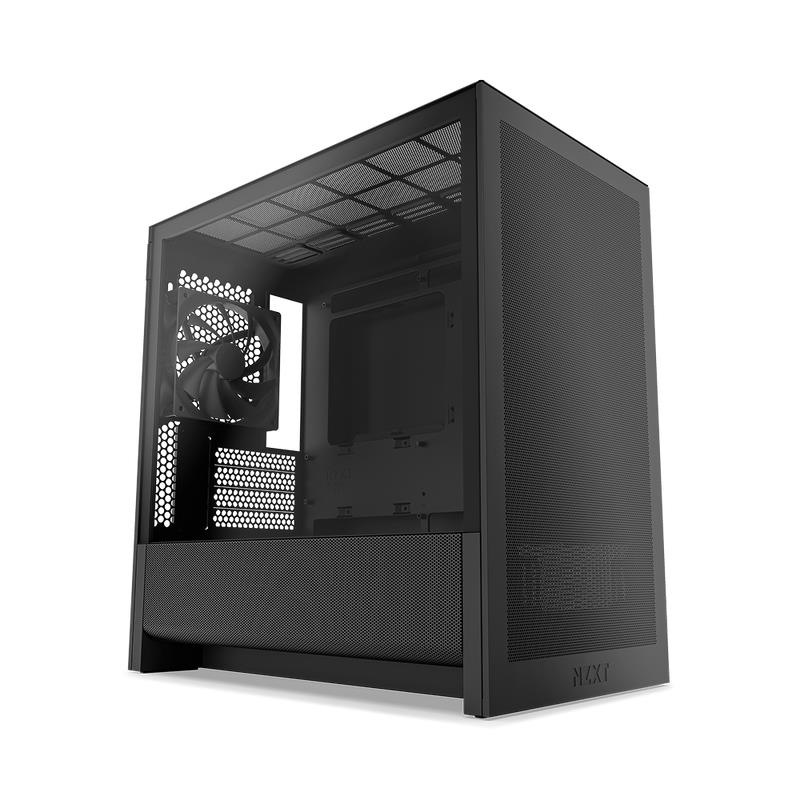

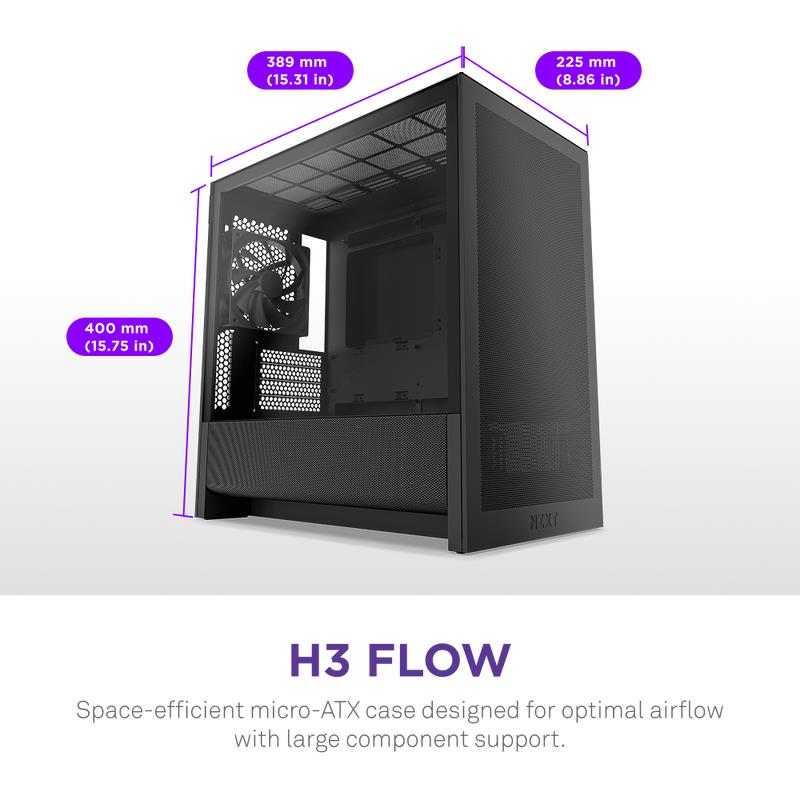

Summary: NZXT H9 H3 Flow. Form factor: Midi Tower, Type: PC, Product colour: Black. Front fans diameters supported: 120,140 mm, Rear fans installed: 1x 120 mm, Rear fans diameters supported: 120 mm. Supported HDD sizes: 2.5,3.5". Width: 225 mm, Depth: 389 mm, Height: 400 mm
Vendor Homepage: https://nzxt.com/products/h3-flow?srsltid=AfmBOorJUQocdb8xVeQS-TKdt36JJIyekkP0lJjPggVNLv9DJ48Fm5mv
Category Code: CAS
CnCode: 84733080
Unit Box Height: 0.475
Unit Box Length: 0.49
Unit Box Width: 0.31
Cable management: Yes
Form factor: Midi Tower
Material: Mesh/SGCC/Tempered glass
Maximum CPU cooler height: 170
Maximum graphics card length: 377
Maximum PSU length: 185
Number of 2.5″ bays: 3
Number of 3.5″ bays: 1
Number of expansion slots: 4
Product colour: Black
Side window: Yes
Supported motherboard form factors: micro ATX/Mini-ITX
Tempered glass panel(s): Yes
Type: PC
Number of power supply units: 1
Combo headphone/mic port: Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 1
USB 3.2 Gen 2×2 Type-C ports quantity: 1
Bottom fans diameters supported: 120
Front fans diameters supported: 120/140
Front radiator sizes supported: 280
Number of bottom fans supported (max): 2
Number of front fans supported (max): 2
Number of rear fans supported (max): 1
Number of top fans supported (max): 2
Rear fans diameters supported: 120
Rear fans installed: 1x 120 mm
Top fans diameters supported: 120/140
Top radiator sizes supported: 240
Supported HDD sizes: 2.5/3.5
Depth: 389
Height: 400
Weight: 4800
Width: 225
Units per Pallet: 0
Units per Shipping Box: 1
Unit Calculated Volume: 0.07215
Unit Calculated Weight: 6.3
