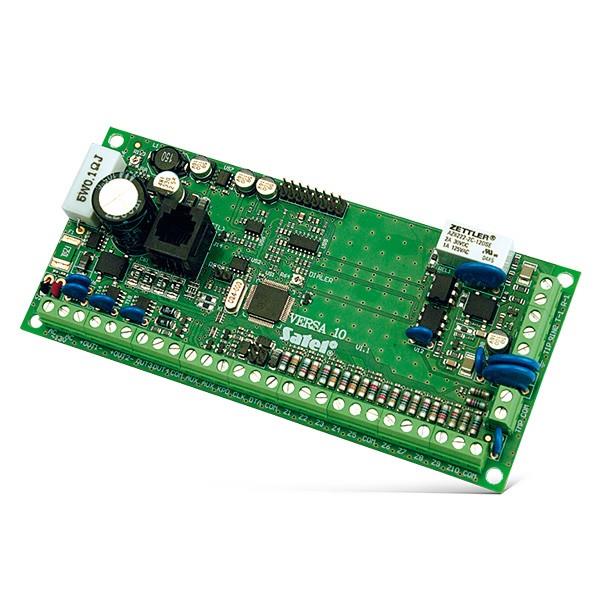

Description: – EN50131 Grade 2 compliance
– 10 zones expandable up to 30: – NO, NC, EOL, 2EOL/NO, 2EOL/NC zone configurations
– support for vibration and roller shutter detectors
– detectors supervision
– additional tamper input
– 4 up to 12 programmable outputs
– 2 supply outputs
– 2 partitions: – 3 arming modes for each partition
– arming/disarming by users or timer controlled
– communication bus for keypads, readers and expansion modules
– RS-232 port (RJ type socket) for panel programming built-in telephone dialer for: – reporting (SIA, ContactID, other)
– personal messaging (8 telephone numbers, 64 text/16 voice messages)
– remote programming (built-in 300 bps modem)
– support for GSM/GPRS communicator: – SMS/GPRS reporting
– voice/SMS messaging
– support for TCP/IP communicator: – e-mail messaging
– TCP/IP reporting
– system operation via: – LCD or LED keypads (up to 6)
– proximity tags/cards (up to 6 readers)
– remote control key fobs
– easy update of firmware for enhancing the panel with new features
– support for 31 user codes: – 30 standard users
– 1 installer
– individual naming for easy system operation and management
– timers: – 4 timers with holidays support
– event log with 2047 entries
– automatic diagnostics of basic system components
– built-in 2 A switching mode power supply: – overload protection
– deep discharge protection
– battery charging supervision
Vendor Homepage: http://www.satel.pl/en/product/390/VERSA%2010,Intruder-alarm-control-panel
Dimensions: 23.5 x 13 x 5.5cm
Shipping box quantity: 1
Shipping Box Depth: 23
Shipping Box Height: 5.5
Shipping Box Weight: 0.19
Shipping Box Width: 13
Unit Brutto Volume: 0.001644
Unit Net Weight: 0.12
Unit Gross Weight: 0.19
CnCode: 85311030
Unit Box Width: 0.13
Unit Box Length: 0.23
Unit Box Height: 0.055
Category Code: CNP
