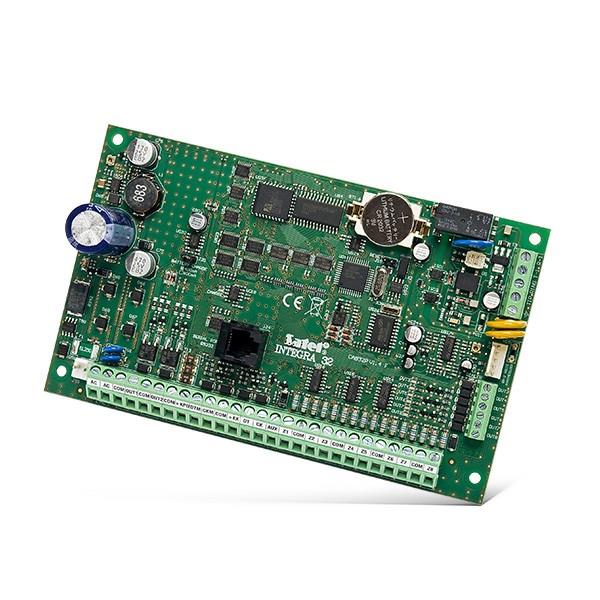

Description:
- 8 up to 32 zones
- 16 partitions, 4 objects
- 8 up to 32 programmable outputs
- keypads and expansion modules buses
- built-in telephone dialer with monitoring, voice messaging and remote control features
- access control and home automation features
- system operation with LCD keypads, partition keypads, keyfobs and proximity cards or remotely with mobile phone or PC
- 32 independent timers for automatic control
- event log with 899 entries and event printing feature
- 64+4+1 users
- RS-232 port – RJ type socket
- flash firmware upgrade with a PC
- built-in 1.2A switching mode backup power supply with battery charging and diagnostic features
Vendor Homepage: http://www.satel.pl/en/product/86/INTEGRA%2032,Advanced-control-panel-with-8-up-to-32-zones
Category Code: CNP
CnCode: 85311030
Unit Box Height: 0.05
Unit Box Length: 0.23
Unit Box Width: 0.13
Max. wireless zones: 24
Max. number of outputs: 32
Max. number of zones: 32
Dimensions: 23.5 x 14 x 5.5cm
Units per Shipping Box: 1
Unit Calculated Volume: 0
Product Net Weight: 0
Unit Calculated Weight: 0
