Description:

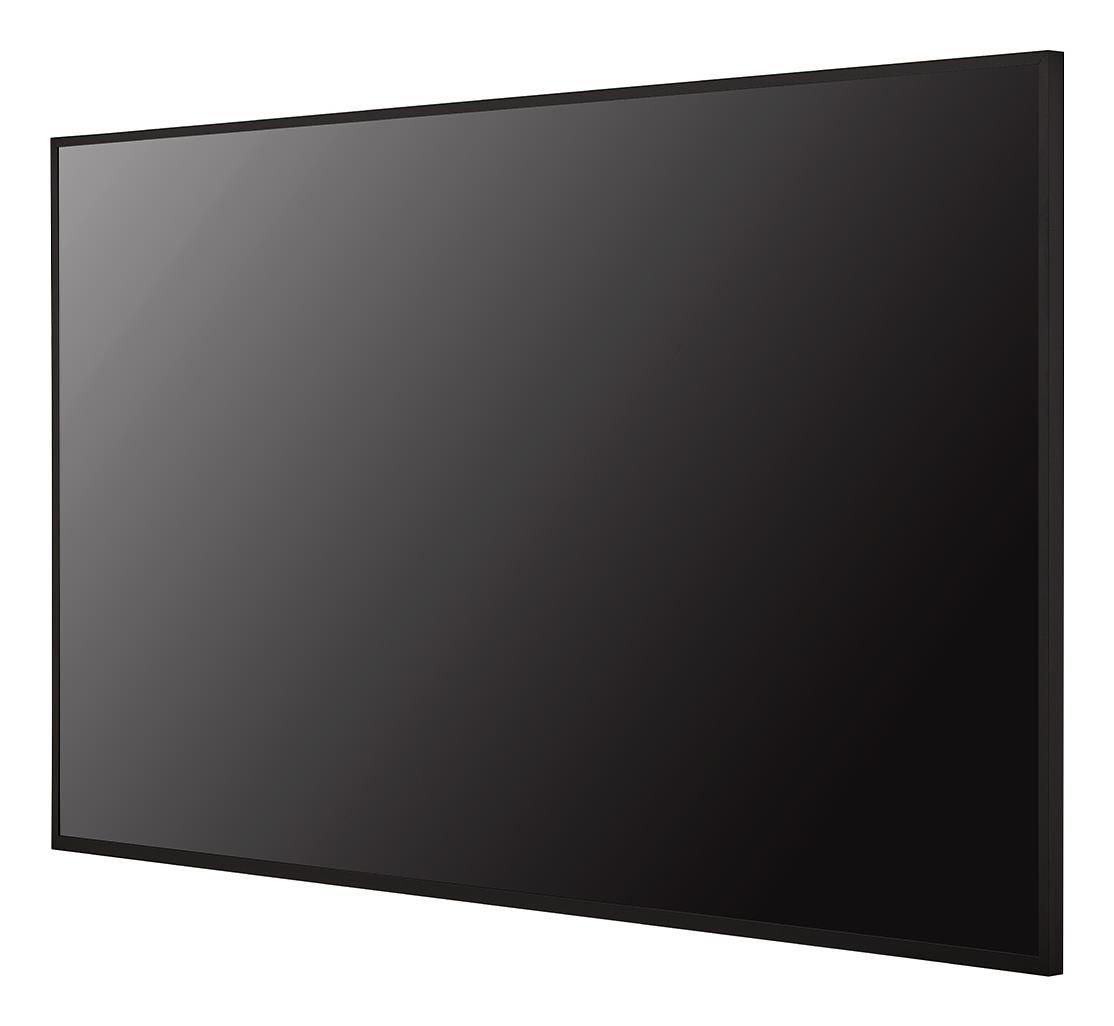

UHD Signage Display with
LG webOS Platform and Advanced Security
High Resolution Display
It offers a resolution that is four times higher than FHD, satisfying customers visually. Additionally, the anti-glare coating on the screen reduces screen reflection in bright lighting environments, increasing visibility and legibility, providing customers with a comfortable screen.
Sturdy Design with Fire Flame Resistance
The outer cover of the product is designed to effectively resist fire flame spread, making the product a great fit for installation in public spaces.
Convenient webOS Platform
The UH5N-M is equipped with a high-performance SoC that allows for multiple tasks to be performed without a separate media player. The webOS platform provides app development tools with an intuitive UI that enhances user convenience, enabling easy connection with external sensors and webOS partner apps to create an SI-friendly environment.
Design for Space Utilization

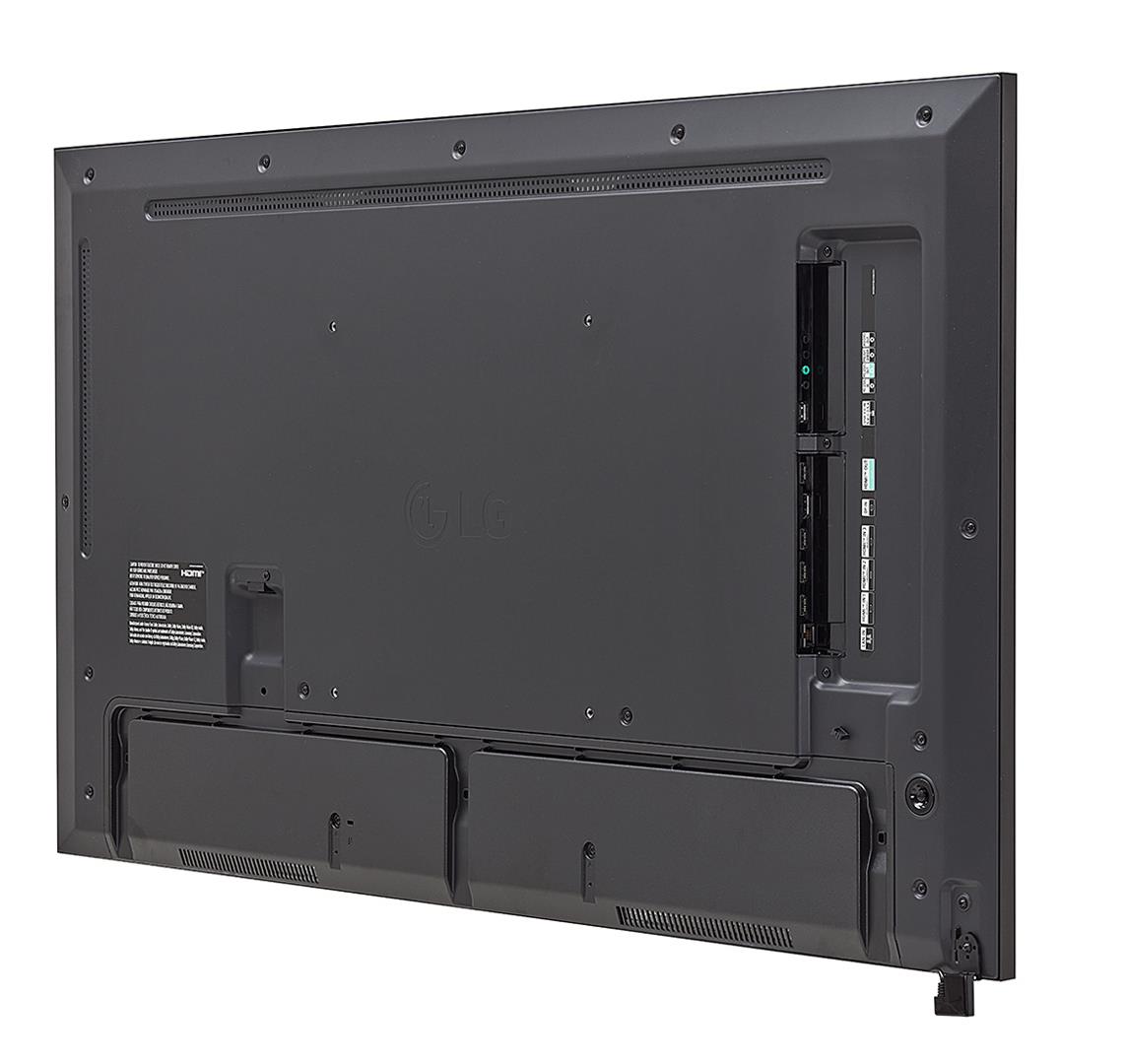

Designed with thin bezels and simple cable management, the UH5N-M saves space. With specialized hidden power inlets, it can be installed close to the wall, leaving only about 13 mm of space with the slim bracket.
Durability that Provides Reliability
Optimized for business environments, the UH5N-M is protected against salt, dust, iron powder and humidity thanks to conformal coating on power board, allowing for stable operation. Also, its customer-centric features, such as IP5x and Shock Monitoring, provide both reliability and satisfaction.
Enhanced Security Features
The UH5N-M provides security features, including LG’s Enhanced Kernel Protection (EKP) technology, protecting important data from external access or attacks. LG UHD Signage also holds reliable certification in the field of information security, maintaining customers’ data and businesses securely. For example, this model is ISO/IEC 15408 Common Criteria EAL2 Certified.
Sustainability
With a commitment to innovation and sustainability, LG is continuously striving to create a better future for manufacturers, consumers, and future generations. With a focus on minimizing waste, maximizing recycling, and efficient power management, LG actively strives for sustainability, obtaining various certifications such as FCC EMC Class B.
SuperSign Solutions
SuperSign is an integrated and intuitive content management solution for creative and organized digital signage content in your space, connecting customers to a range of services with convenient user experiences. There are a variety of versions such as SuperSign Cloud, so discover and enjoy the version that best fits you.
- Resolution : 3,840 × 2,160 (UHD)
- Brightness : 500 nits (Typ.)
- Bezel Width : 8.9 mm (T/R/L), 12.9 mm (B)
- webOS Smart Platform
Summary: LG 55UH5N-M. Product design: Digital signage flat panel. Display diagonal: 139.7 cm (55″), Display technology: LCD, Display resolution: 3840 x 2160 pixels, Display brightness: 500 cd/m², HD type: 4K Ultra HD. Wi-Fi. Operating hours (hours/days): 24/7. Operating system installed: WebOS. Product colour: Black
Vendor Homepage: https://www.lg-informationdisplay.com/product/digital-signage/standard/55UH5N-M
Category Code: LCD
CnCode: 85285291
Unit Box Height: 0.152
Unit Box Length: 1.36
Unit Box Width: 0.81
Colour depth: 10
Colour gamut: 95
Contrast ratio (dynamic): 1000000:1
Contrast ratio (typical): 1200:1
Display brightness: 500
Display diagonal: 55
Display number of colours: 1.07 billion colours
Display resolution: 3840 x 2160
Display technology: LCD
Haze rate: 25
HD type: 4K Ultra HD
LED backlight: Yes
LED backlighting type: Edge-LED
Native aspect ratio: 16:9
Native refresh rate: 60
Panel life: 50000
Panel type: IPS
Response time: 8
Touchscreen: No
Viewing angle, horizontal: 178
Viewing angle, vertical: 178
DisplayPorts quantity: 1
DVI port: No
Ethernet LAN (RJ-45) ports: 1
HDMI input ports quantity: 3
HDMI output ports quantity: 1
HDMI ports quantity: 4
Remote (IR) input: 1
RS-232C: Yes
USB connector type: USB Type-A
USB port: Yes
USB ports quantity: 1
USB version: 2.0
Built-in speaker(s): Yes
RMS rated power: 20
Bezel width (bottom): 12.9
Bezel width (side): 8.9
Bezel width (top): 8.9
Orientation: Horizontal/Vertical
Panel mounting interface: 300 x 300
Placement supported: Indoor
Product colour: Black
Product design: Digital signage flat panel
VESA mounting: Yes
Automatic brightness control: Yes
HDCP: Yes
HDCP version: 1.4/2.2/2.3
International Protection (IP) code: IP5X
On Screen Display (OSD): Yes
Operating hours (hours/days): 24/7
Picture-in-Picture: Yes
Purpose: Universal
AC input frequency: 50-60
AC input voltage: 100-240
Energy efficiency class (HDR): Not available
Energy efficiency class (SDR): G
Heat dissipation: 351
Power consumption (max): 160
Power consumption (standby): 0.5
Power consumption (typical): 103
Computer system: Yes
Computer system type: System on Chip (SoC)
Internal memory: 16
Operating system installed: WebOS
Operating system version: 6.0
Display depth: 29.7
Display height: 707.2
Display weight: 16100
Display width: 1231.4
Package depth: 161
Package height: 801
Package weight: 20500
Package width: 1360
Batteries included: Yes
Cables included: AC/Phone
Remote control included: Yes
Operating relative humidity (H-H): 10 – 80
Operating temperature (T-T): 0 – 40
Ethernet LAN: Yes
Wi-Fi: Yes
Heat dissipation (max): 546
Real Time Clock (RTC): Yes
Audio output: 1
Plug and Play: Yes
Power consumption (PowerSave): 72
Power supply type: Internal
Data Sheet (Link): https://eprel.ec.europa.eu/api/product/2194778/fiches?language=EN
Energy efficiency class: G
EPREL Registration Number: 2194778
EPREL Version Number: 1.001
Model: 55UH5N-M
Model name: 55UH5N-M
Unit Calculated Volume: 0.1674432
Unit Calculated Weight: 20.5
