Description:
New High Haze UHD Standard Signage
Adequate Brightness Level
The 75UH5J-M series boasts an adequate brightness level of 500 cd/m² for indoor displays, effectively showcasing content and capturing the public’s attention. This makes it an adequate display solution for marketing purposes in various settings, including meeting rooms, airports, retail outlets, and shopping malls.
High-Performance with webOS
LG webOS platform enhances user convenience with intuitive GUI and simple app development tools.
Conformal Coating
In various places the 75UH5J-M series is unable to avoid exposure to environments containing dust, humidity, etc. which may hamper performance over time. The conformal coating on power board reduces these risks by protecting 75UH5J-M series from salt, dust, iron powder, humidity, etc.
IP5x Certified Design
The IP5x Dust-Proof Certification ensures that the product is protected from dust, reducing the risk of performance degradation.
Compatible with AV Control System
The 75UH5J-M series has supported Crestron Connected® for high compatibility with professional AV controls to achieve seamless integration and automated control*,
boosting business management efficiency.
- Brightness(Typ.) : 500 cd/m²
- Surface Treatement (Haze) : 28%
- Bezel : 14.9 mm (Even bezel)
- Depth : 57.9 mm
- Interface : HDMI(3)/ DP/ DVI-D/ USB 2.0/ RS232C/ RJ45/ Audio/ IR
- Built-in Speaker

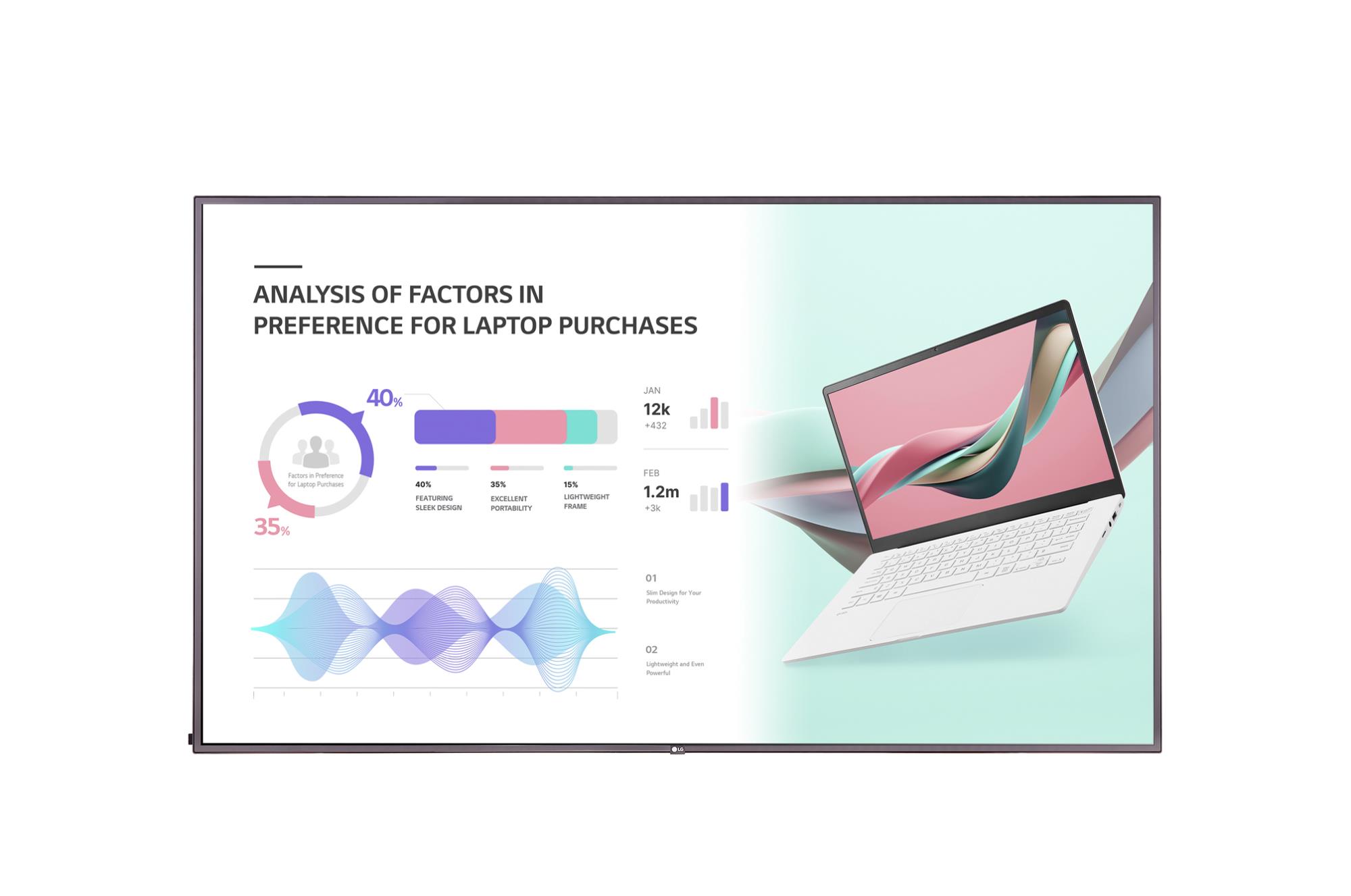

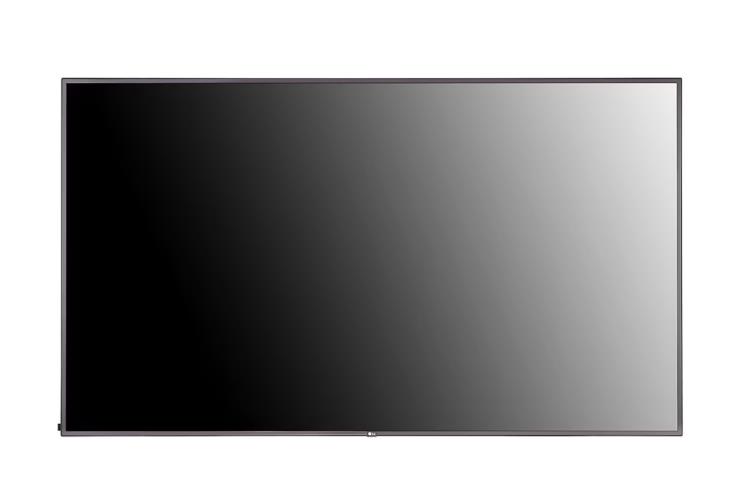

Summary: LG 75UH5J-M. Product design: Digital signage flat panel. Display diagonal: 190.5 cm (75″), Display technology: LCD, Display resolution: 3840 x 2160 pixels, Display brightness: 500 cd/m², HD type: 4K Ultra HD. Wi-Fi. Operating hours (hours/days): 24/7. Operating system installed: WebOS. Product colour: Black
Vendor Homepage: https://www.lg-informationdisplay.com/product/digital-signage/standard/75UH5J-M
Category Code: LCD
CnCode: 85285291
Unit Box Height: 1.12
Unit Box Length: 1.82
Unit Box Width: 0.23
Colour gamut: 72
Contrast ratio (dynamic): 1000000:1
Contrast ratio (typical): 1000:1
Display brightness: 500
Display diagonal: 75
Display number of colours: 1.07 billion colours
Display resolution: 3840 x 2160
Display technology: LCD
Haze rate: 28
HD type: 4K Ultra HD
LED backlight: Yes
LED backlighting type: Edge-LED
Native aspect ratio: 16:9
Native refresh rate: 120
Panel life: 50000
Panel type: IPS
Response time: 6
Touchscreen: No
Viewing angle, horizontal: 178
Viewing angle, vertical: 178
DisplayPorts quantity: 1
DVI port: No
Ethernet LAN (RJ-45) ports: 1
HDMI input ports quantity: 3
HDMI output ports quantity: 1
HDMI ports quantity: 4
Remote (IR) input: 1
RS-232C: Yes
USB connector type: USB Type-A
USB port: Yes
USB ports quantity: 1
USB version: 2.0
Built-in speaker(s): Yes
Bezel width (bottom): 14.9
Bezel width (side): 14.9
Bezel width (top): 14.9
Orientation: Horizontal
Panel mounting interface: 600 x 400
Placement supported: Indoor
Product colour: Black
Product design: Digital signage flat panel
VESA mounting: Yes
Automatic brightness control: Yes
HDCP: Yes
HDCP version: 1.4/2.2/2.3
On Screen Display (OSD): Yes
Open Pluggable Specification (OPS): Yes
Operating hours (hours/days): 24/7
Picture-in-Picture: Yes
Purpose: Universal
AC input frequency: 50-60
AC input voltage: 100-240
Power consumption (max): 230
Power consumption (standby): 0.5
Power consumption (typical): 170
Internal memory: 16
Operating system installed: WebOS
Operating system version: 6.0
Display depth: 57.9
Display height: 960.3
Display weight: 41500
Display width: 1682.4
Package depth: 228
Package height: 1123
Package weight: 51200
Package width: 1816
Batteries included: Yes
Cables included: AC
Remote control included: Yes
Operating relative humidity (H-H): 10 – 80
Operating temperature (T-T): 0 – 40
Ethernet LAN: Yes
Wi-Fi: Yes
Real Time Clock (RTC): Yes
Audio output: 1
Plug and Play: Yes
Power consumption (PowerSave): 120
Unit Calculated Volume: 0.4688
Unit Calculated Weight: 51.2
