Description:

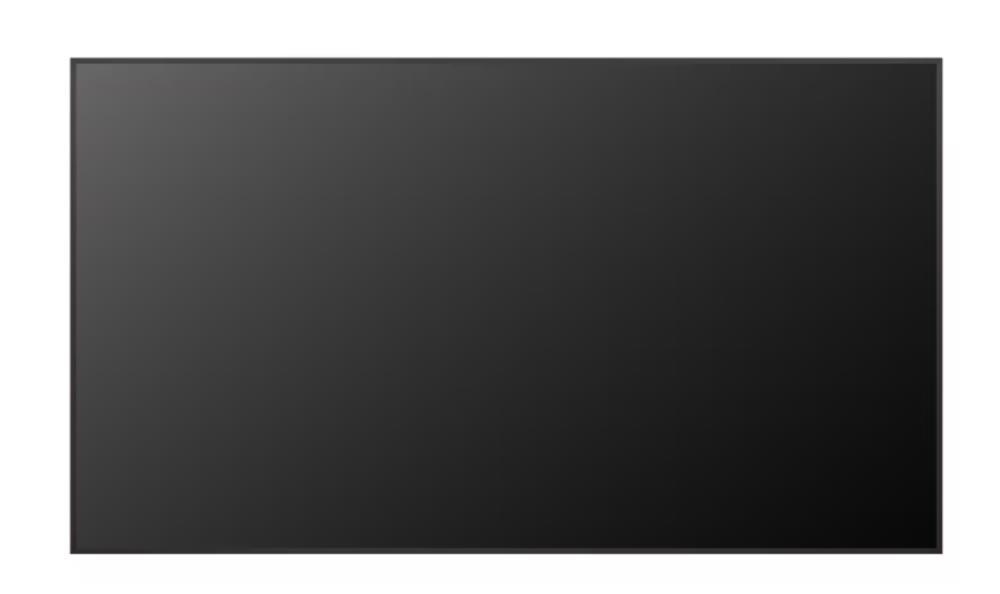

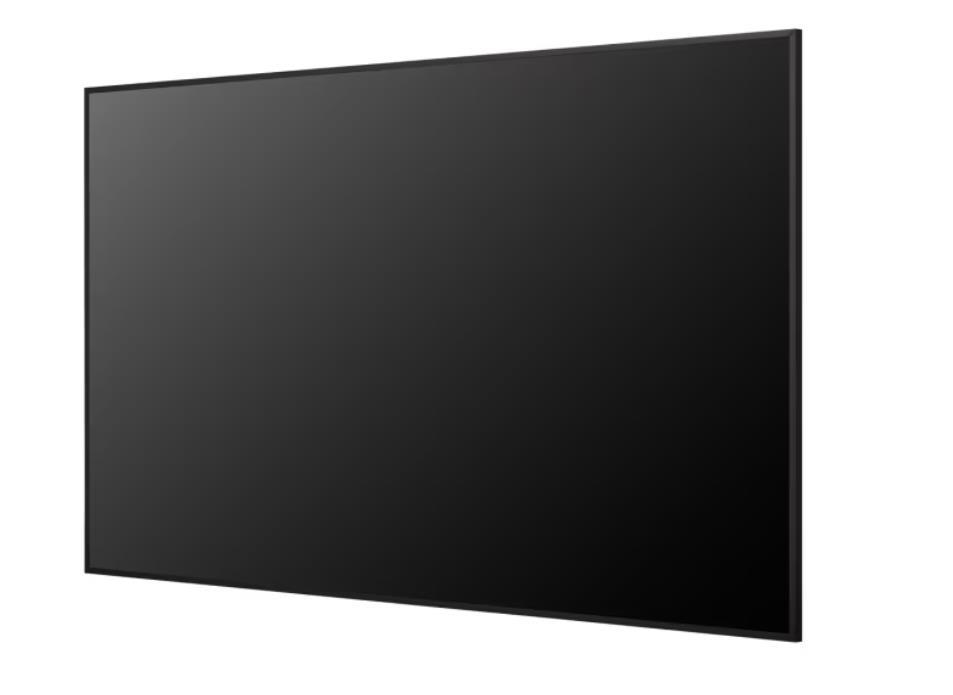

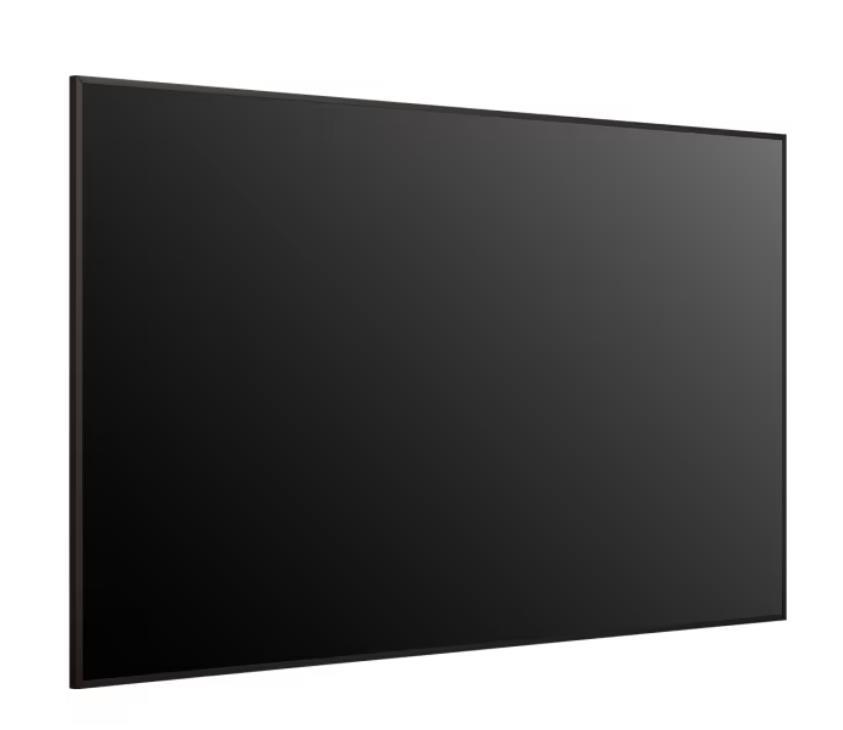

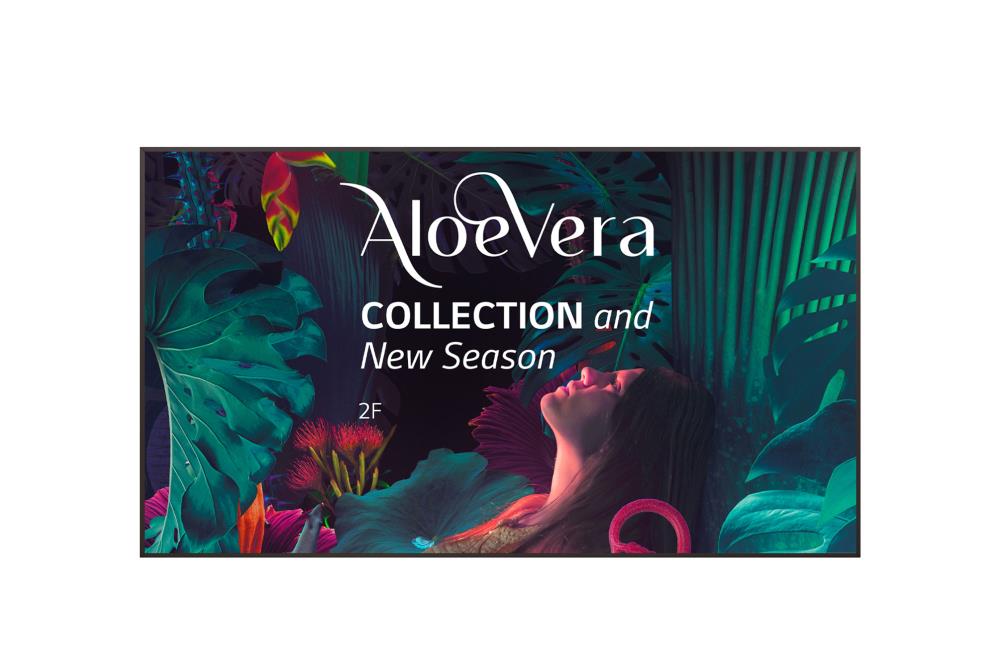

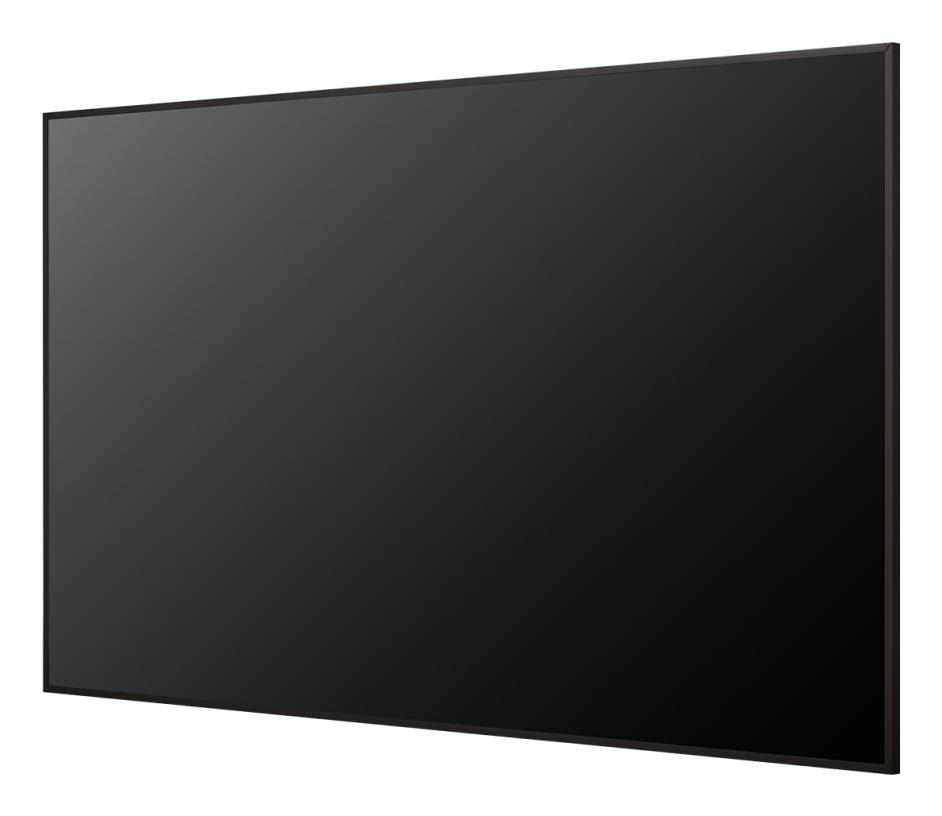

Large UHD Signage Display with Slim Design

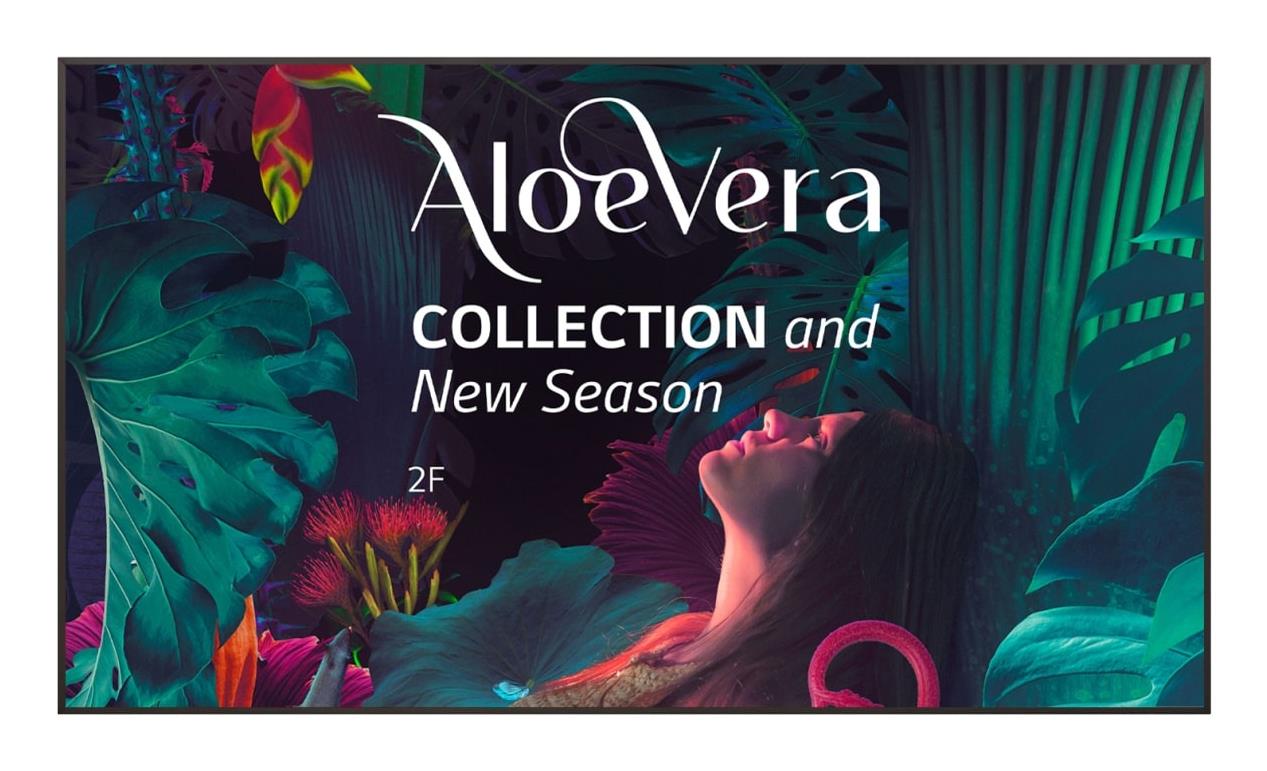

Eye-catching Large Screen
A large screen effectively captures people’s attention. Especially, 75-inch model supports 60Hz, enabling smooth content operation.
Sturdy Design with Fire Flame Resistance
The outer cover of the product is designed to effectively resist fire flame spread, making the product a great fit for installation in public spaces.
* Based on third party testing, the case top and back cover of the product are classified Class A1 (case top) and A2 (back cover) under EN13501-1, Class 1 under BS476 Part 7.

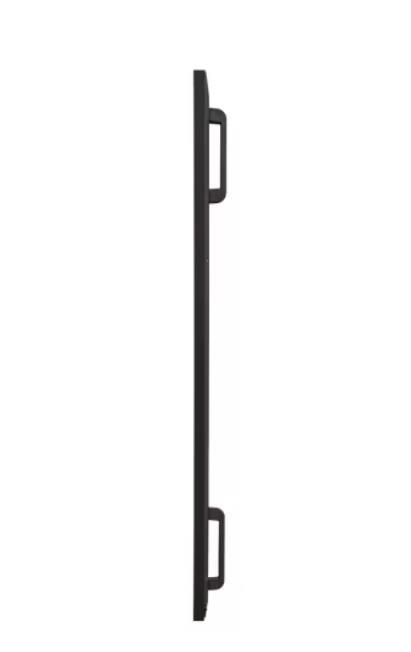

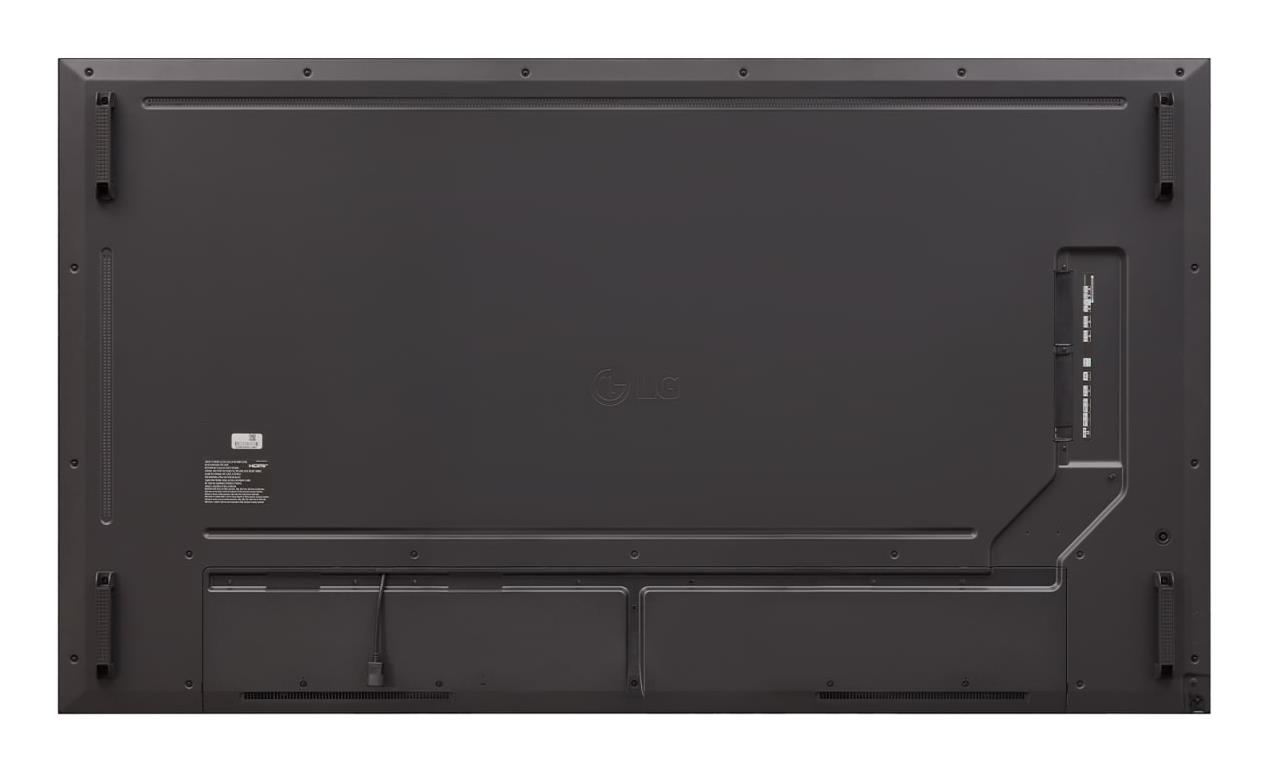

Slim Depth with Even Bezel
Despite its large screen, UH5N-M boasts a slim depth, which is advantageous for interior design. To avoid visual issues when adjusting to portrait mode, the bezel maintains uniform thickness on all four sides, providing even symmetry on the top, bottom, left, and right. Therefore, it is a model suitable for various styling options.

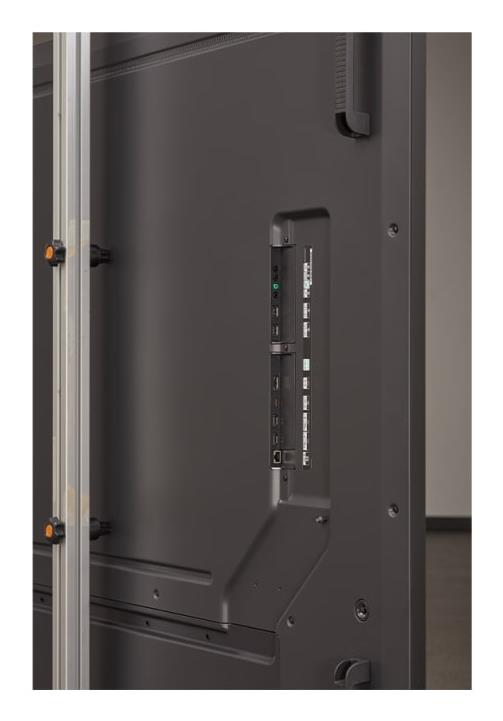

Versatile Operation with Multi-USB
With support for two USB ports, UH5N-M offers versatile usage options. For example, operating content on the screen while simultaneously using other connected devices is possible. This includes convenient tasks like downloading PPT files from external storage devices while using a mouse or keyboard during a meeting.
High Resolution Display
It offers a resolution that is four times higher than FHD, satisfying customers visually. Additionally, the anti-glare coating on the screen reduces screen reflection in bright lighting environments, increasing visibility and legibility, providing customers with a comfortable screen.
Convenient webOS Platform
The UH5N-M is equipped with a high-performance SoC that allows for multiple tasks to be performed without a separate media player. The webOS platform provides app development tools with an intuitive UI that enhances user convenience, enabling easy connection with external sensors and webOS partner apps to create an SI-friendly environment.
Durability that Provides Reliability
Optimized for business environments, the UH5N-M is protected against rust and dust with conformal coating and IP5x certification, allowing for stable operation.
Enhanced Security Features
The UH5N-M provides advanced security features, including LG’s Enhanced Kernel Protection (EKP) technology, protecting important data from external access or attacks. LG UHD Signage also holds reliable certifications in the field of information security, maintaining customers’ data and businesses securely. For example, this model is ISO/IEC 15408 Common Criteria EAL2 Certified.
SuperSign Solutions
SuperSign is an integrated and intuitive content management solution for creative and organized digital signage content in your space, connecting customers to a range of services with convenient user experiences. There are a variety of versions such as SuperSign Cloud, so discover and enjoy the version that best fits you.
- Resolution : 3,840 × 2,160 (UHD)
- Brightness : 500 nits (Typ.)
- Surface Treatment (Haze) : 25%
- Bezel Width : 13.4 mm
Summary: LG 86UH5N-M. Product design: Digital signage flat panel. Display diagonal: 2.18 m (86″), Display technology: LED, Display resolution: 3840 x 2160 pixels, Display brightness: 500 cd/m², HD type: 4K Ultra HD. Wi-Fi. Operating hours (hours/days): 24/7. Operating system installed: WebOS. Product colour: Black
Vendor Homepage: https://www.lg.com/global/business/digital-signage/lg-86uh5n-m
Category Code: LCD
CnCode: 85285291
Unit Box Height: 0.245
Unit Box Length: 2.09
Unit Box Width: 2.15
Colour depth: 8
Colour gamut: 95
Contrast ratio (dynamic): 1000000:1
Contrast ratio (typical): 1200:1
Display brightness: 500
Display diagonal: 86
Display number of colours: 1.07 billion colours
Display resolution: 3840 x 2160
Display technology: LED
Haze rate: 25
HD type: 4K Ultra HD
LED backlight: Yes
LED backlighting type: Edge-LED
Native aspect ratio: 16:9
Native refresh rate: 120
Panel life: 50000
Panel type: IPS
Response time: 8
Touchscreen: No
Viewing angle, horizontal: 178
Viewing angle, vertical: 178
DisplayPorts quantity: 1
DVI port: No
Ethernet LAN (RJ-45) ports: 1
HDMI input ports quantity: 3
HDMI ports quantity: 3
Remote (IR) input: 1
RS-232C: Yes
USB connector type: USB Type-A
USB port: Yes
USB ports quantity: 2
USB version: 2.0
Built-in speaker(s): Yes
RMS rated power: 20
Bezel width (bottom): 13.4
Orientation: Horizontal
Panel mounting interface: 600 x 400
Placement supported: Indoor
Product colour: Black
Product design: Digital signage flat panel
VESA mounting: Yes
Automatic brightness control: Yes
HDCP: Yes
HDCP version: 1.4/2.2/2.3
International Protection (IP) code: IP5X
On Screen Display (OSD): Yes
Operating hours (hours/days): 24/7
Purpose: Universal
AC input frequency: 50-60
AC input voltage: 100-240
Heat dissipation: 672
Power consumption (max): 297
Power consumption (standby): 0.5
Power consumption (typical): 197
Computer system: Yes
Computer system type: System on Chip (SoC)
Internal memory: 16
Operating system installed: WebOS
Operating system version: 6.0
Display depth: 29.7
Display height: 1099.8
Display weight: 52700
Display width: 1928.8
Package depth: 253
Package height: 1250
Package weight: 65500
Package width: 2100
Batteries included: Yes
Cables included: AC/Phone
Remote control included: Yes
Operating relative humidity (H-H): 10 – 80
Operating temperature (T-T): 0 – 40
Ethernet LAN: Yes
Wi-Fi: Yes
Heat dissipation (max): 1013
Real Time Clock (RTC): Yes
Audio output: 1
Plug and Play: Yes
Product name: Digital signage LFD
Model name: 86UH5N-M
Unit Calculated Volume: 1.1009075
Unit Calculated Weight: 72
