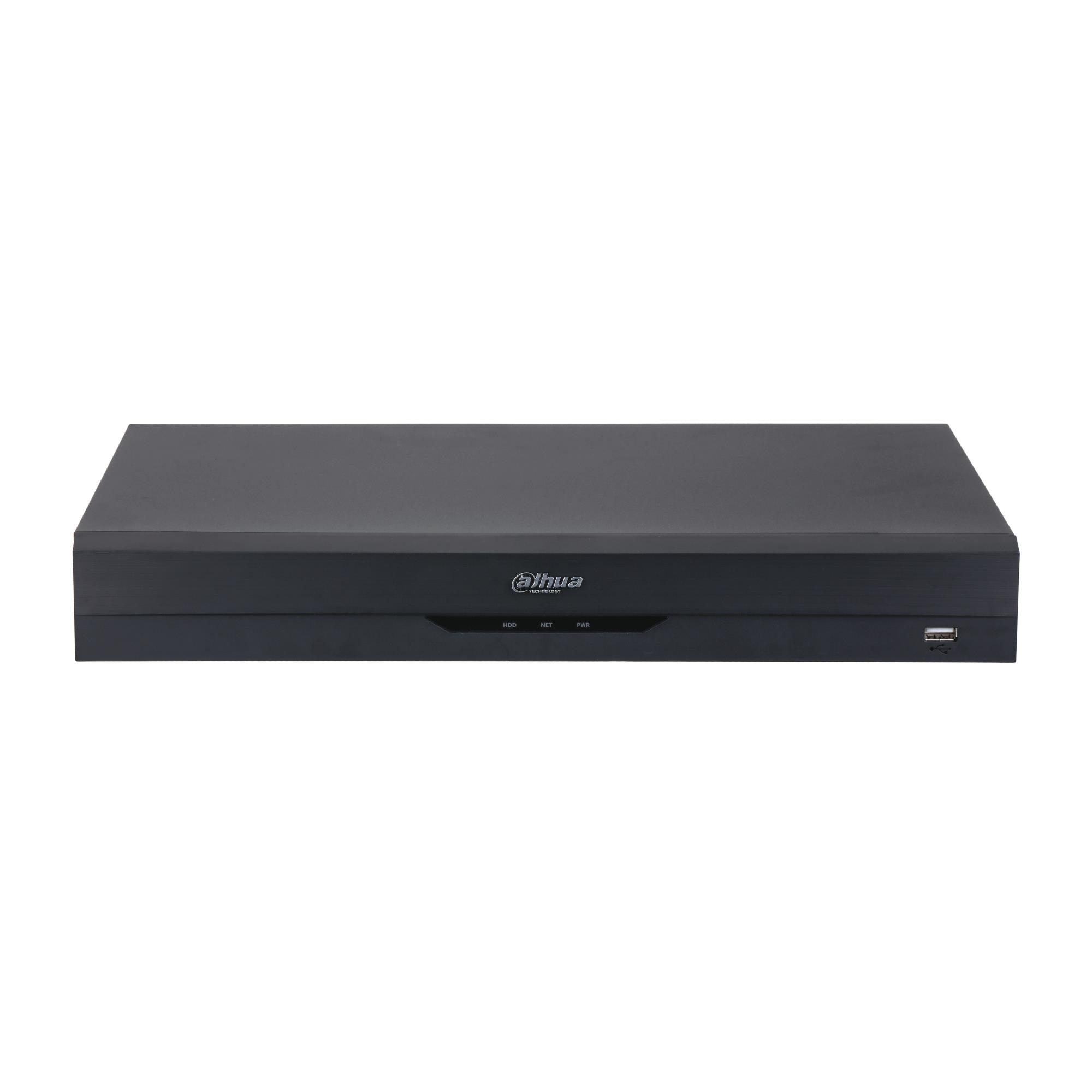

Description: Pentabrid capability: Each channel supports up to 5MP: HDCVI, AHD, TVI, CVBS and 6MP IP Video input, Auto-detect
16-channel BNC interface
HDCVI/AHD/HD-TVI recording: 5MP, 4MP, 1080P@25/30 fps, 720P@50/60 fps, 720P@25/30 fps.
Record: 5M-N (1 fps–10 fps); 4M-N/1080P (1 fps–15fps); 1080N/720P/960H/D1/CIF (1fps–25/30 fps)
IP: 16+8 channels, each channel up to 6MP; Max 128Mbps Incoming Bandwidth
AI Coding/H.265+/H.265/H.264+/H.264 video compression
G.711A, G.711U, PCM audio compression,
2x SATA interfaces up to 32 TB total storage
VGA/HDMI up to 3840×2160 output
RJ-45 1GB, 2x USB ports, RS485
No front panel control, 1/1 Audio I/O, no Alarm I/O
Full size 1U case, mouse included
ONVIF 16.12, CGI Conformant, Coax audio, IoT & POS support
Third-party IP camera support: Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek, and more
Up to 2 channels video stream ( analog channel ) Perimeter Protection
Up to 16 channels video stream ( analog channel ) SMD Plus
Up to 2 channels video stream (analog channel ) human face recognition
IoT & POS functionalities
Free IP monitoring software available
Vendor Homepage: www.dahuasecurity.com/ceen/products/All-Products/HDCVI-Recorders/Lite-AI-Series/I3-Series/5M-N/1080P-Series/XVR5216AN-I3
DVR type: 16 Channel
SATA: Yes/Yes
USB: Yes/Yes
Camera Compatibility: AHD 5MP/Analog/HDCVI 1080P/HDCVI 4MP/HDCVI 720P/HD-TVI/TurboHD 5MP/IP
Audio-In: 1
Audio-Out: 1
Power supply requirements: DC12V, 4A
Dimensions: 375.0 mm × 289.0 mm × 53.0 mm
Shipping box quantity: 1
Shipping Box Depth: 43.5
Shipping Box Height: 36
Shipping Box Weight: 2.9
Shipping Box Width: 14
Unit Brutto Volume: 0.02192
Unit Net Weight: 1.56
Unit Gross Weight: 2.9
CnCode: 85219000
Unit Box Width: 0.14
Unit Box Length: 0.435
Unit Box Height: 0.36
Full Description Line: 16 Channel|Camera Compatibility Analog/IP/AHD 5MP/HDCVI 720P/HDCVI 1080P/HDCVI 4MP/HD-TVI/TurboHD 5MP|SATA|USB|1xAudio-In|1xAudio-Out|DC12V, 4A
Category Code: STD
