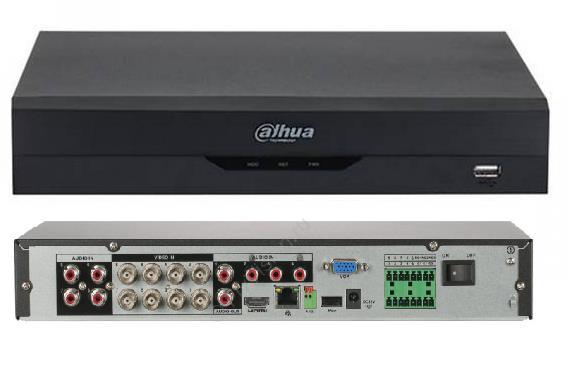

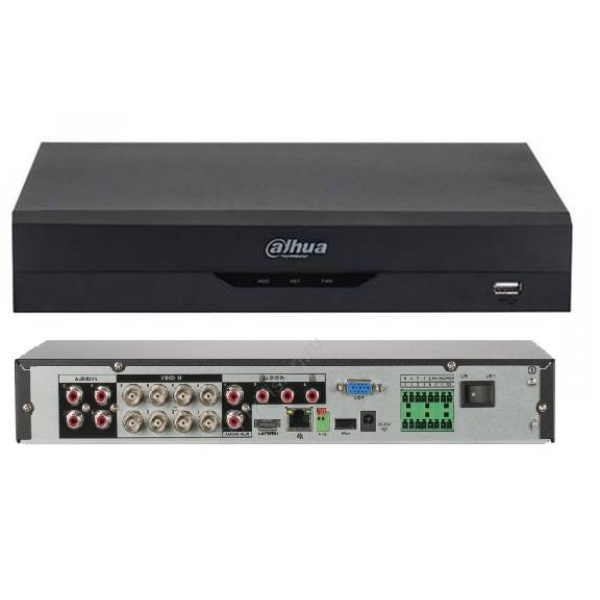

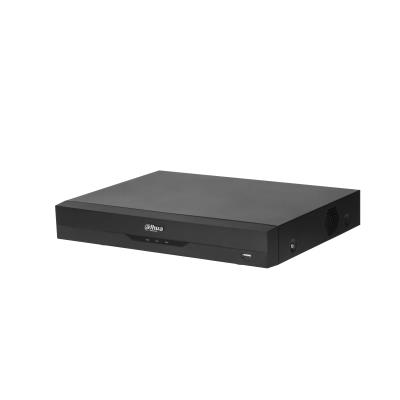

Description: 8 Channel Penta-brid 5M-N/1080p Mini 1U 1HDD WizSense Digital Video Recorder
HDCVI Camera Input: 5MP, 4MP, 1080p@ 25/30 fps, 720p@ 50/60 fps, 720p@ 25/30 fps
AHD Camera Input: 5MP, 4MP, 1080p@ 25/30 fps, 720p@ 25/30 fps
TVI Camera Input: 5MP, 4MP, 1080p@ 25/30 fps, 720p@ 25/30 fps
CVBS Camera Input: PAL/NTSC
IP Camera Input: 8+4 channels, each channel up to 6MP
Recording: All channel 5M-N (1 fps–10 fps); 4M-N/1080p (1 fps–15 fps); 1080N/720p/960H/D1/CIF (1 fps–25/30 fps)
Max 6 channels IP camera inputs, each channel up to 6MP; Max 32 Mbps incoming bandwidth
AI Coding/H.265+/H.265/H.264+/H.264 video compression
Audio In/Out: 8/1, RCA, G.711A, G.711U, PCM audio compression
1x SATA interface up to 10 TB storage
VGA/HDMI up to Full HD output
RJ-45, 2x USB ports, RS485
No front panel control, 8/3 Alarm I/O
Compact 1U case, mouse included
ONVIF 16.12, CGI Conformant, Smart Search, Coax audio support
Third-party IP camera support: Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek, and more
Human/Vehicle secondary recognition for tripwire and intrusion, Search by target classification (Human, Vehicle)
Up to 1 channel video stream ( analog channel ) Perimeter Protection
Up to 4 channels video stream ( analog channel ) SMD Plus
Up to 1 channel video stream (analog channel ) human face recognition
IoT & POS functionalities
Free IP monitoring software available
Vendor Homepage: www.dahuasecurity.com/products/All-Products/HDCVI-Recorders/WizSense-Series/I3-Series/5M-N/1080P-Series/XVR5108HE-I3
DVR type: 8 Channel
RS-485: Yes
SATA: Yes
USB: Yes
Camera Compatibility: AHD 5MP/Analog/HDCVI 1080P/HDCVI 4MP/HDCVI 720P/HD-TVI/TurboHD 5MP/IP
15pin D-sub: 1
Alarm In: 8
Alarm Out: 3
Audio-In: 8
Audio-Out: 1
HDMI: 1
RJ45: 1
Units per Shipping Box: 1
Shipping Box Depth: 37
Shipping Box Height: 30.5
Shipping Box Weight: 1.85
Shipping Box Width: 11.5
Unit Calculated Volume: 0.01298
Product Net Weight: 1
Unit Calculated Weight: 1.85
CnCode: 85219000
Unit Box Width: 0.115
Unit Box Length: 0.37
Unit Box Height: 0.305
Full Description Line: 8 Channel|Camera Compatibility Analog/IP/AHD 5MP/HDCVI 720P/HDCVI 1080P/HDCVI 4MP/HD-TVI/TurboHD 5MP|SATA|USB|RS-485|1x15pin D-sub|1xHDMI|8xAudio-In|1xAudio-Out|1xRJ45|8xAlarm In|3xAlarm Out
Category Code: STD
