Description:

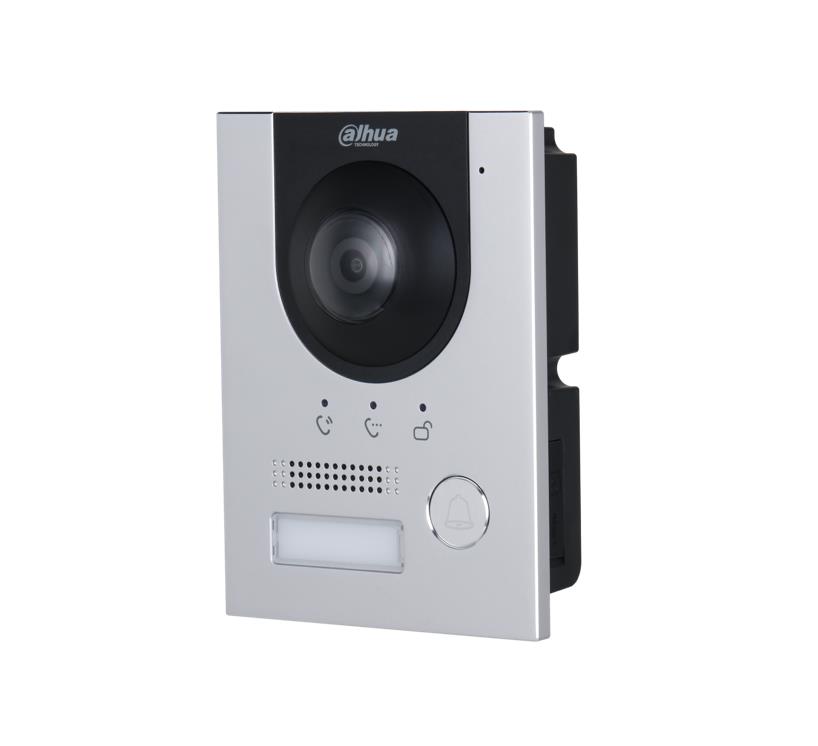

2-wire IP Villa Door Station
> Anodized aluminum front panel.
> CMOS low illumination 2MP HD colorful 168.6° camera.
> Video intercom function.
> Provides 12 VDC, 600 mA power.
> Mobile phone app, talk to the visitor or unlock the door remotely on your phone.
> IK07 & IP65 rated (silicone sealant is required for the shell, see the quick start guide).
> Support surface and flush mount.
> Support H.265 and H.264.
> Standard PoE power supply (if the VTO device with 12 V power output needs to charge the load, it should be connected to a PSE switch that complies with the 802.3.at standard).
Vendor Homepage: www.dahuasecurity.com/ceen/products/All-Products/Video-Intercoms/2-Wire-IP/Villa-Door-Station/Pro-Series/VTO2202F-P-S3
Category Code: DEV
CnCode: 85176920
Unit Box Height: 0.09
Unit Box Length: 0.15
Unit Box Width: 0.2
Alarm In: 1
Alarm Out: 1
RJ45: 1
RS-485: 1
Model: VTO2202F-P-S3
Operating temperature range: –30°C to +60°C
Dimensions: 130 mm × 96 mm × 28.5 mm
Units per Shipping Box: 1
Unit Calculated Volume: 0.0027
Product Net Weight: 0.35
Unit Calculated Weight: 0.48
