Description:
Economical Capacities and Fast Data Access for the Data Center
The Ultrastar® DC HA340 HDD in 4TB, 6TB, and 8TB delivers efficiency and performance for traditional and legacy systems based on proven CMR technology. Designed for a variety of applications including traditional storage arrays, rack-mounted storage enclosures and server-based storage systems, these drives are offered at 7,200 RPM with 6Gb/s SATA and Advanced Format 512e format.
Technology innovation delivers efficiency and performance for legacy systems
Address data center requirements by providing legacy capacities from 4TB to 8TB while implementing the latest in HDD storage technologies.
Proven and cost-efficient design
Ultrastar DC HA340 drives are based on an air-based HDD platform with Conventional Magnetic Recording (CMR) technology in a 3.5-inch form factor.
Performance and protection
These 4TB, 6TB, and 8TB HDD’s leverage a dual-stage microactuator to enhance head positioning accuracy for better drive performance.
Designed for data center workloads
The Ultrastar DC HA340 is performance-optimized to handle heavy application workloads of up to 550TB2 per year.
Built with reliability in mind
This robust drive delivers dependability in intense data center environments with up to 2M hours MTBF3 (projected).
Quality and security
Provides additional peace of mind with a 5-year limited warranty.
- Ultrastar DC HA340 drives extend Western Digital’s long-standing tradition of reliability leadership with a 2.0M-hour MTBF failure rating (projected) and a 5-year limited warranty.
- Capacity points support both OEM and cloud deployments as well as traditional IT systems.
- Performance-optimized to handle heavy application workloads up to 550TB per year

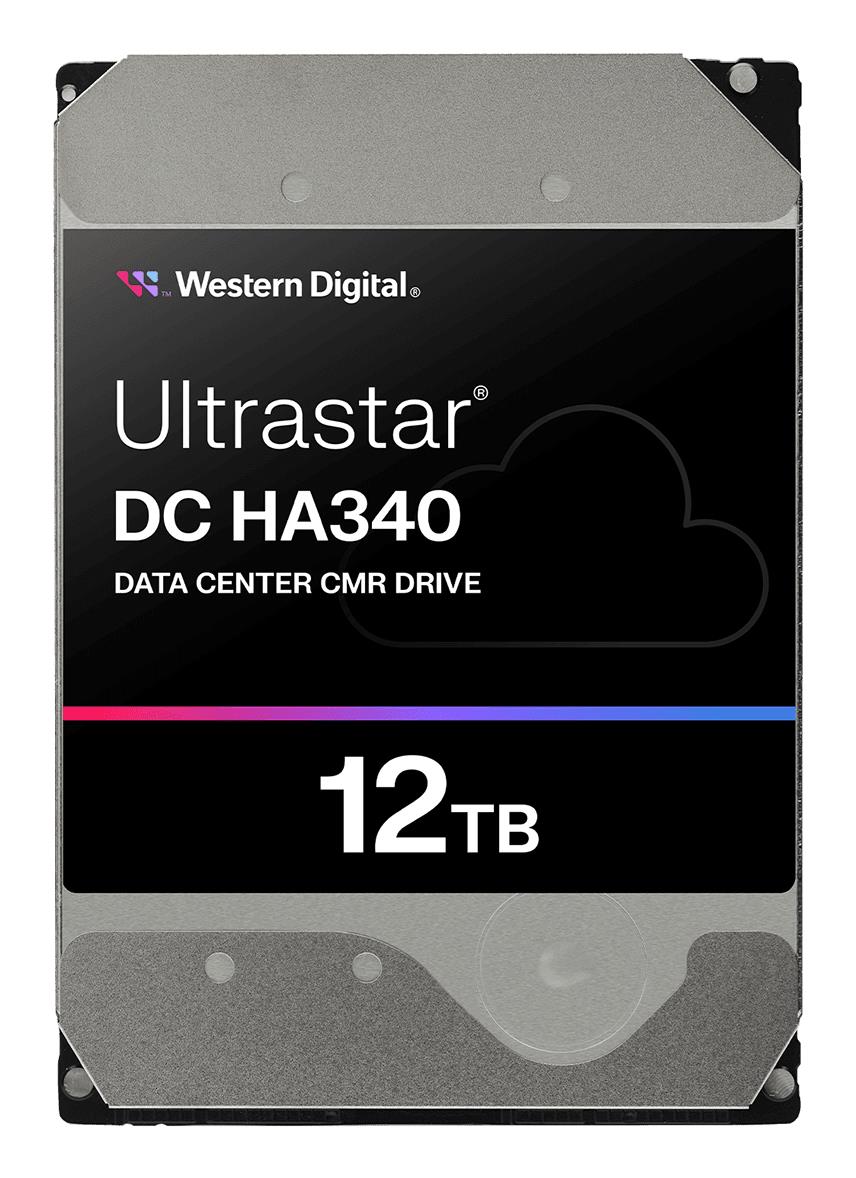

Summary: Western Digital Ultrastar DC HA340. HDD capacity: 12 TB, HDD speed: 7200 RPM, Storage drive buffer size: 512 MB, HDD size: 3.5″, Interface: Serial ATA
Vendor Homepage: https://www.westerndigital.com/products/internal-drives/data-center-drives/ultrastar-dc-ha340-hdd?sku=0B47063
Category Code: HES
CnCode: 84717050
Unit Box Height: 0.025
Unit Box Length: 0.1
Unit Box Width: 0.145
24/7 operation: Yes
Advanced Format (AF): Yes
Average latency: 4.16
Component for: Server/workstation
HDD capacity: 12000
HDD interface transfer rate: 6
HDD size: 3.5
HDD speed: 7200
HDD sustained transfer rate: 255
Interface: Serial ATA
Mean time between failures (MTBF): 2000000
Start/stop cycles: 600000
Storage drive buffer size: 512
Type: HDD
Uncorrectable Bit Error Rate (UBER): < 1 per 10^15 bits read
Workload rate limit: 550
Operating voltage: 5 / 12
Power consumption (idle): 8.4
Power consumption (typical): 9.2
Non-operating shock: 250
Non-operating vibration: 1.04
Operating shock: 70
Operating temperature (T-T): 5 – 60
Operating vibration: 0.67
Storage temperature (T-T): -40 – 70
Depth: 26.1
Height: 147
Weight: 750
Width: 101.6
Quantity per pack: 1
Linux operating systems supported: Yes
Windows operating systems supported: Yes
HDD Family name: Ultrastar DC HA340
Units per Pallet: 0
Units per Shipping Box: 20
Unit Calculated Volume: 0.001389
Product Net Weight: 0.7
Unit Calculated Weight: 0.785
