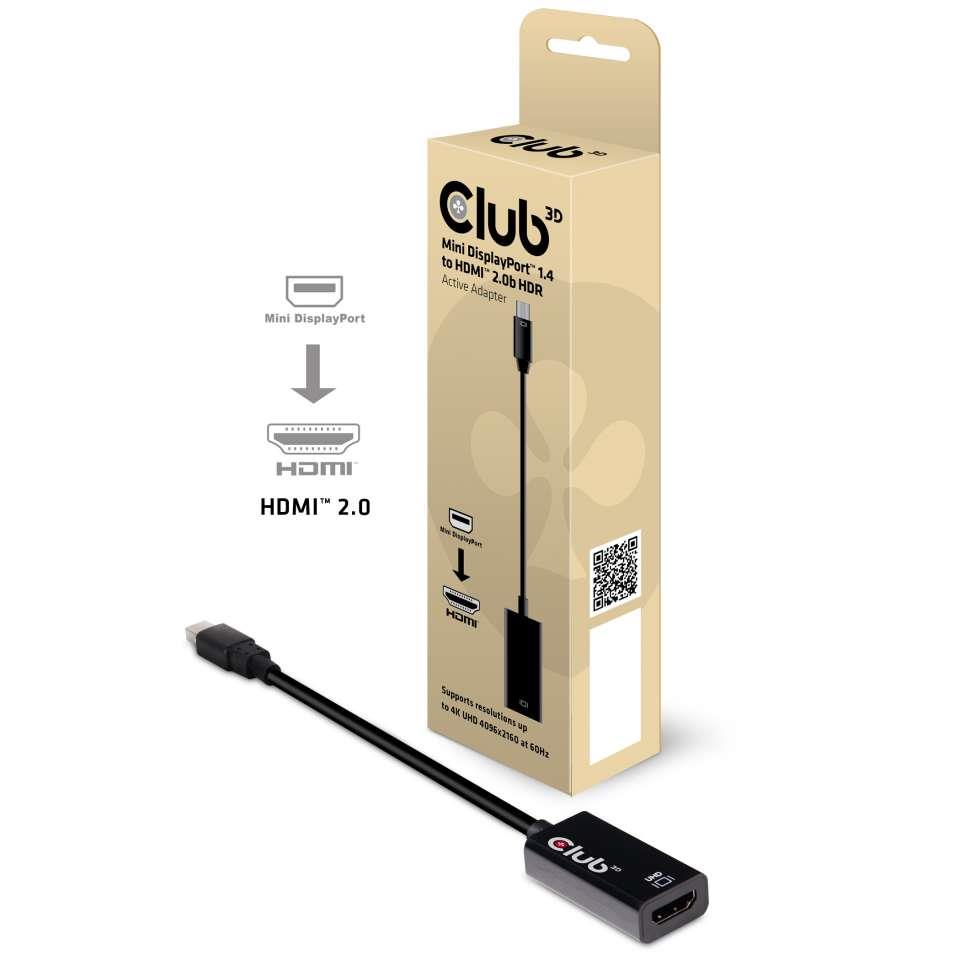

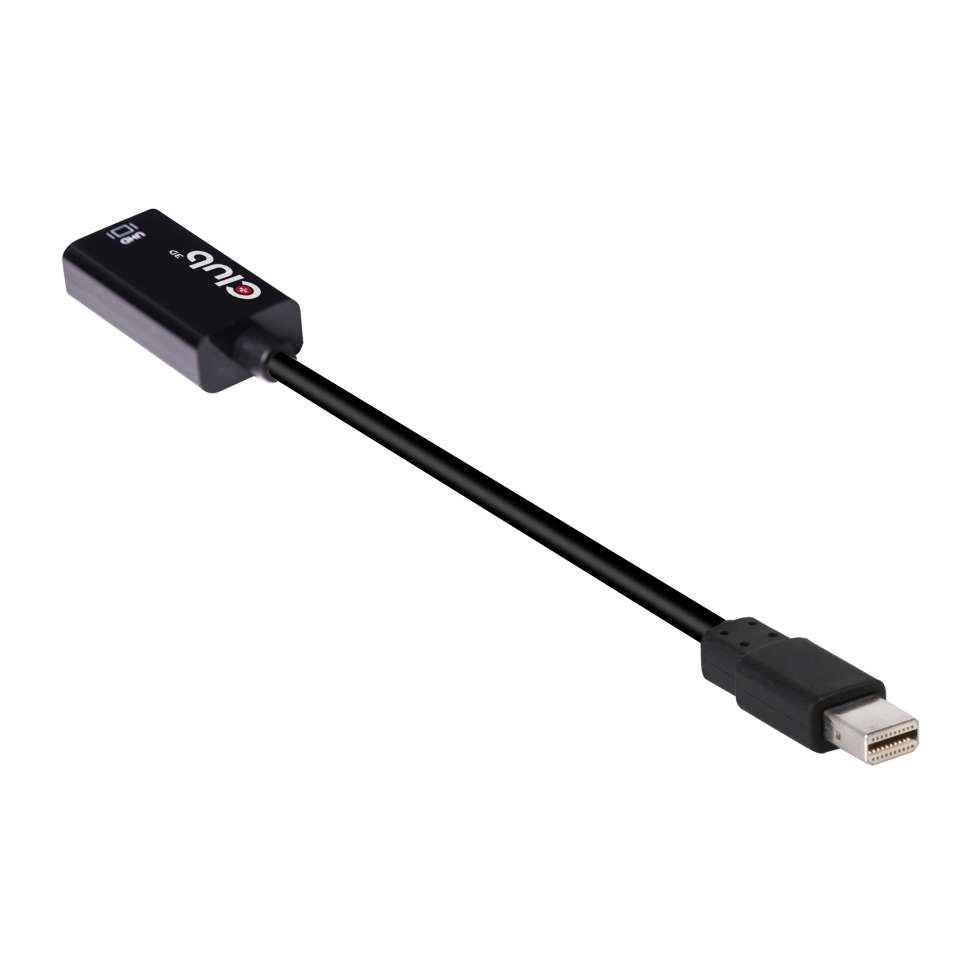

Description: Mini DisplayPort 1.4 to HDMI 2.0b HDR
CAC-1180 – The Club3D is a Mini DisplayPort™ 1.4 to HDMI™ 2.0b signal converter. It features support for HDR Video quality for deep color media content playback. The Mini DisplayPort™ receiver supports up to 5,4 Gbps per lane over 4 lanes. The HDMI™ output is fully compliant to HDMI™ specification version 2.0b.Supports up to 4K UHD Resolutions. The CAC-1180 supports UHD resolutions up to 4096 x 2160p at 60Hz.
Color Formats
It supports RGB/YCbCr video color formats with a color depth of 16bpc (or 48 bits per pixel) as long as it fits within the Mini DisplayPort™ and HDMI™ link bandwidth. The CAC-1180 also supports pixel encoding conversion from RGB or YCbCr 4:2:2 to YCbCr 4:2:0 and YCbCr 4:2:0 pass-trough function. In addition HDR with deep color up to 12Bpc at 4K 60Hz is supported through the conversion of RGB/YCbCr 4:2:2 over DP link to YCbCr 4:2:0 on the HDMI™ output with a horizontal expansion to CEA timings.
Note: For HDR to function, the source system needs to support DisplayPort™ 1.4 and the screen needs to have support for HDR and / or HDMI™ 2.0 a or b.
Vendor Homepage: www.club-3d.com/en/detail/2443/mini_displayport_1.4_to_hdmi_2.0b_hdr/
Model: CAC-1180
Product Type: Adapter
HDMI: 1
Mini DisplayPort: 1
Dimensions: 168.6 x 20 x 11 mm
Units per Shipping Box: 1
Shipping Box Depth: 21.5
Shipping Box Height: 3.5
Shipping Box Weight: 0.05
Shipping Box Width: 6.5
Unit Calculated Volume: 0.0004891
Product Net Weight: 0.03
Unit Calculated Weight: 0.05
CnCode: 84733080
Unit Box Width: 0.065
Unit Box Length: 0.215
Unit Box Height: 0.035
Full Description Line: Product Type Adapter|1xHDMI|1xMini DisplayPort
Category Code: IOC
