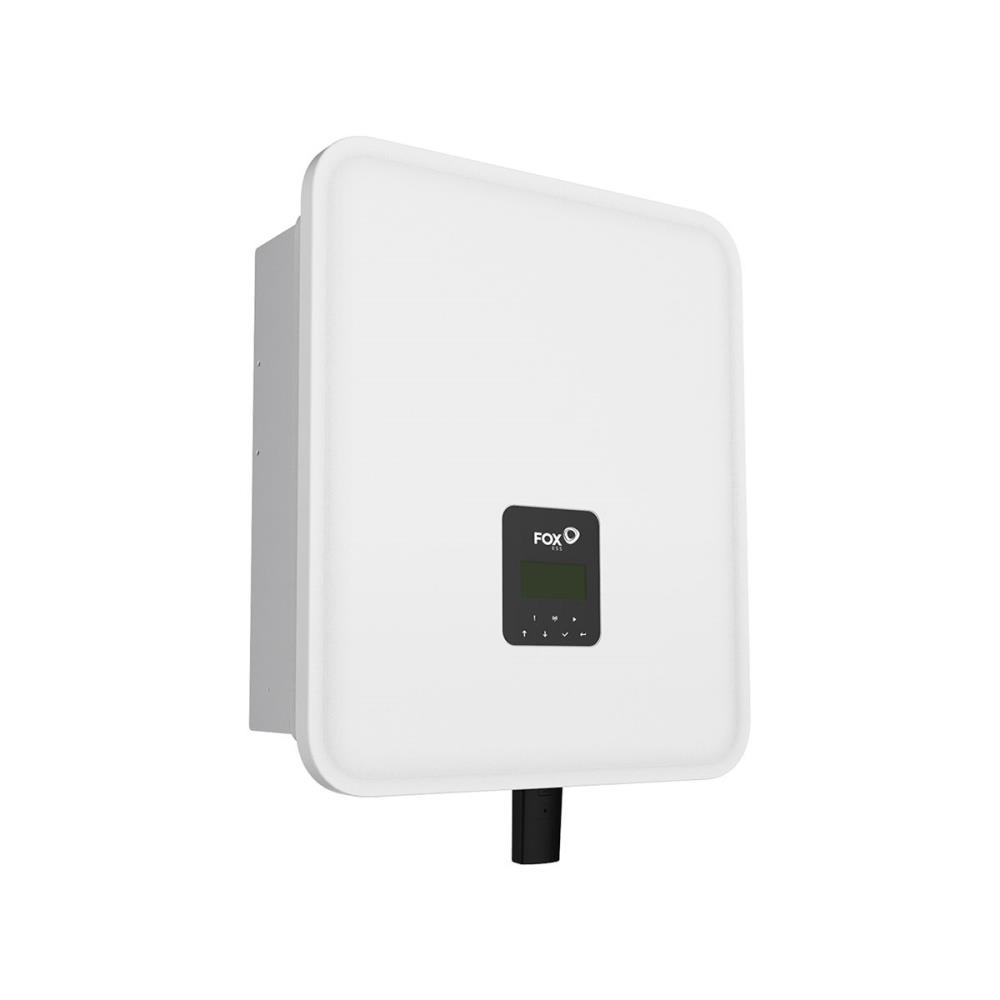

Description: H3-10.0-E
3-Phase hybrid inverter
Harness the power of the sun day and night with the ground-breaking range of Hybrid & AC inverters from FOXESS.
Full of advanced features and compatible with our very own range of high-voltage batteries, the hybrid range from FOXESS. It is a new class of Inverter.
Easily expand your system by just add extra batteries. There are three battery series you can choose, which enables a storage capacity of up to 28.21 Kwh. There are Max. 10 storage inverters can be connected in parallel to allow you enlarge the system scale base on different installation requirement.
Vendor Homepage: www.fox-ess.com/3-phase/
Model: H3-10.0-E
Phase: 3phase
Rated output power: 10000W
AC output voltage: 400V/230VAC
Max output current: 14.5 (per phase)
Number of MPP trackers: 2
Maximum DC input voltage: 1000
PV operating voltage range: 160-950
Maximum DC input current: 26 / 14
Compatible batteries: 180-600V, Lithium
Maximum battery input voltage: 480
Maximum battery input current: 26
Standby consumption: 15
Monitoring module: WiFi, LAN, 4G, GPRS (Optional)
IP Rating: IP65
Operating temperature range: -25 to +60 °C
Included Accessories: WiFi datalogger
Dimensions: 449x519x198mm
Shipping box quantity: 1
Shipping Box Depth: 62.5
Shipping Box Height: 38.5
Shipping Box Weight: 33.55
Shipping Box Width: 52.5
Unit Brutto Volume: 0.1263
Unit Net Weight: 28
Unit Gross Weight: 33.5
CnCode: 85044086
Unit Box Width: 0.525
Unit Box Length: 0.625
Unit Box Height: 0.385
Full Description Line: 3phase|Rated Output 10000W|AC output voltage 400V/230VAC|Max output current 14.5 (per phase)|Number of MPP trackers 2|Maximum DC input voltage 1000|Maximum DC input current 26 / 14|Maximum battery input voltage 480 V|Standby consumption 15 Watts|IP Rating IP65|Operating temperature range -25 to +60 °C|Dimensions 449x519x198mm|Weight 28 kg
Category Code: SIV
