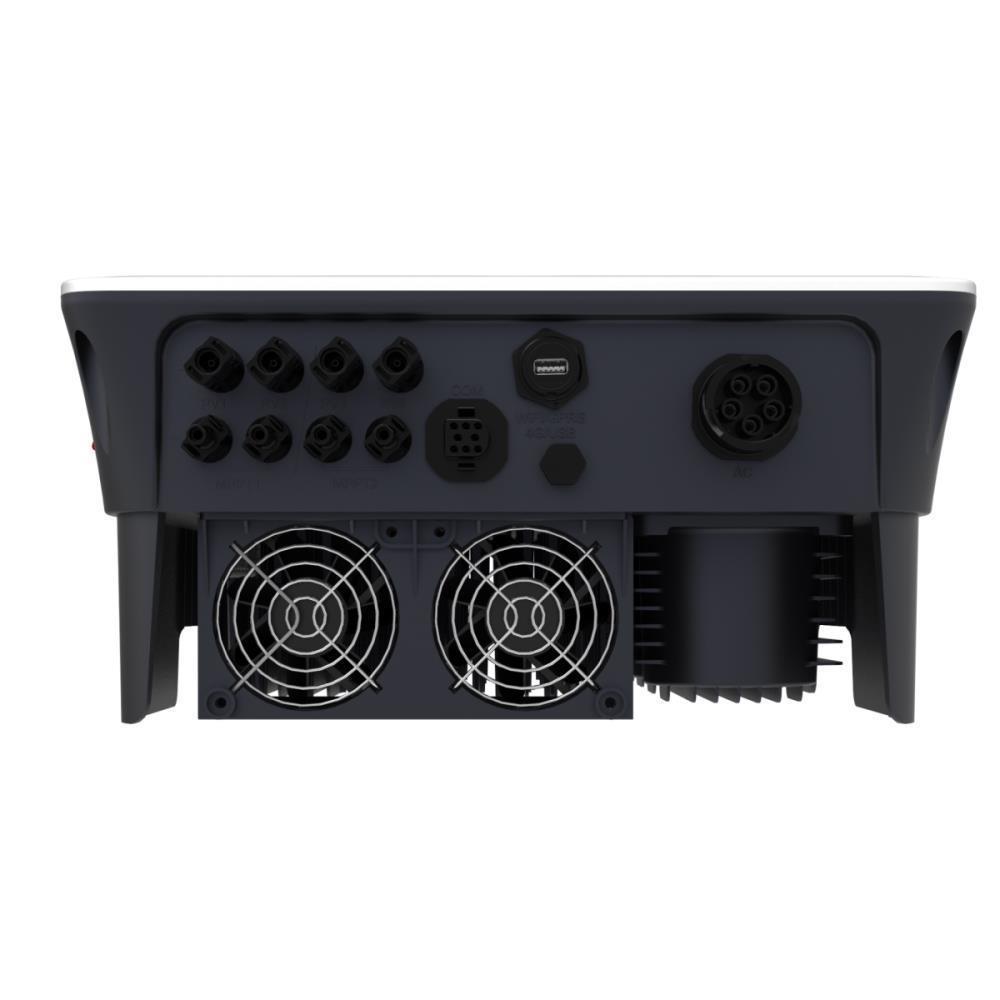

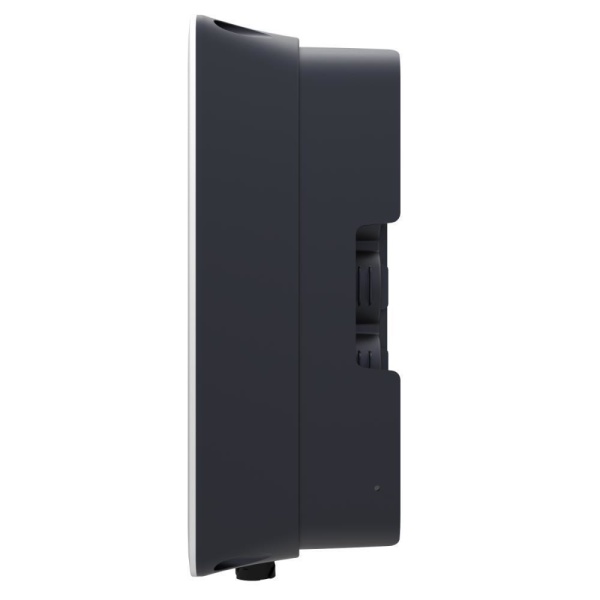

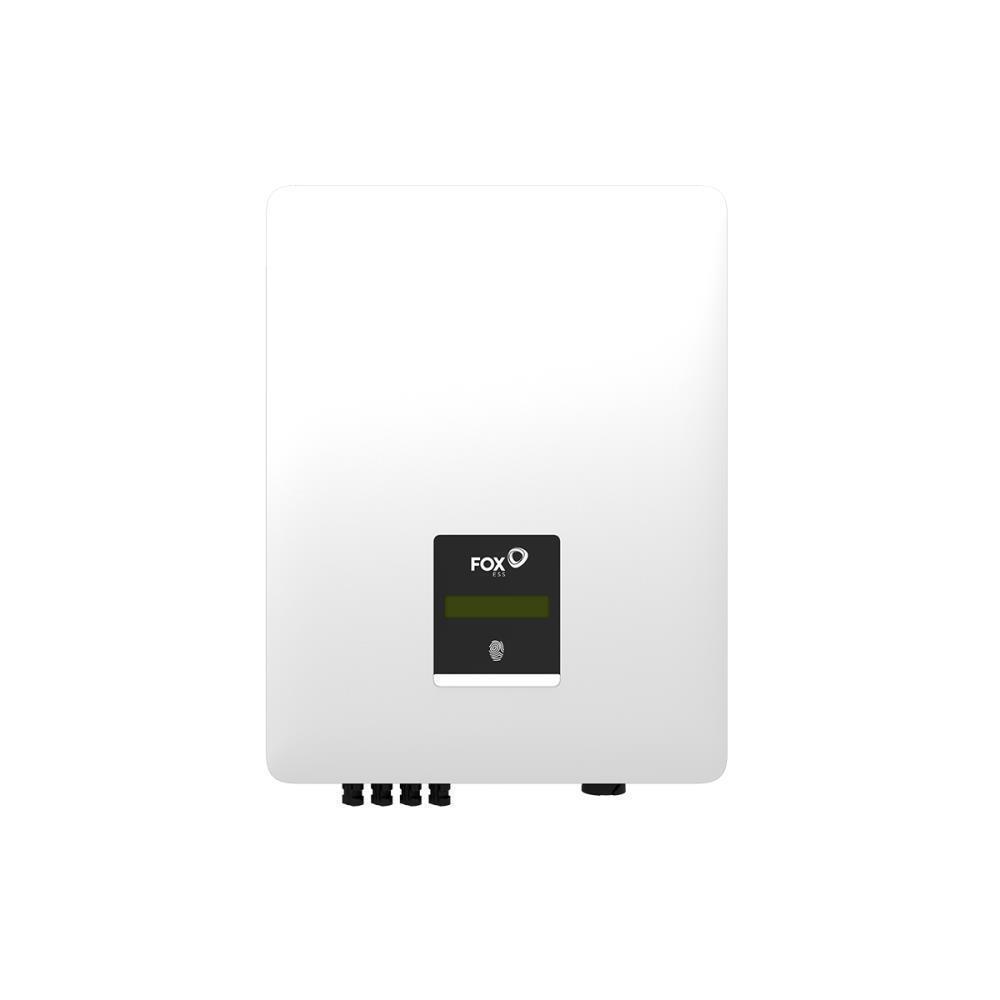

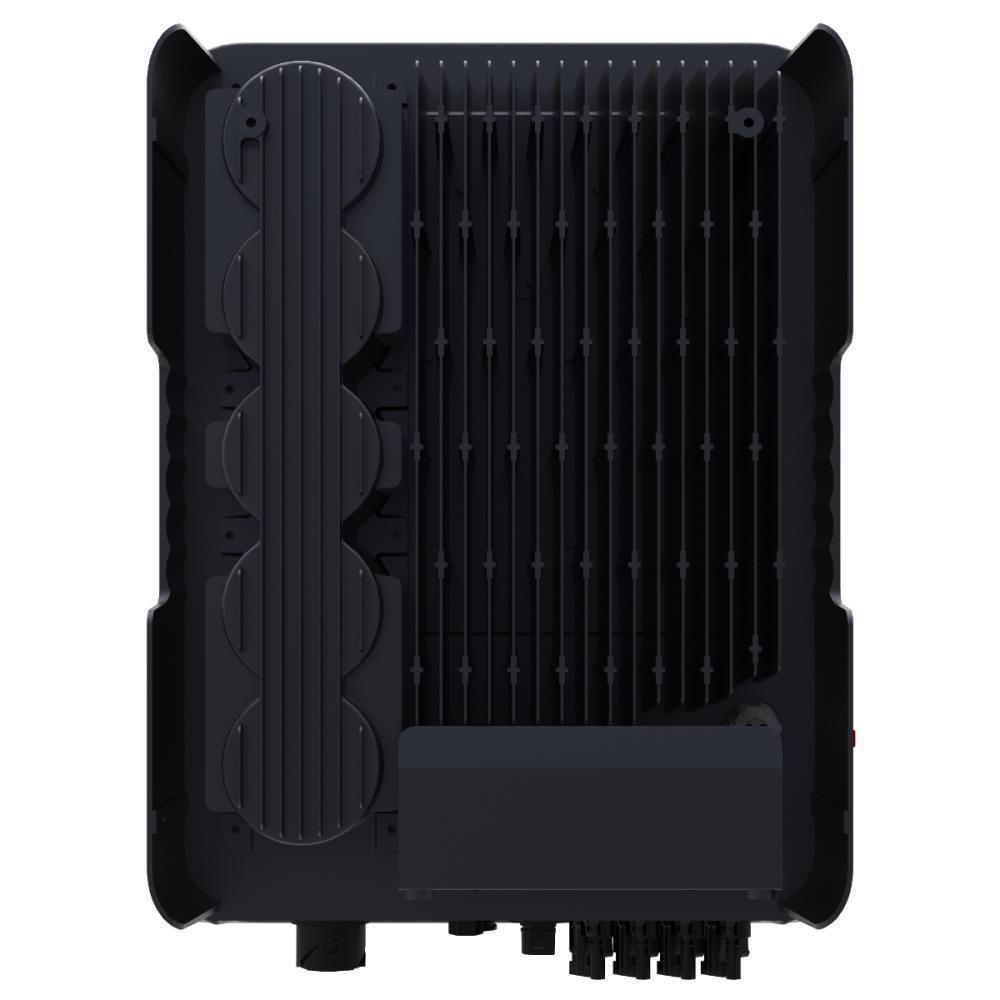

Description: T SERIES (G3) 3-PHASE INVERTERS.
The T Series inverter range is aimed at 3-phase domestic and small-scale commercial installations, offering unrivalled performance and versatility for increased yield potential and longer generation windows. The 3-phase T Series inverter options range from 3kW to 25kW.
Vendor Homepage: www.fox-ess.com/three-phase-grid-tie-inverters/
Model: T25-G3
Phase: 3phase
Rated output power: 25000W
AC output voltage: 400V/230VAC
Max output current: 39.9 (per phase)
Number of MPP trackers: 2
Maximum DC input voltage: 1100
PV operating voltage range: 140-1000
Maximum DC input current: 14
Monitoring module: WiFi, 4G (Optional)
IP Rating: IP65
Operating temperature range: -25 to +60 °C
Included Accessories: WiFi datalogger
Dimensions: 370 x 480 x 183.5mm
Shipping box quantity: 1
Shipping Box Depth: 60
Shipping Box Height: 32
Shipping Box Weight: 25.6
Shipping Box Width: 46.5
Unit Brutto Volume: 0.08928
Unit Net Weight: 21
Unit Gross Weight: 25.6
CnCode: 85044086
Unit Box Width: 0.465
Unit Box Length: 0.6
Unit Box Height: 0.32
Full Description Line: 3phase|Rated Output 25000W|AC output voltage 400V/230VAC|Max output current 39.9 (per phase)|Number of MPP trackers 2|Maximum DC input voltage 1100|Maximum DC input current 14|IP Rating IP65|Operating temperature range -25 to +60 °C|Dimensions 370 x 480 x 183.5mm|Weight 21 kg
Category Code: SIV
