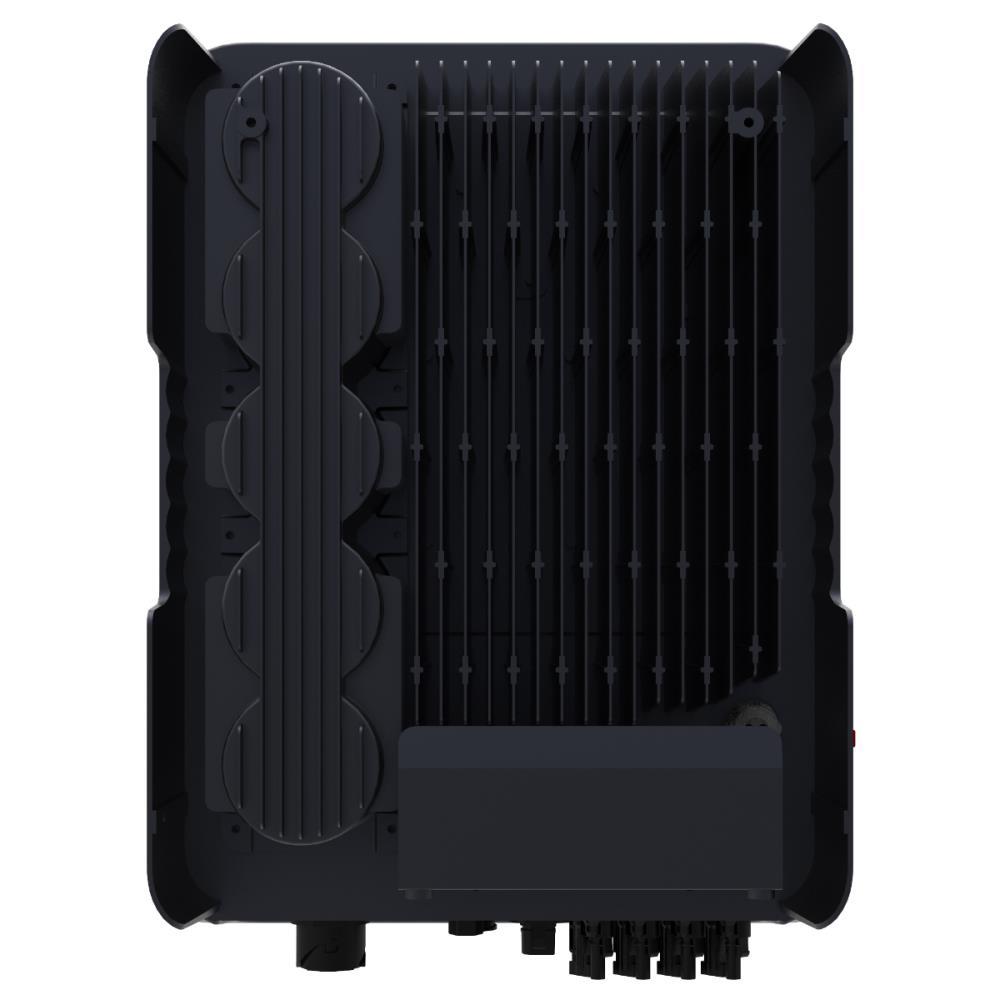

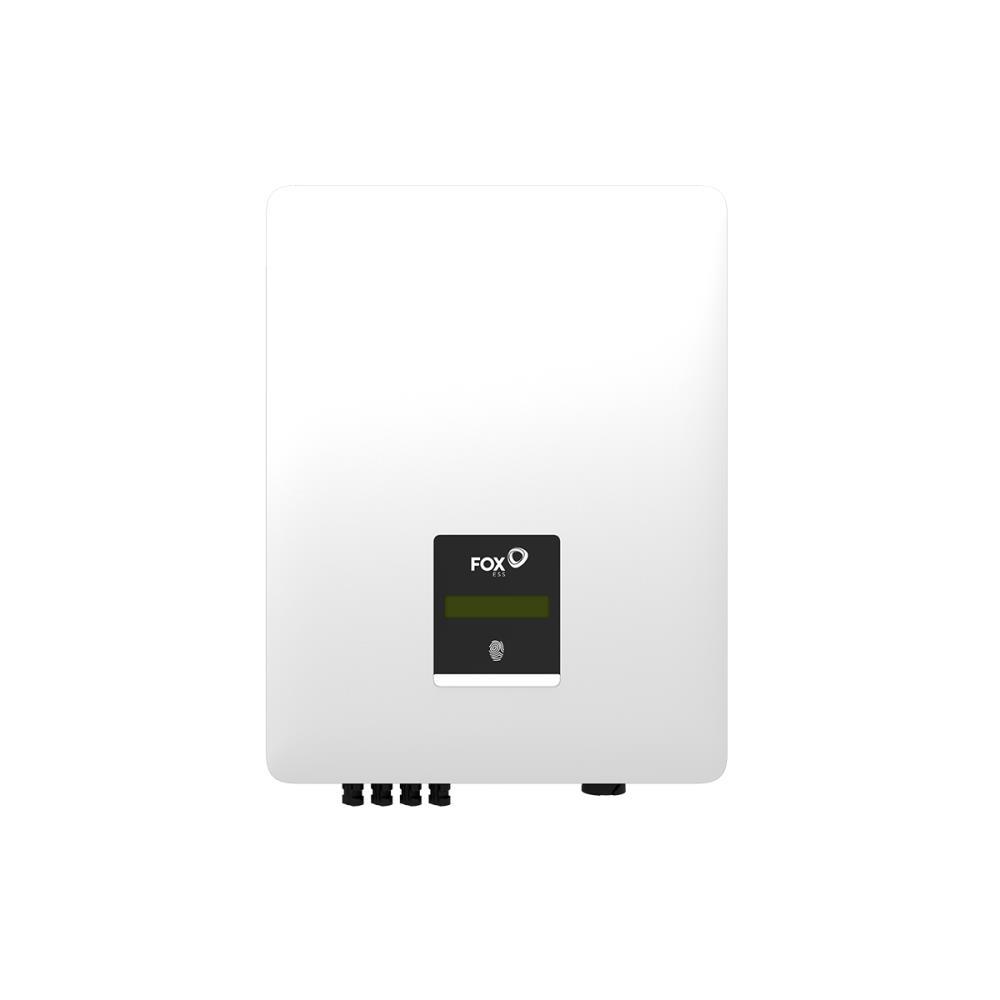

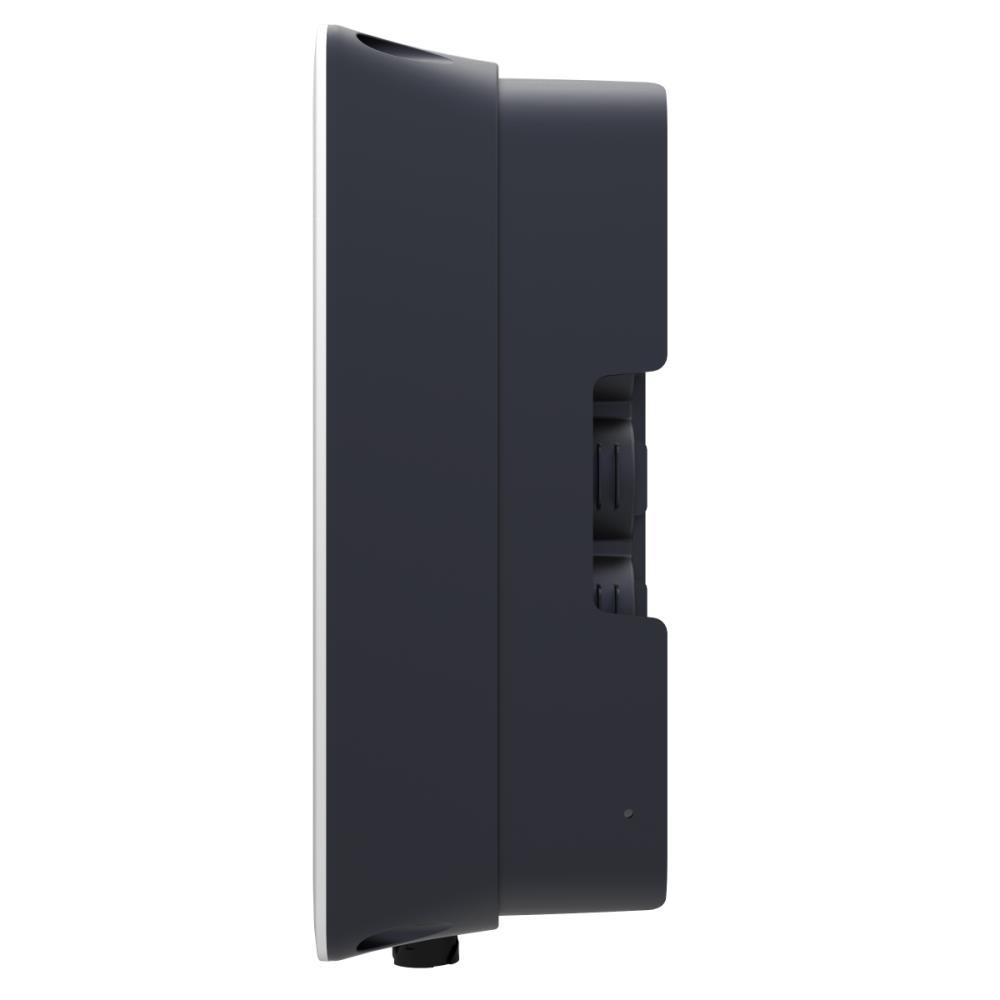

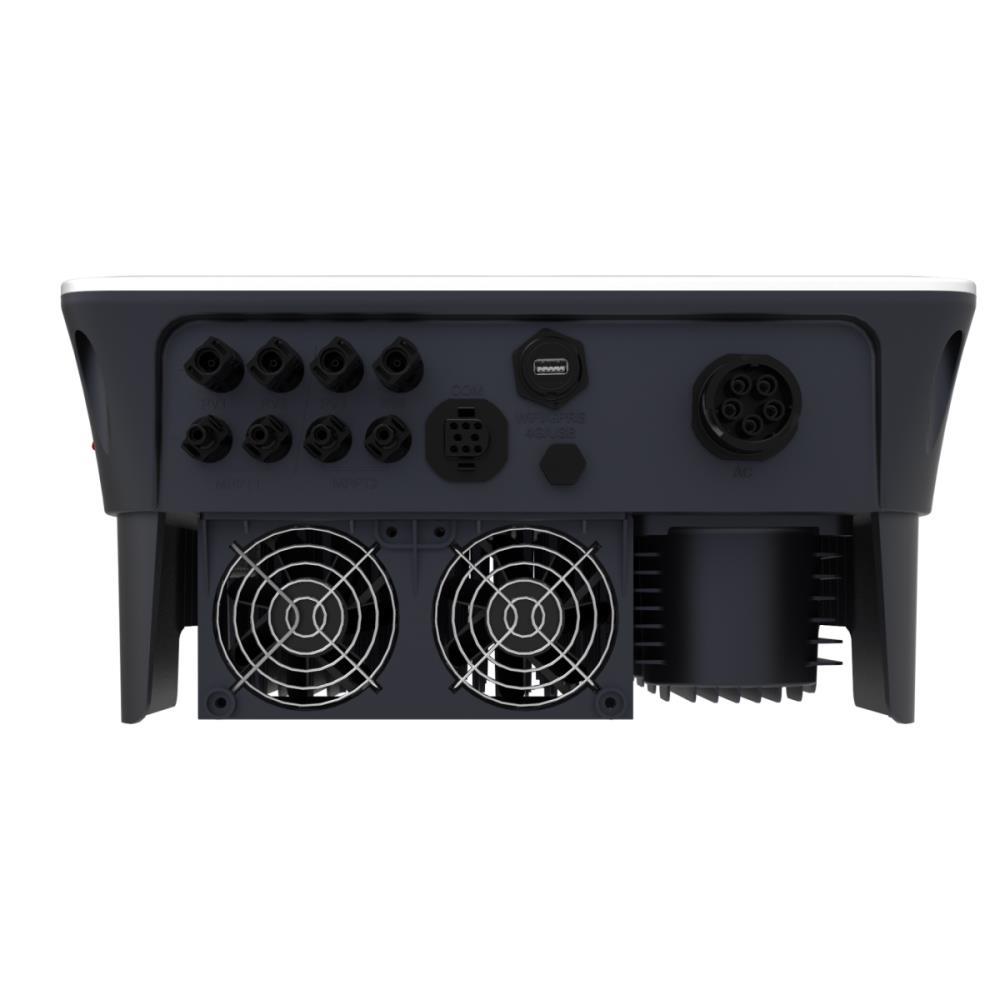

Description: T SERIES (G3) 3-PHASE INVERTERS.
The T Series inverter range is aimed at 3-phase domestic and small-scale commercial installations, offering unrivalled performance and versatility for increased yield potential and longer generation windows. The 3-phase T Series inverter options range from 3kW to 25kW.
Vendor Homepage: www.fox-ess.com/three-phase-grid-tie-inverters/
Model: T4-G3
Phase: 3phase
Rated output power: 4000W
AC output voltage: 400V/230VAC
Max output current: 6.4 (per phase)
Number of MPP trackers: 2
Maximum DC input voltage: 1100
PV operating voltage range: 140-1000
Maximum DC input current: 14
Monitoring module: WiFi, 4G (Optional)
IP Rating: IP65
Operating temperature range: -25 to +60 °C
Dimensions: 370 x 480 x 183.5mm
Shipping box quantity: 1
Shipping Box Depth: 59
Shipping Box Height: 31.5
Shipping Box Weight: 21.4
Shipping Box Width: 45.5
Unit Brutto Volume: 0.08456
Unit Net Weight: 17
Unit Gross Weight: 21.4
CnCode: 85044085
Unit Box Width: 0.455
Unit Box Length: 0.59
Unit Box Height: 0.315
Full Description Line: 3phase|Rated Output 4000W|AC output voltage 400V/230VAC|Max output current 6.4 (per phase)|Number of MPP trackers 2|Maximum DC input voltage 1100|Maximum DC input current 14|IP Rating IP65|Operating temperature range -25 to +60 °C|Dimensions 370 x 480 x 183.5mm|Weight 17 kg
Category Code: SIV
