Mainboard ASROCK AMD B550 SAM4 ATX 2xPCI-Express 3.0 1x 1xPCI-Express 3.0 4x 2xM.2 1xPCI-Express 4.0 16x Memory DDR4 Memory slots 4 1xHDMI 2xAudio-In 1xAudio-Out 6xUSB 3.2 1xPS/2 1xRJ45 B550PHANTOMGAMING4

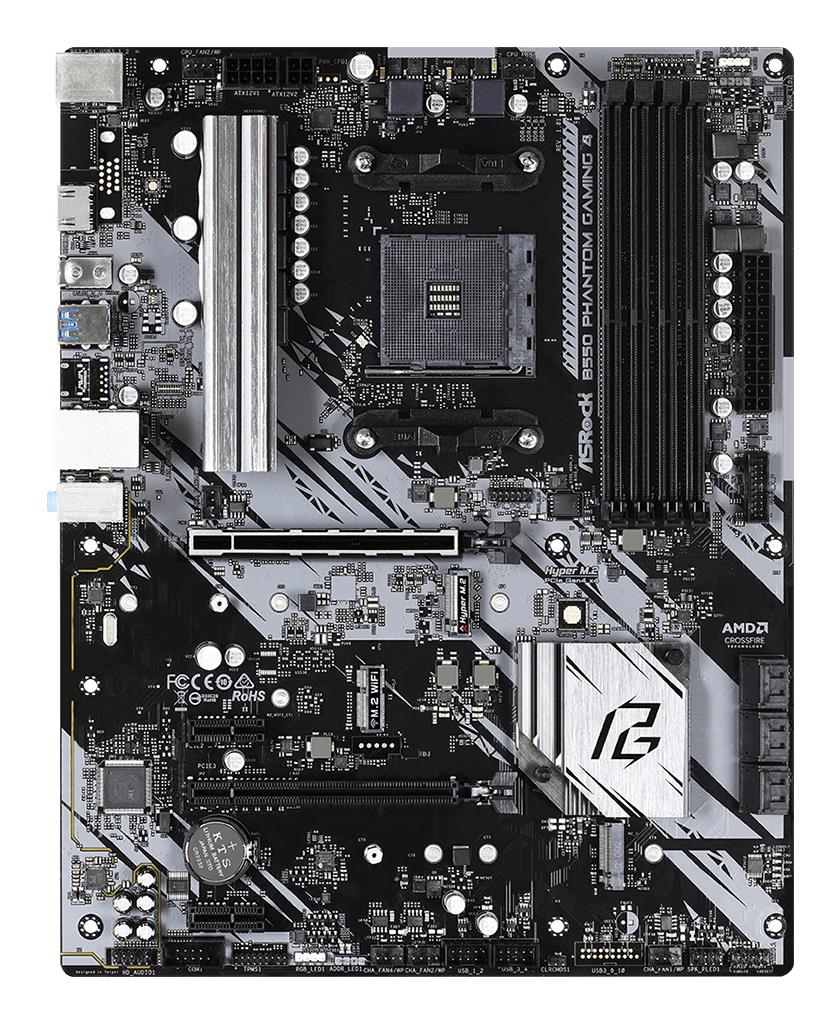

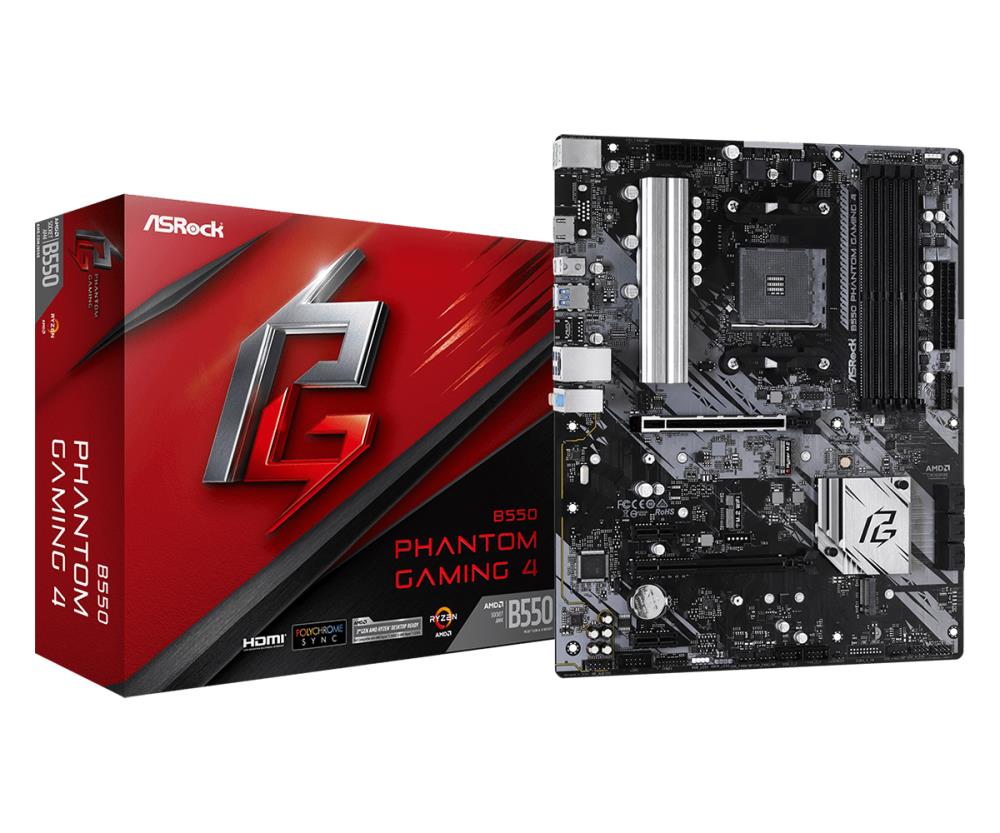

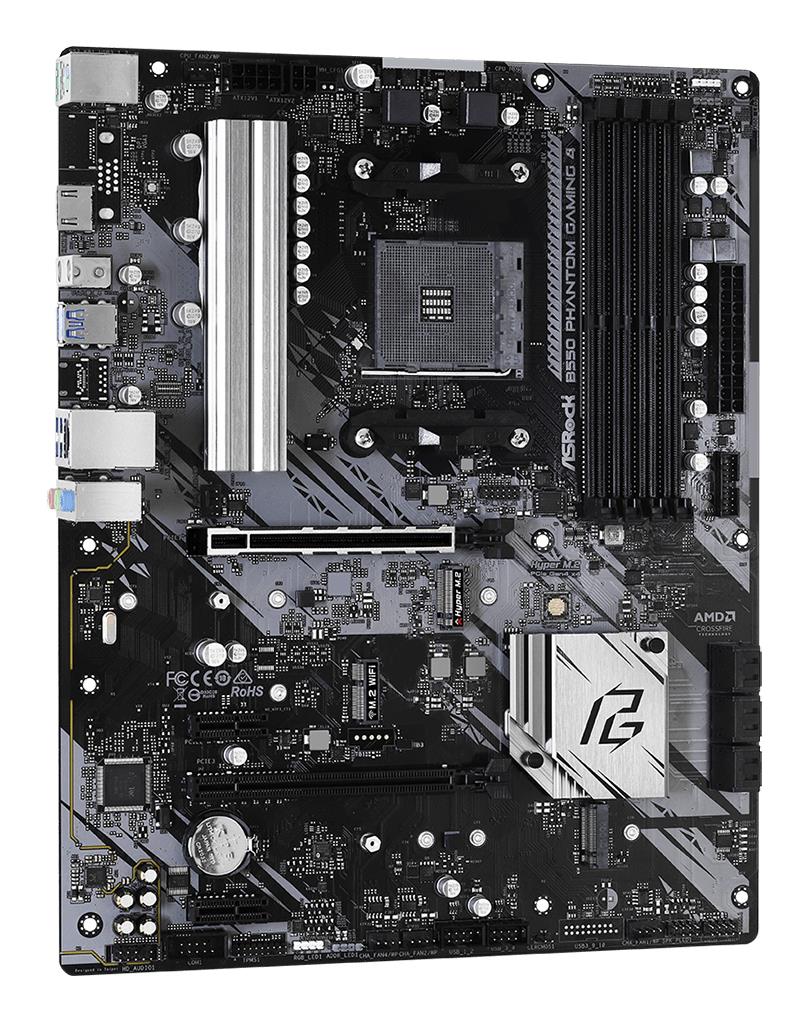

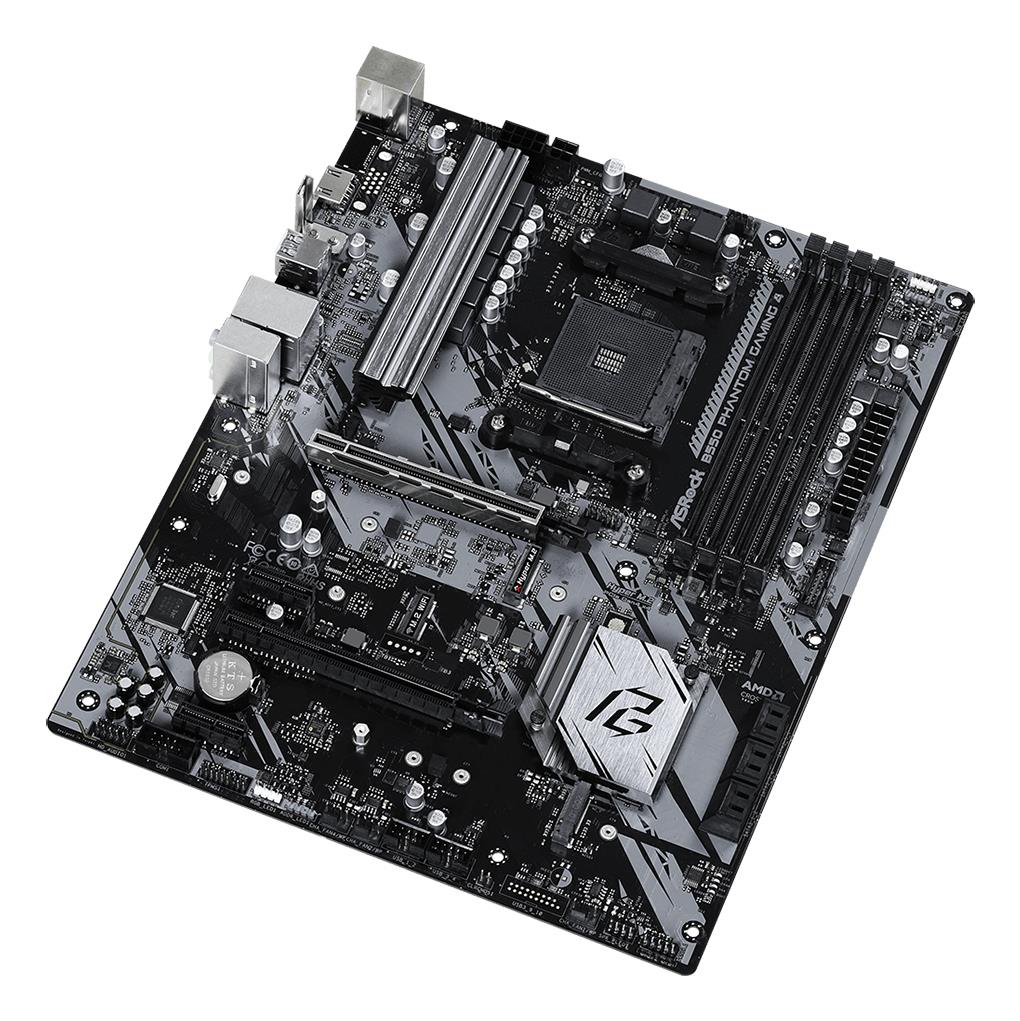

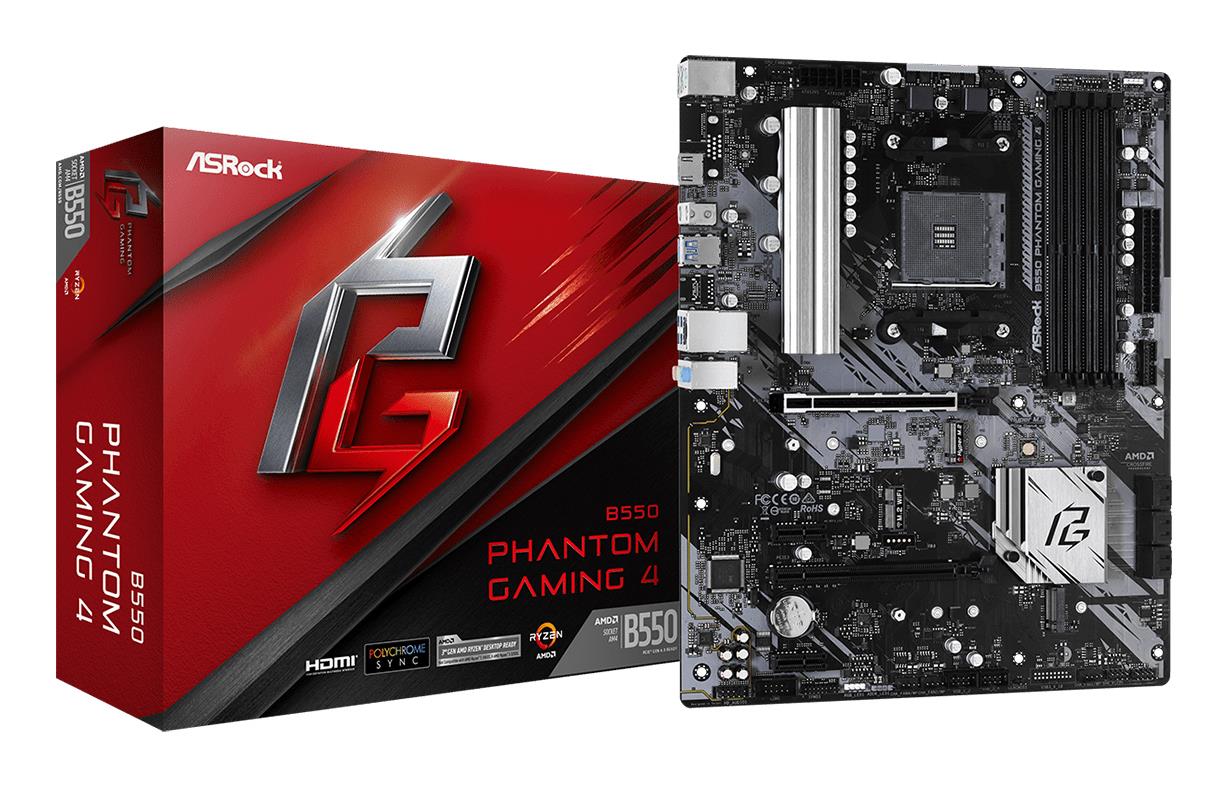

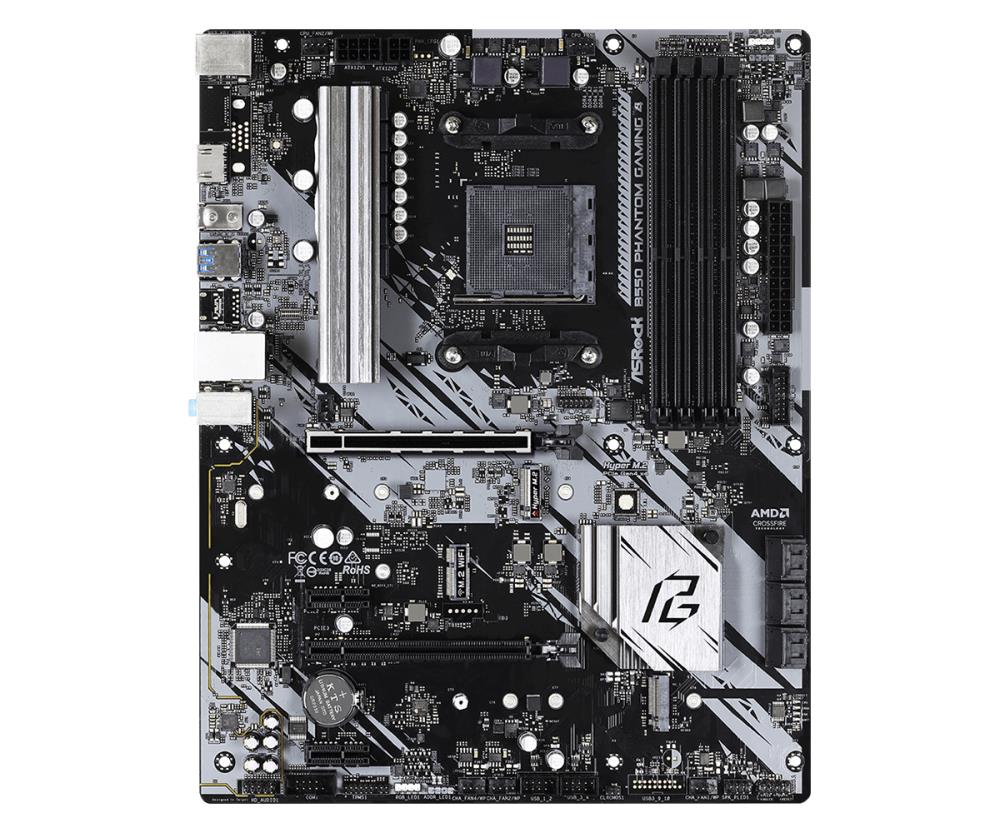

Description: B550 Phantom Gaming 4
Supports 3rd Gen AMD AM4 Ryzen™ / Future AMD Ryzen™ Processors
8 Power Phase Design, Digi Power
Supports DDR4 4733+ (OC)
1 PCIe 4.0 x16, 1 PCIe 3.0 x16, 2 PCIe 3.0 x1, 1 M.2 Key E for WiFi
Graphics Output Options: HDMI
AMD CrossFireX™
7.1 CH HD Audio (Realtek ALC1200 Audio Codec), Nahimic Audio
6 SATA3, 1 Hyper M.2 (PCIe Gen4 x4), 1 M.2 (PCIe Gen3 x2 & SATA3)
8 USB 3.2 Gen1 (2 Front, 6 Rear)
Gigabit LAN
Vendor Homepage: www.asrock.com/mb/AMD/B550%20Phantom%20Gaming%204/index.asp
Chipset: AMD B550
Socket: SAM4
Form Factor: ATX
Memory type: DDR4
Frequency speed: 2133/2400/2666/2933/3200/3466/3600/3733/3800/3866/4000/4133/4200/4266/4333/4400/4466/4533/4600/4666/4733
Memory slots: 4
M.2: 2
PCI-Express 3.0 1x: 2
PCI-Express 3.0 4x: 1
PCI-Express 4.0 16x: 1
Audio-In: 2
Audio-Out: 1
HDMI: 1
PS/2: 1
RJ45: 1
USB 3.2: 6
SATA: Yes
Integrated video: Depending on CPU
Integrated audio: Realtek ALC1200
Integrated LAN: Realtek (Gigabit)
RAID: SATA 0, 1, 10
TPM: Header
Shipping box quantity: 10
Shipping Box Depth: 64
Shipping Box Height: 28
Shipping Box Weight: 14.06
Shipping Box Width: 35
Unit Brutto Volume: 0.006272
Unit Net Weight: 1
Unit Gross Weight: 1.41
CnCode: 84733020
Unit Box Width: 0.34
Unit Box Length: 0.06
Unit Box Height: 0.27
Full Description Line: AMD B550|SAM4|ATX|DDR4|4733/4666/4600/4533/4466/4400/4333/4266/4200/4133/4000/3866/3800/3733/3600/3466/3200/2933/2666/2400/2133 MHz|Memory slots 4|2xPCI-Express 3.0 1x|1xPCI-Express 3.0 4x|1xPCI-Express 4.0 16x|2xM.2|1xHDMI|2xAudio-In|1xAudio-Out|6xUSB 3.2|1xPS/2|1xRJ45|SATA|Video Depending on CPU|Audio Realtek ALC1200|LAN Realtek (Gigabit)|RAID SATA 0, 1, 10|TPM Header
Category Code: MBA
