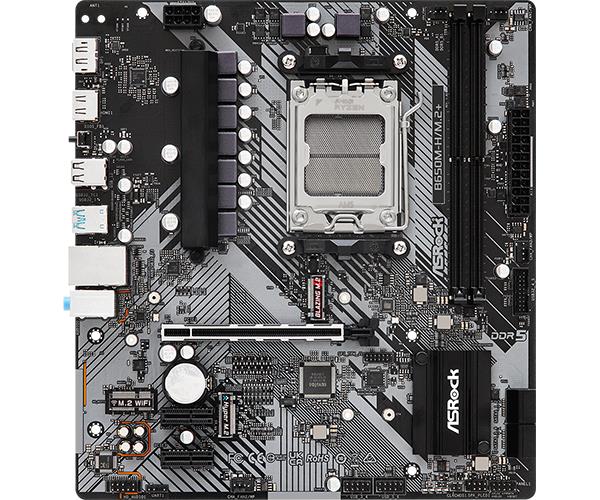

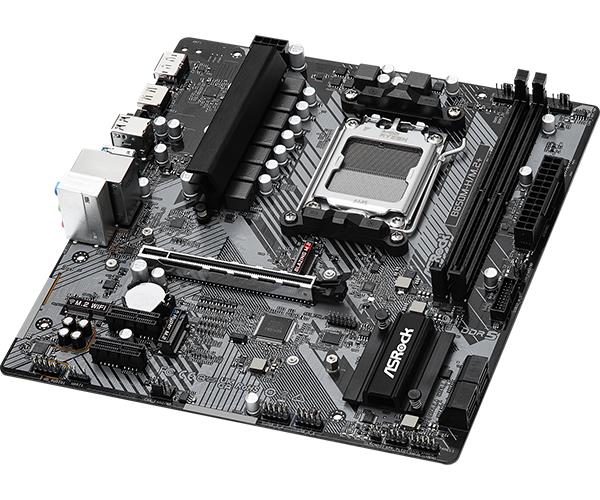

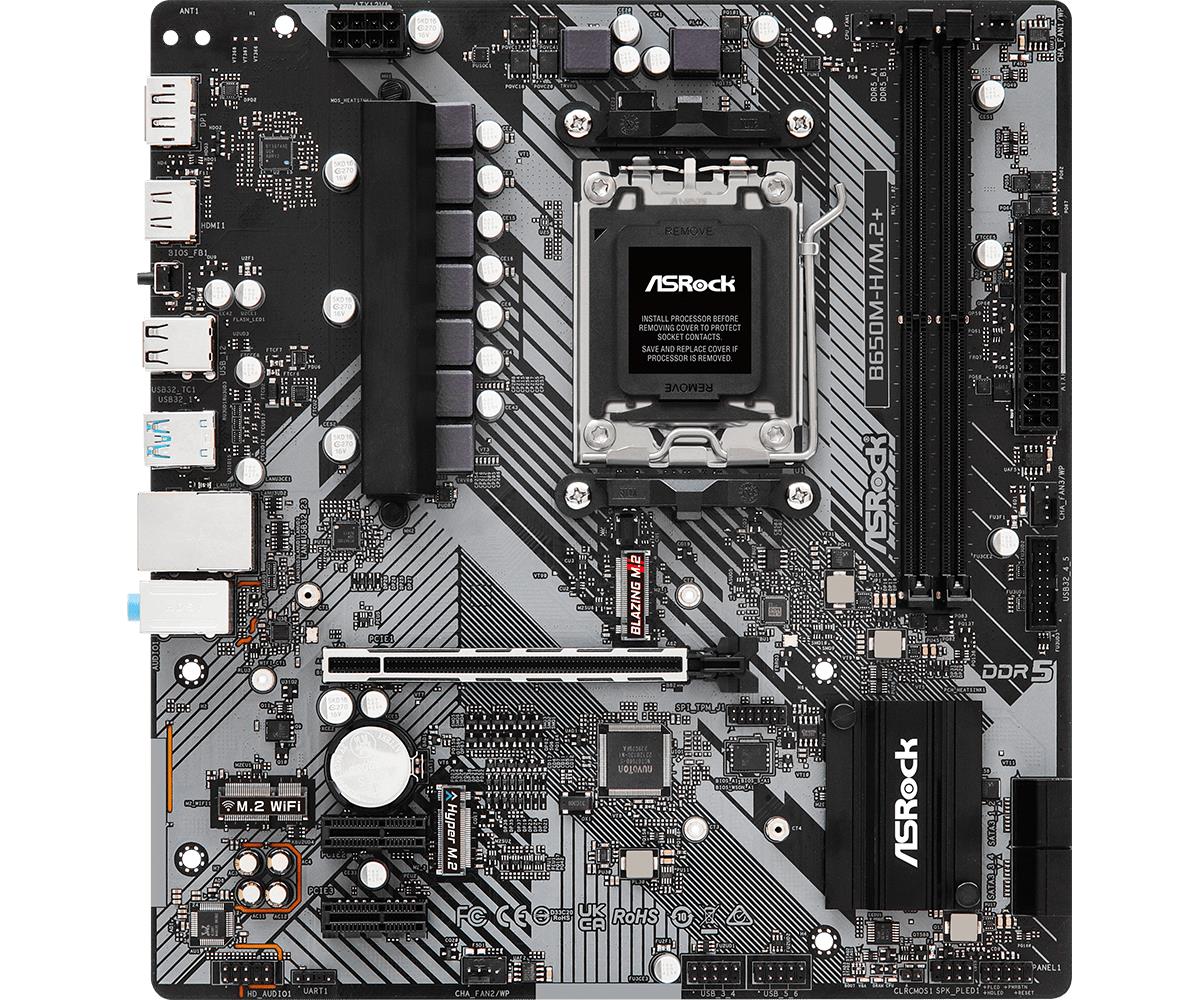

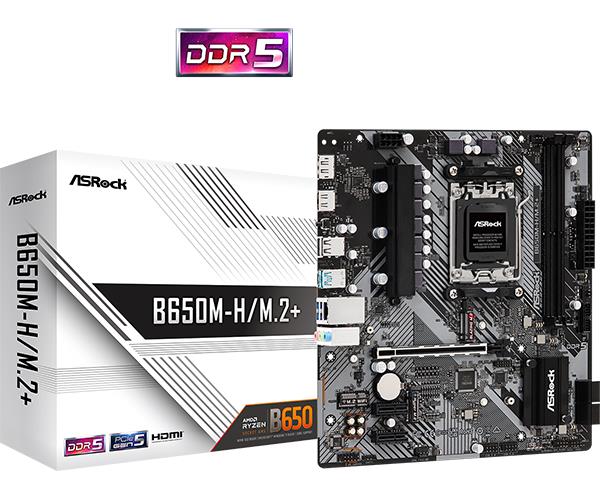

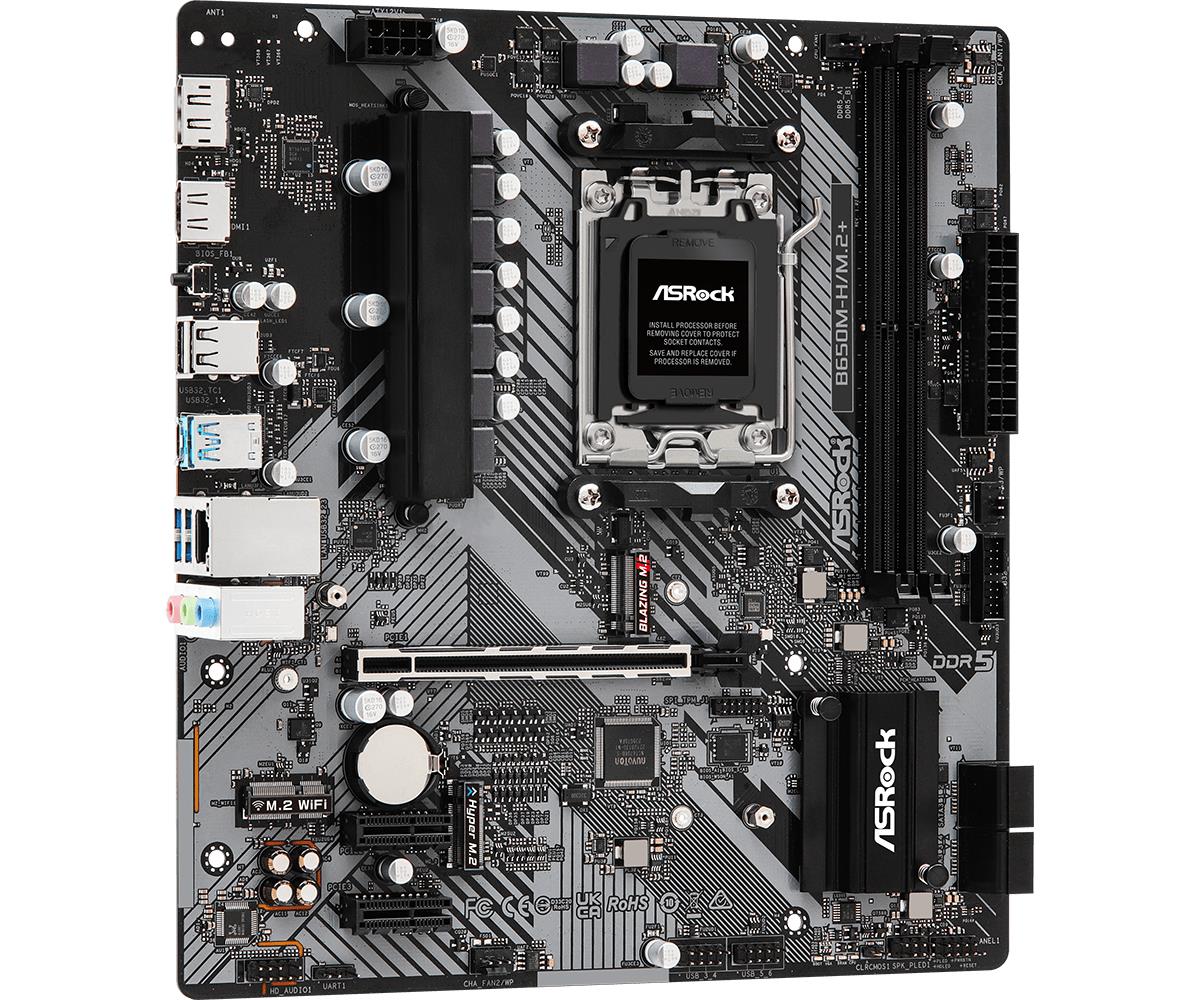

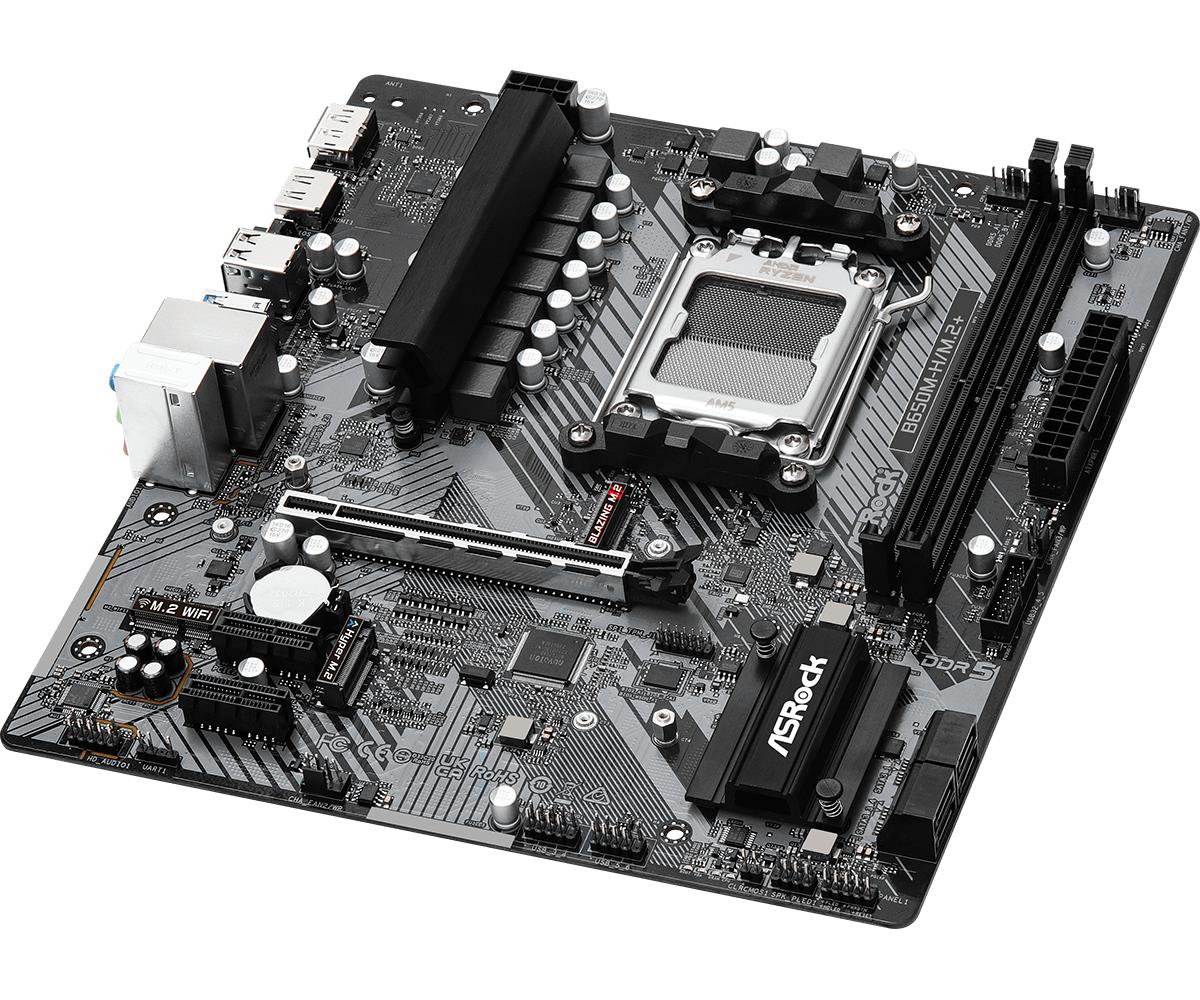

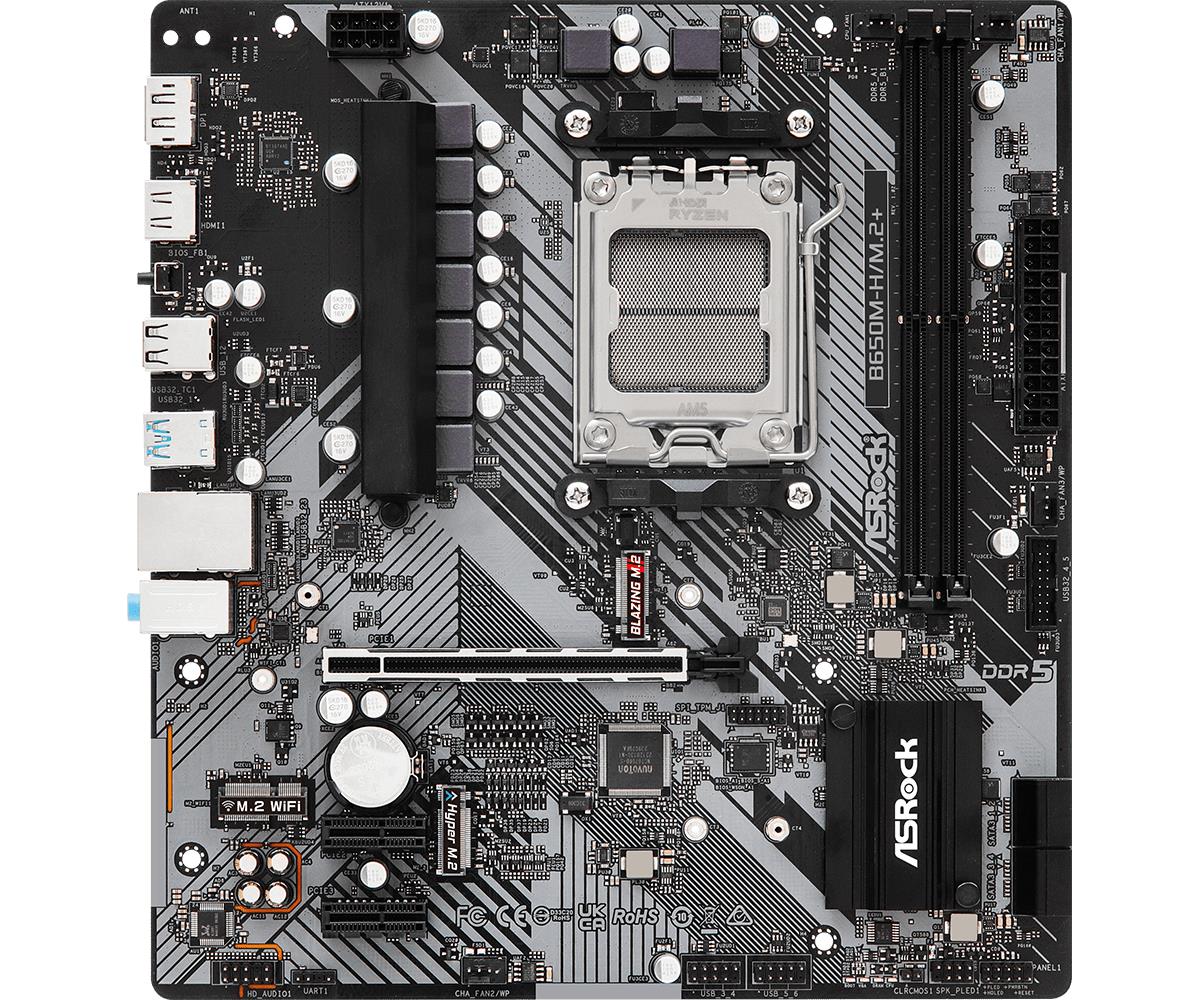

Mainboard ASROCK AMD B650 SAM5 Micro-ATX Memory DDR5 Memory slots 2 1xPCI-E 2xPCI-Express 4.0 1x 1xPCI-Express 4.0 16x 1xM.2 1xHDMI 1xDisplayPort 1xAudio-In 1xAudio-Out 1xMicrophone 2xUSB 2.0 3xUSB 3.2 1xUSB-C 1xRJ45 B650M-H/M.2+

Description:

B650M-H/M.2+

• Supports AMD Socket AM5 Ryzen™ 7000 Series Processors
• 6+1+1 Power Phase Dr.MOS, Supports up to 120W CPU
• 2 x DDR5 DIMMs, supports up to 6400+(OC)
• 1 PCIe 4.0 x16, 2 PCIe 4.0 x1, 1 M.2 Key E for WiFi
• Integrated AMD RDNA™ 2 Graphics *

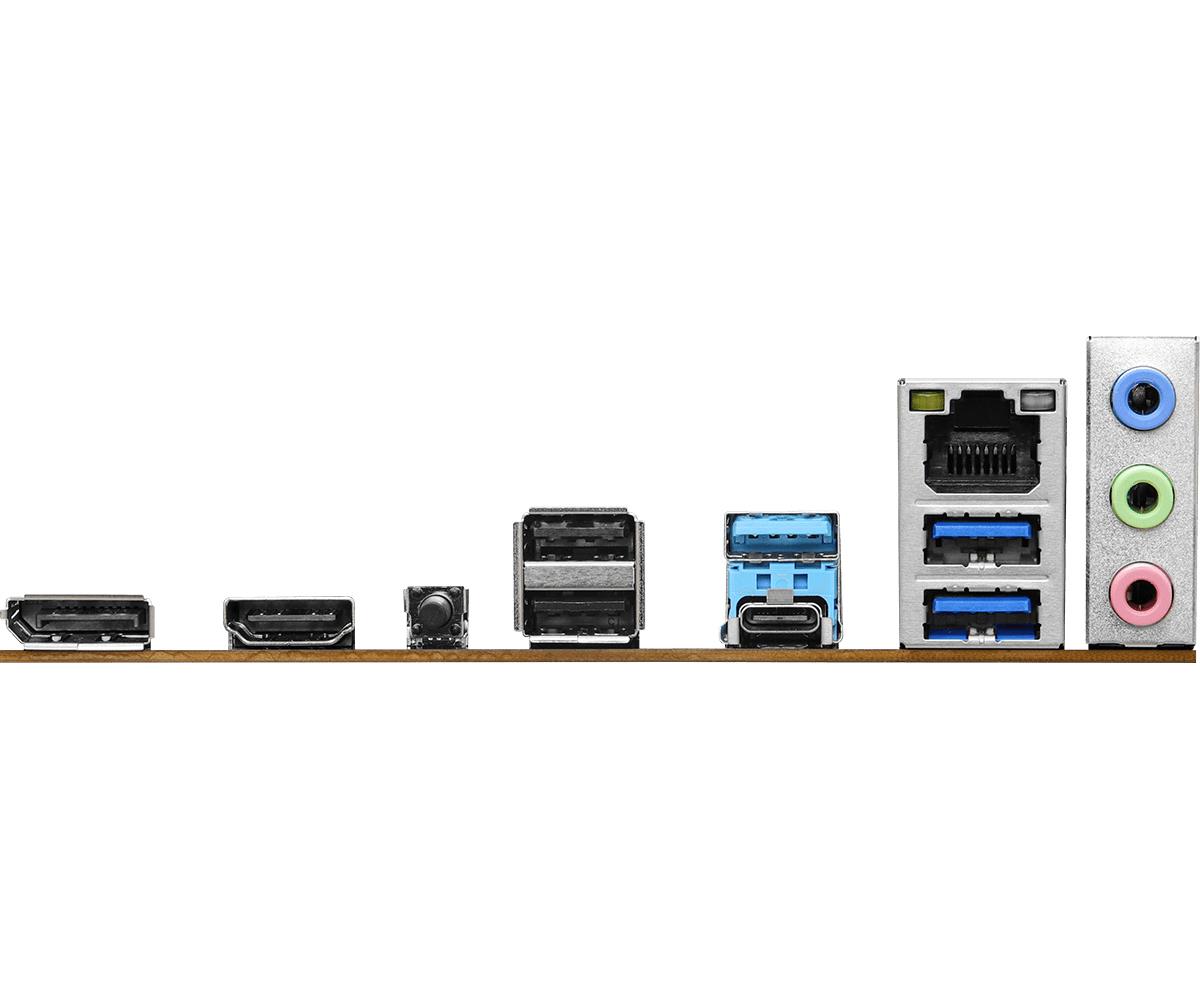

• Graphics Output Options: HDMI, DisplayPort
• Realtek ALC897 7.1 CH HD Audio Codec, Nahimic Audio
• 4 SATA3, 1 Blazing M.2 (PCIe Gen5 x4), 1 Hyper M.2 (PCIe Gen4 x4)
• 6 USB 3.2 Gen1 (3 Rear, 1 Rear Type-C, 2 Front)
• Realtek Gigabit LAN
• Supports ASRock Auto Driver Installer, BIOS Flashback

Vendor Homepage: www.asrock.com/MB/AMD/B650M-HM.2+/index.asp
Category Code: MBA
CnCode: 84733020
Unit Box Height: 0.062
Unit Box Length: 0.28
Unit Box Width: 0.262
PCI-E: 1
PCI-Express 4.0 1x: 2
PCI-Express 4.0 16x: 1
M.2: 1
HDMI: 1
DisplayPort: 1
Audio-In: 1
Audio-Out: 1
Microphone: 1
USB 2.0: 2
USB 3.2: 3
USB-C: 1
RJ45: 1
USB 2.0: Yes
USB 3.2: Yes
SATA 3.0: Yes
Model: B650M-H/M.2+
Chipset: AMD B650
Socket: SAM5
Form Factor: Micro-ATX
Memory type: DDR5
Frequency speed: 6400
Memory slots: 2
Integrated video: Depending on CPU
Integrated audio: Realtek ALC897
Integrated LAN: Gigabit
RAID: SATA 0, 1, 10
TPM: Header
Included Accessories: 1 x User Manual;
1 x I/O Shield;
2 x SATA Data Cables;
3 x Screws for M.2 Sockets
Units per Shipping Box: 10
Unit Calculated Volume: 0
Product Net Weight: 1
Unit Calculated Weight: 1
