Description:

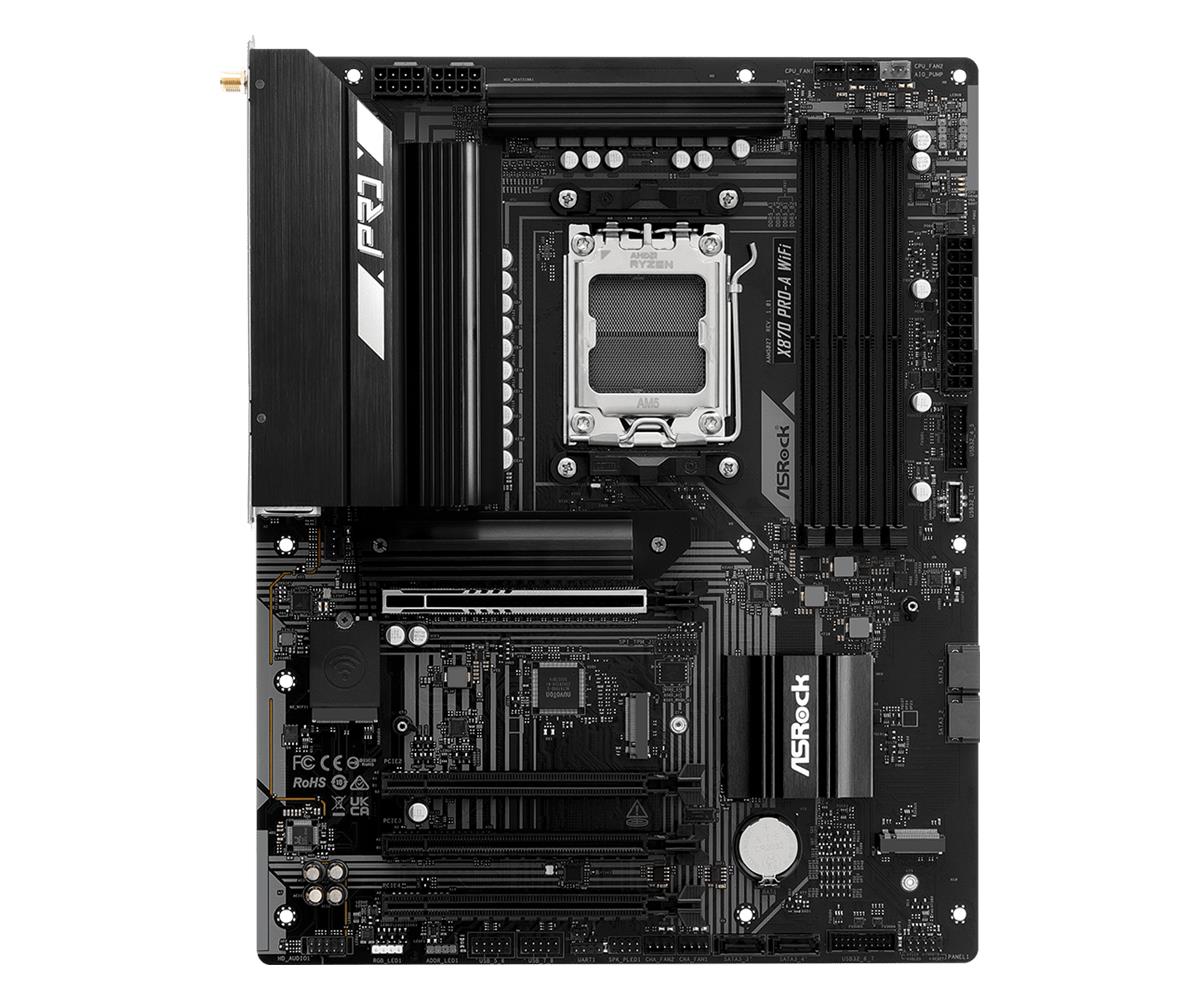

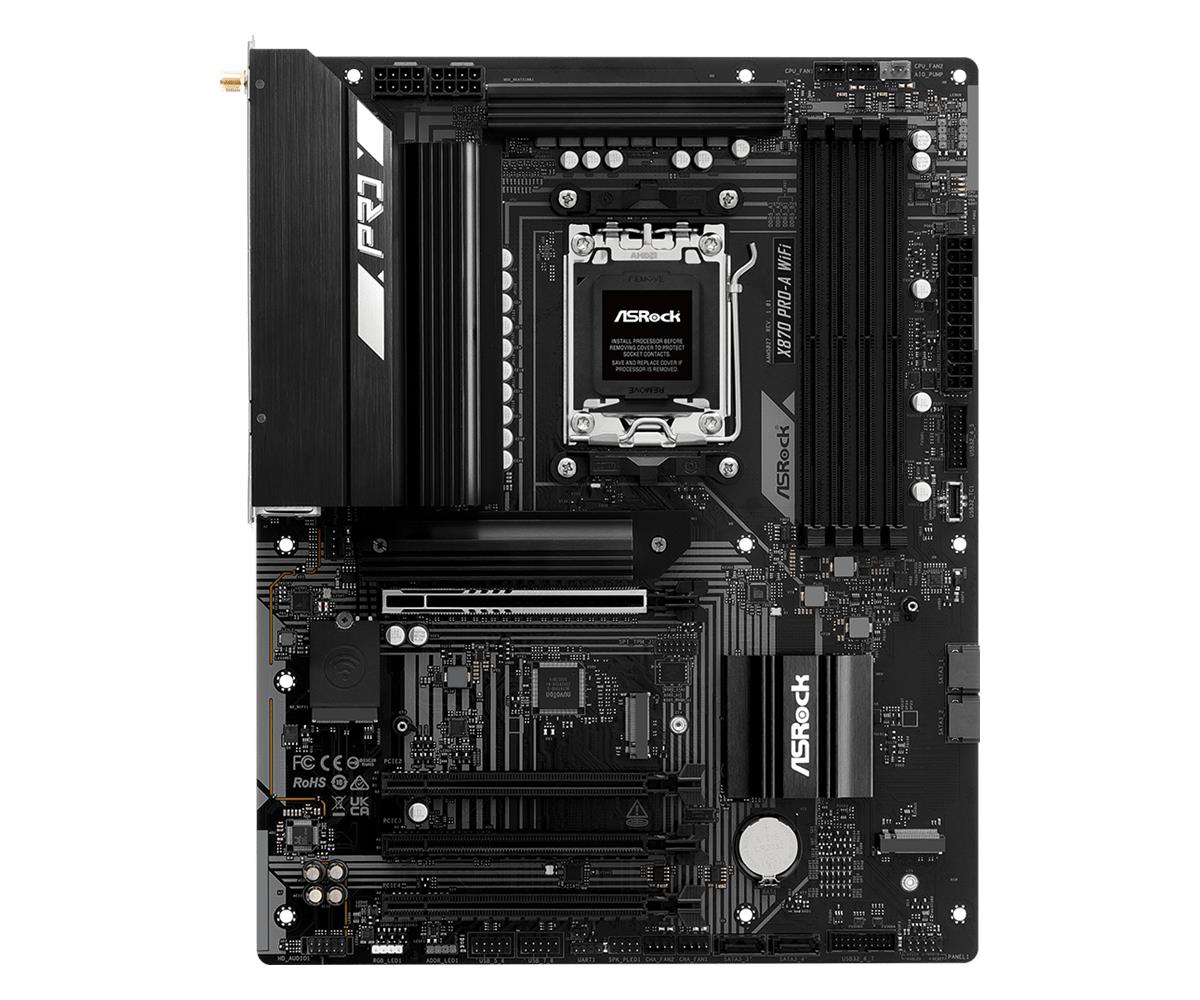

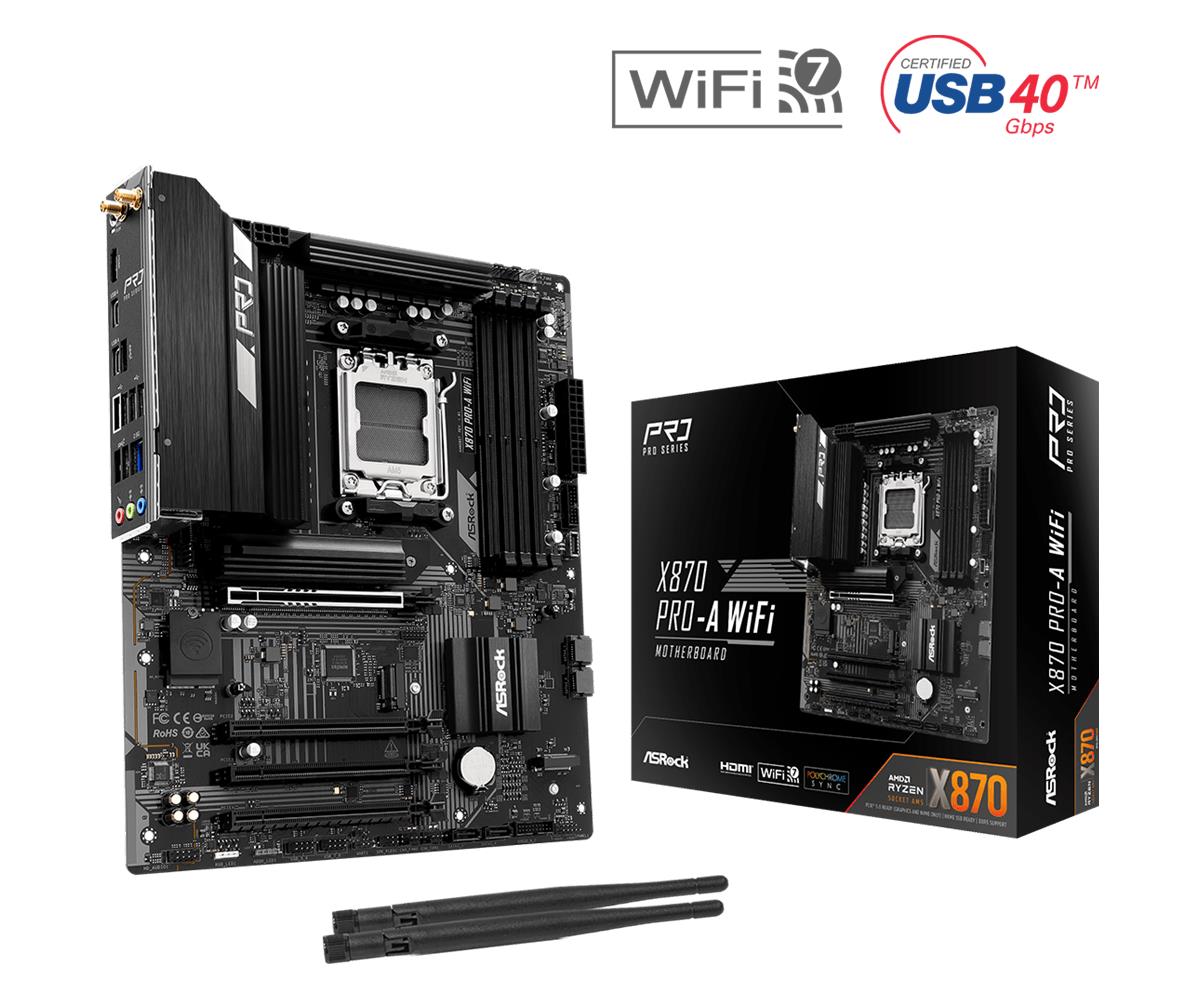

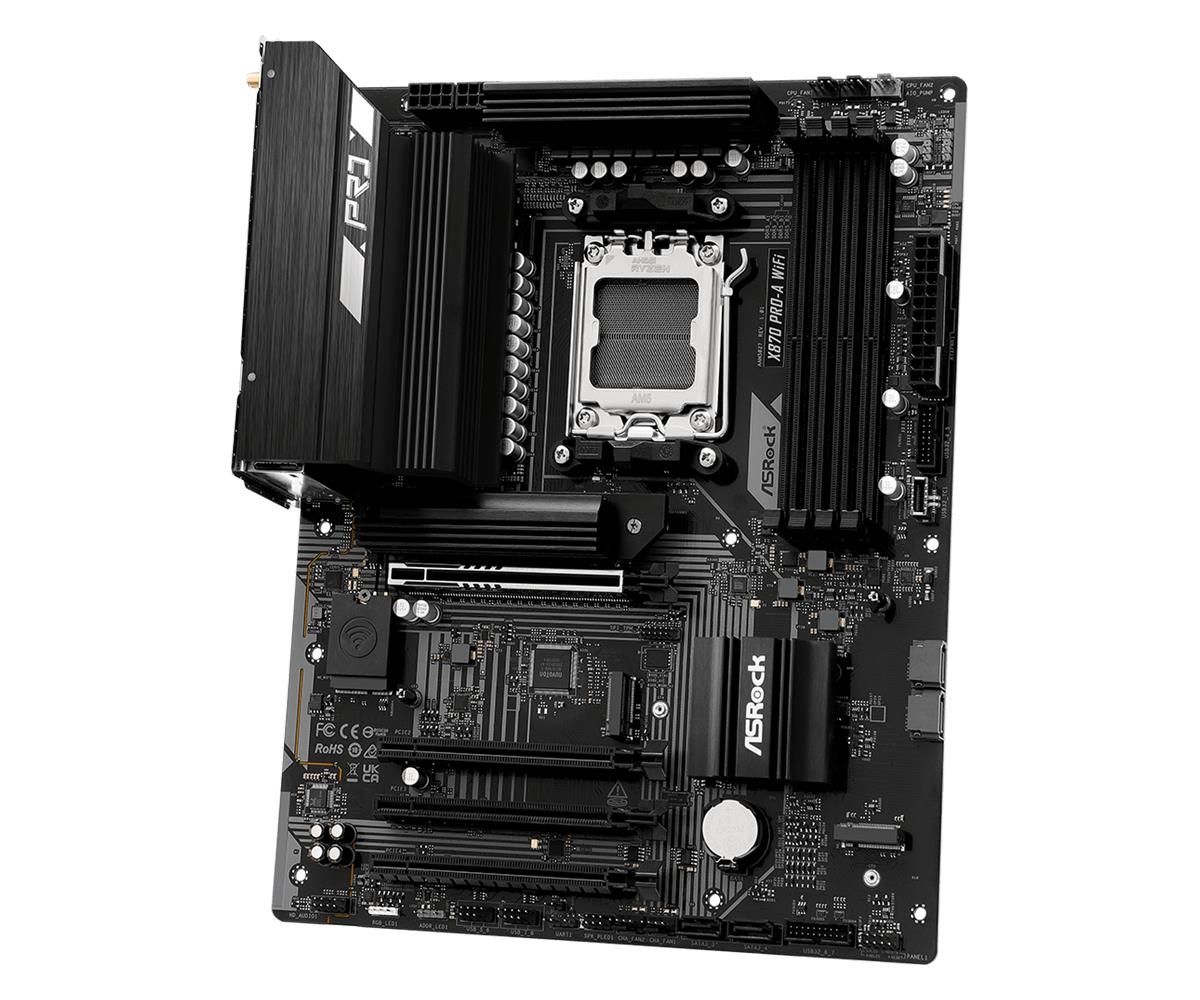

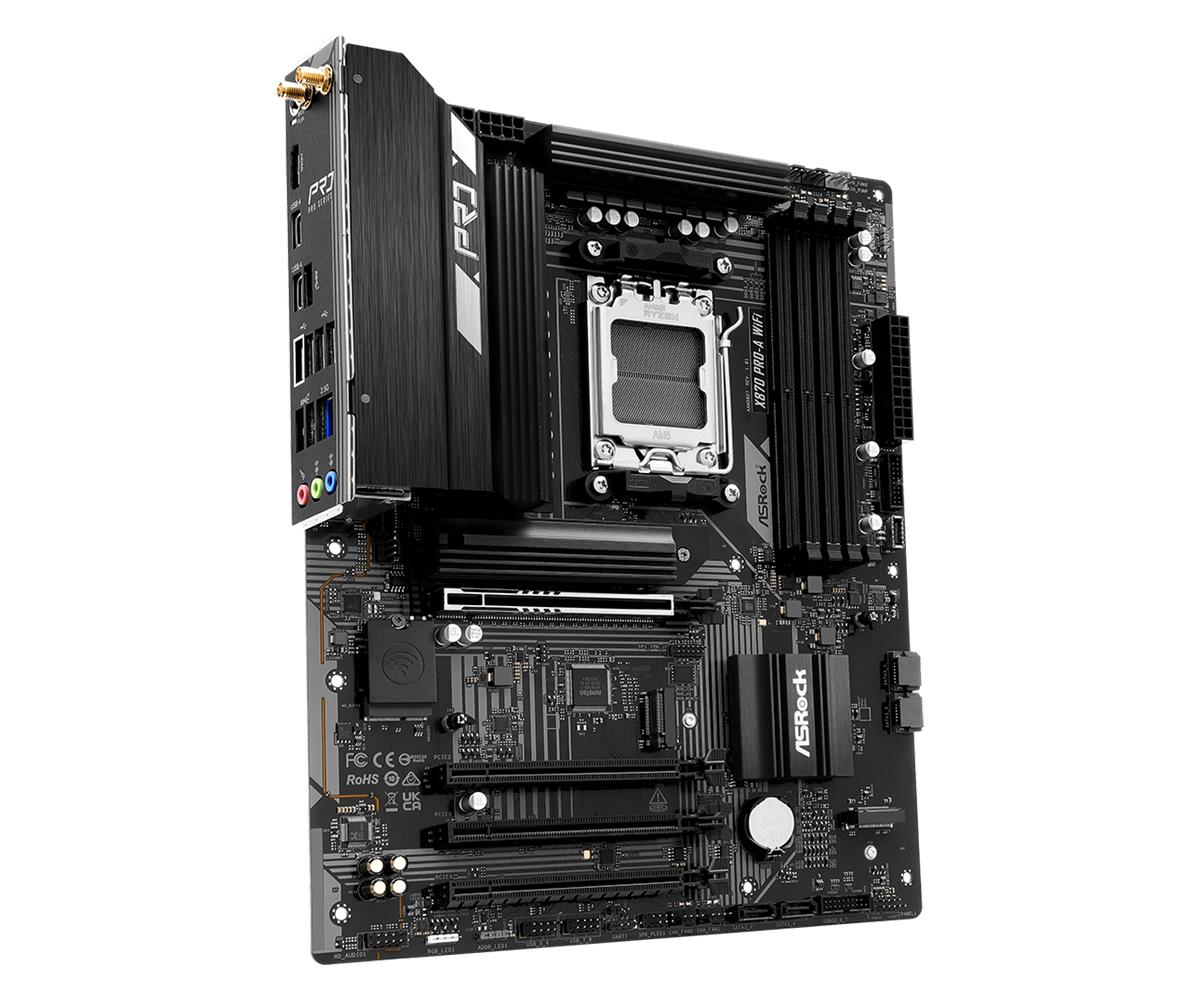

X870 Pro-A WiFi
- Supports AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series Processors
- 16+2+1 Power Phase, 80A Dr.MOS for VCore+SOC+MISC
- 4 x DDR5 DIMMs
Supports Dual Channel, up to 8000+ (OC) - 1 PCIe 5.0 x16, 3 PCIe 4.0 x16
- Graphics Output Options: 1 HDMI, 2 USB4 Type-C
- Realtek ALC897 7.1 CH HD Audio Codec, Nahimic Audio
- 1 Blazing M.2 (PCIe Gen5x4)
1 Hyper M.2 (PCIe Gen4x4)
1 M.2 (PCIe Gen3x2 & SATA3)
4 SATA3 - 2 USB4 Type-C (Rear)
2 USB 3.2 Gen2 (Rear)
1 USB 3.2 Gen1 Type-C (Front)
5 USB 3.2 Gen1 (1 Rear, 4 Front)
8 USB 2.0 (4 Rear, 4 Front) - Realtek 2.5GbE LAN
- 802.11be Wi-Fi 7 + Bluetooth
- Supports M.2 Bottom Heatsink
Vendor Homepage: www.asrock.com/mb/AMD/X870%20Pro-A%20WiFi/index.asp
Category Code: MBA
CnCode: 84733020
Unit Box Height: 0.075
Unit Box Length: 0.35
Unit Box Width: 0.28
M.2: 4
PCI-Express 4.0 16x: 1
PCI-Express 5.0 16x: 1
Audio port: 2
HDMI: 1
Optical S/PDIF: 1
RJ45: 1
USB 2.0: 4
USB 3.2: 3
USB-C: 2
Bluetooth: Yes
SATA 3.0: Yes
USB 2.0: Yes
USB 3.2: Yes
USB-C: Yes
WiFi: Yes
Model: X870 PRO-A WIFI
Chipset: AMD X870
Socket: SAM5
Form Factor: ATX
Memory type: DDR5
Frequency speed: 8000
Memory slots: 4
Integrated video: Depending on CPU
Integrated audio: Realtek ALC897
Integrated LAN: 2.5 Gigabit
RAID: SATA 0, 1; NVMe 0, 1, 10
Units per Pallet: 0
Units per Shipping Box: 5
Unit Calculated Volume: 0.00888
Product Net Weight: 1
Unit Calculated Weight: 2.13
