Description:
– Supports 13th Gen & 12th Gen Intel® Core™ Processors (LGA1700)
– 10+1+1 Power Phase, Dr.MOS for VCore+GT
– Supports DDR5 7200MHz (OC)
– 1 PCIe 5.0 x16, 1 PCIe 4.0 x16, 1 PCIe 3.0 x16, 1 PCIe 3.0 x1, 1 M.2 Key E for WiFi
– Graphics Output Options: HDMI, DisplayPort, eDP
– Realtek ALC897 7.1 CH HD Audio Codec, Nahimic Audio
– 4 SATA3, 2 Hyper M.2 (PCIe Gen4x4), 1 M.2 (PCIe Gen4x2)

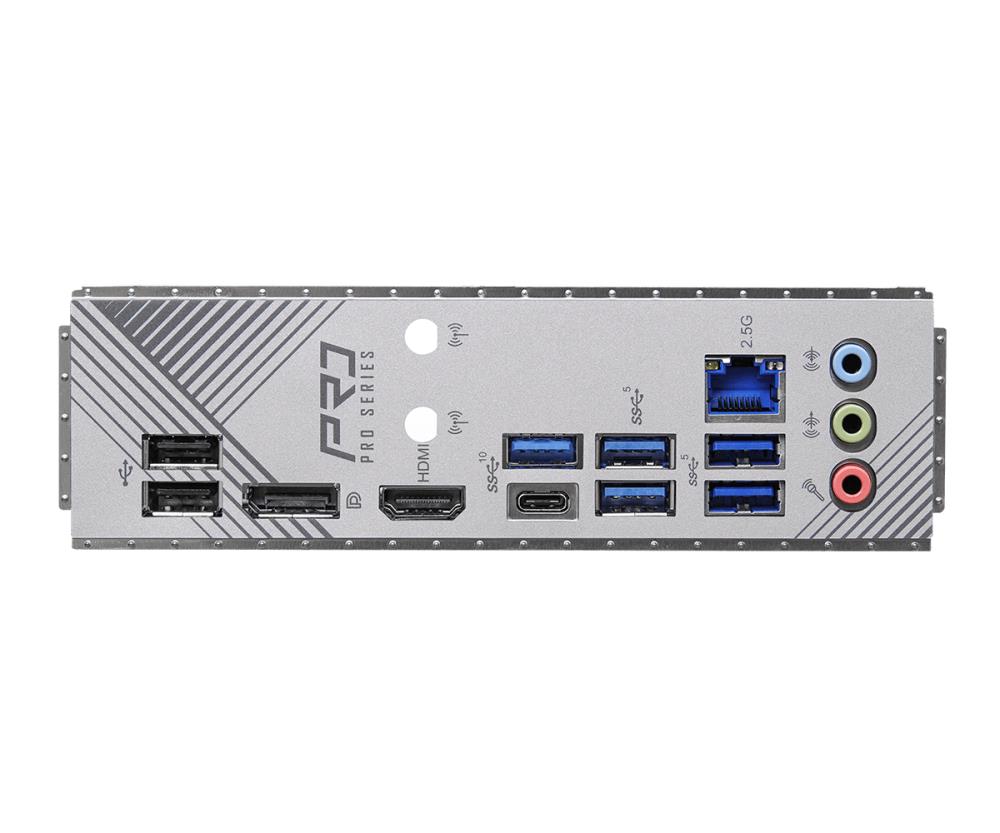

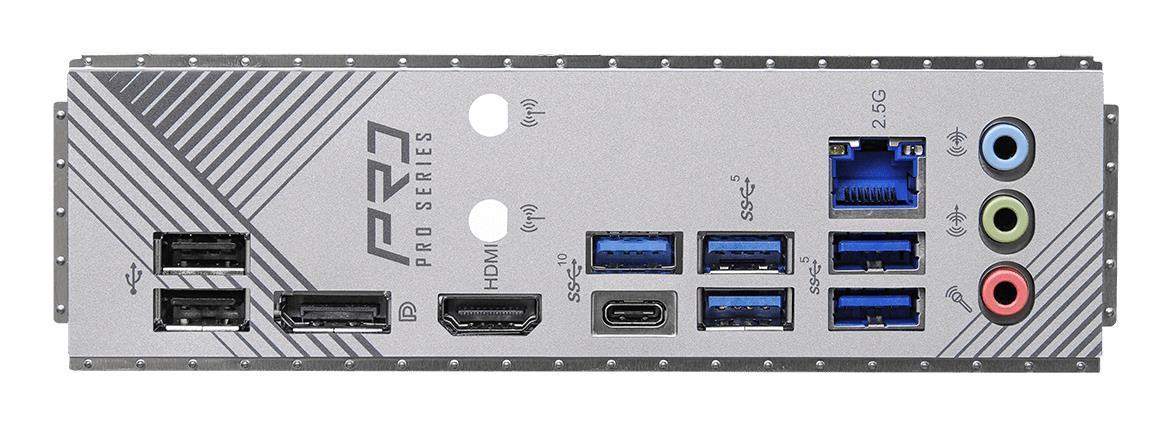

– 2 USB 3.2 Gen2 Type-C (1 Rear, 1 Front),1 USB 3.2 Gen2 Type-A (Rear),6 USB 3.2 Gen1 (4 Rear, 2 Front),4 USB 2.0 (2 Rear, 2 Front)
– Dragon 2.5G LAN
– Supports ASRock Auto Driver Installer
Vendor Homepage: www.asrock.com/mb/Intel/B760%20Pro%20RS/index.asp

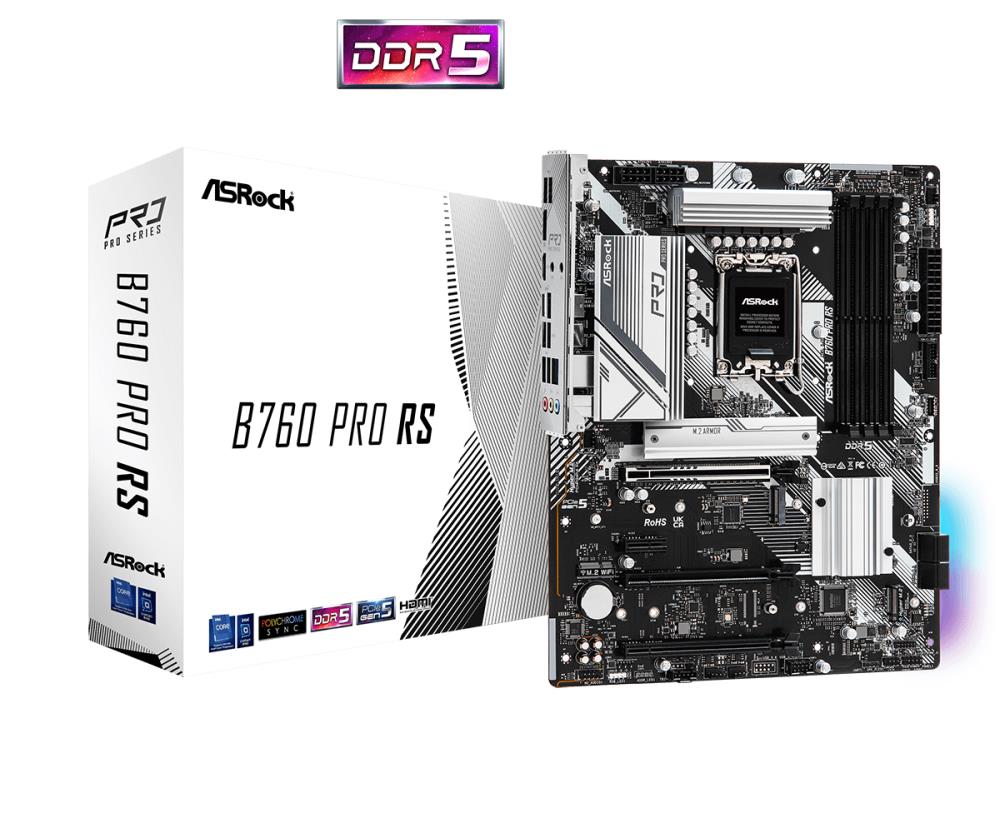

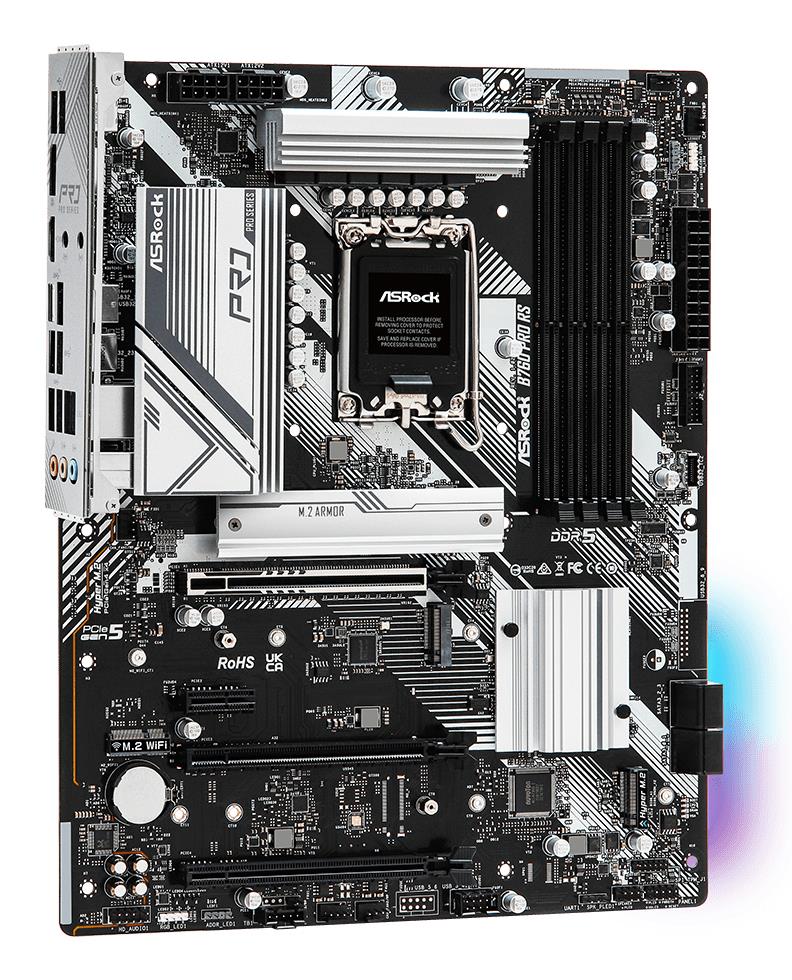

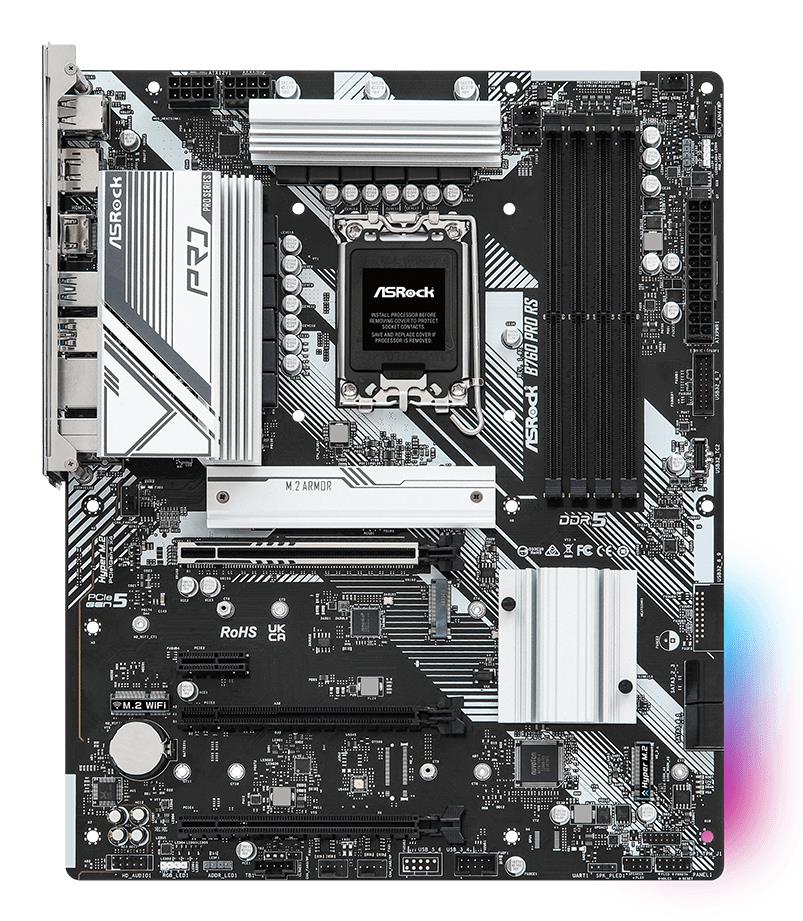

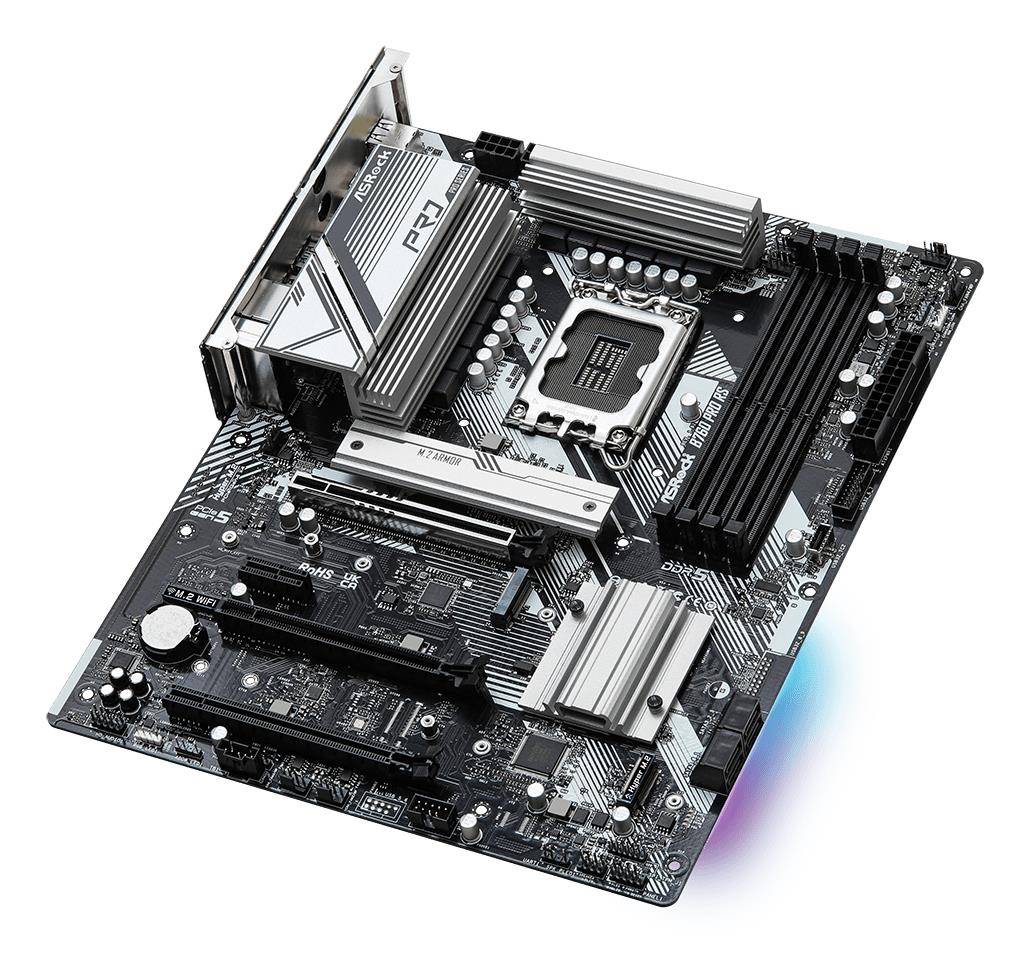

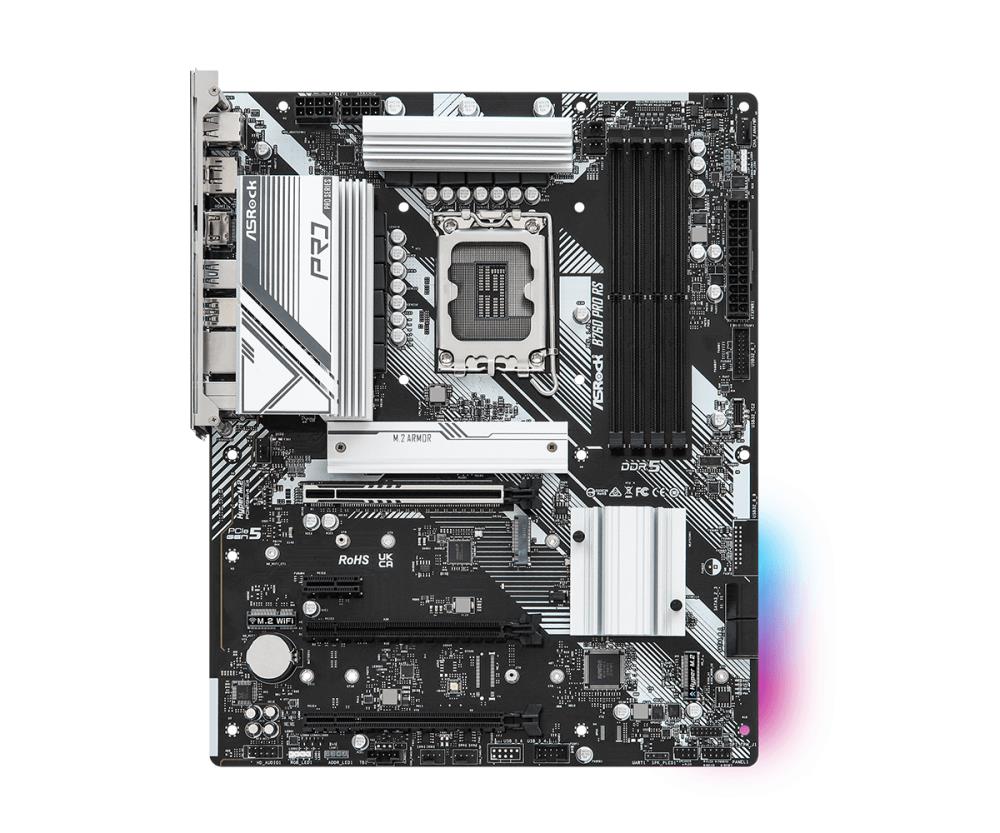

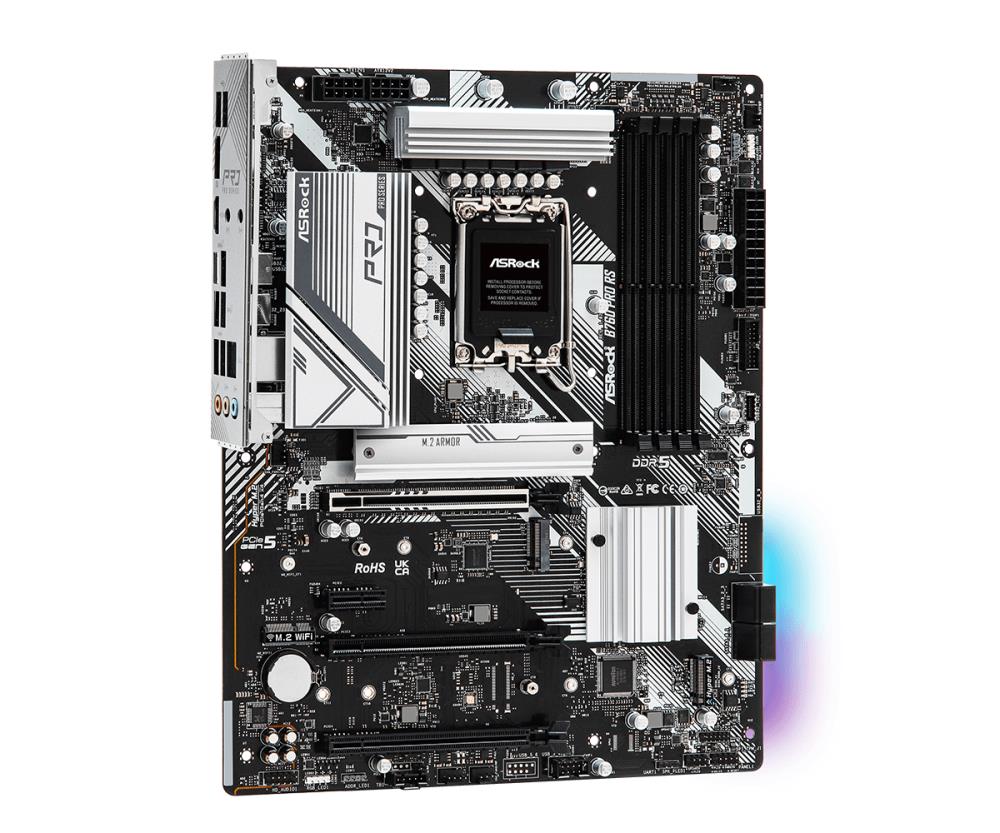

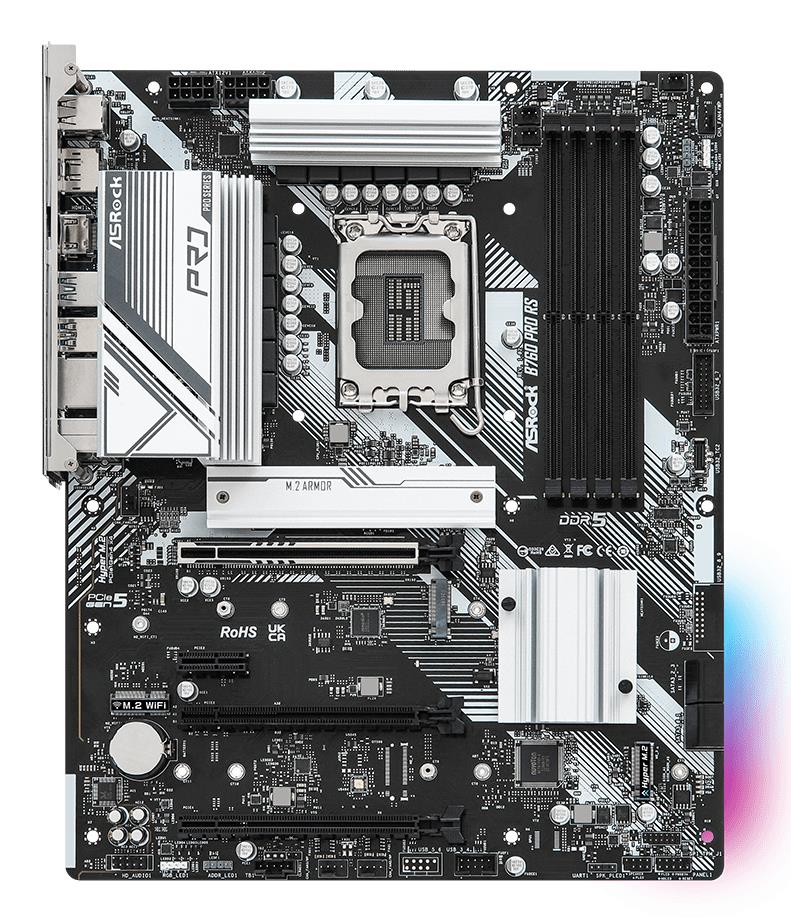

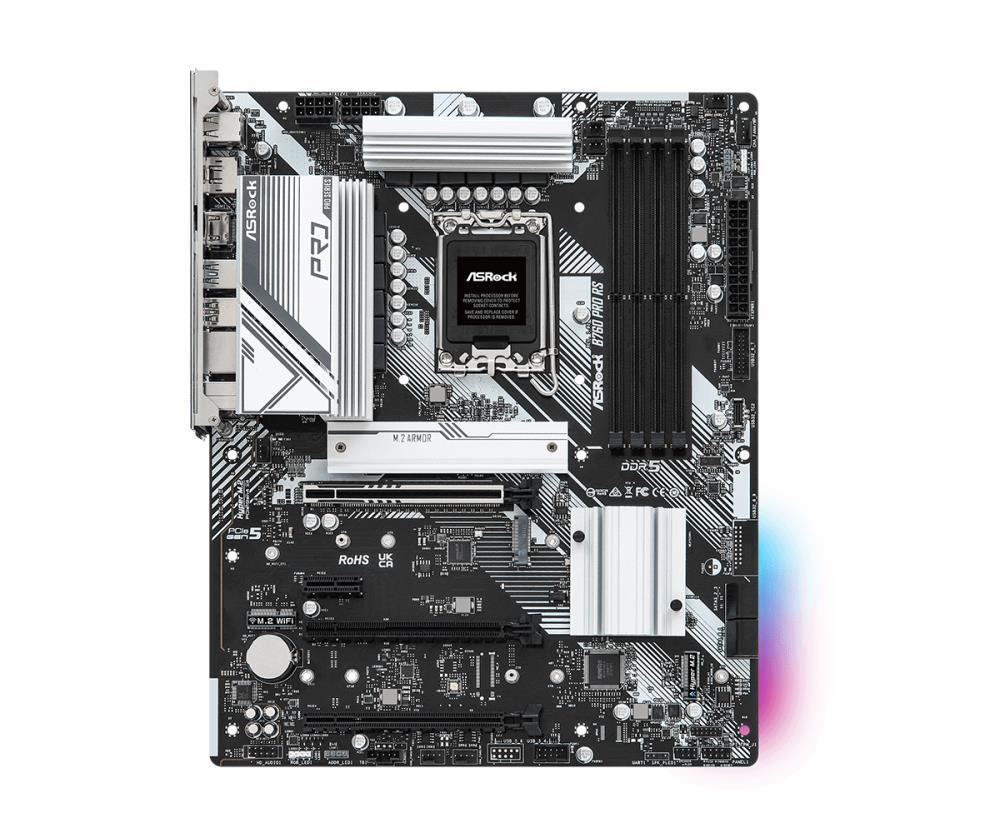

Model: B760 Pro RS
Chipset: Intel B760 Express
Socket: LGA1700
Form Factor: ATX
Memory type: DDR5
Frequency speed: 4800/5600/6000/7200
Memory slots: 4
M.2: 3
PCI-Express 3.0 16x: 1
PCI-Express 3.0 1x: 1
PCI-Express 4.0 16x: 1
PCI-Express 5.0 16x: 1
Audio port: 3
DisplayPort: 1
HDMI: 1
RJ45: 1
USB 2.0: 2
USB 3.2: 5
USB-C: 1
SATA: Yes
USB 2.0: Yes
USB 3.2: Yes
Integrated video: Depending on CPU
Integrated LAN: 2.5 Gigabit
Integrated audio: Realtek ALC897
RAID: SATA 0, 1, 5, 10
TPM: Header
Included Accessories: – 1 x User Manual
– 2 x SATA Data Cables
– 4 x Screws for M.2 Sockets
– 1 x Standoff for M.2 Socket
Shipping box quantity: 1
Shipping Box Depth: 36
Shipping Box Height: 7.5
Shipping Box Weight: 1.58
Shipping Box Width: 30.5
Unit Brutto Volume: 0.008235
Unit Net Weight: 1.2
Unit Gross Weight: 1.58
CnCode: 84733020
Unit Box Width: 0.305
Unit Box Length: 0.36
Unit Box Height: 0.075
Full Description Line: Intel B760 Express|LGA1700|ATX|DDR5|7200/6000/5600/4800 MHz|Memory slots 4|1xPCI-Express 3.0 1x|1xPCI-Express 3.0 16x|1xPCI-Express 4.0 16x|1xPCI-Express 5.0 16x|3xM.2|1xHDMI|1xDisplayPort|2xUSB 2.0|5xUSB 3.2|1xUSB-C|1xRJ45|3xAudio port|SATA|USB 2.0|USB 3.2|Video Depending on CPU|LAN 2.5 Gigabit|Audio Realtek ALC897|RAID SATA 0, 1, 5, 10|TPM Header
Category Code: MBI
