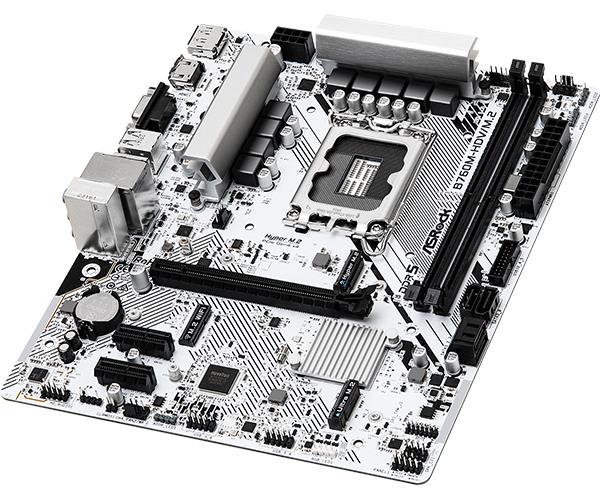

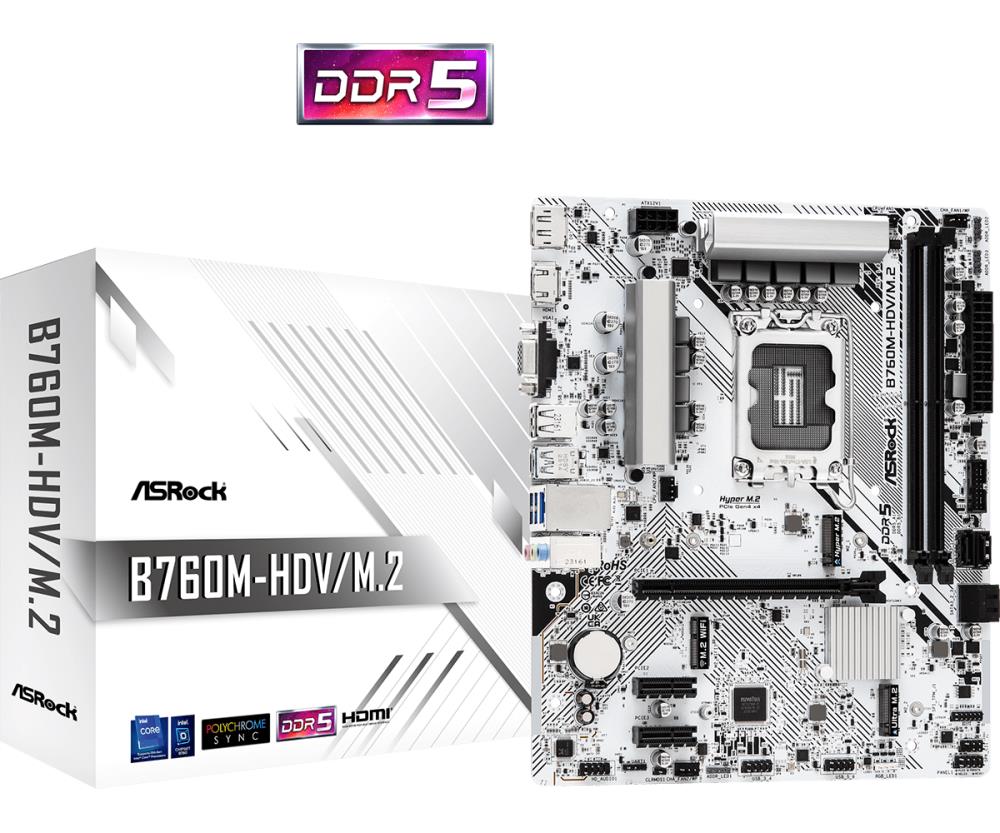

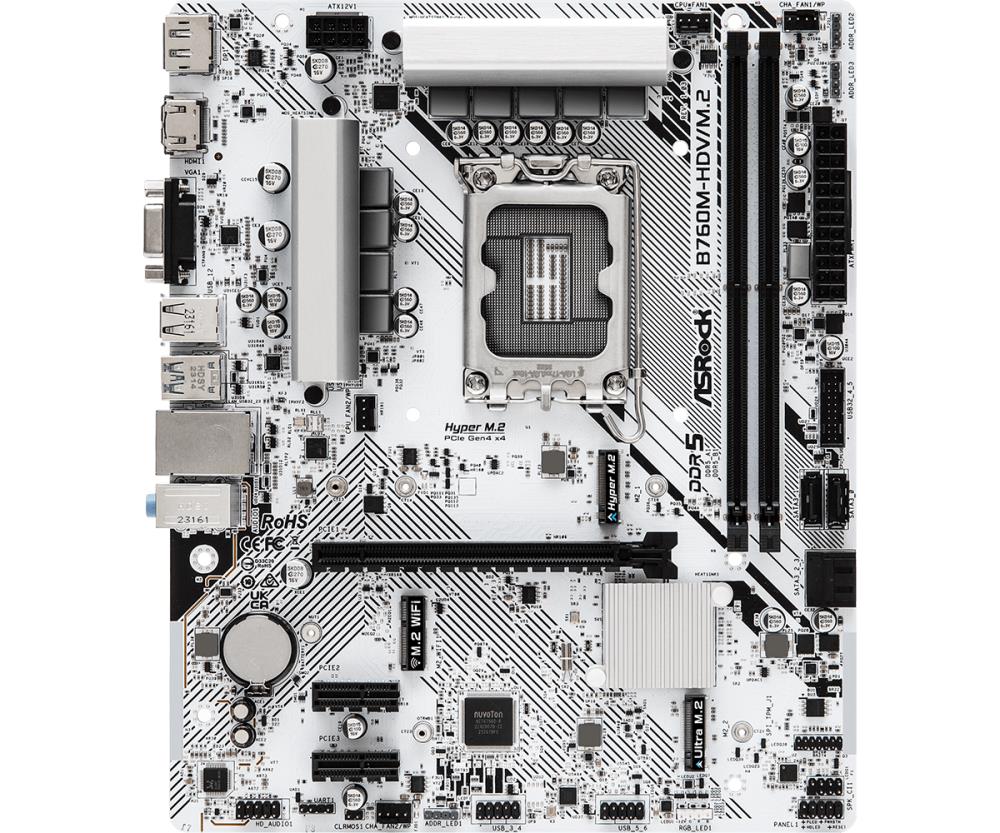

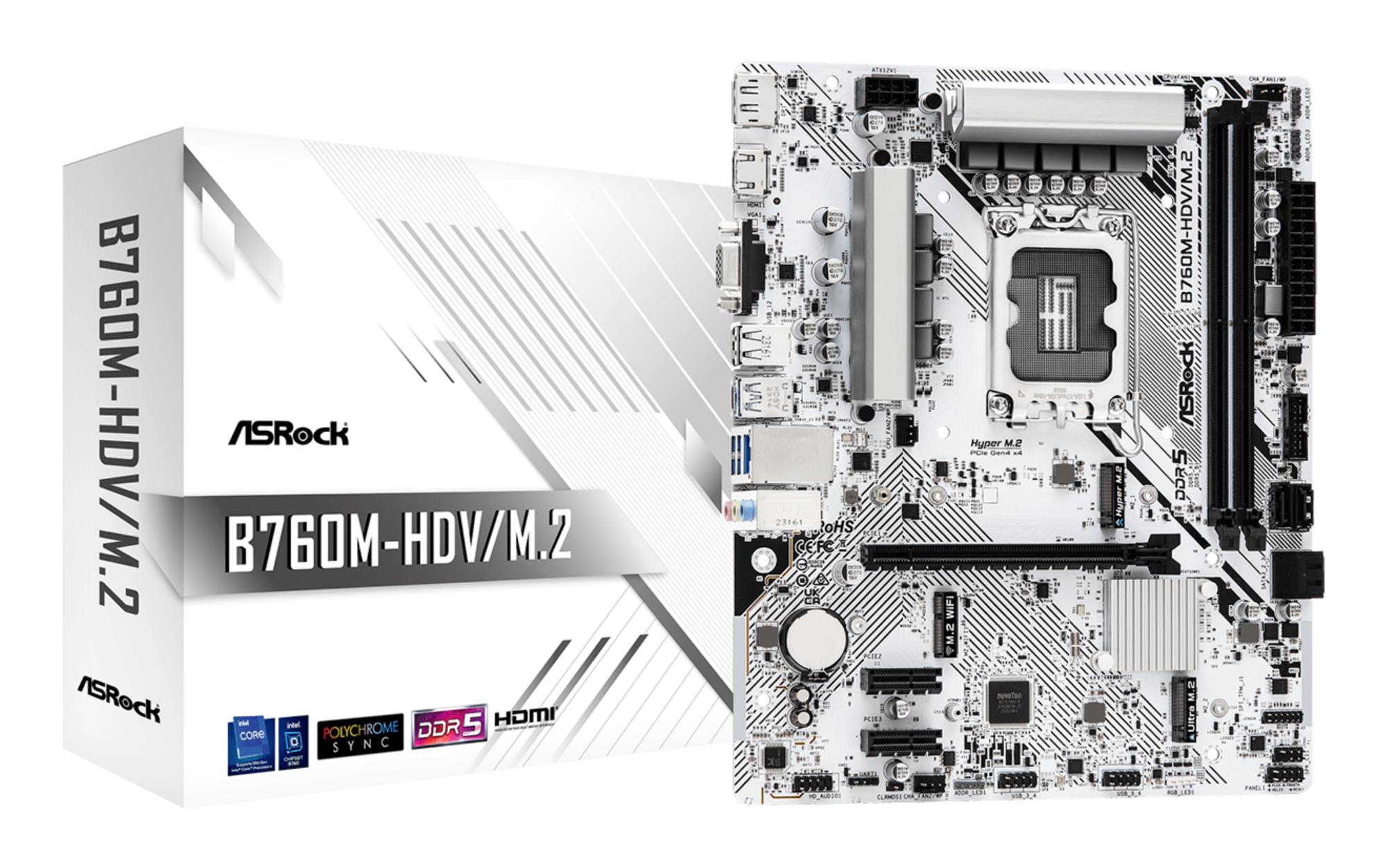

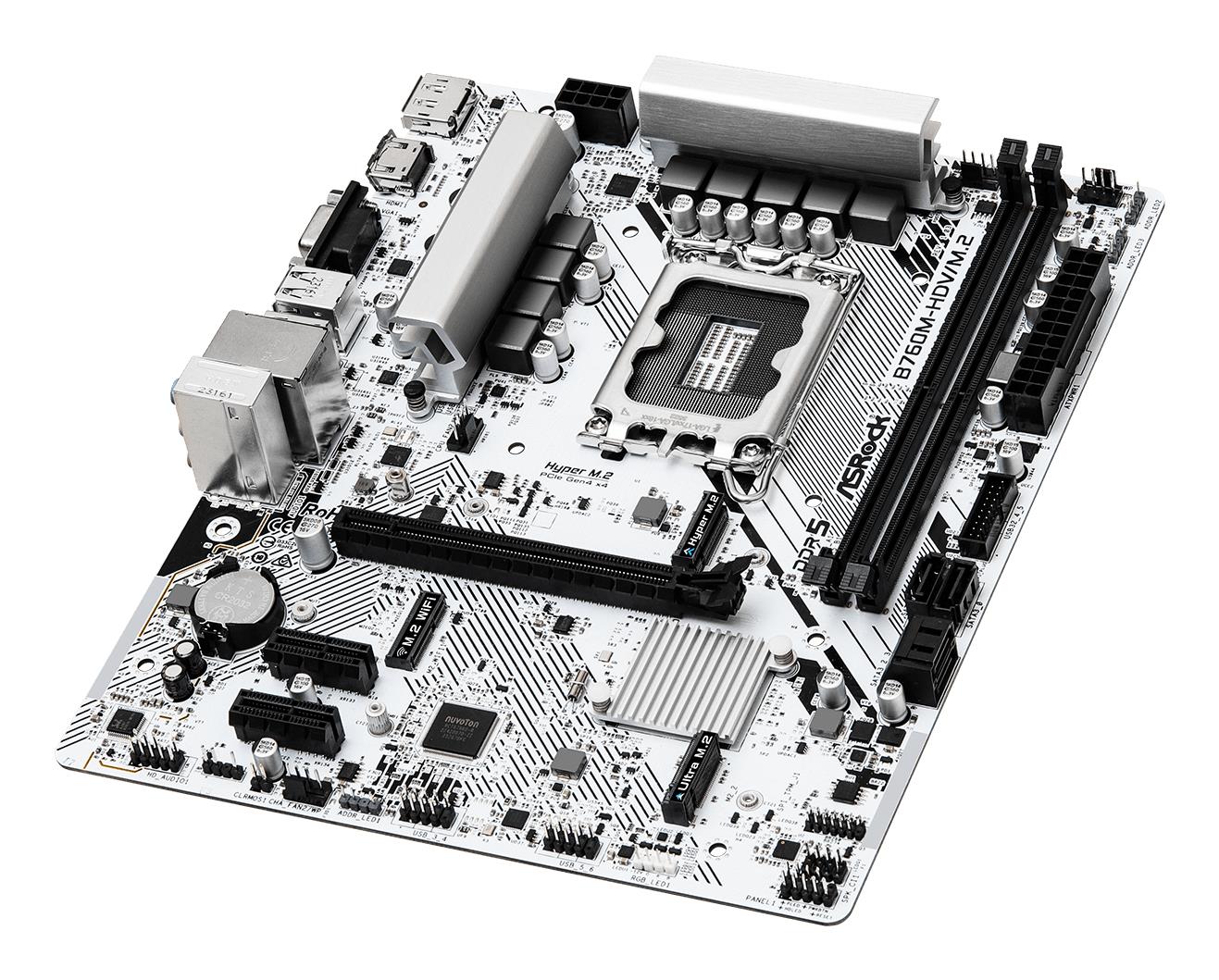

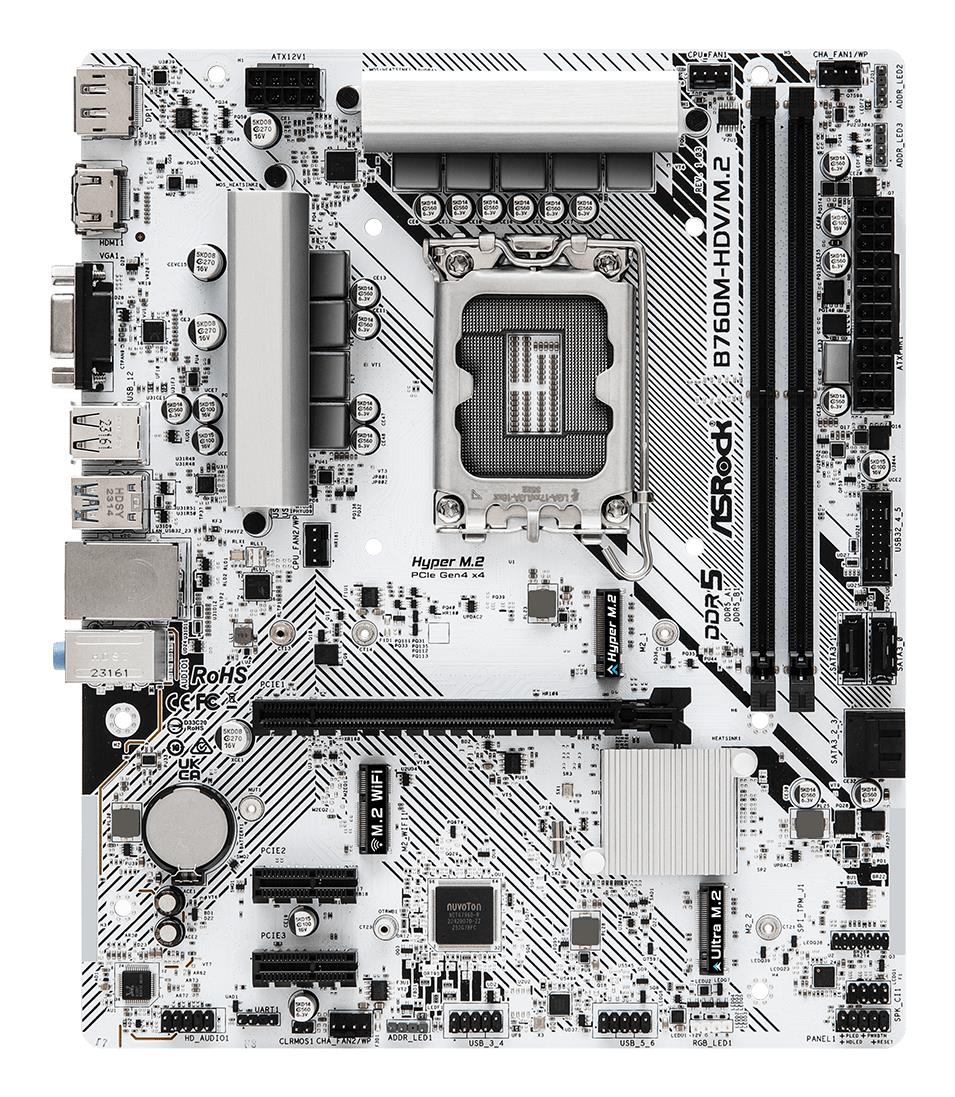

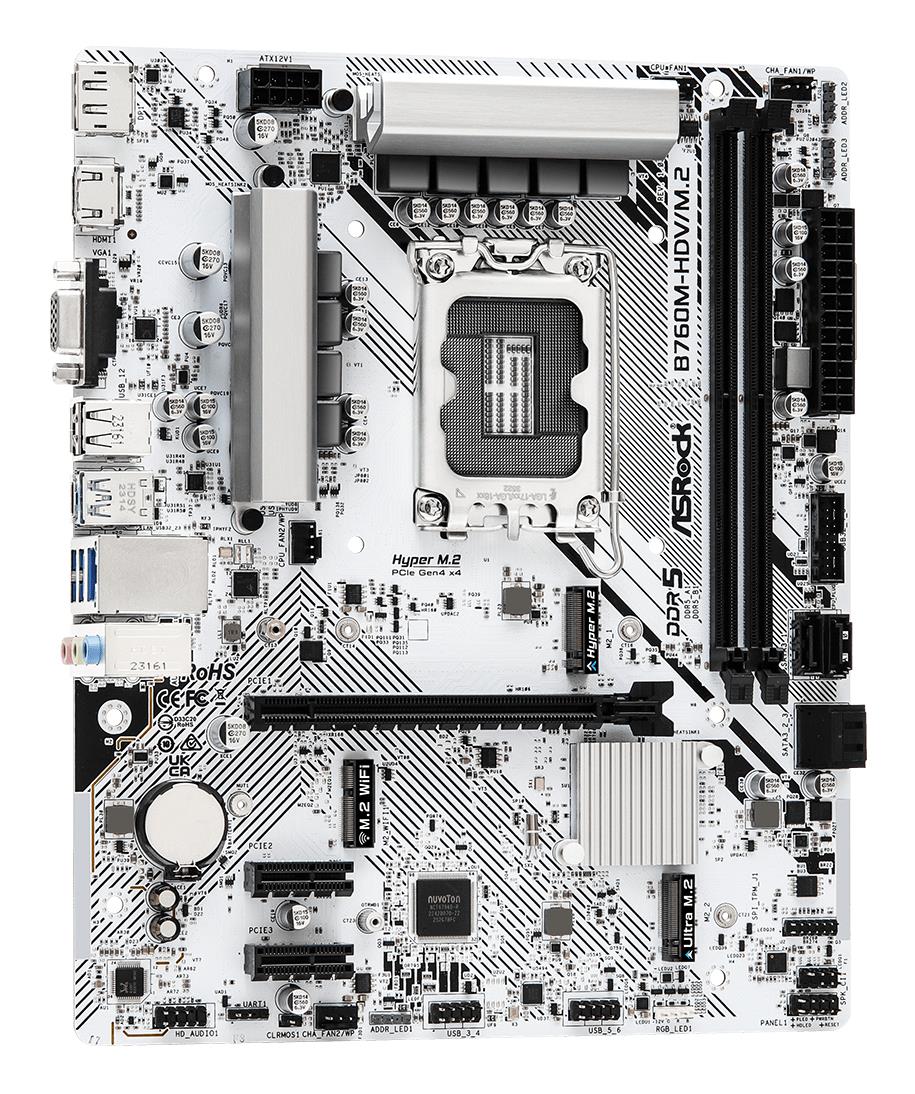

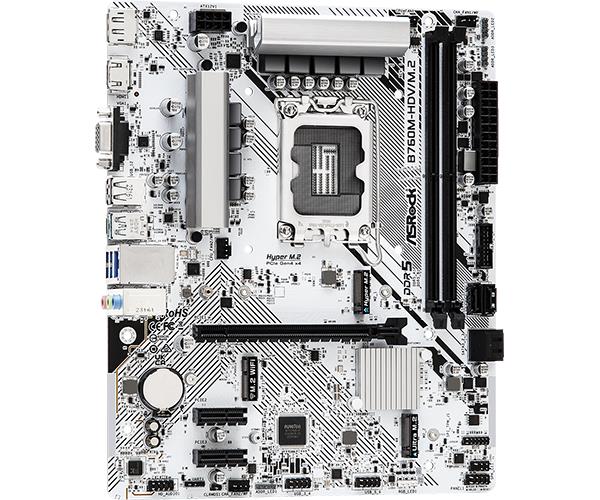

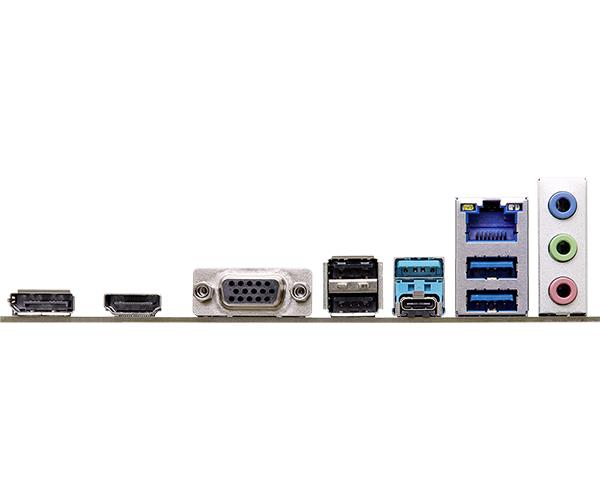

Mainboard ASROCK Intel B760 Express LGA1700 Micro-ATX Memory DDR5 Memory slots 2 2xPCI-Express 3.0 1x 1xPCI-Express 4.0 16x 1xM.2 1x15pin D-sub 1xHDMI 1xDisplayPort 1xAV-In 1xAV-out 1xMicrophone 2xUSB 2.0 3xUSB 3.2 1xUSB-C 1xRJ45 B760M-HDV/M.2

Description: B760M-HDV/M.2 – Supports 14th, 13th & 12th Gen Intel® Core™ Processors (LGA1700)
– 7+1+1 Power Phase
– Supports DDR5 7200MHz (OC)
– 1 PCIe 4.0 x16, 2 PCIe 3.0 x1, 1 M.2 Key E for WiFi

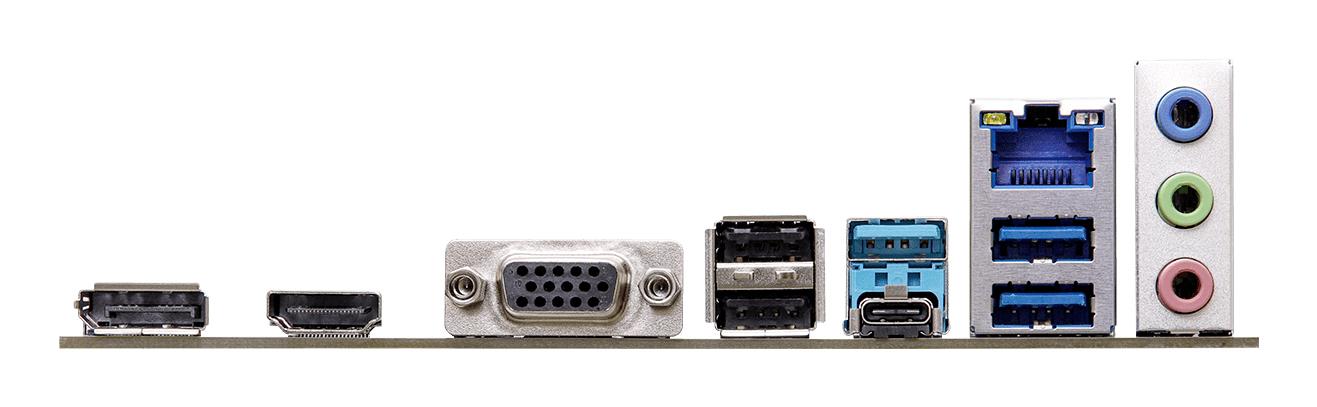

– Graphics Output Options: HDMI, DisplayPort, D-Sub
– Realtek ALC897 7.1 CH HD Audio Codec
– 4 SATA3, 1 Hyper M.2 (PCIe Gen4 x4),
– 1 Ultra M.2 (PCIe Gen3 x4)
– 1 USB 3.2 Gen1 Type-C (Rear),
– 5 USB 3.2 Gen1 Type-A (3 Rear, 2 Front),
– 6 USB 2.0 (2 Rear, 4 Front)
– Dragon 2.5G LAN
– Supports ASRock Auto Driver Installer
Vendor Homepage: www.asrock.com/mb/Intel/B760M-HDVM.2/index.asp
Model: B760M-HDV/M.2
Chipset: Intel B760 Express
Socket: LGA1700
Form Factor: Micro-ATX
Memory type: DDR5
Frequency speed: 7200
Memory slots: 2
M.2: 1
PCI-Express 3.0 1x: 2
PCI-Express 4.0 16x: 1
15pin D-sub: 1
AV-In: 1
AV-out: 1
DisplayPort: 1
HDMI: 1
Microphone: 1
RJ45: 1
USB 2.0: 2
USB 3.2: 3
USB-C: 1
SATA 3.0: Yes
USB 2.0: Yes
USB 3.2: Yes
Integrated video: Depending on CPU
Integrated LAN: 2.5 Gigabit
Integrated audio: Realtek ALC897
RAID: SATA 0, 1, 5, 10
TPM: Yes
Included Accessories: 1 x User Manual;
1 x I/O Shield;
2 x SATA Data Cables;
3 x Screws for M.2 Sockets
Unit Brutto Volume: 0.004066
Unit Net Weight: 0.5
Unit Gross Weight: 0.76
CnCode: 84733020
Full Description Line: Intel B760 Express|LGA1700|Micro-ATX|DDR5|7200 MHz|Memory slots 2|2xPCI-Express 3.0 1x|1xPCI-Express 4.0 16x|1xM.2|1x15pin D-sub|1xHDMI|1xDisplayPort|1xAV-In|1xAV-out|1xMicrophone|2xUSB 2.0|3xUSB 3.2|1xUSB-C|1xRJ45|USB 2.0|USB 3.2|SATA 3.0|LAN 2.5 Gigabit|Audio Realtek ALC897|RAID SATA 0, 1, 5, 10|TPM
Category Code: MBI
