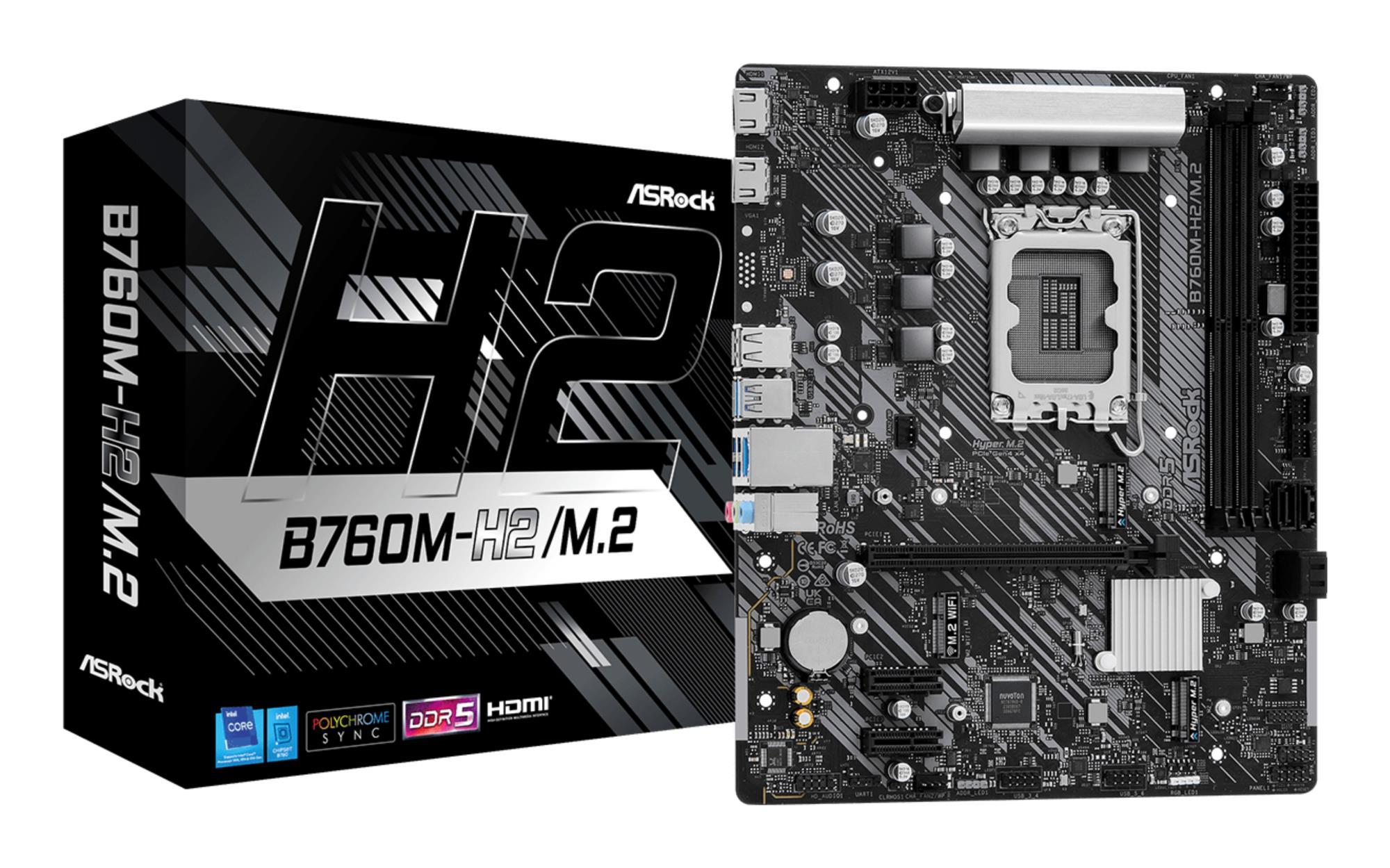

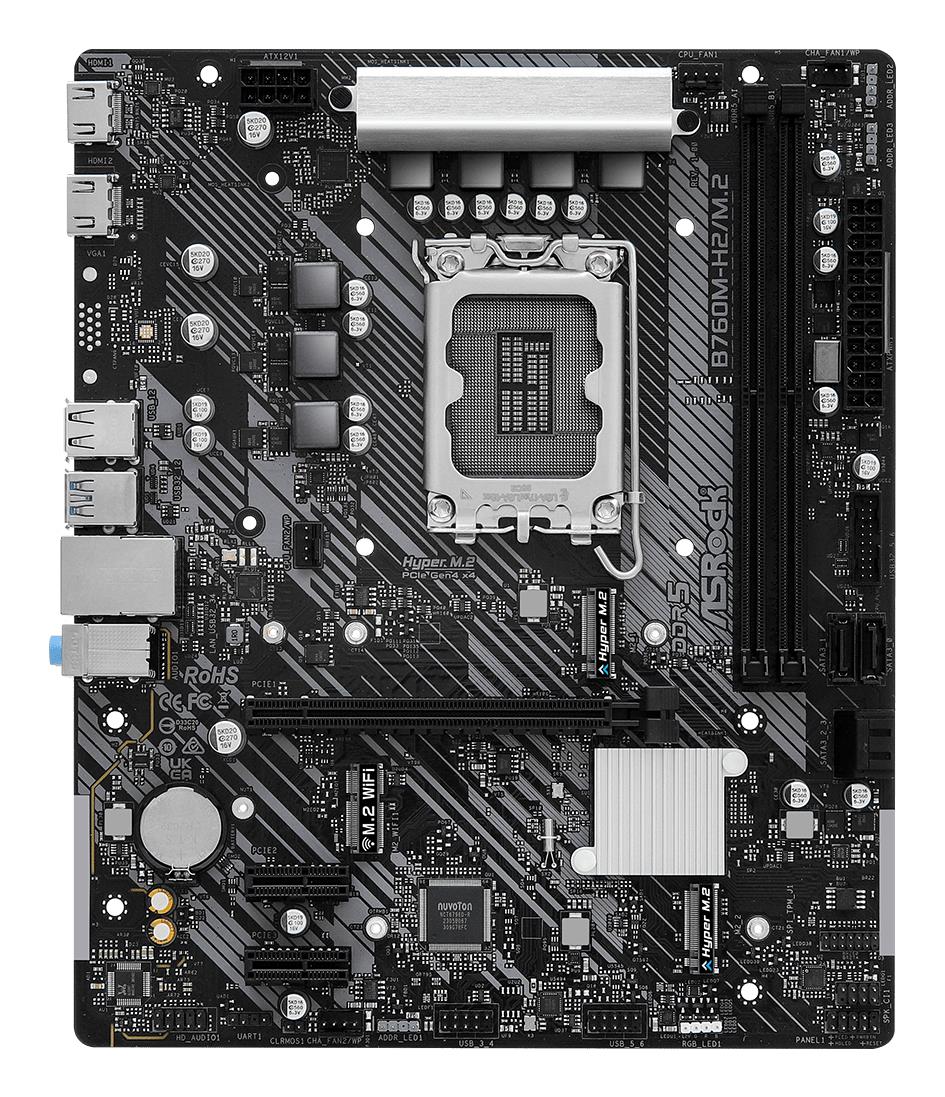

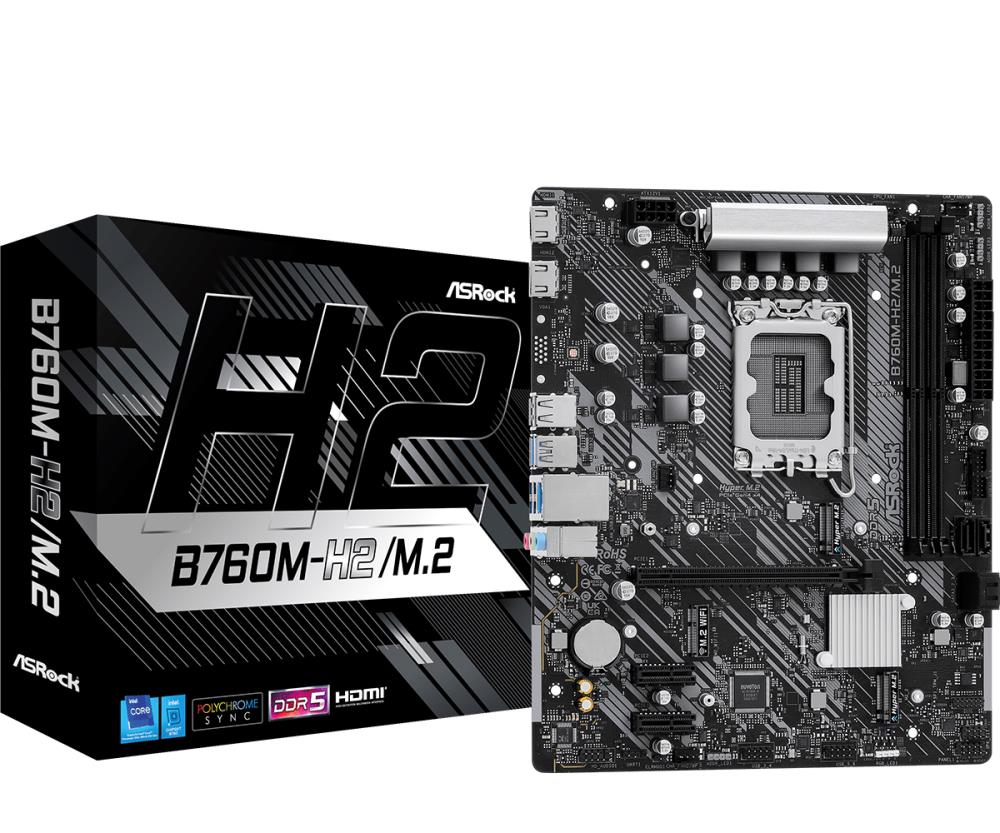

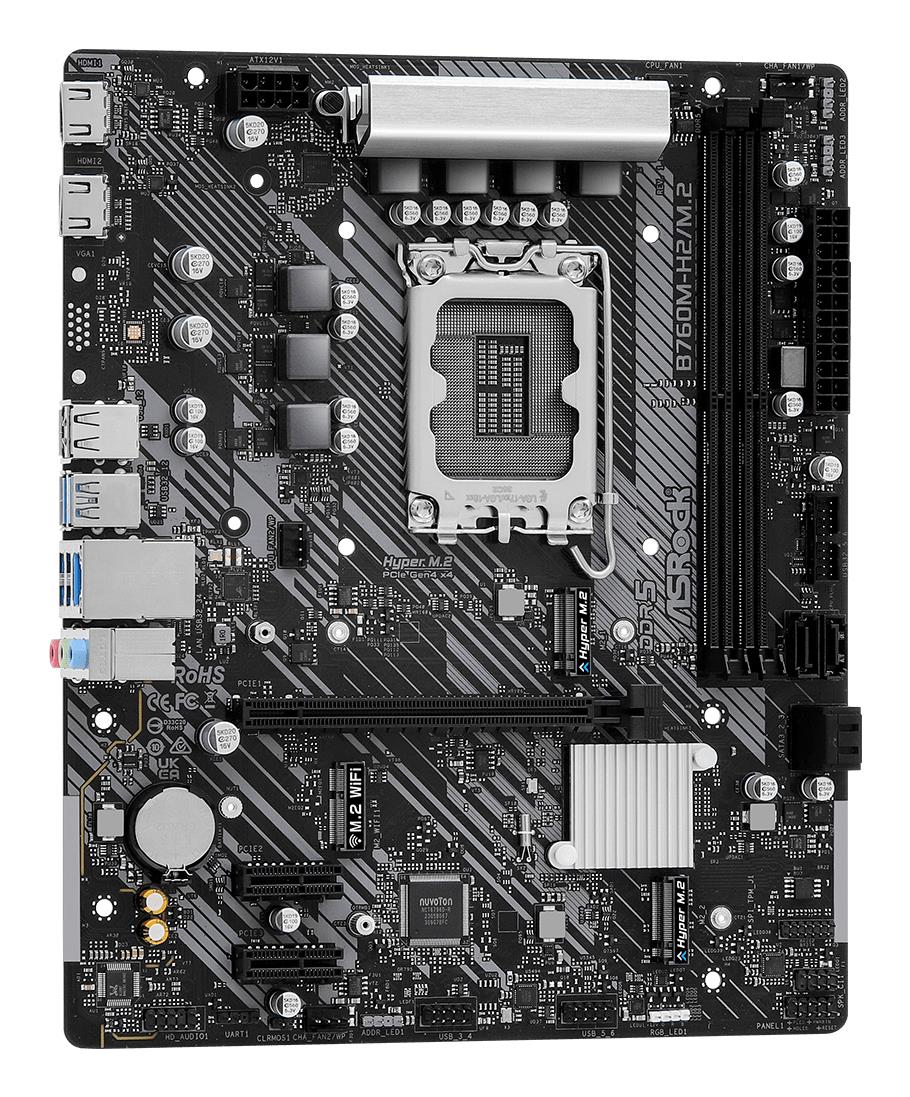

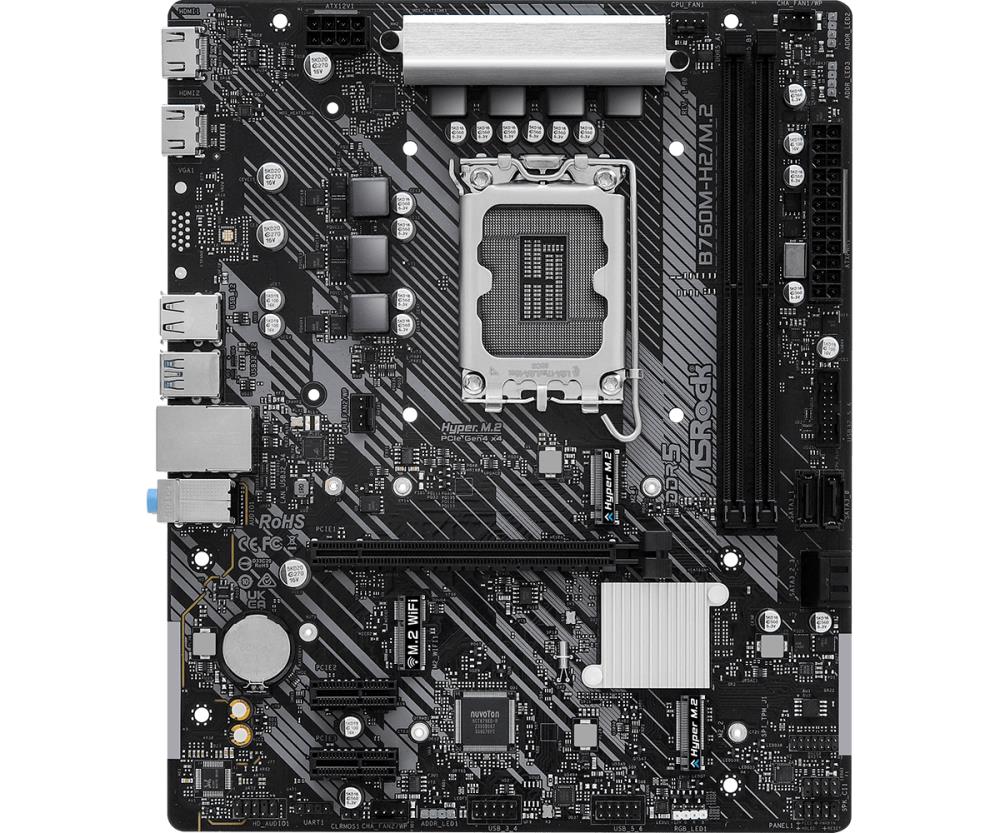

Mainboard ASROCK Intel B760 Express LGA1700 Micro-ATX Memory DDR5 Memory slots 2 2xPCI-Express 3.0 1x 1xPCI-Express 4.0 16x 3xM.2 2xHDMI 2xUSB 2.0 4xUSB 3.2 1xRJ45 3xAudio port B760M-H2/M.2

Description: B760M-H2/M.2 – Supports 14th, 13th & 12th Gen Intel® Core™ Processors (LGA1700)
– 5+1+1 Power Phase
– Supports DDR5 7200+ (OC)
– 1 PCIe 4.0 x16, 2 PCIe 3.0 x1, 1 M.2 Key E for WiFi

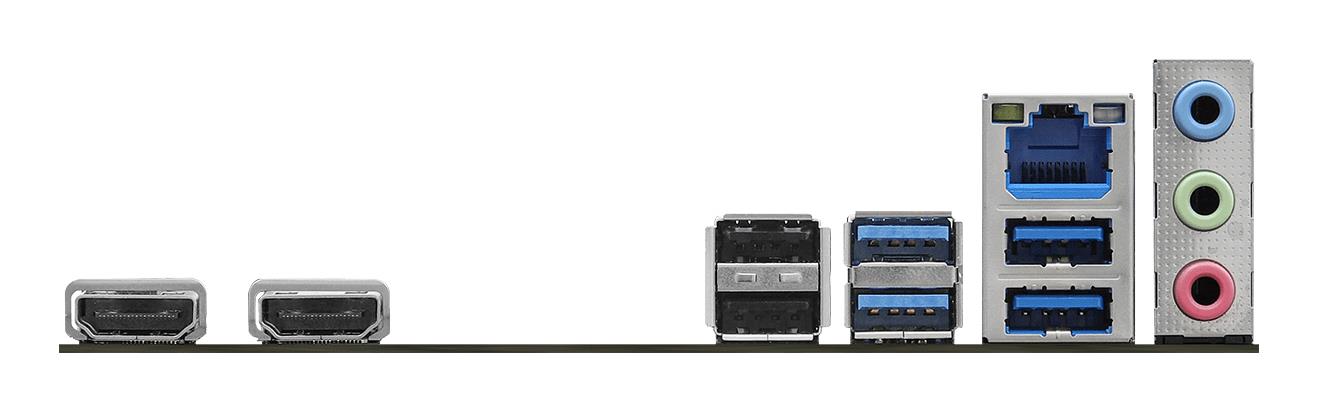

– Graphics Output Options: 2 HDMI
– Realtek ALC897 7.1 CH HD Audio Codec
– 4 SATA3, 2 Hyper M.2 (PCIe Gen4 x4)
– 6 USB 3.2 Gen1 Type-A (4 Rear, 2 Front),
– 6 USB 2.0 (2 Rear, 4 Front)
– Dragon 2.5G LAN
– Supports ASRock Auto Driver Installer
Vendor Homepage: www.asrock.com/MB/Intel/B760M-H2M.2/index.asp
Model: B760M-H2/M.2
Chipset: Intel B760 Express
Socket: LGA1700
Form Factor: Micro-ATX
Memory type: DDR5
Frequency speed: 7200
Memory slots: 2
M.2: 3
PCI-Express 3.0 1x: 2
PCI-Express 4.0 16x: 1
Audio port: 3
HDMI: 2
RJ45: 1
USB 2.0: 2
USB 3.2: 4
SATA 3.0: Yes
USB 2.0: Yes
USB 3.2: Yes
Integrated video: Depending on CPU
Integrated LAN: 2.5 Gigabit
Integrated audio: Realtek ALC897
RAID: SATA 0, 1, 5, 10
TPM: Header
Shipping box quantity: 1
Shipping Box Depth: 27.5
Shipping Box Height: 24
Shipping Box Weight: 0.755
Shipping Box Width: 6.5
Unit Brutto Volume: 0.00429
Unit Net Weight: 0.5
Unit Gross Weight: 0.755
CnCode: 84733020
Category Code: MBI
