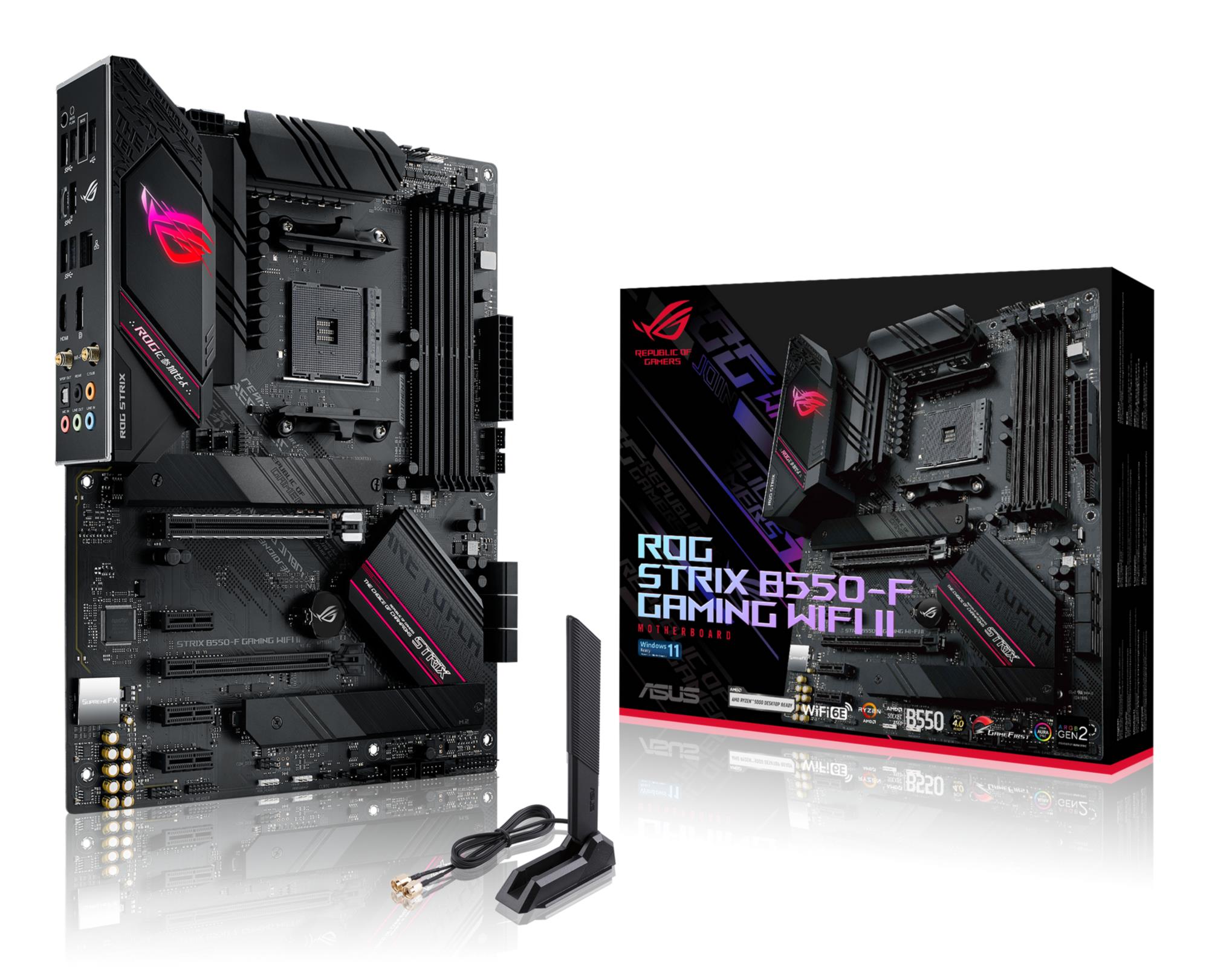

Description: ROG STRIX B550-F GAMING WIFI II
AMD B550 Ryzen AM4 Gaming ATX motherboard with PCIe® 4.0, 12+2 teamed power stages, Intel® 2.5 Gb Ethernet, WiFi 6E, Two-Way AI Noise Cancelation, dual M.2 slots with heatsinks, SATA 6 Gbps, USB 3.2 Gen 2 and Aura Sync RGB lighting
– AM4 socket: Ready for AMD Ryzen™ 3000 and 5000 series, plus 5000 and 4000 G-series desktop processors
– Best gaming connectivity: PCIe® 4.0-ready, dual M.2 slots, USB 3.2 Gen 2 Type-C®, plus HDMI® 2.1 and DisplayPort™ 1.2 output
– Smooth networking: On-board WiFi 6E (802.11ax) and Intel® 2.5 Gb Ethernet with ASUS LANGuard
– Robust power solution: 12+2 teamed power stages with ProCool power connector, high-quality alloy chokes and durable capacitors
– Renowned software: Intuitive dashboards for UEFI BIOS and ASUS AI Networking for easy configuration
– DIY-friendly design: Includes pre-mounted I/O shield, BIOS FlashBack™, Q-LEDs and SafeSlot
– Unmatched personalization: ASUS-exclusive Aura Sync RGB lighting, including Aura RGB and addressable Gen 2 RGB headers
– Industry-leading gaming audio: Two-Way AI Noise Cancelation, SupremeFX S1220A codec, DTS® Sound Unbound™ and Sonic Studio III for immersive sound
Vendor Homepage: rog.asus.com/motherboards/rog-strix/rog-strix-b550-f-gaming-wifi-ii-model/
Chipset: AMD B550
Socket: SAM4
Form Factor: ATX
Memory type: DDR4
Frequency speed: 2133/2400/2666/2800/3000/3200/3466/3600/3866/4000/4133/4266/4400/4600/4866/5100
Memory slots: 4
M.2: 2
PCI-Express 3.0 1x: 3
PCI-Express 3.0 4x: 1
PCI-Express 4.0 16x: 1
Audio-In: 2
Audio-Out: 3
DisplayPort: 1
HDMI: 1
Optical S/PDIF: 1
RF-Out: 2
RJ45: 1
USB 2.0: 2
USB 3.2: 5
USB-C: 1
Bluetooth: Yes
SATA: Yes
WiFi: Yes
Integrated video: Depending on CPU
Integrated audio: Yes
Integrated LAN: 2.5 Gigabit
RAID: SATA 0, 1, 10
Shipping box quantity: 1
Shipping Box Depth: 34
Shipping Box Height: 7
Shipping Box Weight: 1.77
Shipping Box Width: 27
Unit Brutto Volume: 0.006426
Unit Net Weight: 1.2
Unit Gross Weight: 1.77
CnCode: 84733020
Unit Box Width: 0.27
Unit Box Length: 0.34
Unit Box Height: 0.07
Full Description Line: AMD B550|SAM4|ATX|DDR4|5100/4866/4600/4400/4266/4133/4000/3866/3600/3466/3200/3000/2800/2666/2400/2133 MHz|Memory slots 4|3xPCI-Express 3.0 1x|1xPCI-Express 3.0 4x|1xPCI-Express 4.0 16x|2xM.2|1xHDMI|1xDisplayPort|2xAudio-In|3xAudio-Out|2xUSB 2.0|5xUSB 3.2|1xUSB-C|1xOptical S/PDIF|1xRJ45|2xRF-Out|SATA|Bluetooth|WiFi|Video Depending on CPU|Audio|LAN 2.5 Gigabit|RAID SATA 0, 1, 10
Category Code: MBA
