Mainboard ASUS Intel H610 LGA1700 MicroATX Memory DDR4 Memory slots 2 1xPCI-Express 3.0 1x 1xPCI-Express 4.0 16x 1xM.2 1x15pin D-sub 1xHDMI 2xAudio-In 1xAudio-Out 4xUSB 2.0 2xUSB 3.2 1xPS/2 1xRJ45 PRIMEH610M-KD4

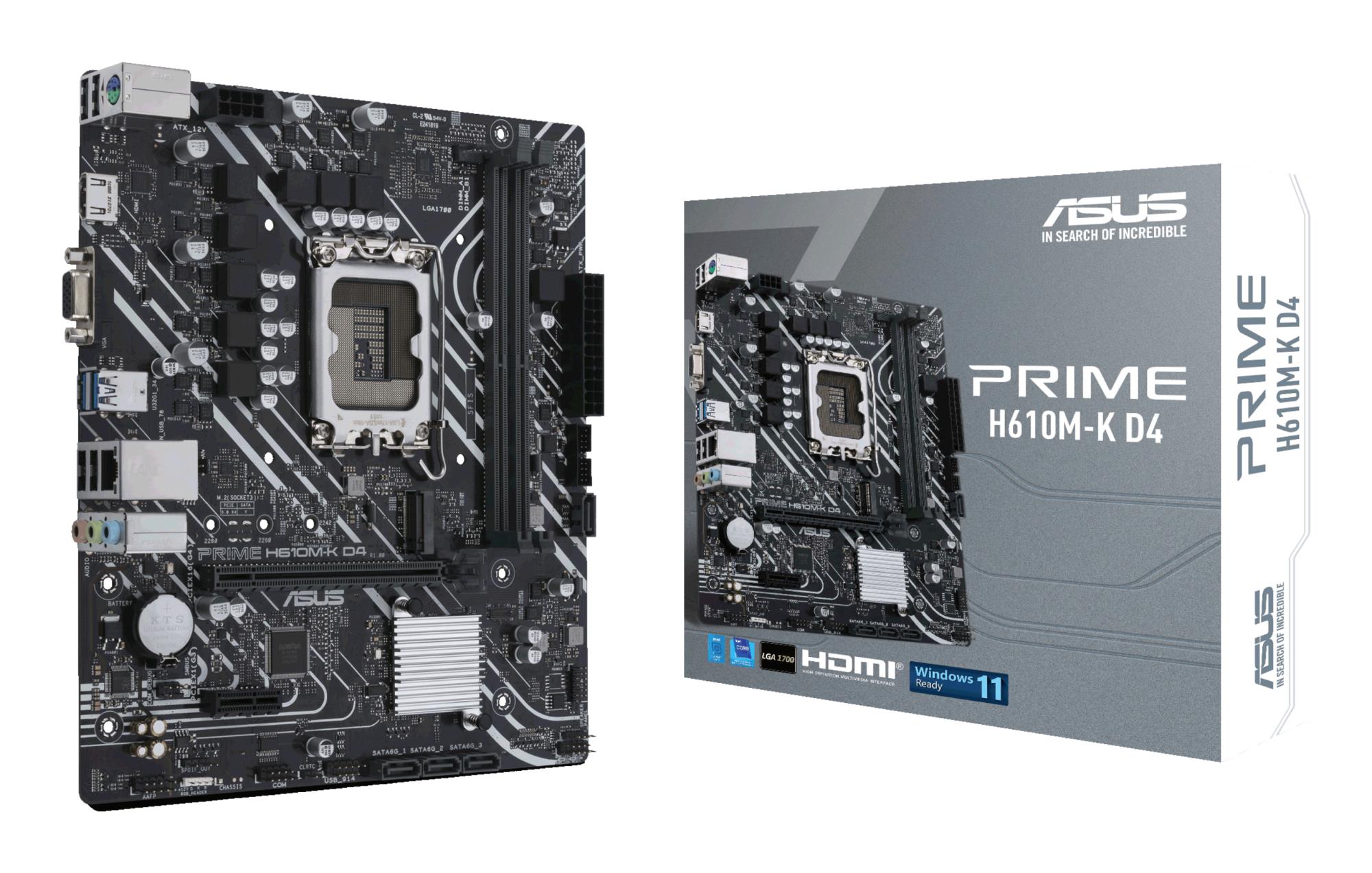

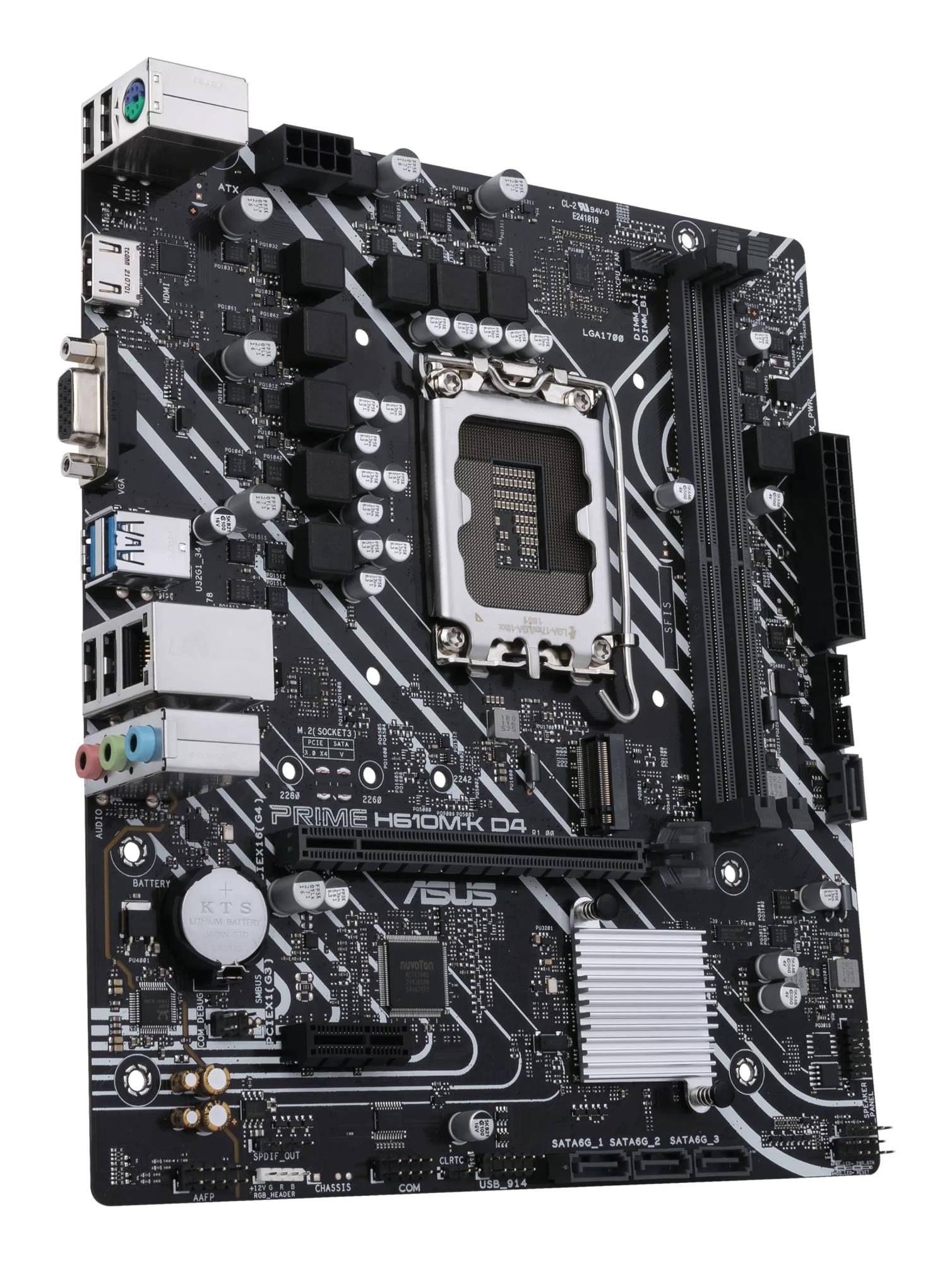

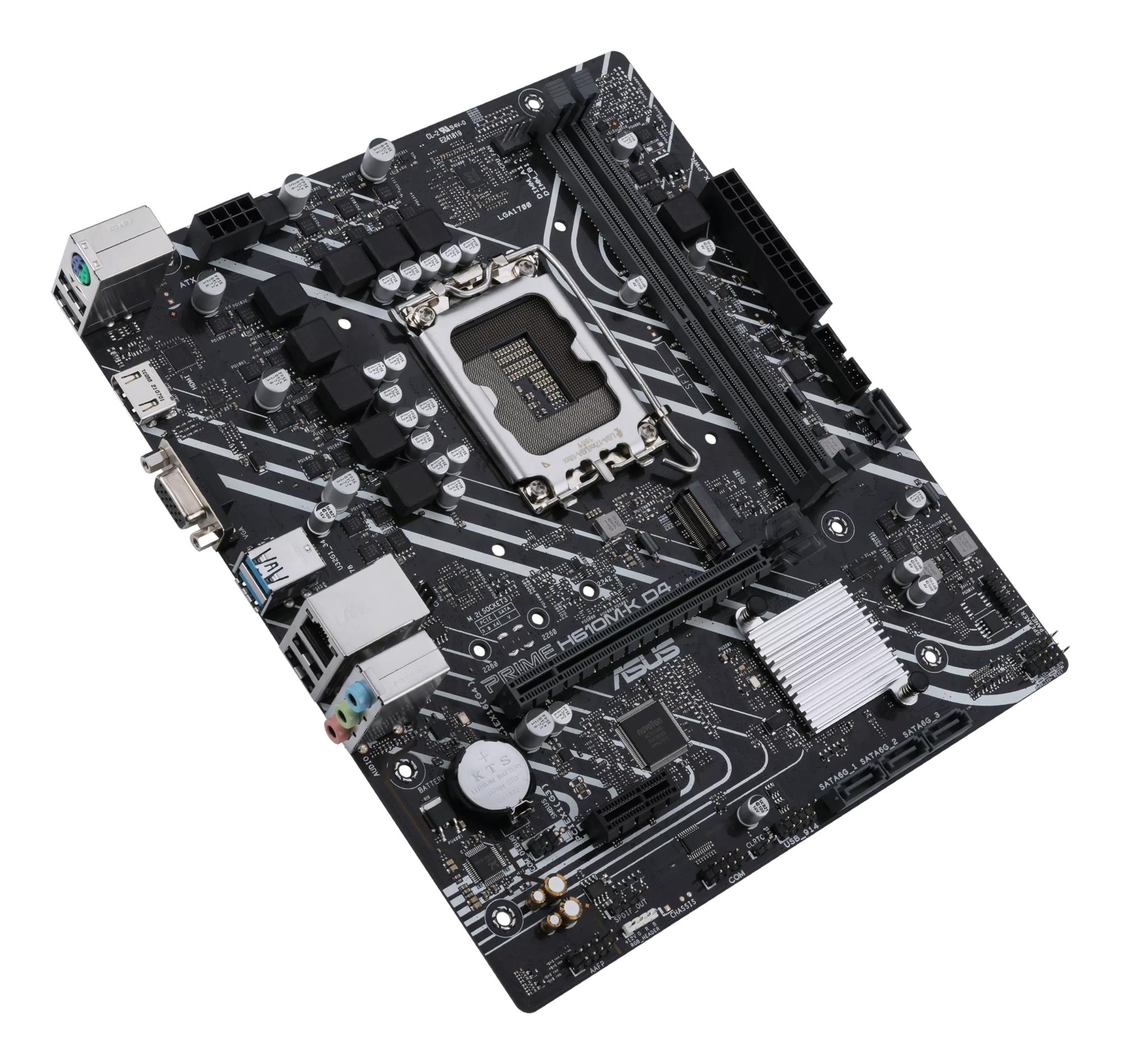

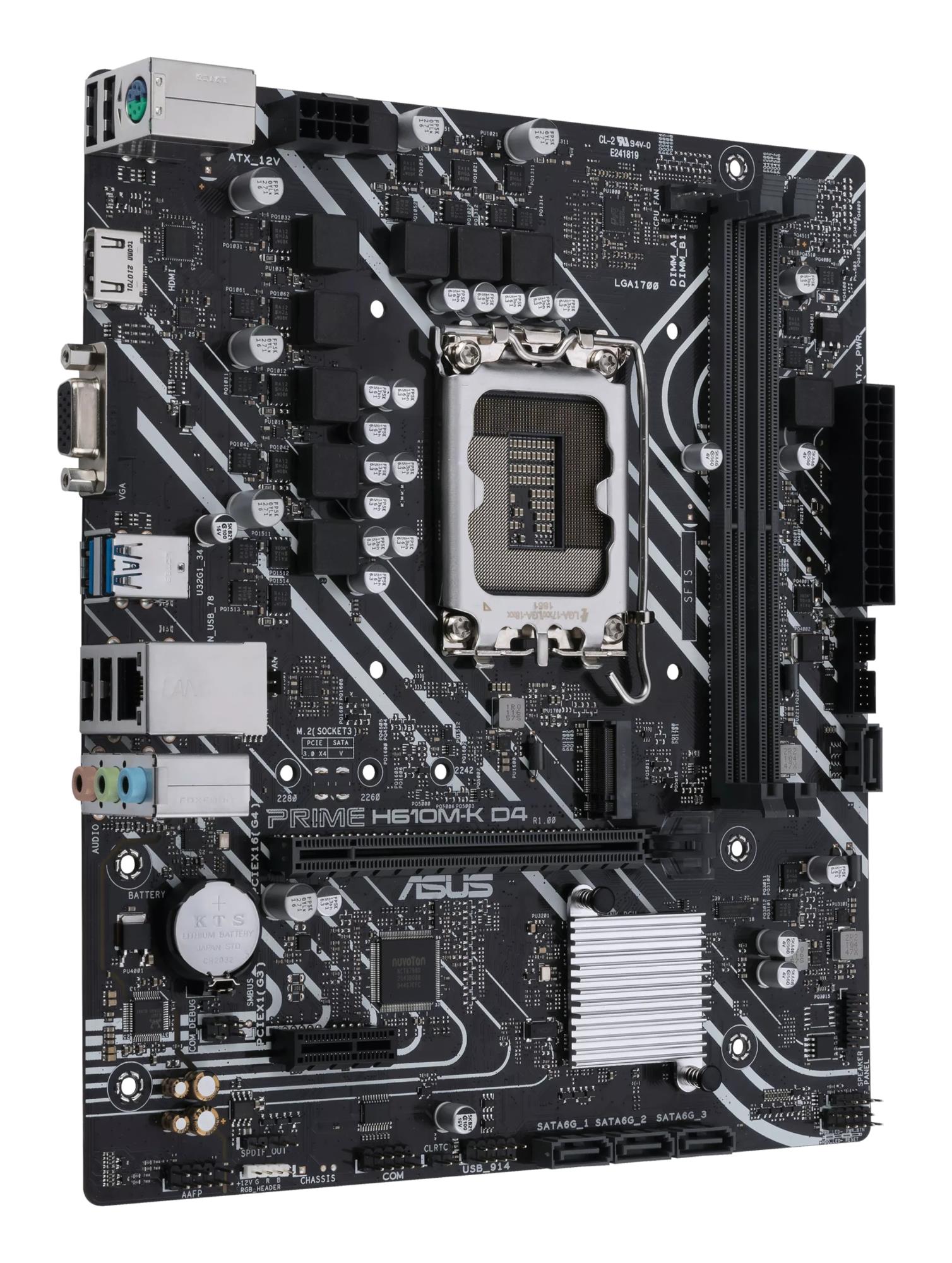

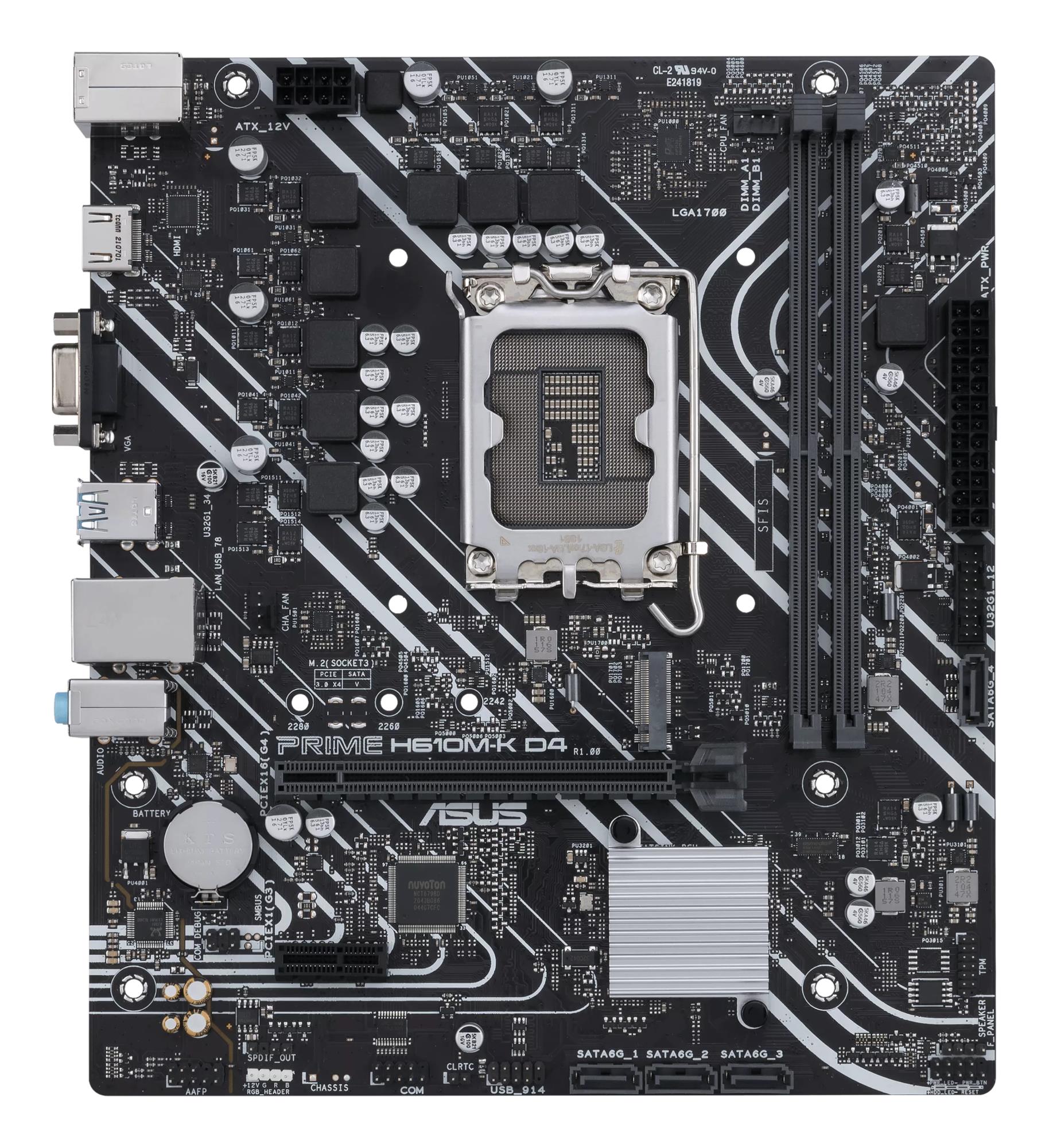

Description: PRIME H610M-K D4
Intel® H610 (LGA 1700) mic-ATX motherboard with DDR4, PCIe 4.0, M.2 slot, Realtek 1 Gb Ethernet, HDMI®, D-Sub, USB 3.2 Gen 1 ports, SATA 6 Gbps, COM header, RGB header – Intel® LGA 1700 socket: Ready for 12th Gen Intel® processors
– Comprehensive cooling: PCH heatsink and Fan Xpert
– Ultrafast connectivity: 32Gbps M.2 slot, Realtek 1 Gb Ethernet and USB 3.2 Gen 1 support
– 5X Protection III: Multiple hardware safeguards for all-round protection
Vendor Homepage: www.asus.com/Motherboards-Components/Motherboards/PRIME/PRIME-H610M-K-D4/
Chipset: Intel H610
Socket: LGA1700
Form Factor: Micro-ATX
Memory type: DDR4
Frequency speed: 2133/2400/2666/2800/2933/3000/3200
Memory slots: 2
M.2: 1
PCI-Express 3.0 1x: 1
PCI-Express 4.0 16x: 1
15pin D-sub: 1
Audio-In: 2
Audio-Out: 1
HDMI: 1
PS/2: 1
RJ45: 1
USB 2.0: 4
USB 3.2: 2
SATA: Yes
Integrated video: Yes
Integrated LAN: Gigabit
Integrated audio: Yes
TPM: Header
Shipping box quantity: 1
Shipping Box Depth: 27.5
Shipping Box Height: 26.5
Shipping Box Weight: 0.856
Shipping Box Width: 5
Unit Brutto Volume: 0.003644
Unit Net Weight: 0.62
Unit Gross Weight: 0.856
CnCode: 84733020
Unit Box Width: 0.05
Unit Box Length: 0.275
Unit Box Height: 0.265
Full Description Line: Intel H610|LGA1700|Micro-ATX|DDR4|3200/3000/2933/2800/2666/2400/2133 MHz|Memory slots 2|1xPCI-Express 3.0 1x|1xPCI-Express 4.0 16x|1xM.2|1x15pin D-sub|1xHDMI|2xAudio-In|1xAudio-Out|4xUSB 2.0|2xUSB 3.2|1xPS/2|1xRJ45|SATA|Video|LAN Gigabit|Audio|TPM Header
Category Code: MBI
