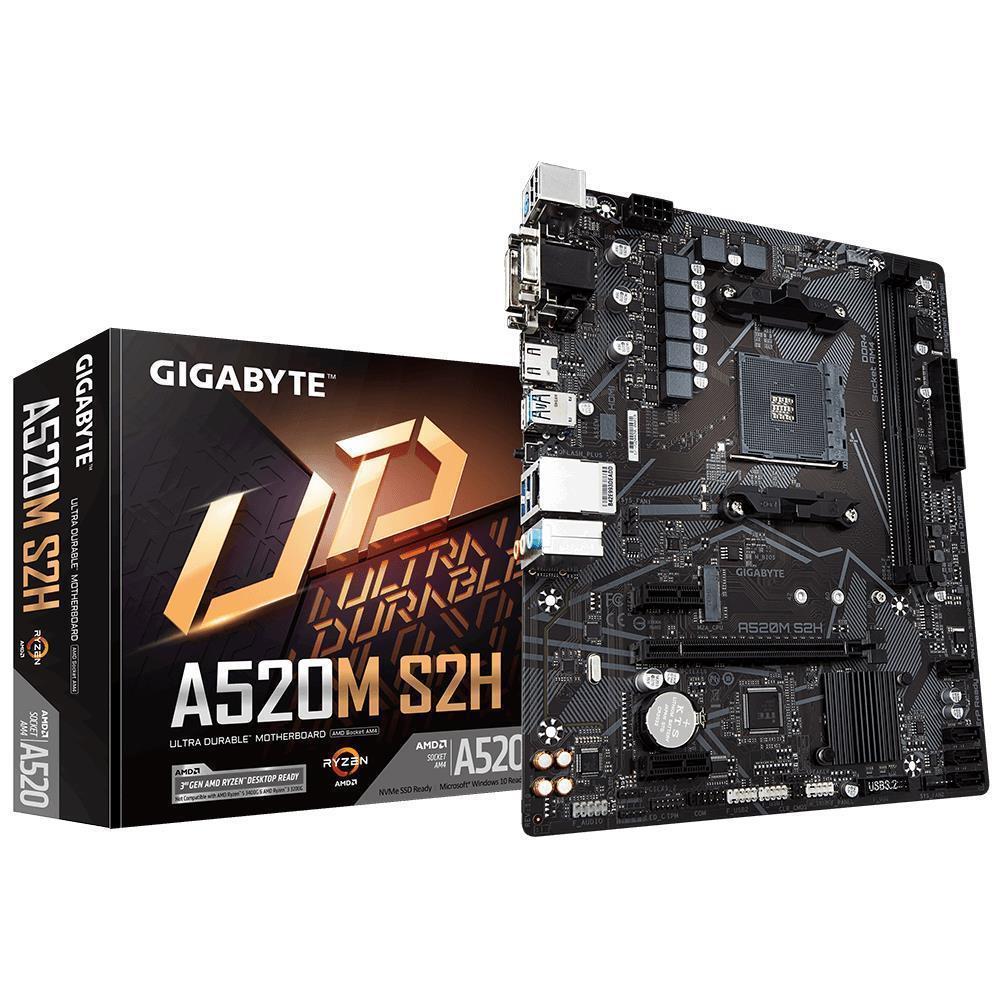

Mainboard GIGABYTE AMD A520 SAM4 Micro-ATX Memory DDR4 Memory slots 2 2xPCI-Express 3.0 1x 1xPCI-Express 3.0 16x 1xM.2 1x15pin D-sub 1xDVI-D 1xHDMI 2xAV-In 1xAV-out 2xUSB 2.0 4xUSB 3.2 1xPS/2 1xRJ45 A520MS2H1.2

Description: AMD A520 Ultra Durable Motherboard with Pure Digital VRM Solution, GIGABYTE Gaming LAN with Bandwidth Management, PCIe 3.0 x4 M.2, RGB FUSION 2.0, Smart Fan 5, Q-Flash Plus, Anti-Sulfur Resistors Design
Supports AMD Ryzen™ 5000 Series/ 3rd Gen Ryzen™ and 3rd Gen Ryzen™ with Radeon™ Graphics Processors
Dual Channel ECC/ Non-ECC Unbuffered DDR4, 2 DIMMs
4+3 Phases Pure Digital VRM Solution with Low RDS(on) MOSFETs
Ultra-Fast NVMe PCIe 3.0 x4 M.2 Connector
GIGABYTE Exclusive 8118 Gaming LAN with Bandwidth Management

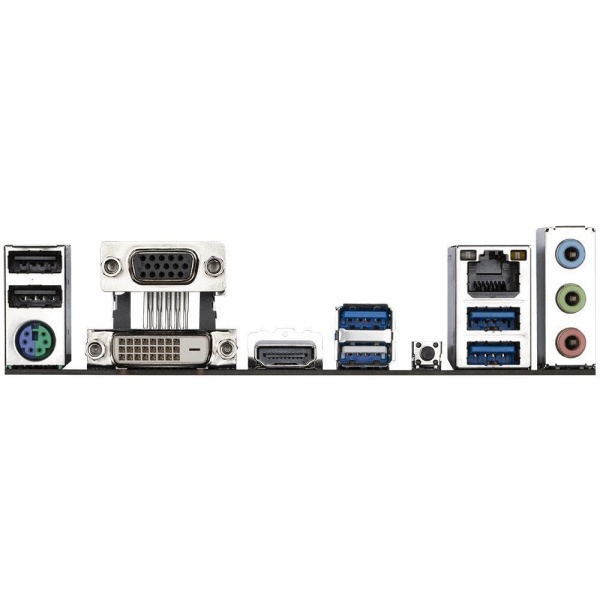

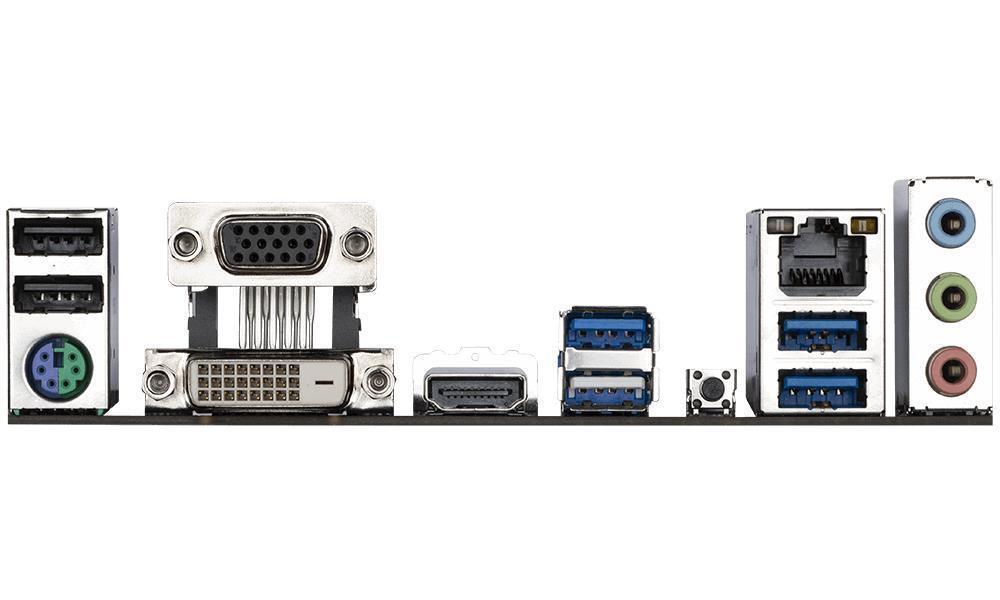

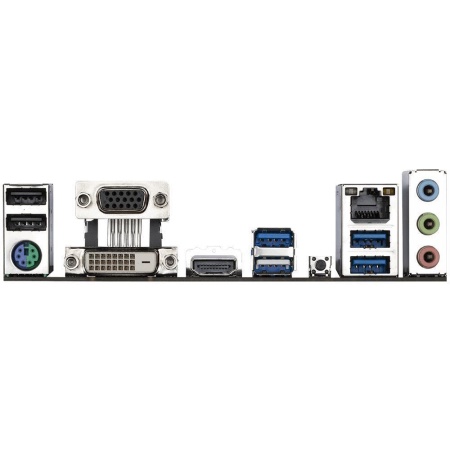

HDMI, DVI-D, D-sub Ports for Multiple Display
RGB FUSION 2.0 Supports Addressable LED & RGB LED Strips
Smart Fan 5 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP
Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card
Anti-Sulfur Resistors Design
Vendor Homepage: www.gigabyte.com/Motherboard/A520M-S2H-rev-10#kf
Model: A520M S2H rev. 1.2
Chipset: AMD A520
Socket: SAM4
Form Factor: Micro-ATX
Memory type: DDR4
Frequency speed: 2133/2400/2666/2933/3200/3333/3600/4000/4400/4600/4866/5000/5100
Memory slots: 2
M.2: 1
PCI-Express 3.0 16x: 1
PCI-Express 3.0 1x: 2
15pin D-sub: 1
AV-In: 2
AV-out: 1
DVI-D: 1
HDMI: 1
PS/2: 1
RJ45: 1
USB 2.0: 2
USB 3.2: 4
SATA: Yes
Integrated video: Depending on CPU
Integrated audio: Realtek ALC887
Integrated LAN: Realtek (Gigabit)
RAID: SATA 0, 1, 10
TPM: Header
Shipping box quantity: 1
Shipping Box Depth: 27
Shipping Box Height: 5.5
Shipping Box Weight: 0.742
Shipping Box Width: 24
Unit Brutto Volume: 0.003564
Unit Net Weight: 0.6
Unit Gross Weight: 0.742
CnCode: 84733020
Unit Box Width: 0.24
Unit Box Length: 0.27
Unit Box Height: 0.055
Full Description Line: AMD A520|SAM4|Micro-ATX|DDR4|5100/5000/4866/4600/4400/4000/3600/3333/3200/2933/2666/2400/2133 MHz|Memory slots 2|2xPCI-Express 3.0 1x|1xPCI-Express 3.0 16x|1xM.2|1x15pin D-sub|1xDVI-D|1xHDMI|2xAV-In|1xAV-out|2xUSB 2.0|4xUSB 3.2|1xPS/2|1xRJ45|SATA|Video Depending on CPU|Audio Realtek ALC887|LAN Realtek (Gigabit)|RAID SATA 0, 1, 10|TPM Header
Category Code: MBA
