Description:
Elevate your computing experience with GIGABYTE’s renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you’re a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge technology.
- X3D Turbo Mode: Unleash new era gaming performance
- DDR5 OC up to 8200MT/s
- AMD Socket AM5: Supports AMD Ryzen 9000 / 8000 / 7000 Series Processors
- Digital 8+2+2 phases VRM solution
- Dual Channel DDR5: 4*DIMMs with AMD EXPO Memory Module Support
- EZ-Latch Plus: PCIe and M.2 slots with Quick Release & Screwless Design
- EZ-Latch Click: M.2 heatsinks with screwless design
- Friendly UI: Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW
- Ultra-Fast Storage: 3*M.2 slots, including PCIe 5.0 x4
- Efficient Thermal: VRM Thermal Armor Advanced & M.2 Thermal Guard
- PCIe UD Slot: PCIe 5.0 x16 slots with 10X strength for graphics card & Better Heat dissipation effect

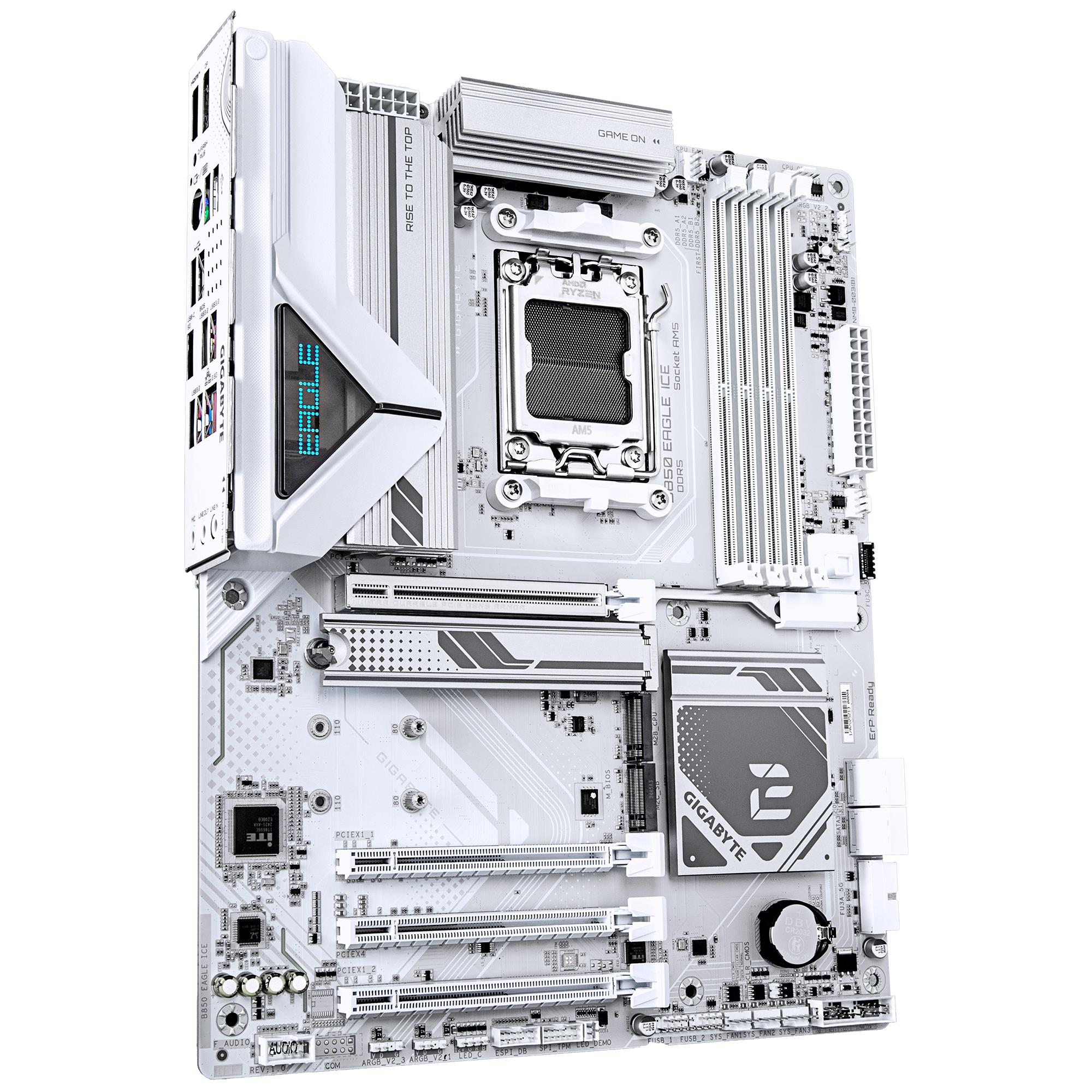

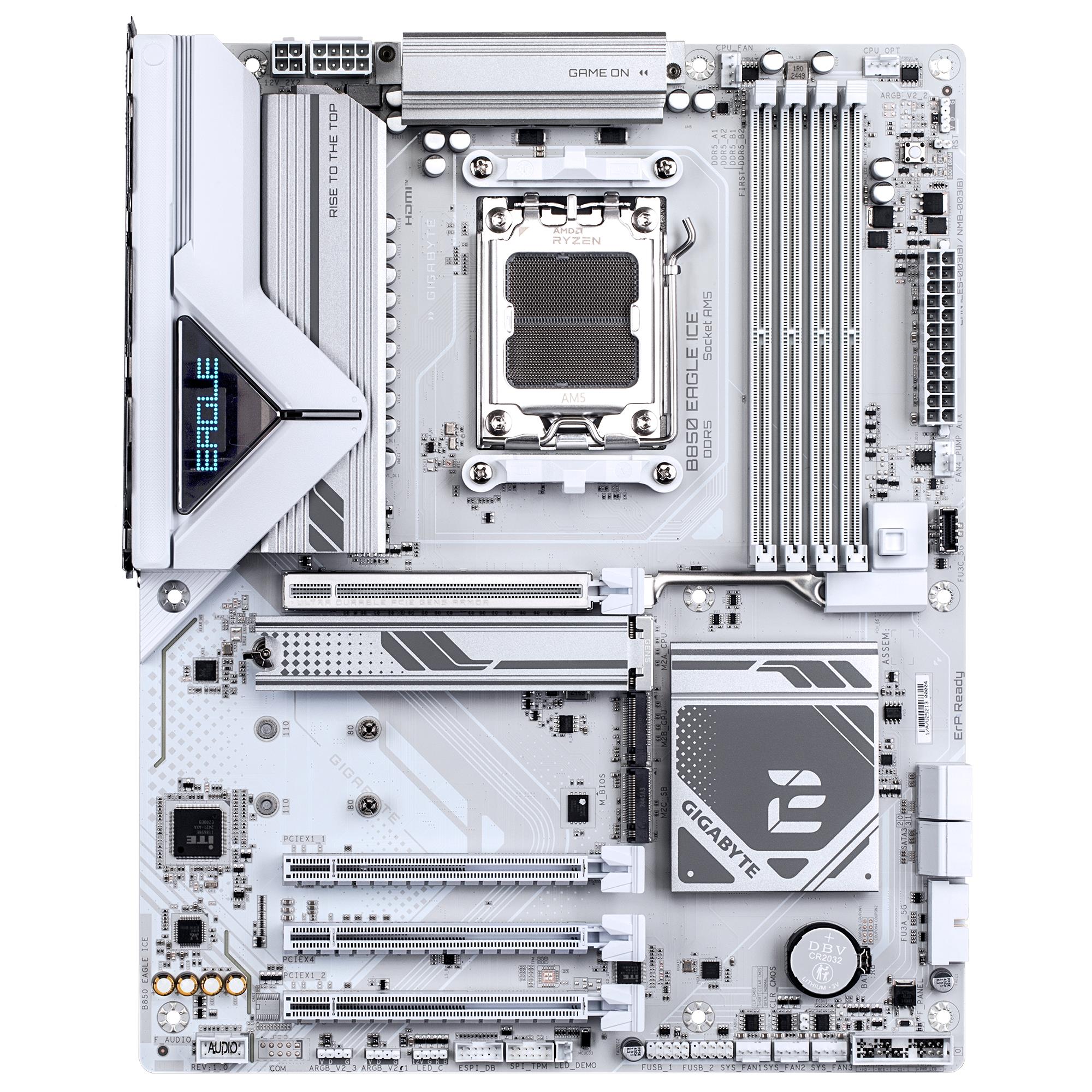

Summary: GIGABYTE B850 EAGLE ICE Motherboard – AMD Ryzen 9000 Series CPUs, 8+2+2 Phases Digital VRM, up to 8200MHz DDR5 (O.C), 1xPCIe 5.0 + 2xPCIe 4.0 M.2, 2.5 GbE LAN, USB 3.2 Gen 2. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series. Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, PCI Express 4.0, PCI Express 5.0, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 10. Maximum resolution: 4096 x 2160 pixels. Ethernet interface type: 2.5 Gigabit Ethernet, LAN controller: Realtek RTL8125
Vendor Homepage: https://www.gigabyte.com/
Category Code: MBA
CnCode: 84733020
Unit Box Height: 0.081
Unit Box Length: 0.337
Unit Box Width: 0.27
Audio chip: Realtek ALC897
Audio output channels: 7.1
Component for: PC
Cooling type: Passive
Motherboard chipset: AMD B850
Motherboard chipset family: AMD
Motherboard form factor: ATX
PC health monitoring: Fan/Temperature/Voltage/Water cooling
Power source type: ATX
Product colour: White
Windows operating systems supported: Windows 11 x64
Compatible processor series: AMD Ryzen 7000 Series/AMD Ryzen 8000 Series/AMD Ryzen 9000 Series
Processor manufacturer: AMD
Processor socket: Socket AM5
Supported processor sockets: Socket AM5
ECC сompatibility: Non-ECC
Maximum internal memory: 256
Maximum internal memory per slot: 64
Memory channels: Dual-channel
Memory slots type: DIMM
Number of memory slots: 4
Supported memory clock speed (max): 8200
Supported memory clock speeds: 4400/4800/5200/5600/5800/6000/6200/6400/6600/6800/7000/7200/7400/7600/7800/7900/7950/8000/8200
Supported memory types: DDR5-SDRAM
Unbuffered memory: Yes
Number of HDDs supported: 4
Number of storage drives supported: 7
RAID levels: 0/1/10
RAID support: Yes
Supported storage drive interfaces: M.2,PCI Express 4.0,PCI Express 5.0,SATA III
Supported storage drive types: HDD & SSD
DirectX version: 12.0
HDCP: Yes
Maximum resolution: 4096 x 2160
Parallel processing technology support: Not supported
12V power connector: Yes
ATX Power connector (24-pin): Yes
CPU fan connector: Yes
EPS power connector (8-pin): Yes
Front panel audio connector: Yes
Front panel connector: Yes
Number of chassis fan connectors: 4
Number of CPU fan connectors: 2
Number of EPS power connectors (8-pin): 1
Number of RGB LED pin headers: 4
Number of SATA III connectors: 4
Number of water pump connectors: 2
Peripheral (Molex) power connectors (4-pin): 1
TPM connector: Yes
USB 2.0 connectors: 2
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2

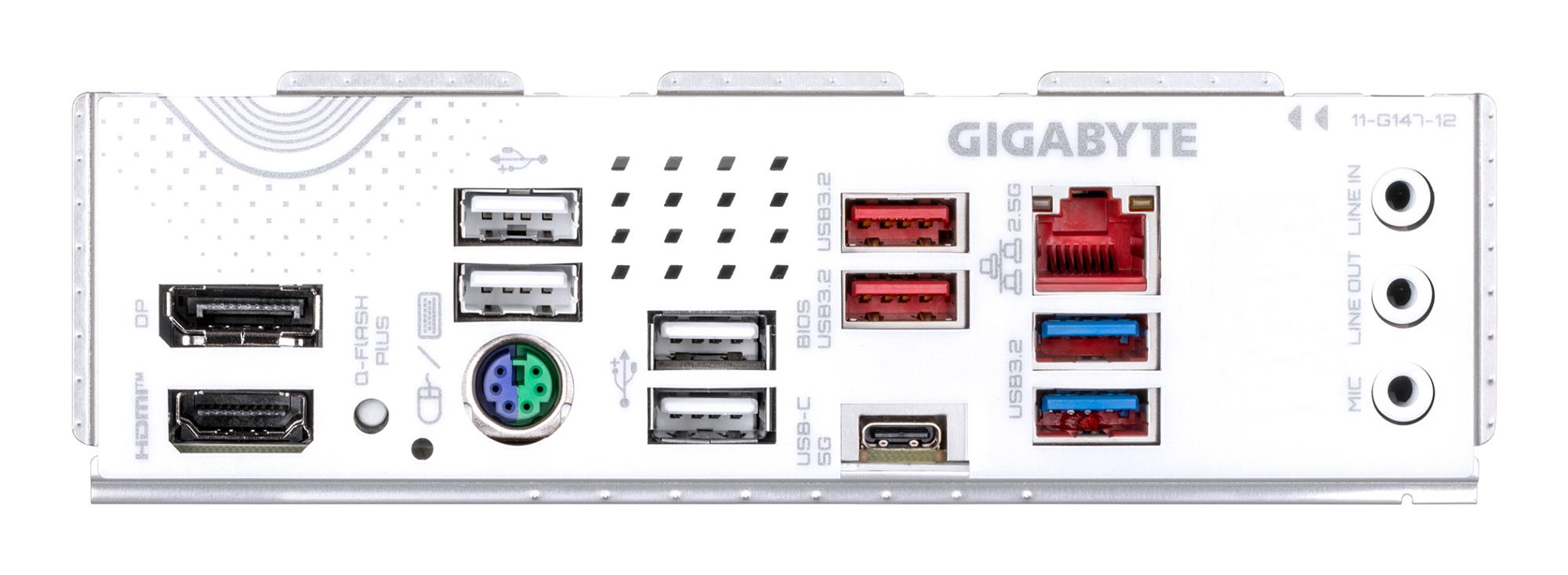

DisplayPort version: 1.4
DisplayPorts quantity: 1
Ethernet LAN (RJ-45) ports: 1
HDMI ports quantity: 1
HDMI version: 2.1
Headphone outputs: 1
Line-in: Yes
Microphone in: Yes
PS/2 ports quantity: 1
USB 2.0 ports quantity: 4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 2
Ethernet interface type: 2.5 Gigabit Ethernet
Ethernet LAN: Yes
LAN controller: Realtek RTL8125
Wi-Fi: No
1st M.2 highest PCI Express generation: 5.0
1st M.2 largest key size: 22110
2nd M.2 highest PCI Express generation: 4.0
2nd M.2 largest key size: 22110
3rd M.2 highest PCI Express generation: 4.0
3rd M.2 largest key size: 22110
Number of M.2 (M) slots: 3
PCI Express x16 (Gen 3.x) slots: 2
PCI Express x16 (Gen 4.x) slots: 1
PCI Express x16 (Gen 5.x) slots: 1
ACPI version: 5.0
BIOS memory size: 256
BIOS type: UEFI AMI
Clear CMOS jumper: Yes
Desktop Management Interface (DMI) version: 2.7
System Management BIOS (SMBIOS) version: 2.7
Battery technology: Lithium-Manganese Dioxide (LiMnO2)
Battery type: CR2032
Battery weight: 3
Country of origin: China
Lithium weight per battery: 0.07
Number of battery cells: 1
Package depth: 270
Package height: 80
Package weight: 1882
Package width: 335
Products per shipping (inner) case: 1
Depth: 244
Height: 35
Width: 305
Batteries included: Yes
Bundled software: Norton® Internet Security (OEM version)
LAN bandwidth management software
Screws included: Yes
Warranty period: 3
Weight: 1650
Model: B850 EAGLE ICE
Units per Shipping Box: 8
Unit Calculated Volume: 0.01007
Unit Calculated Weight: 1.87
