Description:

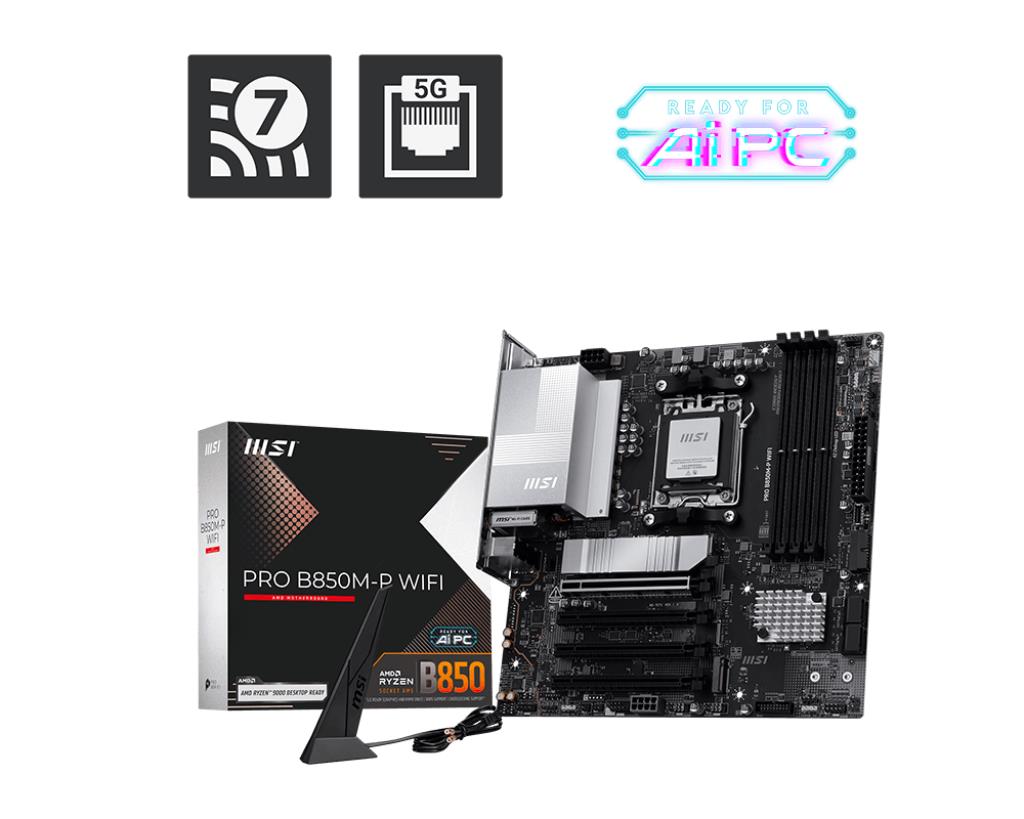

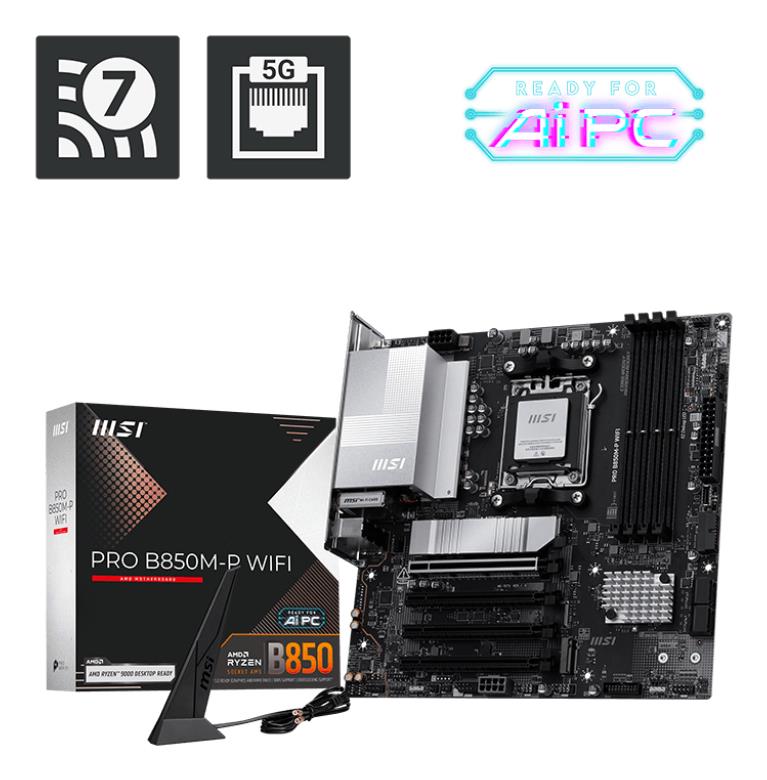

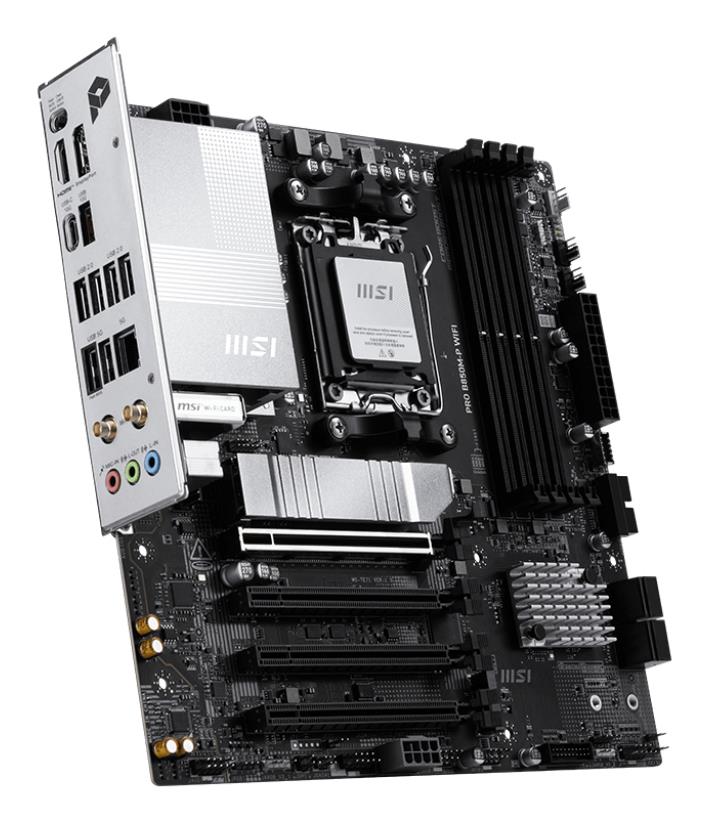

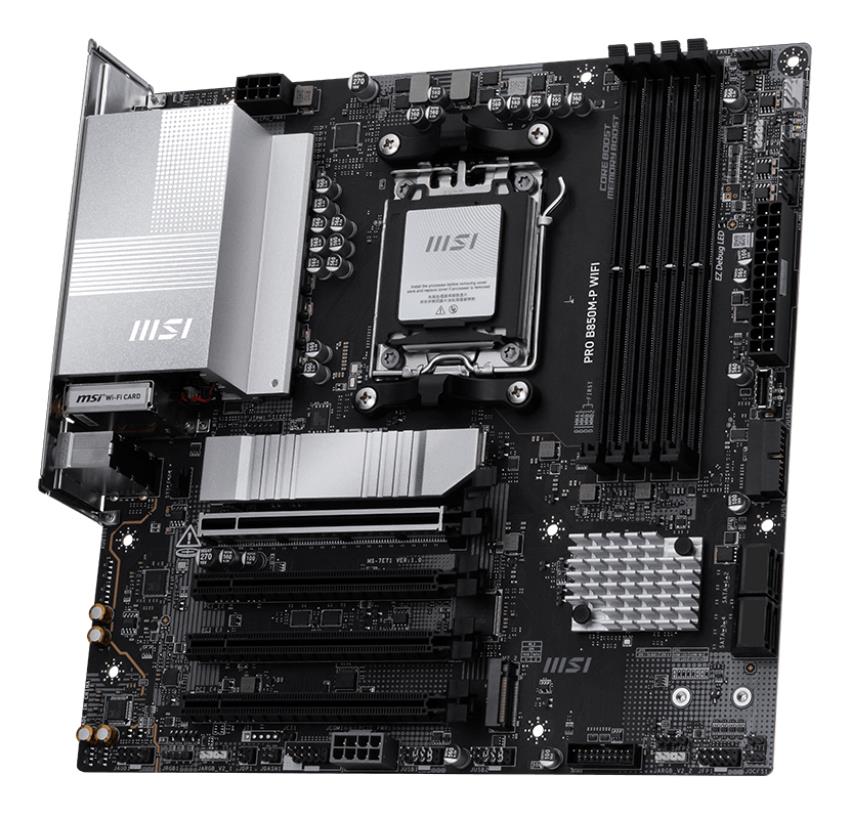

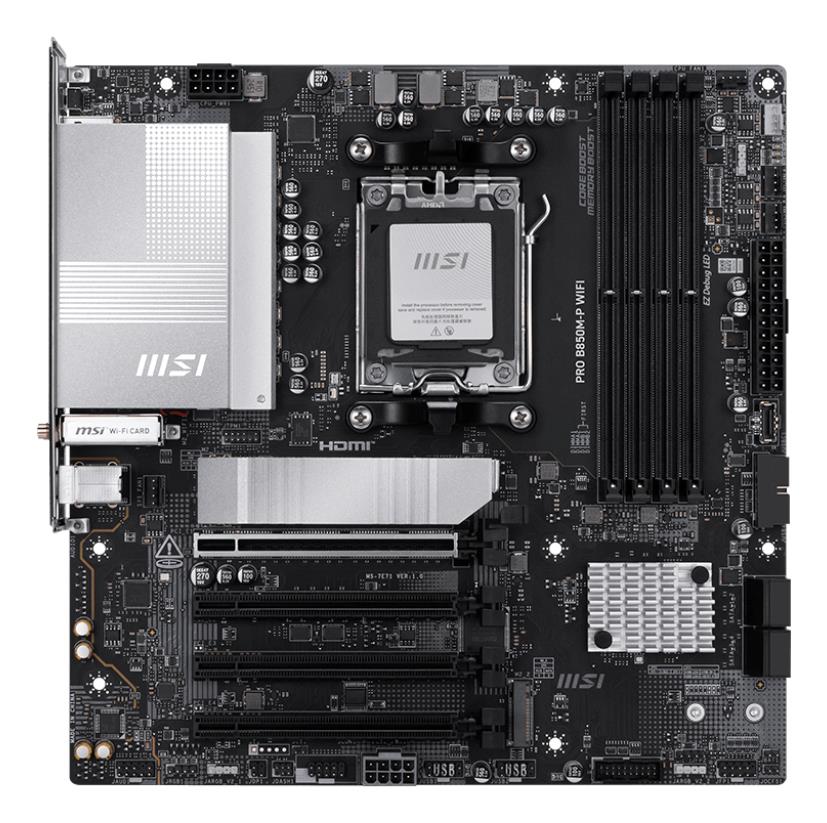

PRO B850M-P WIFI
PRO B850M-P WIFI offers a simple design with a harmonious silver color scheme that perfectly matches both white and black PC builds. It is engineered with many exclusive features of MSI, a Wi-Fi 7 with EZ Antenna, 5G LAN, PCIe 5.0 M.2 with EZ M.2 Shield Frozr II, and Supplemental PCIe Power, ready for the AMD Ryzen™ 9000 series processors.
- Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors
- Supports DDR5 Memory, Dual Channel DDR5 8200+ MT/s (OC)
- Ultra Performance: Direct 7+2+1 Power System with P-PAK, 8-pin CPU power connector, Core Boost, Memory Boost, 6-layer PCB made by 2oz thickened copper and server-grade level material
- Frozr Guard: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and EZ M.2 Shield Frozr II are built for high performance system and non-stop experience
- EZ DIY: EZ M.2 Shield Frozr II, EZ M.2 Clip II, EZ PCIe Clip II and EZ Antenna
- Lightning Fast Game experience: PCIe 5.0 slot and Lightning Gen 5 x4 M.2
- 5G LAN with Wi-Fi 7 Solution: the latest solution for professional and multimedia use, delivering secure, stable, and high-speed networking and data transmission
- Audio Boost: Reward your ears with studio grade sound quality for the most immersive gaming experience
Vendor Homepage: www.msi.com/Motherboard/PRO-B850M-P-WIFI
Category Code: MBA
CnCode: 84733020
PCI-Express 3.0 1x: 3
PCI-Express 5.0 16x: 1
M.2: 3
HDMI: 1
HDMI Micro (D): 1
USB 2.0: 4
USB 3.2: 3
USB-C: 1
RJ45: 1
Audio port: 3
SATA: Yes
USB-C: Yes
Bluetooth: Yes
WiFi: Yes
Model: PRO B850M-P WIFI
Chipset: AMD B850
Socket: SAM5
Form Factor: Micro-ATX
Memory type: DDR5
Frequency speed: 4800/5600/8200
Memory slots: 4
Integrated video: Depending on CPU
Integrated audio: Realtek ALC897
Integrated LAN: 5 Gigabit
RAID: SATA 0, 1, 10; NVMe 0, 1, 5
TPM: Header
Units per Shipping Box: 1
Unit Calculated Volume: 0.006521
Product Net Weight: 0.7
Unit Calculated Weight: 1.75
