Description:
- Supports 12th/13th Gen Intel® Core™, Pentium® Gold and Celeron® processors for LGA 1700 socket
- Supports DDR5 Memory, Dual Channel DDR5 6800+MHz (OC)
- Core Boost : With premium layout and digital power design to support more cores and provide better performance
- Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility
- Lightning Fast Experience: PCIe 4.0, Lightning Gen4 x4 M.2 with M.2 Shield Frozr
- AUDIO BOOST: Reward your ears with studio grade sound quality for the most immersive gaming experience
- Steel Armor: Protecting VGA cards against bending and EMI for better performance, stability and strength
Vendor Homepage: www.msi.com/Motherboard/PRO-B760M-P/Overview
Category Code: MBI
CnCode: 84733020
Unit Box Height: 0.056
Unit Box Length: 0.3
Unit Box Width: 0.275
PCI-Express 1x: 2
PCI-Express 16x: 1
M.2: 2

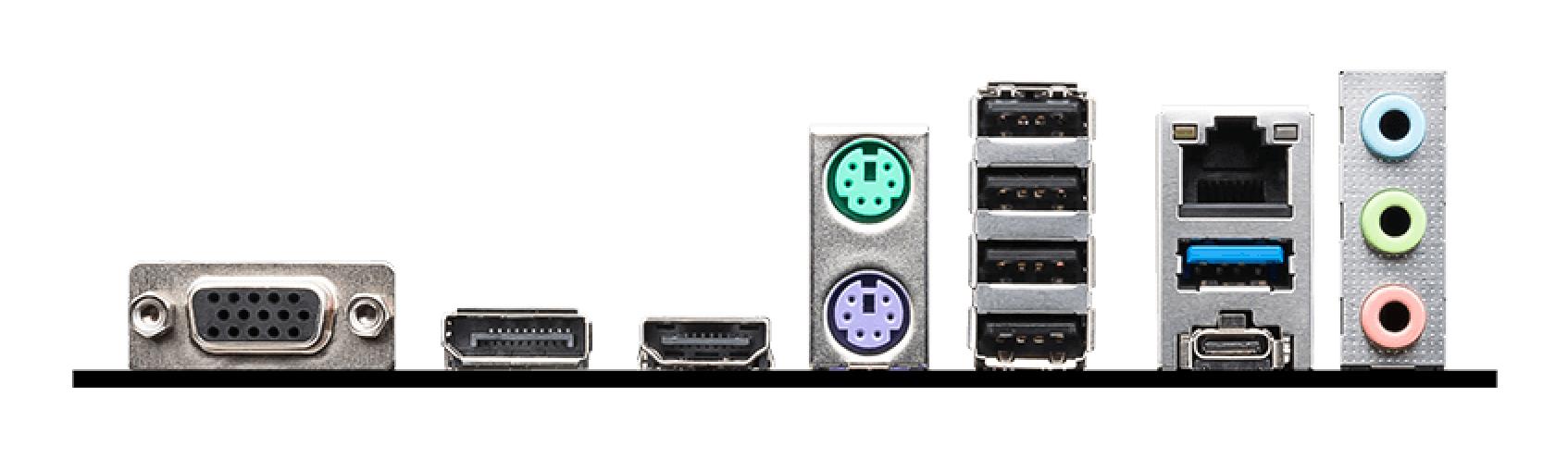

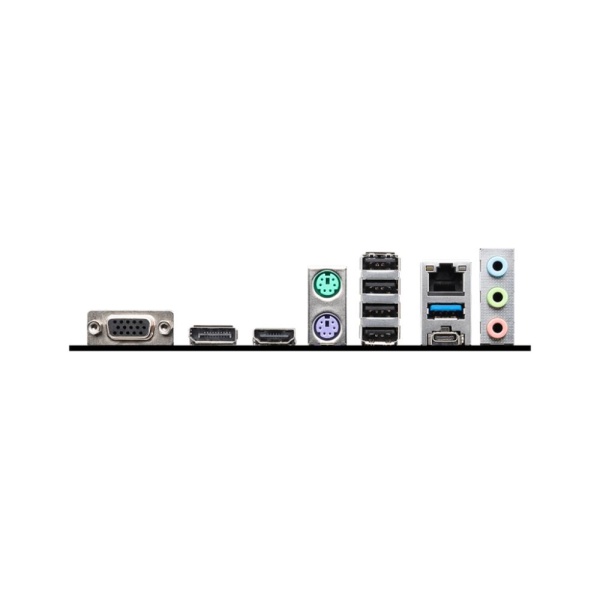

15pin D-sub: 1
HDMI: 1
DisplayPort: 1
USB 2.0: 4
USB 3.2: 1
USB-C: 1
PS/2: 2
RJ45: 1
Audio port: 3
SATA: Yes
USB 2.0: Yes
USB 3.2: Yes

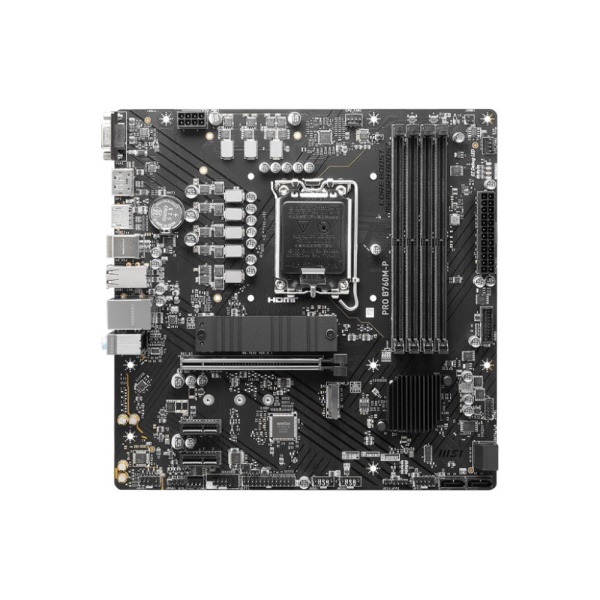

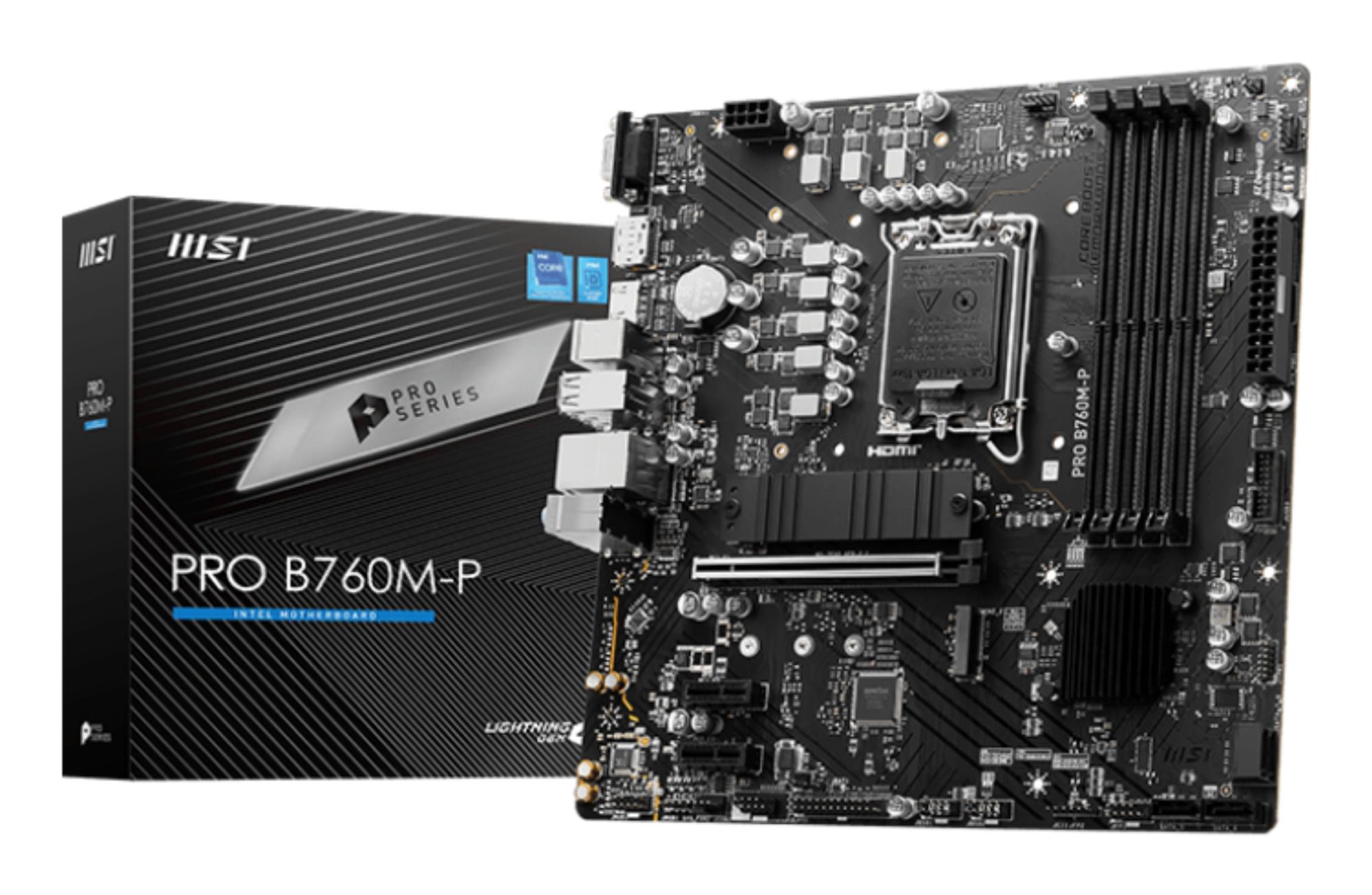

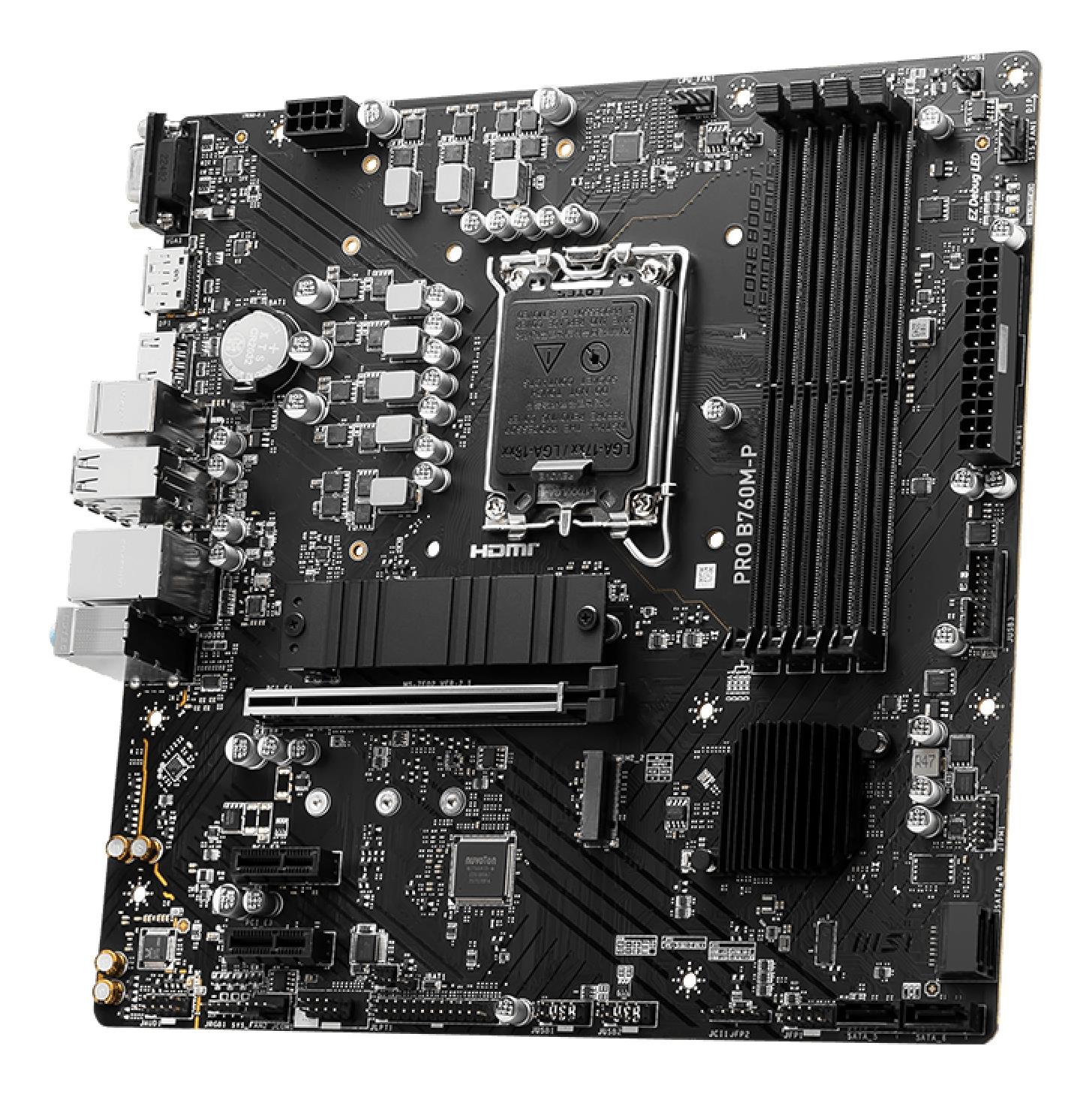

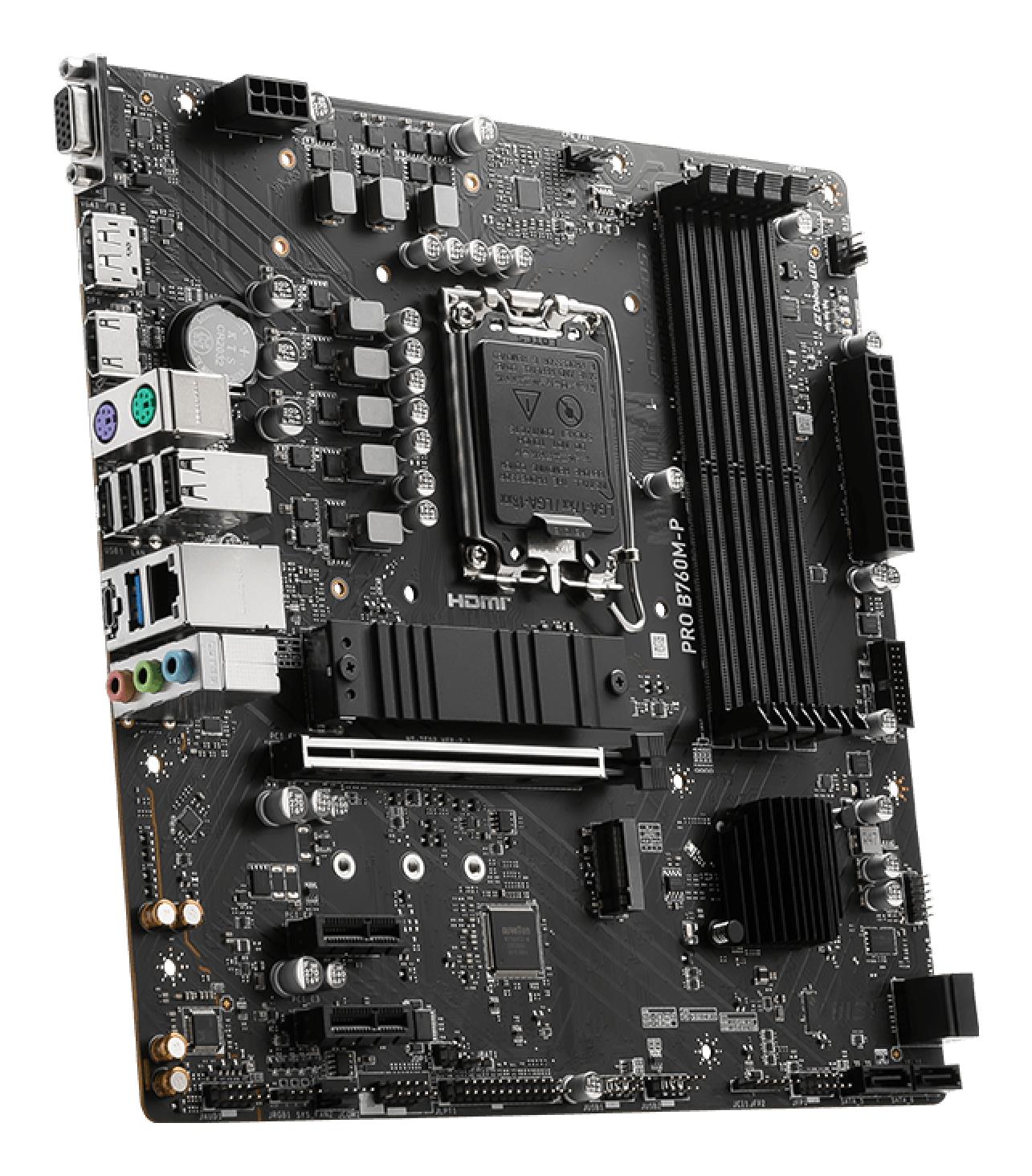

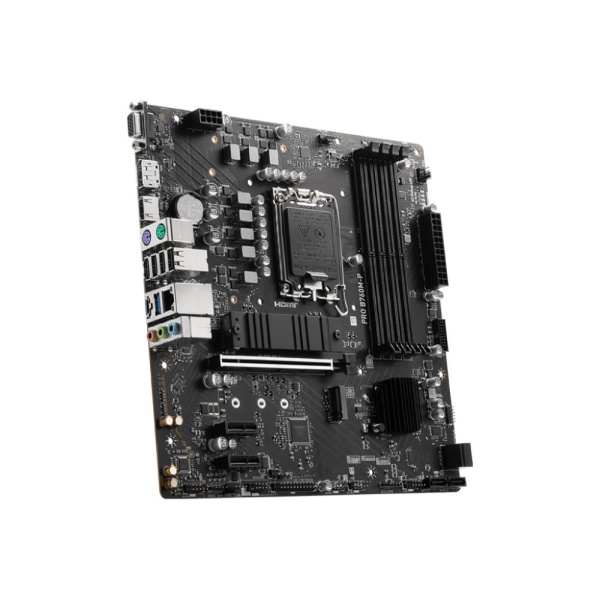

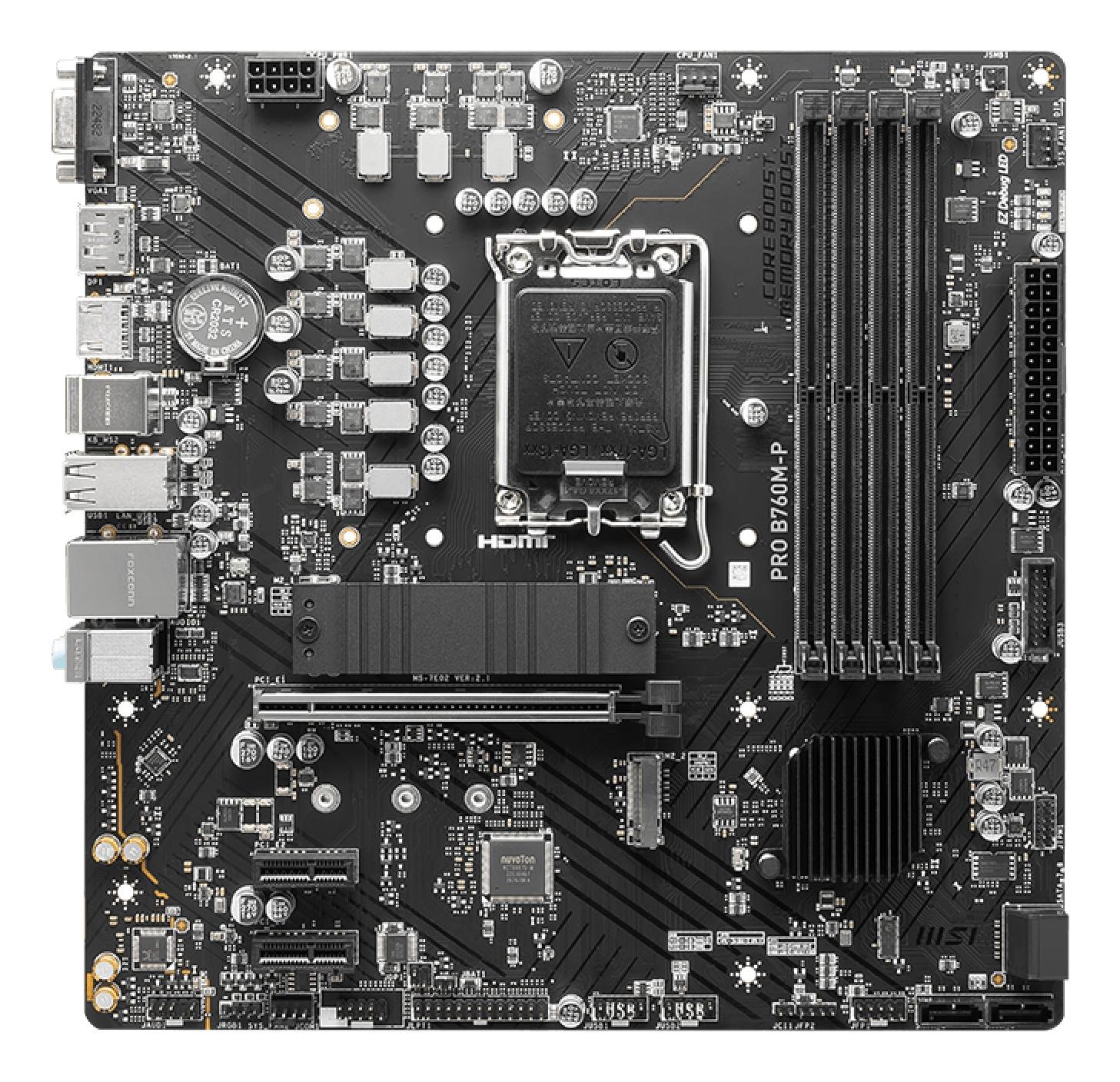

Model: PRO B760M-P
Chipset: Intel B760 Express
Socket: LGA1700
Form Factor: Micro-ATX
Memory type: DDR5
Frequency speed: 4800/5000/5200/5400/5600/5800/6000/6200/6400/6600/6800
Memory slots: 4
Integrated video: Depending on CPU
Integrated LAN: Realtek RTL8111H (Gigabit)
Integrated audio: Realtek ALC897
RAID: SATA 0, 1, 5, 10
TPM: Header
Units per Shipping Box: 1
Unit Calculated Volume: 0
Product Net Weight: 1
Unit Calculated Weight: 1
