Description:

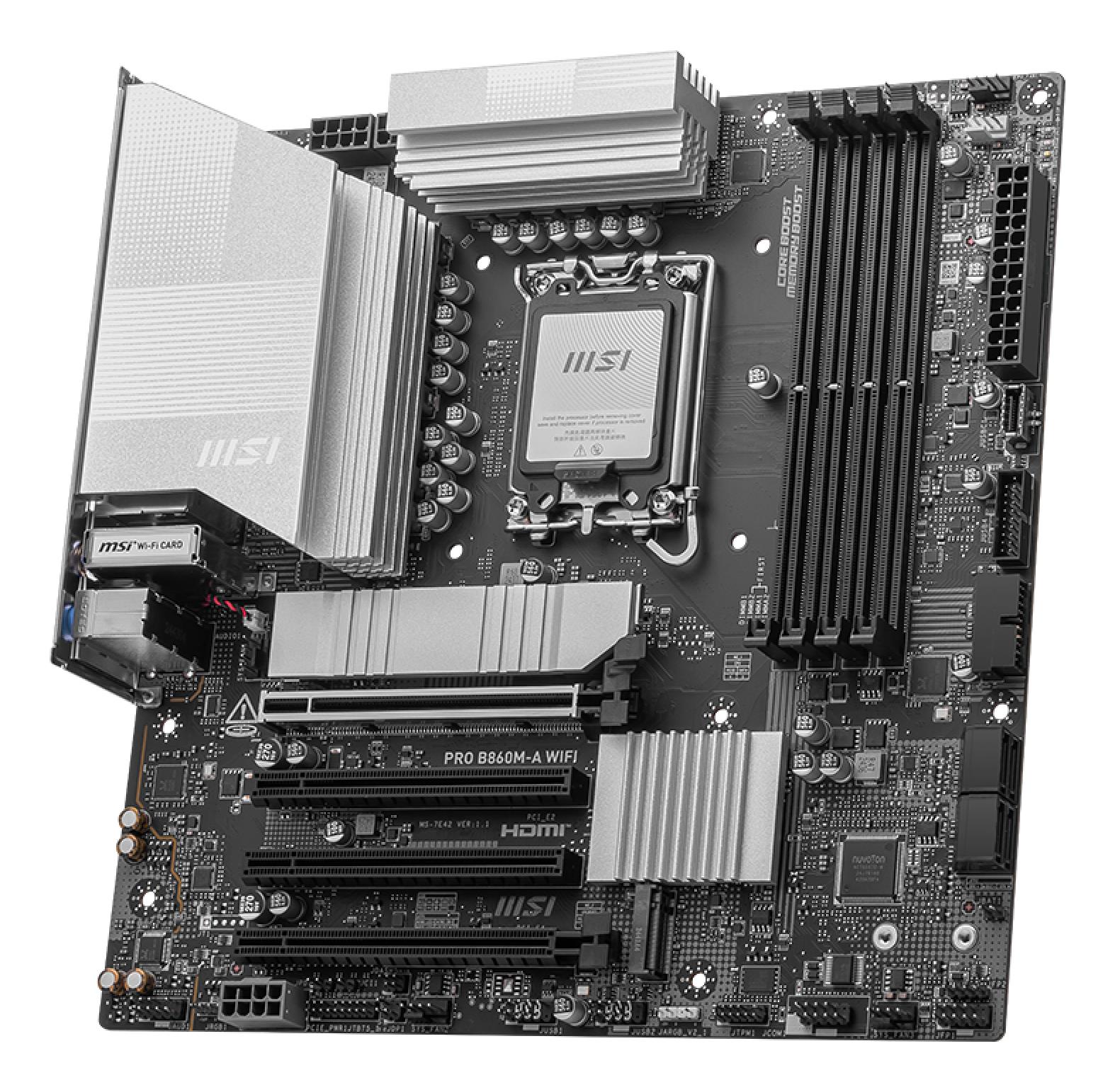

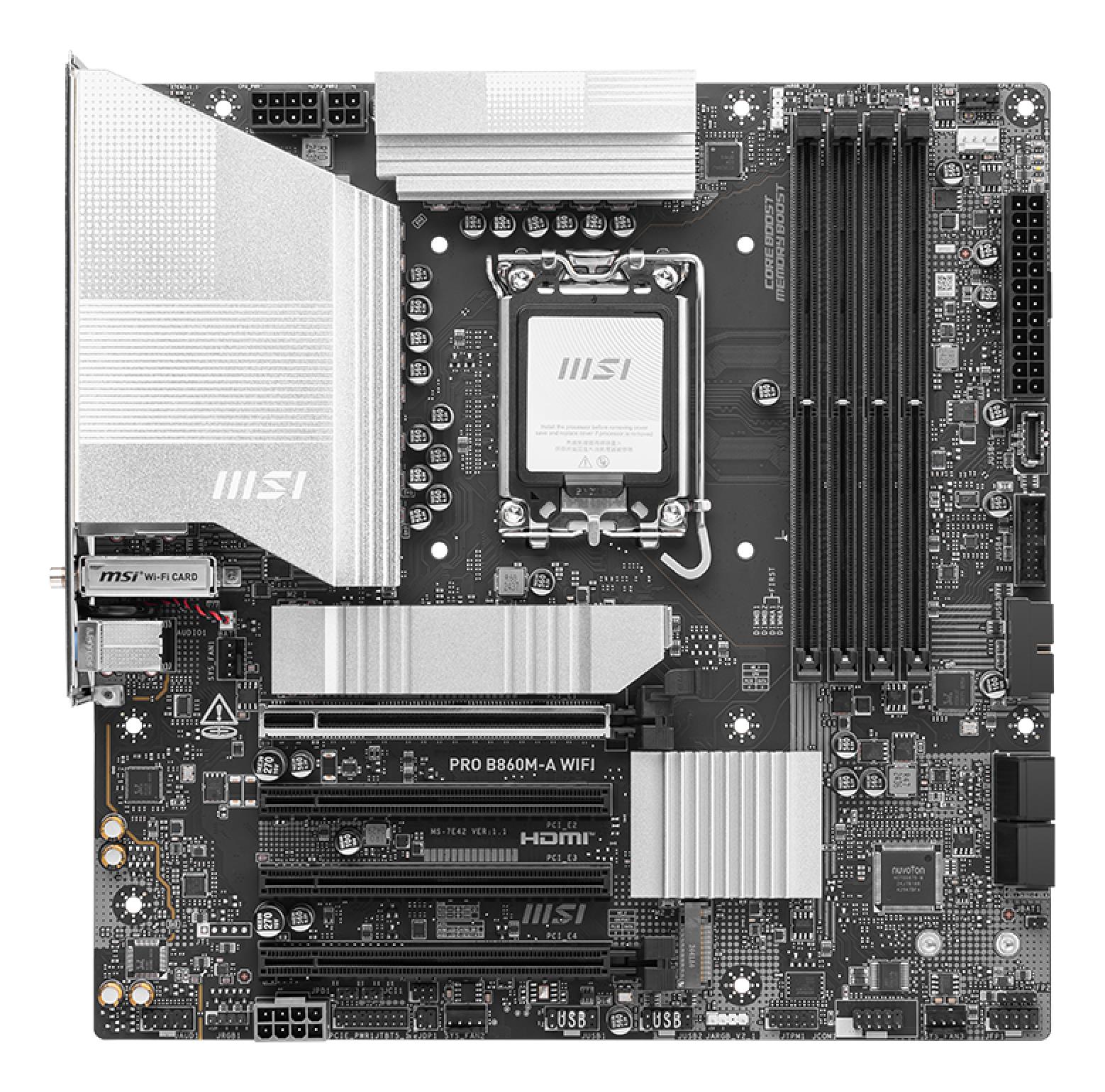

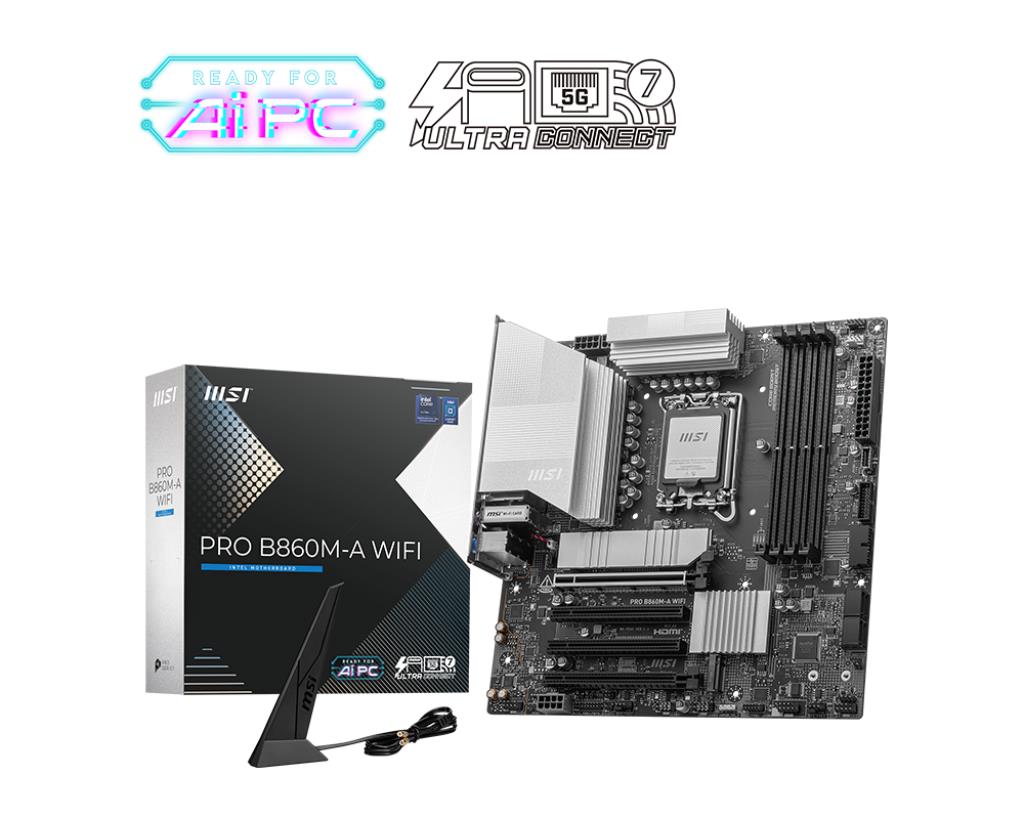

PRO B860M-A WIFI offers a simple design with a harmonious silver color scheme that perfectly matches both white and black PC builds. It is engineered with many exclusive features of MSI, a true Wi-Fi 7 with EZ Antenna, 5G LAN, Thunderbolt 4, PCIe 5.0 M.2, and Supplemental PCIe Power, ready for the Intel® Core™ Ultra processors.
- Support Intel® Core™ Ultra Processors (Series 2) for LGA 1851 socket
- Supports DDR5 Memory, Dual Channel DDR5 8800+ MT/s (OC)
- Ultra Performance: 12+1+1+1 Duet Rail Power System with P-PAK, 8+4-pin CPU power connectors, Core Boost, Memory Boost, 6-layer server-grade PCB
- Frozr Guard: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and EZ M.2 Shield Frozr II are built for high performance system and non-stop experience
- EZ DIY: EZ M.2 Shield Frozr II, EZ M.2 Clip II, EZ PCIe Clip II and EZ Antenna
- Lightning Fast Game experience: PCIe 5.0 slot and Lightning Gen 5 x4 M.2
- Ultra Connect: Thunderbolt™ 4 port, 5G LAN with Intel Wi-Fi 7 Solution – the latest solution for professional and multimedia use, delivering secure, stable, and high-speed networking and data transmission
- Audio Boost: Reward your ears with studio grade sound quality for the most immersive gaming experience
Summary: MSI PRO B860M-A WIFI. Processor manufacturer: Intel, Processor socket: LGA 1851 (Socket V1), Compatible processor series: Intel Core Ultra (Series 2). Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, Micro SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Ethernet interface type: 5 Gigabit Ethernet, Top Wi-Fi standard: Wi-Fi 7 (802.11be), Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E…. Component for: PC, Motherboard form factor: micro ATX, Motherboard chipset family: AMD
Vendor Homepage: https://www.msi.com/Motherboard/PRO-B860M-A-WIFI
Category Code: MBI
CnCode: 84733020
Unit Box Height: 0.07
Unit Box Length: 0.285
Unit Box Width: 0.275
Audio chip: Realtek ALC897
Audio output channels: 7.1
Component for: PC
Motherboard chipset: Intel B860
Motherboard chipset family: AMD
Motherboard form factor: micro ATX
Product colour: Black
Windows operating systems supported: Windows 11 x64
Compatible processor series: Intel Core Ultra (Series 2)
Maximum internal memory supported by processor: 256
Processor manufacturer: Intel
Processor socket: LGA 1851 (Socket V1)
Supported processor sockets: LGA 1851
ECC сompatibility: Non-ECC
Maximum internal memory: 256
Memory channels: Dual-channel
Memory slots type: DIMM
Number of memory slots: 4
Supported memory clock speed (max): 8800
Supported memory clock speeds: 4800/6400/8800
Supported memory types: DDR5-SDRAM
Number of HDDs supported: 4
Number of storage drives supported: 7
RAID levels: 0/1/10/5
RAID support: Yes
Supported storage drive interfaces: M.2,Micro SATA III
Supported storage drive types: HDD & SSD
On-board graphics card: No
CPU fan connector: Yes
Number of CPU fan connectors: 1
Number of RGB LED pin headers: 3
Number of SATA III connectors: 4
Number of water pump connectors: 1
RGB LED pin header: Yes
Total number of SATA connectors: 4
USB 2.0 connectors: 4
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 4
USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1

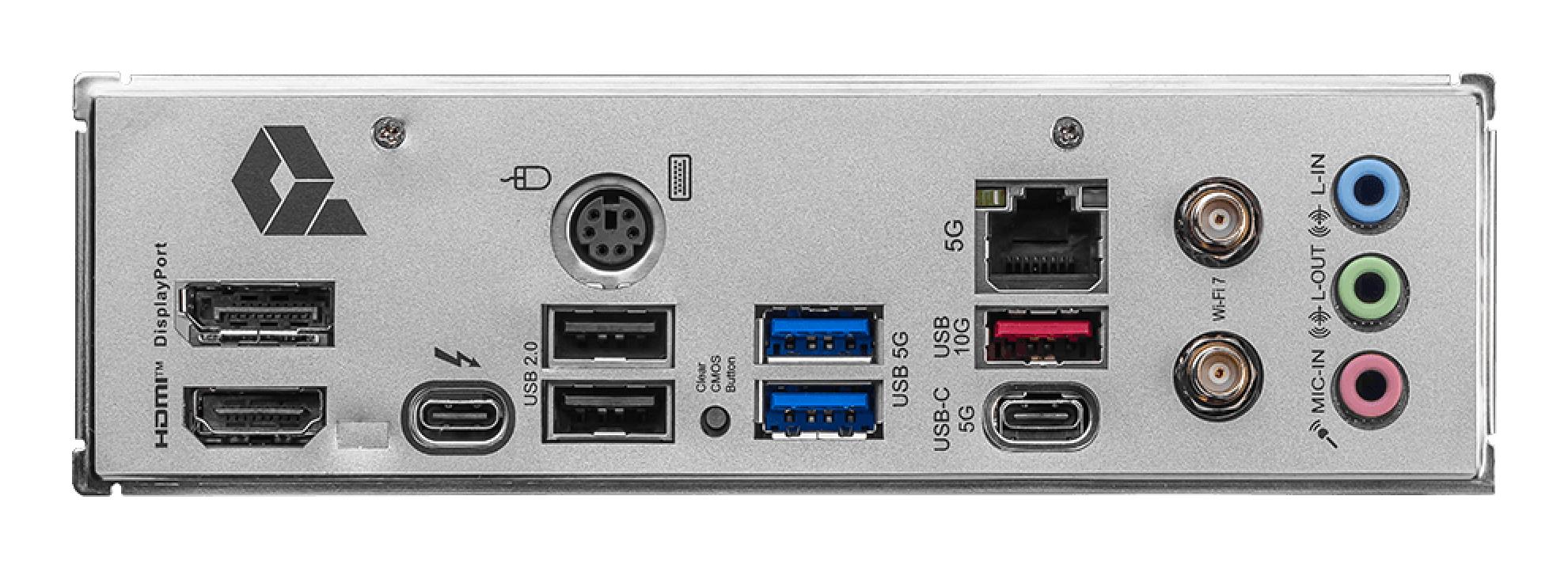

Ethernet LAN (RJ-45) ports: 1
HDMI ports quantity: 1
HDMI version: 2.1
USB 2.0 ports quantity: 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 1
Bluetooth: Yes
Bluetooth version: 5.4
Ethernet interface type: 5 Gigabit Ethernet
Ethernet LAN: Yes
Top Wi-Fi standard: Wi-Fi 7 (802.11be)
Wi-Fi: Yes
Wi-Fi standards: 802.11a/802.11b/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac)/Wi-Fi 6 (802.11ax)/Wi-Fi 6E (802.11ax)/Wi-Fi 7 (802.11be)
1st M.2 highest PCI Express generation: 5.0
1st M.2 largest key size: 2280
2nd M.2 highest PCI Express generation: 4.0
2nd M.2 largest key size: 2280
3rd M.2 highest PCI Express generation: 4.0
3rd M.2 largest key size: 2280
Number of M.2 (M) slots: 3
PCI Express x16 (Gen 4.x) slots: 3
PCI Express x16 (Gen 5.x) slots: 1
ACPI version: 6.5
BIOS memory size: 256
BIOS type: UEFI AMI
System Management BIOS (SMBIOS) version: 3.7
Depth: 243.84
Width: 243.84
Model: PRO B860M-A WIFI
Units per Shipping Box: 10
Unit Calculated Volume: 0.006715
Unit Calculated Weight: 1.51
