Description:

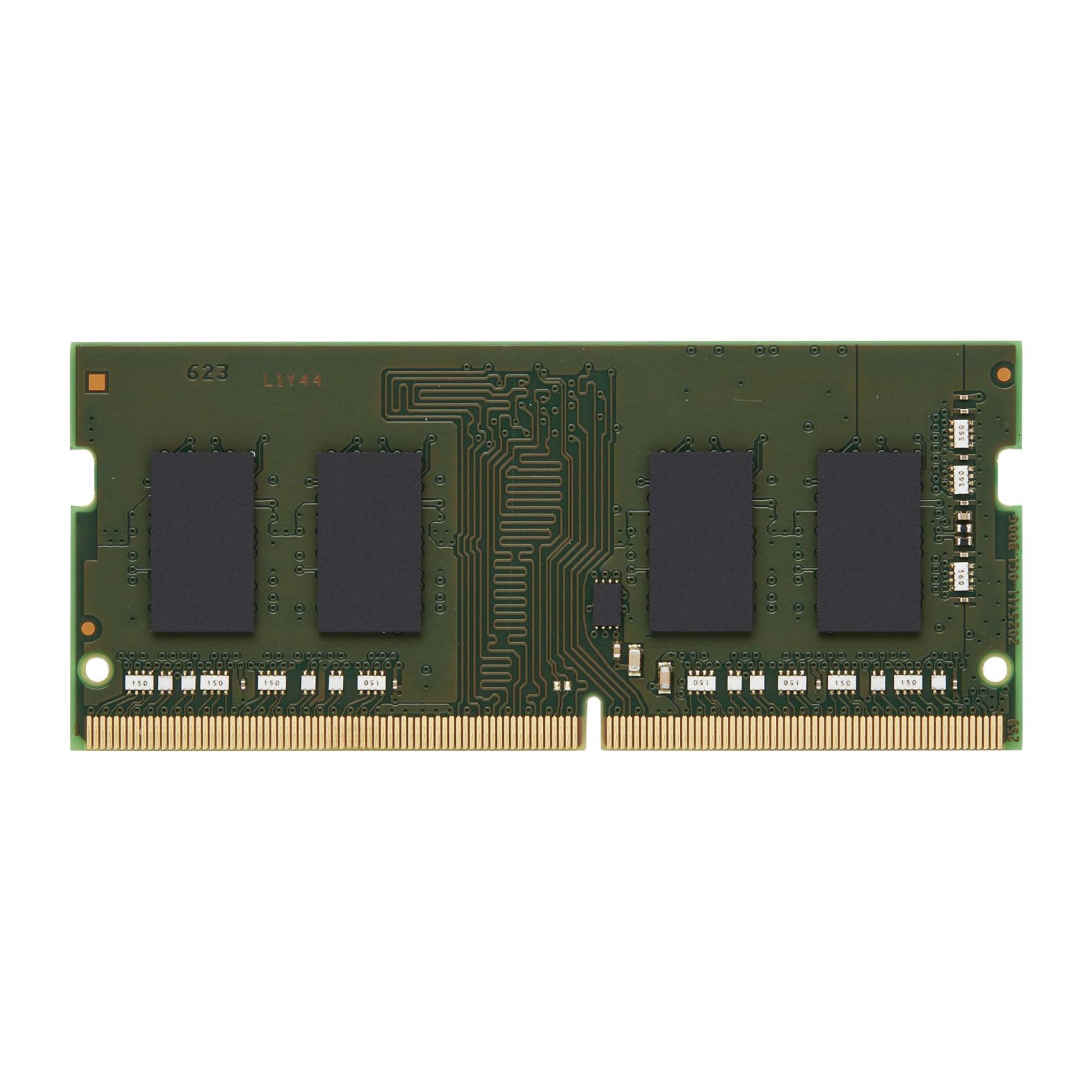

ValueRAM’s KVR32S22S8/16 is a 2G x 64-bit (16GB) DDR4-3200 CL22 SDRAM (Synchronous DRAM), 1Rx8, non-ECC, memory module, based on eight 2G x 8-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR4-3200 timing of 22-22-22 at 1.2V. This 260-pin DIMM uses gold contact fingers.
- Power Supply: VDD = 1.2V Typical
- VDDQ = 1.2V Typical
- VPP = 2.5V Typical
- VDDSPD = 2.2V to 3.6V
- Nominal and dynamic on-die termination (ODT) for
- data, strobe, and mask signals
- Low-power auto self refresh (LPASR)
- Data bus inversion (DBI) for data bus
- On-die VREFDQ generation and calibration
- Single-rank
- On-board I2 serial presence-detect (SPD) EEPROM
- 16 internal banks; 4 groups of 4 banks each
- Fixed burst chop (BC) of 4 and burst length (BL) of 8
- via the mode register set (MRS)
- Selectable BC4 or BL8 on-the-fly (OTF)
- Fly-by topology
- Terminated control command and address bus
- PCB: Height 1.18” (30.00mm)
- RoHS Compliant and Halogen-Free
Summary: Kingston Technology ValueRAM . Component for: Laptop, Internal memory: 16 GB, Memory layout (modules x size): 1 x 16 GB, Internal memory type: DDR4, Memory form factor: 260-pin SO-DIMM, CAS latency: 22
Vendor Homepage: https://www.kingston.com/en
Category Code: MEB
CnCode: 84733020
Unit Box Height: 0.01
Unit Box Length: 0.08
Unit Box Width: 0.045
Buffered memory type: Unregistered (unbuffered)
CAS latency: 22
Component for: Laptop
Country of origin: Taiwan
ECC: No
Internal memory: 16
Internal memory type: DDR4
Memory data transfer rate: 3200
Memory form factor: 260-pin SO-DIMM
Memory layout (modules x size): 1 x 16
Height: 30
Width: 69.6
Harmonized System (HS) code: 84733020
Model: KVR32S22S8/16
Units per Shipping Box: 1
Unit Calculated Volume: 3.6E-05
Unit Calculated Weight: 0.02
