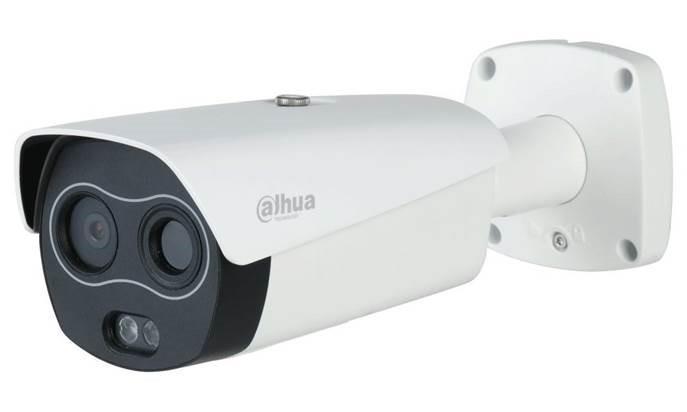

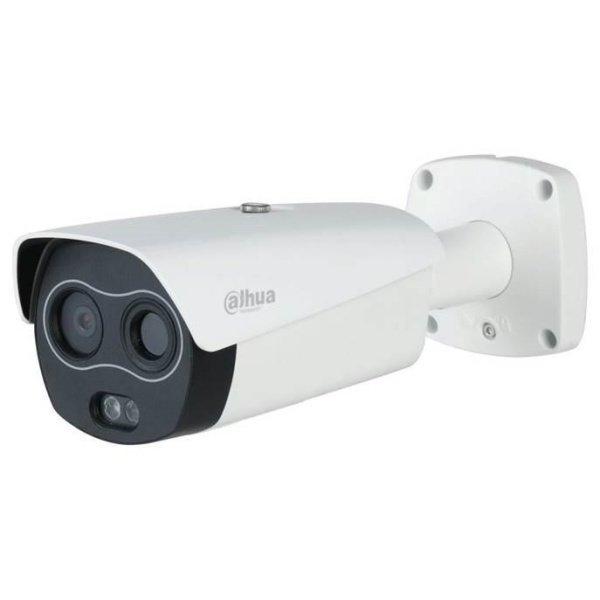

Description: Thermal Network Hybrid Bullet Camera
> Vanadium oxide uncooled focal plane detector.
> 4Megapixel progressive scan CMOS.
> Offers various AI functions such as intrusion, target filtering, heat detection, smoking detection, and calling detection.
> Built-in white light and speaker that produce light and sound alarms to deter intruders.
> Built-in IR LED with a maximum illumination distance of 35 m.
> Dual image fusion (visible and thermal images).
> 12 VDC ± 20%/PoE power supply.
> IP67 rated.
Vendor Homepage: www.dahuasecurity.com/products/All-Products/Thermal-Cameras/Lite-Series/TCP-2-Series/TPC-BF2241
Model: TPC-BF2241-TB7F8-DW-S2
Camera design: Bullet
Network Camera Type: Outdoor/Thermal
Pixel Resolution: 4
IR Illumination: Yes
Sensor size: 1/2.7″ CMOS
Min. Illumination: 0.005
Effective pixels: 256 (H) × 192 (V)
Electronic Shutter Speed: 1 s–1/30,000 s
Alarm In: 1
Alarm Out: 1
Audio-In: 1
Audio-Out: 1
MicroSD Card Slot: 1
RJ45: 1
RS-485: 1
Supports card capacities up to: 256GB
Power options: 12V/PoE
Power supply requirements: 12 VDC, 1 A ± 20%, PoE (802.3af)
Power consumption: 5
Environment: Outdoor
Operating temperature range: –30 °C to +60 °C (–22 °F to +140 °F)
Dimensions: 279.9 mm × 103.8 mm × 95.8 mm
Units per Shipping Box: 1
Shipping Box Depth: 36.5
Shipping Box Height: 18
Shipping Box Weight: 1.929
Shipping Box Width: 18
Unit Calculated Volume: 0.01183
Product Net Weight: 1.4
Unit Calculated Weight: 1.93
CnCode: 85258900
Unit Box Width: 0.18
Unit Box Length: 0.365
Unit Box Height: 0.18
Full Description Line: Type Outdoor/Thermal|Pixel Resolution 4 Mega Pixel|IR Illumination|Sensor size 1/2.7″ CMOS|Min. Illumination 0.005 Lux|Effective pixels 256 (H) × 192 (V)|Electronic Shutter Speed 1 s–1/30,000 s|1xAudio-In|1xAudio-Out|1xMicroSD Card Slot|1xRJ45|1xRS-485|1xAlarm In|1xAlarm Out|Supports card capacities up to 256GB|Power options PoE/12V|Power supply requirements 12 VDC, 1 A ± 20%, PoE (802.3af)|Environment Outdoor|Operating temperature range –30 °C to +60 °C (–22 °F to +140 °F)|Dimensions 279.9 mm × 103.8 mm × 95.8 mm
Category Code: FNC
