Description: 1/1.8” 4 Megapixel progressive scan CMOS, 2688 × 1520 @30FPS
Minimum illumination: 0.0007 lux @ F1.6 (Color, 30 IRE); 0.0004 lux @ F1.6 (B/W, 30 IRE); 0 lux (Illuminator on)
True Day/Night with ICR Filter, BLC / HLC / True WDR (140dB), 3D DNR, Defog
2.7-12 mm varifocal lens (115°–47°)
Up to 60 meters Smart IR Illumination
H.265; H.264; H.264H; H.264B; MJPEG, ONVIF (Profile S/Profile G/Profile T); CGI
Built-in MIC, Micro SD: Max 512GB, 1/1 Audio I/O, 2/1 Alarm I/O
With deep learning algorithm, it supports: video metadata, smart sound detection, IVS, face detection, smart object detection, and people counting, etc.
Bullet design, metal shell, IP67, IK10, -30°C~+60°C
Power ePoE / PoE / 12VDC power, 9.8W max
Free IP monitoring software available
Vendor Homepage: www.dahuasecurity.com/ceen/products/All-Products/Network-Cameras/WizMind-S-Series/4MP/IPC-HFW5442E-ZE-S3=S3
Model: IPC-HFW5442E-ZE-2712-S3-B

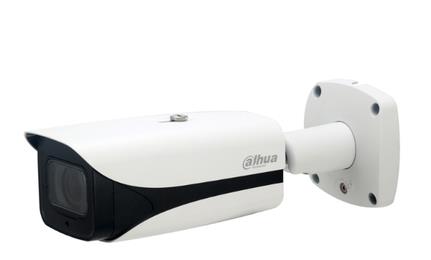

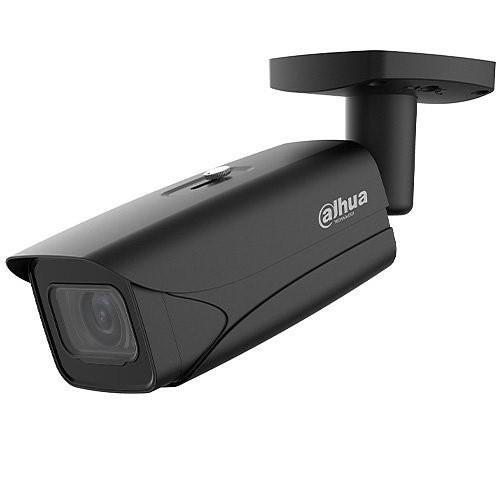

Camera design: Bullet
Network Camera Type: HDTV/Megapixel/Outdoor
Pixel Resolution: 4
Focal Length: 2.7-12 mm
IR Illumination: Yes
Sensor size: 1/1.8″
Microphone: Built-in
Lens Mount: M14
Min. Illumination: 0.0007
Effective pixels: 2688 (H) × 1520 (V)
Electronic Shutter Speed: Auto/Manual 1/3 s–1/100,000 s
Alarm In: 2
Alarm Out: 1
Audio-In: 1
Audio-Out: 1
RJ45: 1
Supports card capacities up to: 512GB
Power options: 12V/PoE
Power supply requirements: 12 VDC/PoE (802.3af)/ePoE
Power consumption: 4.9
Environment: Outdoor
Operating temperature range: -30°C~+60°C
Colour: Black
Dimensions: 273.2 × 95.0 × 95.0 mm
Shipping box quantity: 1
Shipping Box Depth: 36.8
Shipping Box Height: 14
Shipping Box Weight: 1.6
Shipping Box Width: 15
Unit Brutto Volume: 0.007728
Unit Net Weight: 1.12
Unit Gross Weight: 1.6
CnCode: 85258900
Unit Box Width: 0.15
Unit Box Length: 0.368
Unit Box Height: 0.14
Full Description Line: Type HDTV/Megapixel/Outdoor|Pixel Resolution 4 Mega Pixel|Focal Length 2.7-12 mm|IR Illumination|Sensor size 1/1.8″|Microphone Built-in|Lens Mount M14|Min. Illumination 0.0007 Lux|Effective pixels 2688 (H) × 1520 (V)|Electronic Shutter Speed Auto/Manual 1/3 s–1/100,000 s|1xAudio-In|1xAudio-Out|1xRJ45|2xAlarm In|1xAlarm Out|Supports card capacities up to 512GB|Power options PoE/12V|Power supply requirements 12 VDC/PoE (802.3af)/ePoE|Environment Outdoor|Operating temperature range -30°C~+60°C|Colour Black|Dimensions 273.2 × 95.0 × 95.0 mm
Category Code: FNC
