Description:
Series Overview
With advanced deep learning algorithm, Dahua WizSense 3 Series
network camera supports intelligent functions, such as perimeter
protection and smart motion detection. With starlight technology, this
series camera provides a better image effect in the condition of low
illuminance.
Launched by Dahua Technology, WizSense is a series of AI products and
solutions that adopt independent AI chip and deep learning algorithm.
It focuses on human and vehicle with high accuracy, enabling users to
fast act on defined targets. Based on Dahua’s advanced technologies,
WizSense provides intelligent, simple and inclusive products and
solutions.
Functions
EPTZ
With advanced target detection and tracking algorithms, Dahua EPTZ
technology can simultaneously zoom in and track multiple humans and
vehicles that trigger alarms. It provides rich details and a panoramic
view at the same time.
SMD 3.0
With intelligent algorithm, Dahua Smart Motion Detection technology
can categorize the targets that trigger motion detection and filter the
motion detection alarm triggered by non-concerned targets to realize
effective and accurate alarm.
Smart H.265+ & Smart H.264+
With advanced scene-adaptive rate control algorithm, Dahua smart
encoding technology realizes the higher encoding efficiency than H.265
and H.264, provides high-quality video, and reduces the cost of storage
and transmission.
Perimeter Protection
With deep learning algorithm, Dahua Perimeter Protection technology
can recognize human and vehicle accurately. In restricted area (such
as pedestrian area and vehicle area), the false alarms of intelligent
detection based on target type (such as tripwire, intrusion) are largely
reduced.
- 4-MP 1/2.7″ CMOS starlight-grade image sensor, low luminance, and high definition image
- Outputs 4 MP (2688 × 1520) @25/30 fps, and supports max. 5 MP (2880 × 1620) @20 fps
- H.265 codec, high compression rate, ultra-low bit rate
- Built-in IR LED, and the max. illumination distance is 15 m
- ROI, SMART H.264 +/H.265+, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environments
- Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes
- Intelligent monitoring: Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human)
- Abnormality detection: Motion detection, video tampering, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection
- Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 256 G Micro SD card; built in MIC
- 12 VDC/PoE power supply
- IP67, IK10 protection
- EPTZ: Enlarge and track the targets of intelligent alarms
- SMD 3.0

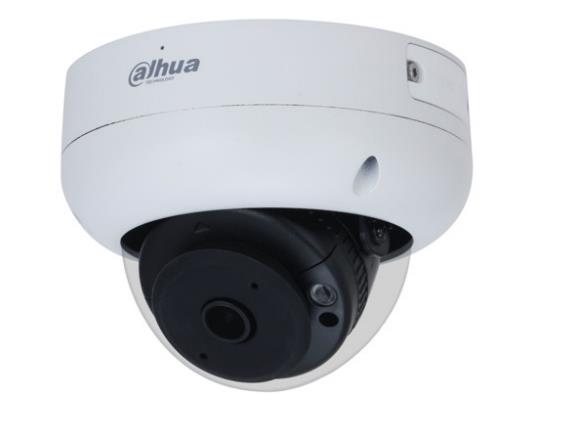

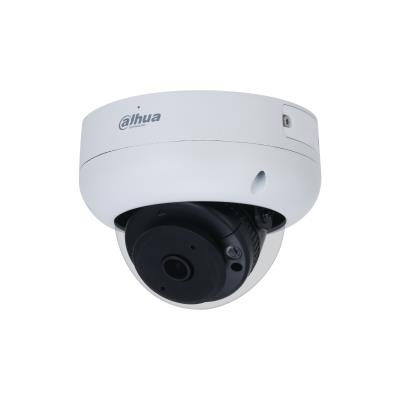

Summary: Dahua Technology WizSense DH-IPC-HDBW3441R-AS-P. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: Assorted colours, Form factor: Dome. Minimum illumination: 0.0005 lx, Angle of rotation: 355°, Lens viewing angle, horizontal: 170°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.7 mm (1 / 2.7″), Number of effective pixels (H x V): 2880 x 1620 pixels. Fixed focal length: 2.1 mm, Closest focusing distance: 0.6 m
Vendor Homepage: https://www.dahuasecurity.com/products/All-Products/Network-Cameras/WizSense-Series/3-Series/Wide-Angle/IPC-HDBW3441R-AS-P
Category Code: FNC
CnCode: 85258900
Unit Box Height: 0.19
Unit Box Length: 0.19
Unit Box Width: 0.16
Fog proof: Yes
Form factor: Dome
Housing material: Metal
IK code: IK10
International Protection (IP) code: IP67
LED indicators: Yes
Mounting type: Ceiling/wall
Product colour: Assorted colours
Weatherproof: Yes
Alarm input/output: Yes
Connectivity technology: Wired
Day/night mode: Yes
Dynamic range: 120
Placement supported: Indoor & outdoor
Type: IP security camera
Wide Dynamic Range (WDR): Yes
Adjustment shutter speed: Auto/Manual
Angle of rotation: 355
Camera shutter speed: 1/3 s-1/100,000
Camera shutter type: Electronic
Camera tilt control: No
Lens viewing angle, diagonal: 175
Lens viewing angle, horizontal: 170
Lens viewing angle, vertical: 75
Minimum illumination: 0.0005
Pan range: 0 – 355
Tilt angle range: 0 – 80
White balance: Auto/Custom modes/Manual/Natural/Outdoor/Street lamp
Number of effective pixels (H x V): 2880 x 1620
Number of sensors: 1
Optical sensor size: 1/2.7
Progressive scan: Yes
Sensor type: CMOS
Closest focusing distance: 0.6
Fixed focal length: 2.1
Maximum aperture number: 2
Number of lenses: 1
Night vision: Yes
Back Light Compensation (BLC): Yes
Bit rate control: Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
Gain control type: Auto/Manual
Highlight Compensation (HLC): Yes
Maximum resolution: 2880 x 1620
Noise reduction: Yes
Noise reduction technology: 3D noise reduction
Region of Interest (ROI) encoding: Yes
Total megapixels: 4
Video compression formats: H.264/H.264B/H.265/M-JPEG
Video formats supported: H.264+/H.265+
Bluetooth: No
Ethernet LAN: Yes
Networking standards: IEEE 802.1x
Number of users: 20
Streaming method: Multicast/Unicast
Supported network protocols: IPv4; IPv6; HTTP;TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP
Wi-Fi: No
Built-in HDD: No
Card reader integrated: Yes
Compatible memory cards: MicroSD (TransFlash)
Internal memory: 512
Maximum memory card size: 256
ROM capacity: 128
Ethernet LAN (RJ-45) ports: 1
Behavior analysis: Intrusion detection,Line crossing detection
Web browser: Yes
Web-based management: Yes
DC output voltage: 12
Power consumption (max): 6.4
Power consumption (Power over Ethernet (PoE)): 7.7
Power consumption (typical): 3.2
Power source type: DC,PoE
Operating relative humidity (H-H): 0 – 95
Operating temperature (T-T): -40 – 60
Storage temperature (T-T): -40 – 60
Mobile operating systems supported: Android/iOS
Diameter: 122
Height: 94
Weight: 500
Package weight: 770
Number of cameras: 1
Model: IPC-HDBW3441R-AS-P-0210B
Units per Shipping Box: 1
Unit Calculated Volume: 0.005776
Unit Calculated Weight: 0.775
