Description: 1/1.8” CMOS, 2688 × 1520 @ 30FPS
Minimum illumination: 0.0007 lux @ F1.8 (Color, 30 IRE); 0.0004 lux @ F1.8 (B/W, 30 IRE); 0 lux (Illuminator on)
True Day/Night with ICR Filter, BLC / HLC / True WDR (140dB), 3D DNR, EIS, Defog
Motorized zoom lens 2.7 mm–12.0 mm (115°–47°)
Up to 40 meters Smart IR Illumination
H.265,H.264,H.264B,H.264H, MJPEG, Smart H.265+/ Smart H.264+, ONVIF (Profile S/Profile G/Profile T), CGI, Milestone, Genetec, P2P
Micro SD: Max 512GB, 1/1 Audio I/O, 2/1 Alarm I/O,
With deep learning algorithm, it supports: video metadata, smart sound detection, IVS, face detection, smart object detection, and people counting, etc.
Dome design, metal shell, IP67, IK10, -30°C~+60°C
Power ePoE / PoE / 12VDC, 11.7W max
Free IP monitoring software available
Vendor Homepage: www.dahuasecurity.com/products/All-Products/Network-Cameras/WizMind-S-Series/4MP/IPC-HDBW5442E-ZE=S3

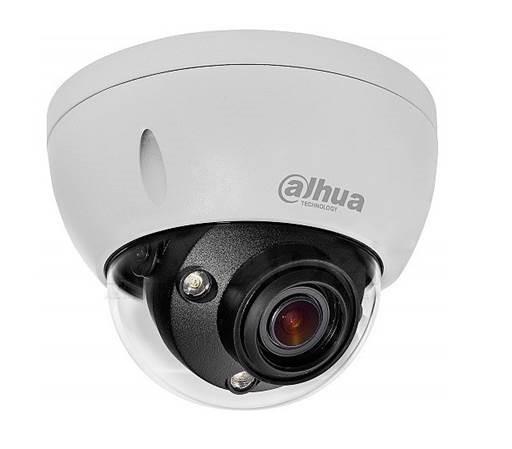

Model: IPC-HDBW5442E-ZE-2712-S3
Camera design: Dome
Network Camera Type: Fixed Dome/HDTV/Megapixel/Outdoor
Pixel Resolution: 4
Focal Length: 2.7 mm–12.0 mm
IR Illumination: Yes
Sensor size: 1/1.8”
Min. Illumination: 0.0007
Electronic Shutter Speed: Auto/Manual 1/3 s–1/100,000 s
Alarm In: 2
Alarm Out: 1
Audio-In: 1
Audio-Out: 1
RJ45: 1
Supports card capacities up to: 512GB
Power options: 12V/PoE
Power supply requirements: 12 VDC/24 VAC/PoE (802.3af)/ePoE
Power consumption: 5.4
Environment: Outdoor
Operating temperature range: –30 °C to +60 °C
Dimensions: Φ159.1 mm × 118.1 mm
Shipping box quantity: 1
Shipping Box Depth: 19
Shipping Box Height: 15
Shipping Box Weight: 1.26
Shipping Box Width: 18.5
Unit Brutto Volume: 0.005273
Unit Net Weight: 0.91
Unit Gross Weight: 1.26
CnCode: 85258900
Unit Box Width: 0.185
Unit Box Length: 0.19
Unit Box Height: 0.15
Full Description Line: Type Fixed Dome/HDTV/Megapixel/Outdoor|Pixel Resolution 4 Mega Pixel|Focal Length 2.7 mm–12.0 mm|IR Illumination|Sensor size 1/1.8”|Min. Illumination 0.0007 Lux|Electronic Shutter Speed Auto/Manual 1/3 s–1/100,000 s|1xAudio-In|1xAudio-Out|1xRJ45|2xAlarm In|1xAlarm Out|Supports card capacities up to 512GB|Power options PoE/12V|Power supply requirements 12 VDC/24 VAC/PoE (802.3af)/ePoE|Environment Outdoor|Operating temperature range –30 °C to +60 °C|Dimensions Φ159.1 mm × 118.1 mm
Category Code: FNC
