Description:

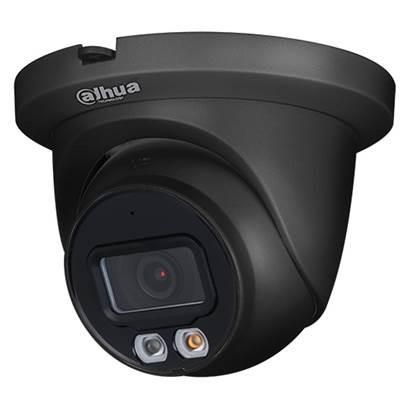

4MP Smart Dual Light Fixed-focal Eyeball WizSense Network Camera
> 4-MP 1/2.9" CMOS image sensor, low luminance, and high definition image.
> Outputs max. 4 MP (2688 × 1520)@20 fps, and supports 2560 × 1440 @25/30 fps.
> H.265 codec, high compression rate, ultra-low bit rate.
> Built-in warm light/IR LED, the max. illumination distance is 30 m and the max. warm light distance is 30 m.
> ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments.
> Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
> Intelligent monitoring: Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human).
> Supports max. 256 G Micro SD card; built in MIC.
> 12 VDC/PoE power supply, easy for installation.
> IP67 protection.
> SMD Plus.
Vendor Homepage: www.dahuasecurity.com/ceen/products/All-Products/Network-Cameras/WizSense-Series/2-Series/Smart-Dual-Illuminators/IPC-HDW2449TM-S-IL
Category Code: FNC
CnCode: 85258900
Unit Box Height: 0.14
Unit Box Length: 0.14
Unit Box Width: 0.11
RJ45: 1
Model: DHI-IPC-HDW2449TM-S-IL-0280B-B
Camera design: Eyeball
Network Camera Type: HDTV/Megapixel/Outdoor
Pixel Resolution: 4
IR Illumination: Yes
Sensor size: 1/2.9″
Microphone: Built-in
Lens Mount: M12
Min. Illumination: 0
Effective pixels: 2688 (H) × 1520 (V)
Electronic Shutter Speed: Auto/Manual 1/3 s–1/100,000 s
Supports card capacities up to: 256GB
Power options: 12V/PoE
Power supply requirements: Basic: 2.1 W (12 VDC); 2.5 W (PoE)
Environment: Outdoor
Operating temperature range: –40 °C to +60 °C
Colour: Black
Dimensions: 99.1 mm × Φ121.9 mm
Units per Shipping Box: 1
Unit Calculated Volume: 0
Product Net Weight: 0
Unit Calculated Weight: 1
