Description:

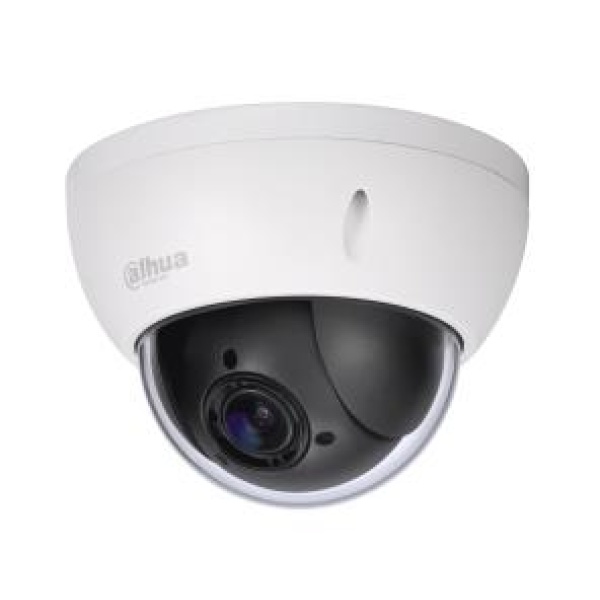

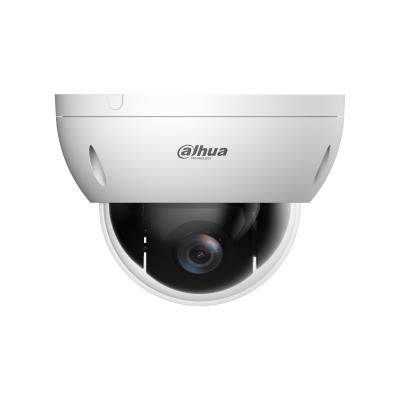

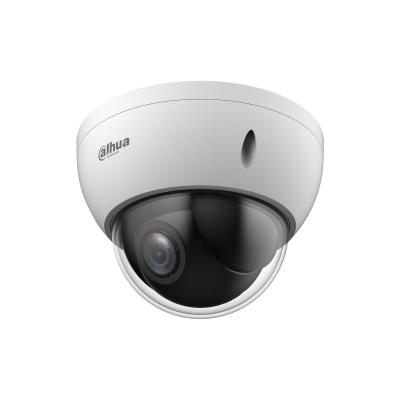

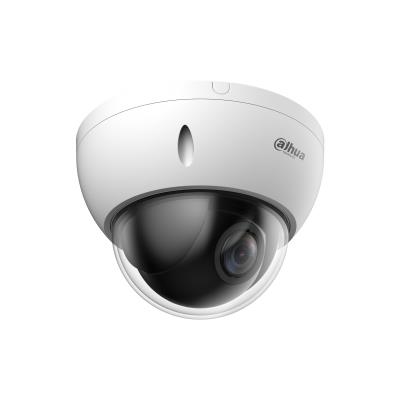

– Pan/Tilt/Zoom mini dome camera.
– 1/2.8 ” CMOS, 2560 × 1440 @ 30FPS max
– Minimum illumination: Color: 0.005 lux @ F1.6, B/W: 0.0005 lux @ F1.6
– True Day / Night with ICR Filter, BLC / HLC / DWDR / 3D DNR
– Varifocal lens 2.8 mm–12 mm (4x Optical zoom) (90.3°–29.4°)
– Pan Range: 0° ~ 355°; Tilt Range: 0° ~ 90°, auto flip 180°
– Preset Speed: 100° /s; Tilt: 60° /s; Presets: 300
– 16x digital zoom, Micro SD (Max 512GB)
– H.265/H.264/+ MJPEG encoding, ONVIF(Profile S&G&T); P2P; CGI; SDK
– IP66 & IK10; -30°C~+60°C
– 12VDC / POE (802.3af) power, 6.1W max
– Free IP monitoring software available
Vendor Homepage: www.dahuasecurity.com/products/All-Products/PTZ-Cameras/WizSense-Series/SD2/SD22404DB-GNY
Model: SD22404DB-GNY
Camera design: Dome
Network Camera Type: PTZ
Pixel Resolution: 4
Focal Length: 2.8 mm–12 mm
IR Illumination: Yes
Sensor size: 1/2.8 ” CMOS
Min. Illumination: 0.005
Electronic Shutter Speed: 1/1 s–1/30,000 s
MicroSD Card Slot: 1
RJ45: 1
Power options: 12V/PoE
Power supply requirements: 12VDC / POE (802.3af)
Power consumption: 6.1
Environment: Outdoor
Operating temperature range: -30°C~+60°C
Dimensions: 89 mm × Φ122 mm
Shipping box quantity: 1
Shipping Box Depth: 15.5
Shipping Box Height: 13.5
Shipping Box Weight: 0.71
Shipping Box Width: 15.5
Unit Brutto Volume: 0.003243
Unit Net Weight: 0.5
Unit Gross Weight: 0.71
CnCode: 85258900
Unit Box Width: 0.155
Unit Box Length: 0.155
Unit Box Height: 0.135
Full Description Line: Type PTZ|Pixel Resolution 4 Mega Pixel|Focal Length 2.8 mm–12 mm|IR Illumination|Sensor size 1/2.8 ” CMOS|Min. Illumination 0.005 Lux|Electronic Shutter Speed 1/1 s–1/30,000 s|1xMicroSD Card Slot|1xRJ45|Power options PoE/12V|Power supply requirements 12VDC / POE (802.3af)|Environment Outdoor|Operating temperature range -30°C~+60°C|Dimensions 89 mm × Φ122 mm
Category Code: FNC
