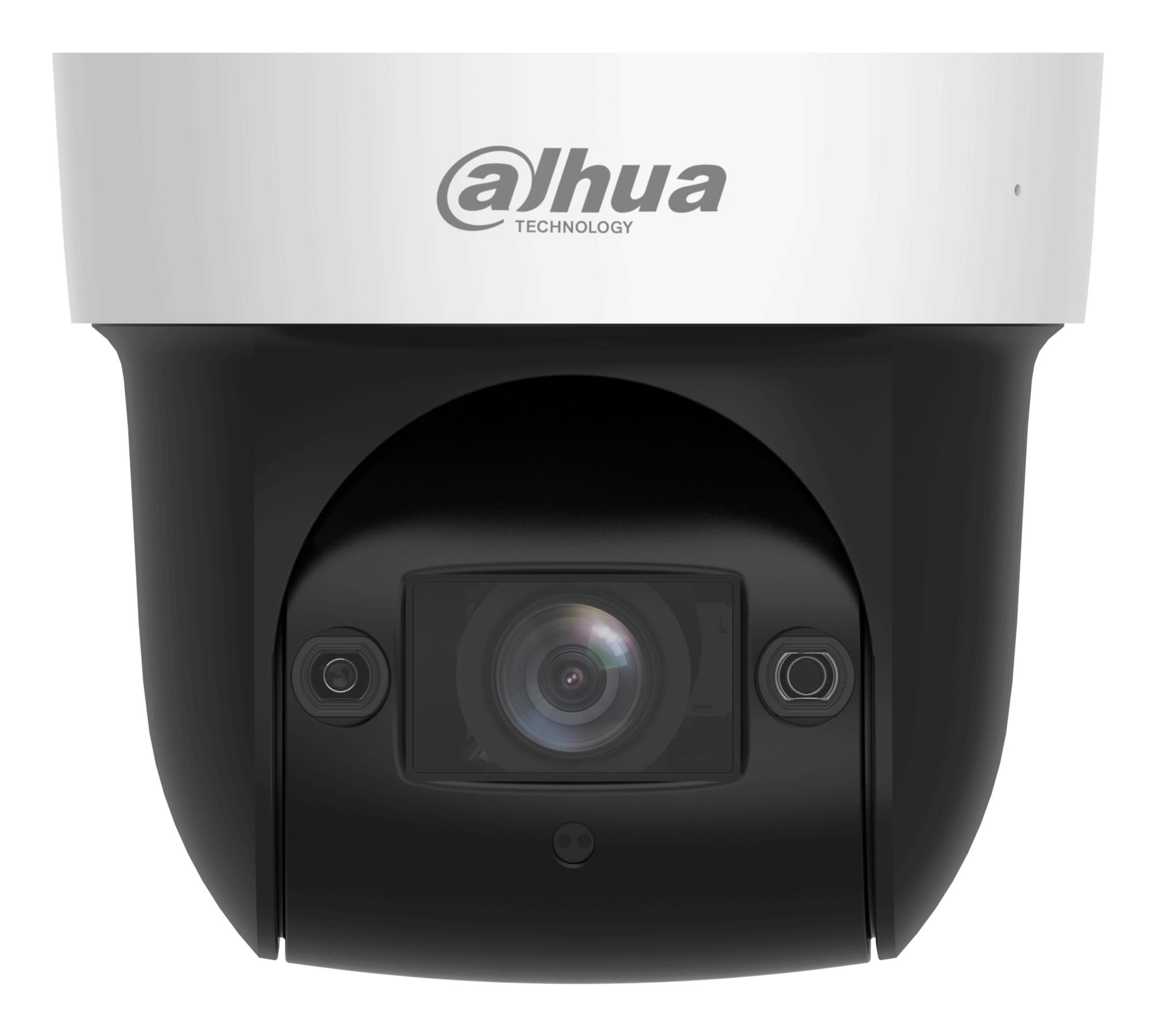

Description:
Dahua WizSense PTZ camera adopts advanced deep learning algorithms to support primeter protection with high accuracy. The camera is equipped with smooth control, high quality image, and good protection, meeting compact size demands of video surveillance applications.
Starlight Technology
For challenging low-light applications, Dahua’s Starlight Ultra-low Light
Technology offers best-in-class light sensitivity, capturing color details
in low light down to 0.005 lux. The camera uses a set of optical features to balance light throughout the scene, resulting in clear images in dark environments.
Smart H.265+
Smart H.265+ is the optimized implementation of the H.265 codec that uses a scene-adaptive encoding strategy, dynamic GOP, dynamic ROI, a
flexible multi-frame reference structure and intelligent noise reduction to deliver high-quality videos without straining the network. Smart
H.265+ technology outranks standard H.265 video compression, reducing bit rate and storage requirements by up to 70%.
System Overview
Dahua WizSense PTZ camera adopts advanced deep learning algorithms to support primeter protection with high accuracy. The camera is equipped with smooth control, high quality image, and good protection, meeting compact size demands of video surveillance applications.
SMD 3.0
Empowered by Deep-Learning Algorithms, Dahua SMD filters out motion detection alarms triggered by targets that are not a concern. It quickly recognizes humans and vehicles, triggering alarms when an intrusion occurs.
Wide Dynamic Range
The camera produces vivid images, even in high-contrast lighting conditions, by using industry-leading wide dynamic range (WDR) technology. For scenes that quickly alternate between bright and low lighting, WDR adjusts to fully capture both the bright and dark areas of a scene, producing superior quality videos.
- 1/2.8″ 4Megapixel CMOS
- Max. 25/30fps@4MP
- IR distance up to 50 m
- 4x optical zoom
- WDR
- SMD 3.0
- Built-in Mic
- PoE
Summary: Dahua Technology DH-SD29404DB-GNY. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: Black, White, Form factor: Dome. Minimum illumination: 0.0005 lx, Tilt angle range: 0 – 90°, Tilt speed: 60 °/sec. Sensor type: CMOS, Optical sensor size: 25.4 / 2.8 mm (1 / 2.8″). Optical zoom: 4x, Digital zoom: 16x, Detect distance: 171 m
Vendor Homepage: https://www.dahuasecurity.com/search/products?keyword=DH-SD29404DB-GNY
Category Code: FNC
CnCode: 85258900
Unit Box Height: 0.17
Unit Box Length: 0.175
Unit Box Width: 0.175
Fog proof: Yes
Form factor: Dome
Mounting type: Ceiling/wall
Product colour: Black/White
Certification: CE: EN55032/EN 50130-4/EN 55035/EN61000-3-2/
EN61000-3-3
Connectivity technology: Wired
Day/night mode: Yes
Placement supported: Indoor & outdoor
PTZ control: Yes
PTZ modes: 5 Pattern/5 Scan/8 Tour
PTZ protocols: DH-SD
Type: IP security camera
Wide Dynamic Range (WDR): Yes
Camera shutter speed: 1/1 – 1/30000
Camera shutter type: Electronic
Minimum illumination: 0.0005
Pan preset speed: 100
Pan range: 0 – 360
Pan speed: 100
Preset programs quantity: 300
Tilt angle range: 0 – 90
Tilt preset speed: 60
Tilt speed: 60
White balance: Auto/Indoor/Manual/Natural/Outdoor/Sodium lamp/Street lamp
Optical sensor size: 1/2.8
Progressive scan: Yes
Sensor type: CMOS
Closest focusing distance: 1.5
Detect distance: 171
Digital zoom: 16
Focal length range: 2.8 – 12
Focus: Motorized/Manual
Identify distance: 17
Maximum aperture number: 1.6
Observe distance: 67
Optical zoom: 4
Recognize distance: 34
Zoom capability: Yes
Night vision: Yes
Night vision distance: 50
Automatic gain control: Yes
Back Light Compensation (BLC): Yes
Bit rate: H264: 24 Kbps-13056 Kbps H265: 9 Kbps-7936 Kbps
Bit rate control: Constant Bit Rate (CBR),Variable Bit Rate (VBR)
Frame rate: 30
Gain control type: Auto/Manual
Highlight Compensation (HLC): Yes
Maximum resolution: 2560 x 1440
Noise reduction: Yes
Noise reduction technology: 2D noise reduction,3D noise reduction
Region of Interest (ROI) encoding: Yes
Supported graphics resolutions: 1280 x 720 (HD 720)/1280 x 960/1920 x 1080 (HD 1080)/2304 x 1296/2560 x 1440/352 x 240/352 x 288/640 x 480 (VGA)/704 x 480/704 x 576
Supported video modes: 1080p/720p
Total megapixels: 2
Video compression formats: H.264/H.264+/H.264B/H.264H/H.265/H.265+/M-JPEG
Video streaming: Yes
Audio codecs: G.711a; G.711Mu; G.726; MPEG2-Layer2; G722.1; PCM
Built-in microphone: Yes
Bluetooth: No
Cabling technology: 10/100Base-T(X)
Client interoperability: CGI; SDK; ONVIF (Profile S&G&T); P2P
Ethernet interface type: Fast Ethernet
Ethernet LAN: Yes
Networking standards: IEEE 802.3af
Number of users: 20
Quality of Service (QoS) support: Yes
Streaming method: Multicast/Unicast
Supported network protocols: FTP; RTMP; IPv6; Bonjour; IPv4; DNS; RTCP; PPPoE; NTP; RTP; 802.1x; HTTPS; SNMP; TCP/IP; DDNS; UPnP; NFS; ICMP; UDP; IGMP; SMB; HTTP; SSL; DHCP; SMTP; Qos; RTSP; ARP
Wi-Fi: No
Built-in HDD: No
Card reader integrated: Yes
Compatible memory cards: MicroSD (TransFlash)
Internal memory: 512
ROM capacity: 128
Interface: RJ-45
Intelligent Video Surveillance (IVS) system features: Abandoned object/Face detection/Intrusion/Missing object/Tripwire
Motion sensor: Yes
Management software: Smart PSS, DSS
Web browser: Yes
Power consumption (max): 10
Power consumption (typical): 5
Power over Ethernet (PoE): Yes
Power source type: PoE
Operating relative humidity (H-H): 0 – 95
Operating temperature (T-T): -30 – 50
Mobile operating systems supported: Android/iOS
Diameter: 132.1
Height: 117.4
Weight: 713
Package weight: 1000
Number of cameras: 1
Browser supported: IE, Chrome, Firefox, Safari
Number of video streams: 3
Model: SD29404DB-GNY
Units per Shipping Box: 1
Unit Calculated Volume: 0.005206
Unit Calculated Weight: 1
