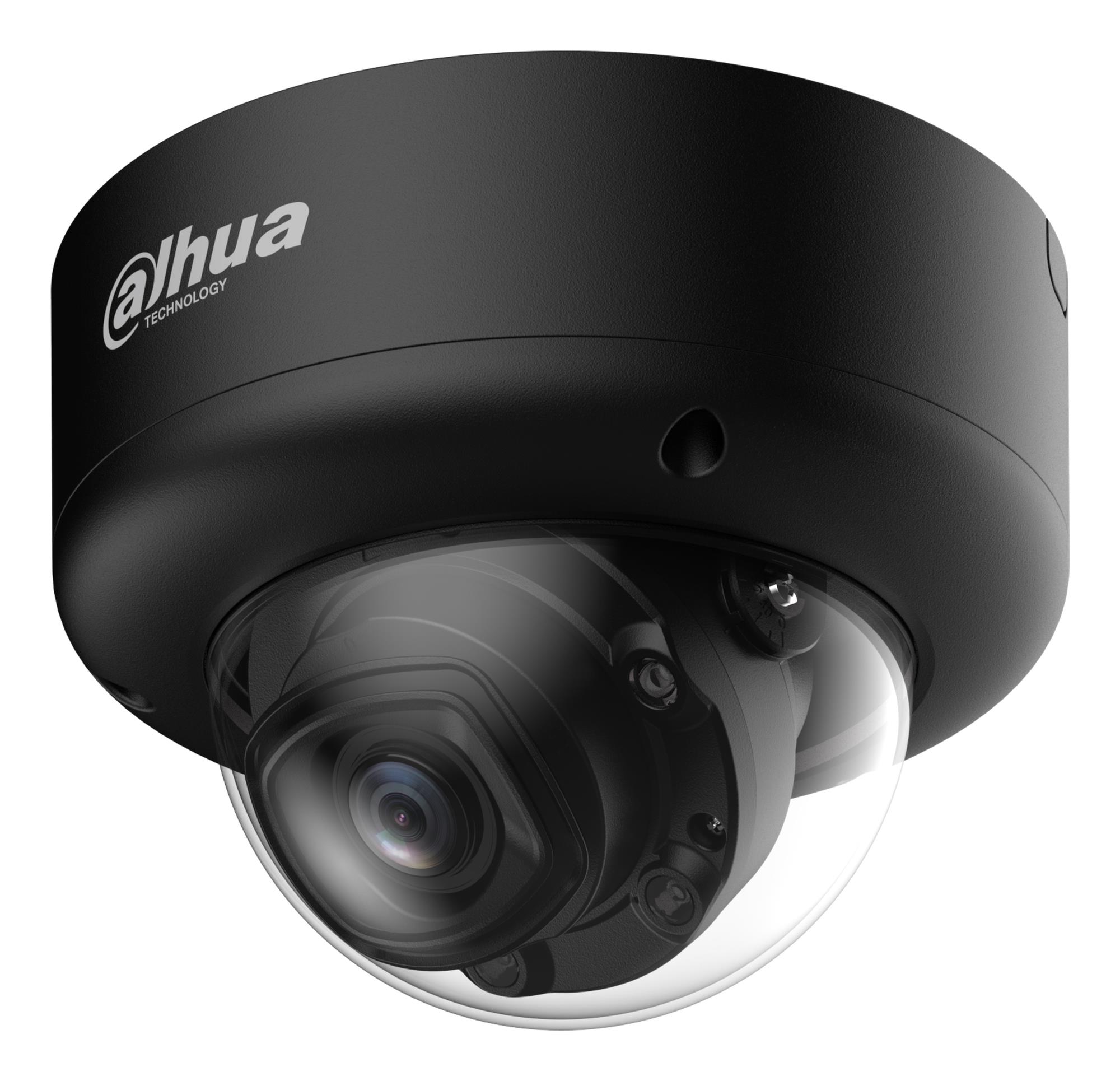

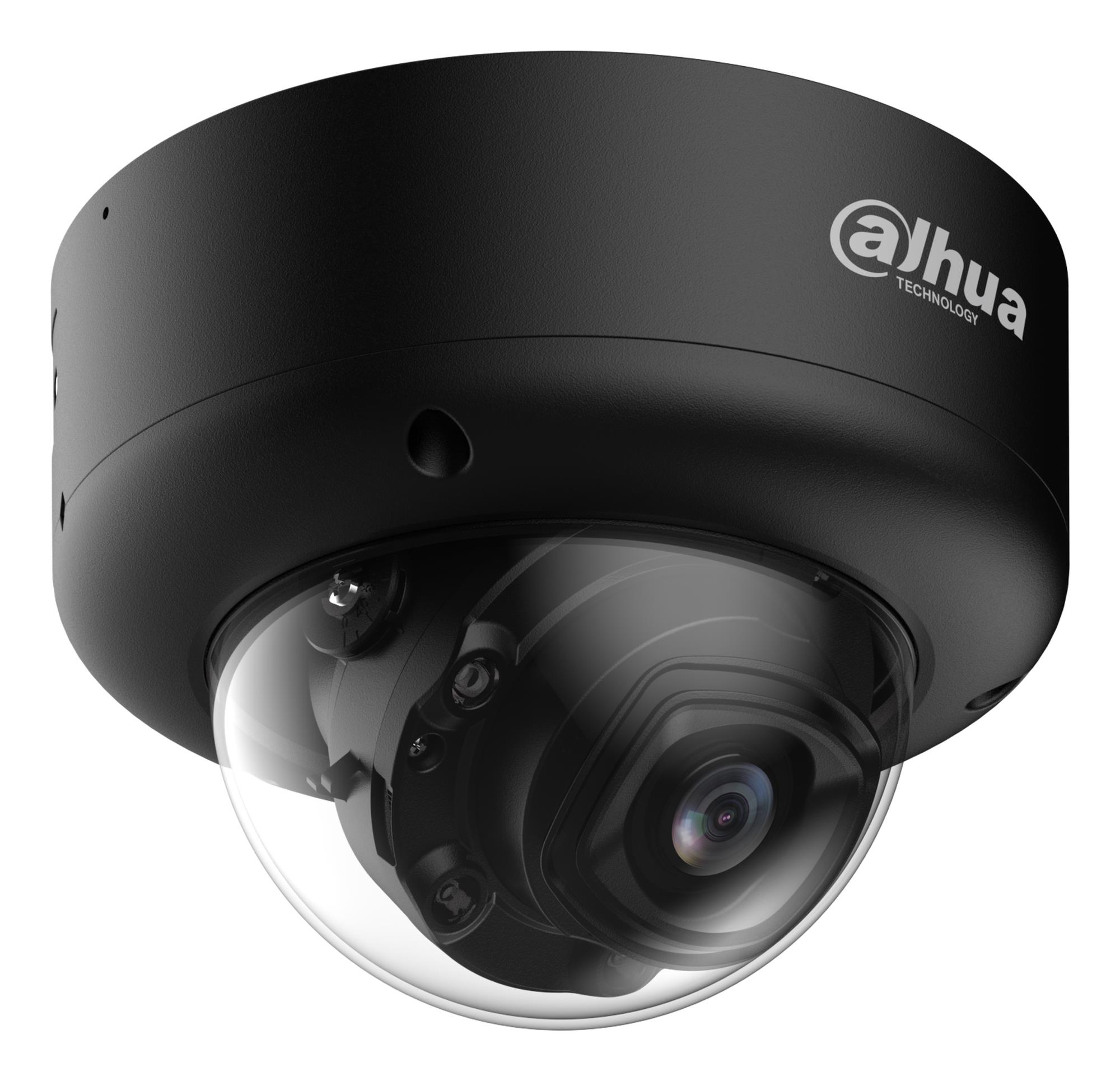

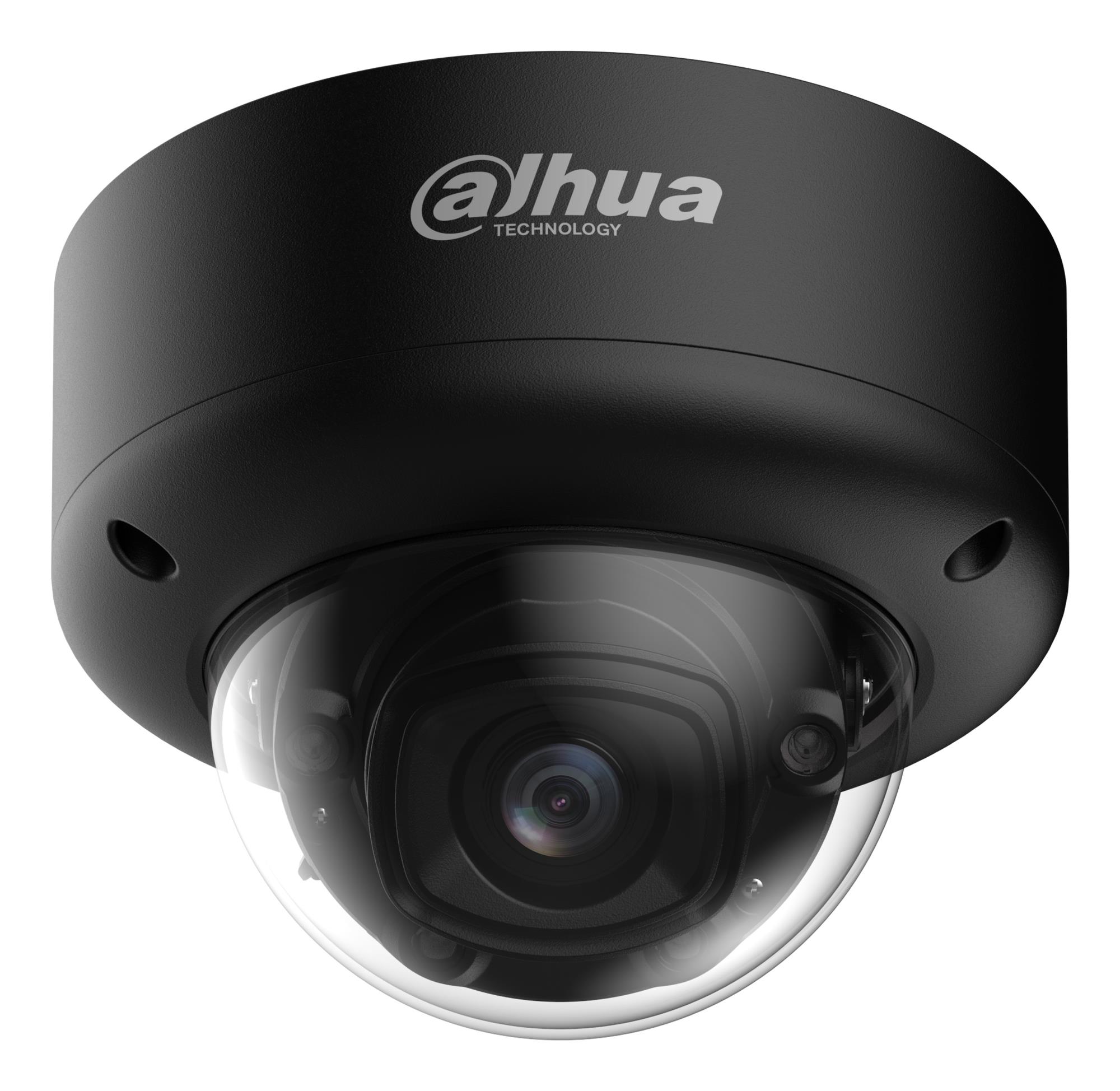

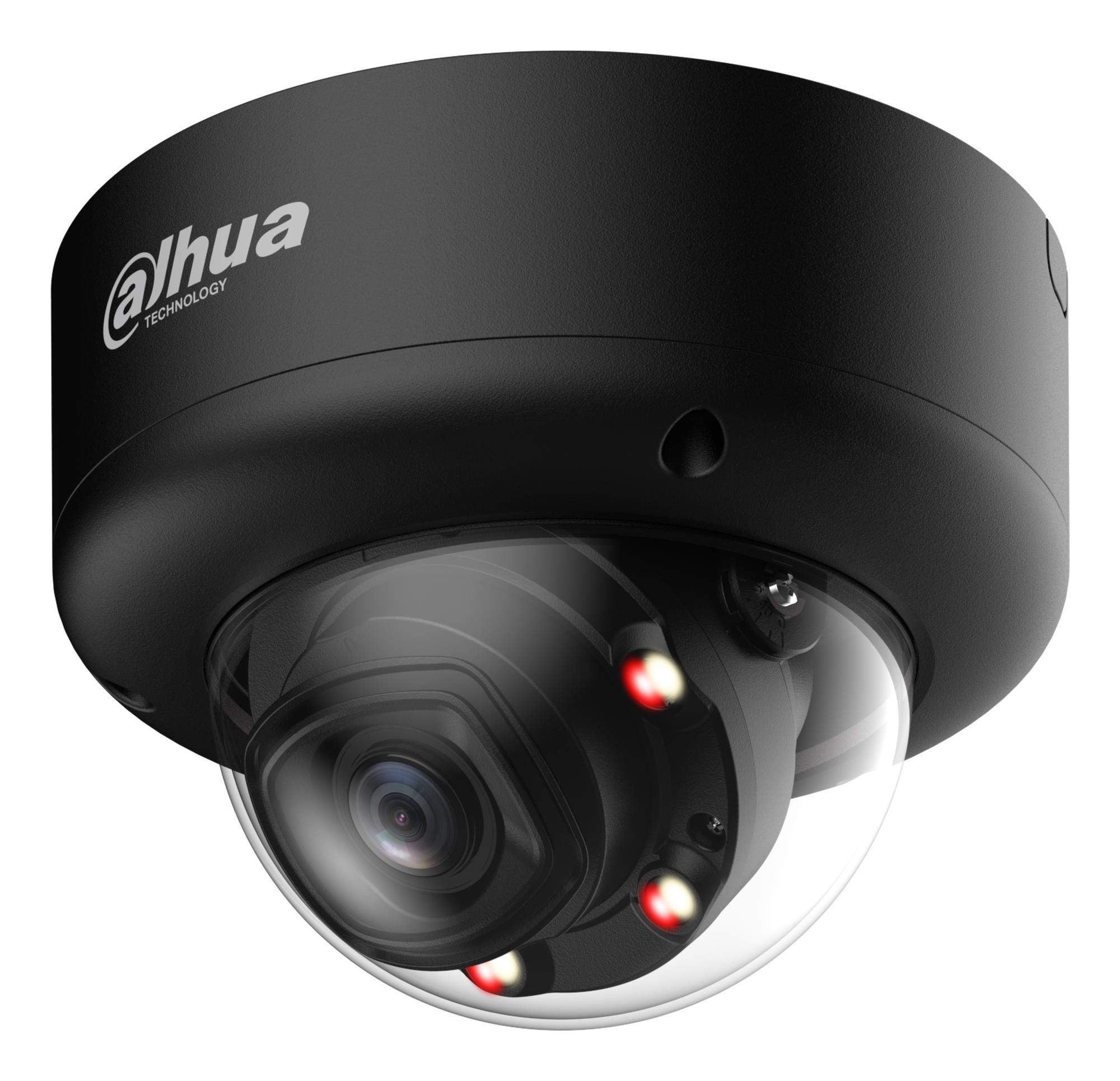

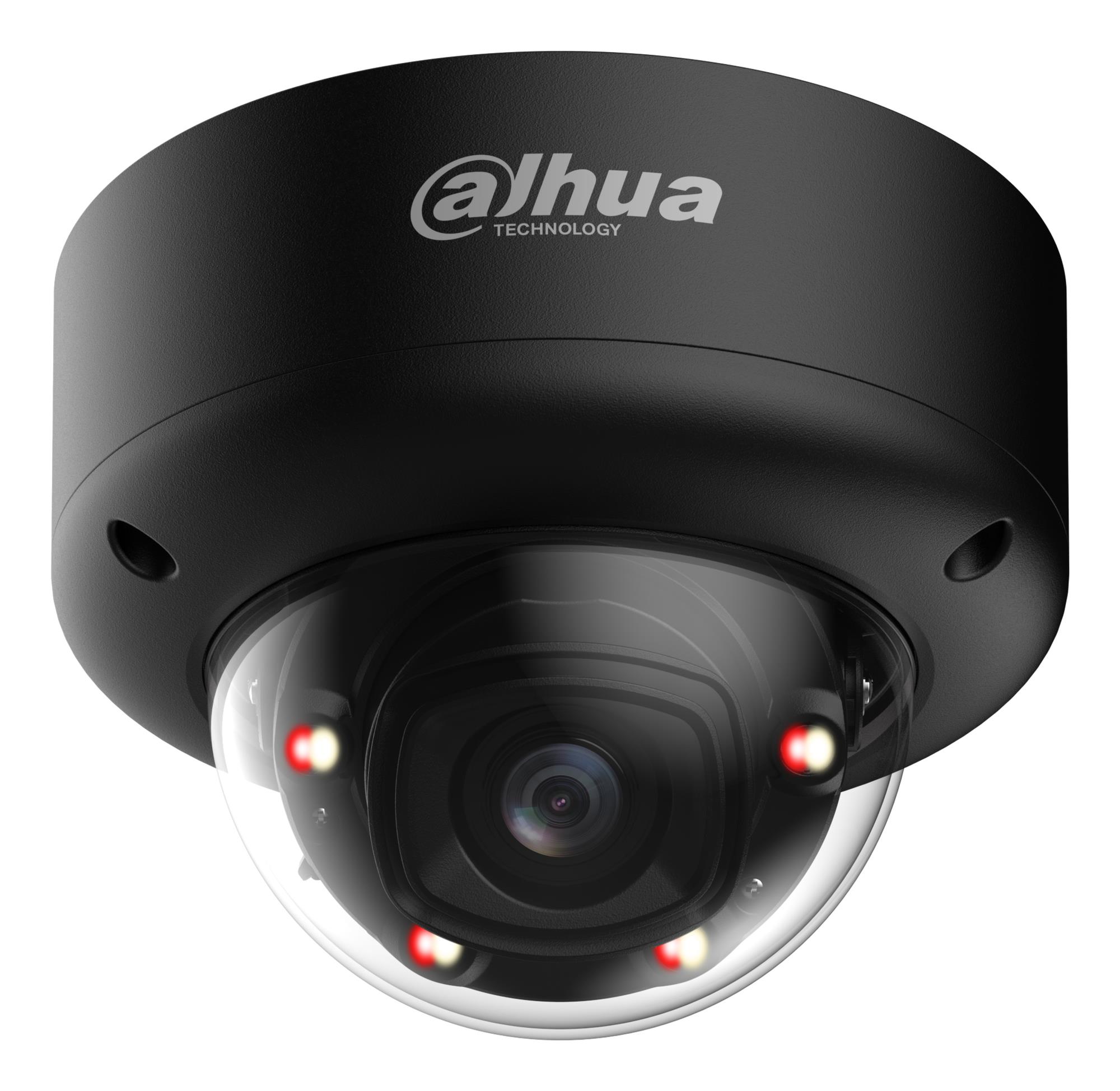

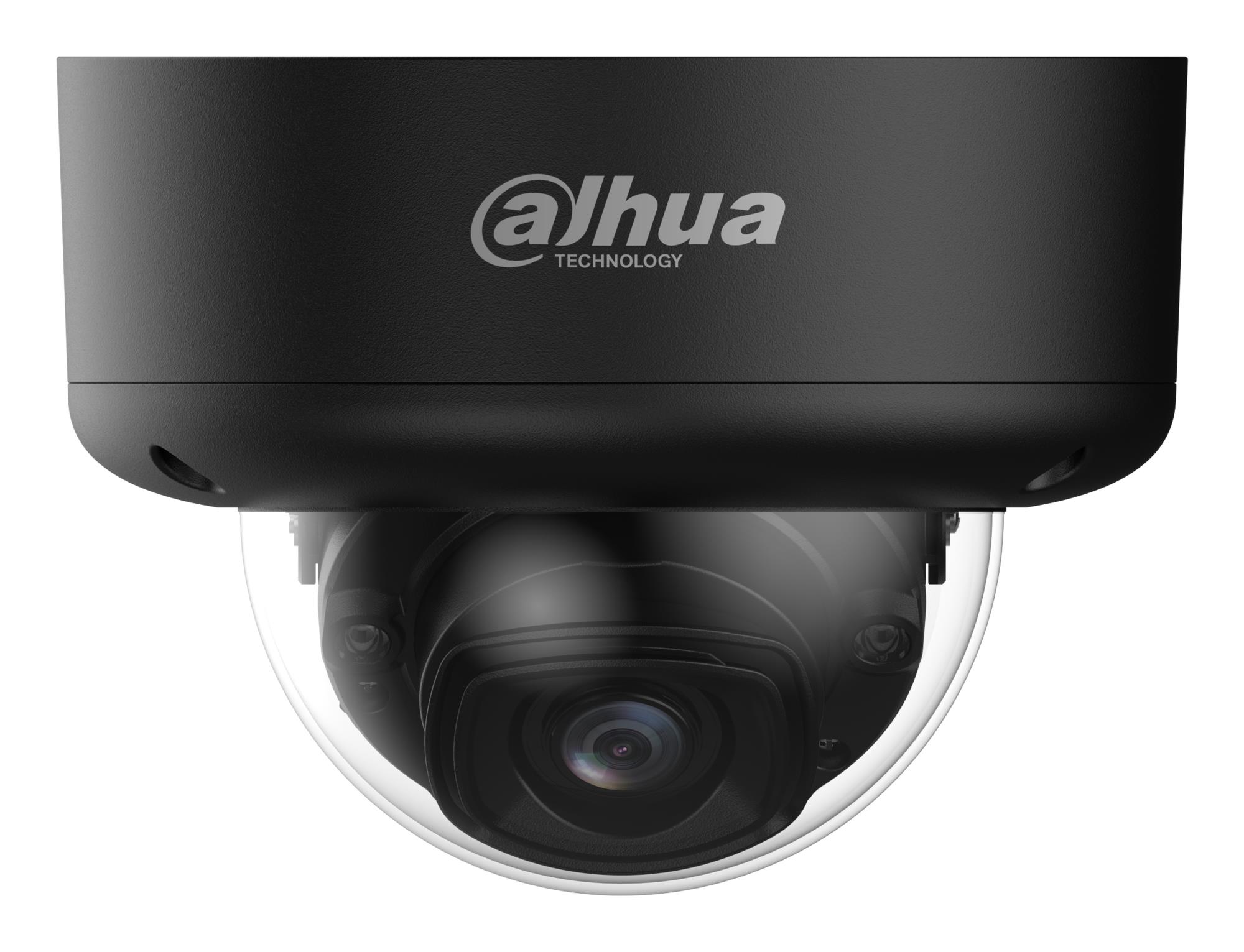

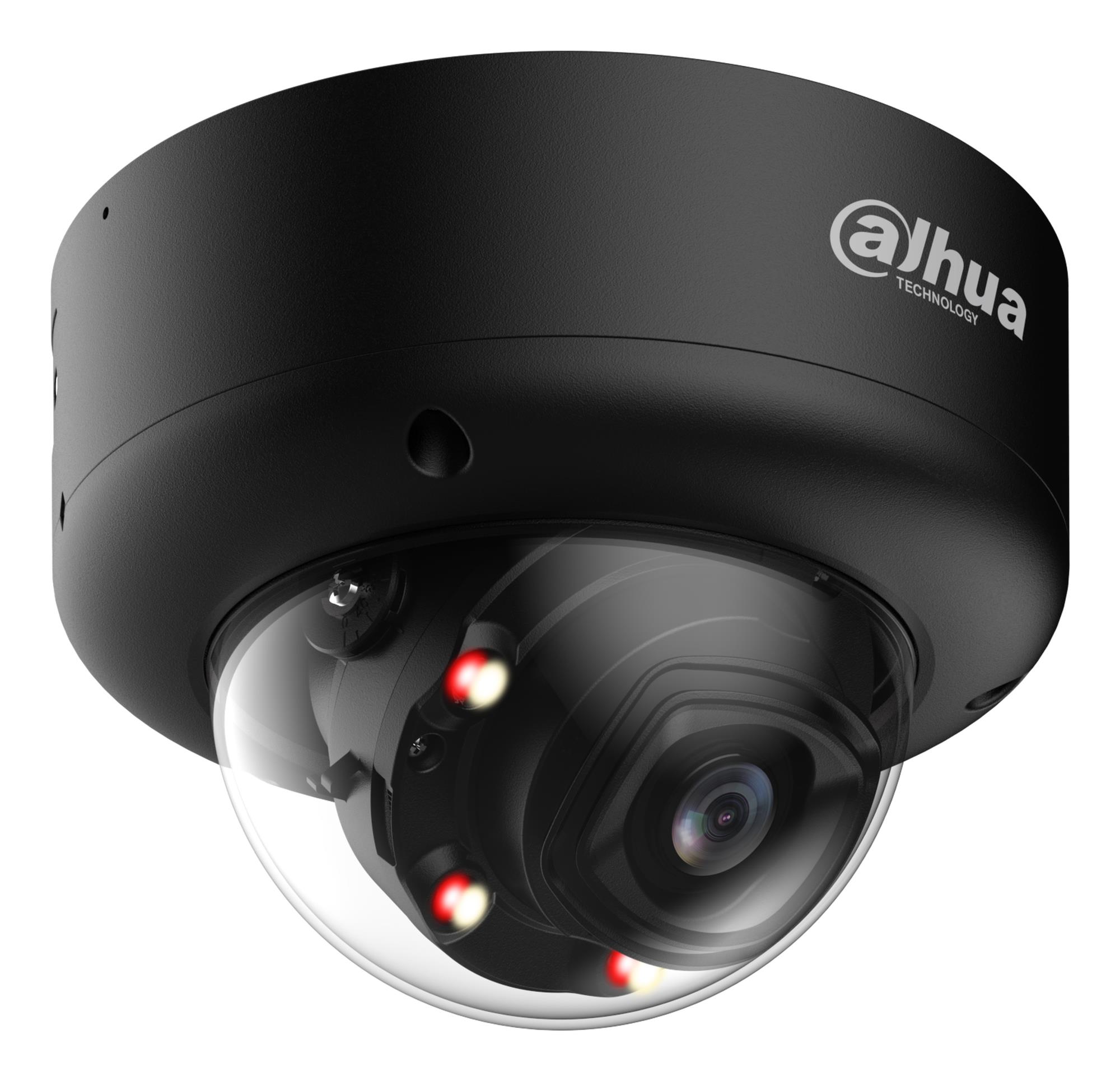

Long Description: Dahua Technology WizMind IPC-HDBW5559E1-ZHE-IL-27135-Black. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Ceiling/Wall/Pole, Product colour: Black, Form factor: Dome. Minimum illumination: 0.0005 lx, Angle of rotation: 355°, Lens viewing angle, horizontal: 110 – 32°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.7 mm (1 / 2.7″). Focal length range: 2.7 – 13.5 mm, Detect distance (wide): 65.4 m, Detect distance (tele): 202 m
Vendor Homepage: https://www.dahuasecurity.com/ceen/products/All-Products/Network-Cameras/WizMind-5-Series/Smart-Dual-Light/5MP/IPC-HDBW5559E1-ZHE-IL
CnCode: 85258900
Bullet Points:
- 5-MP 1/2.7″ CMOS image sensor, low luminance, and high definition image
- Outputs max. 5 MP (2960 × 1668) @25/30 fps
- Built-in multi-core light, the max. IR distance is 60 m and the max. warm light distance is 50 m
- ROI, SVC, SMART H.264+/H.265+, AI H.264/H.265, encoding after filter, flexible coding, applicable to various bandwidth and storage environments
- Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes
- Powered by the Xinghan Large-Scale AI Models-Vision, the camera outstandingly delivers on its object detection, recognition, and scene adaptation functions
- With deep learning algorithm, it supports: AcuPick, video metadata, IVS, face detection, and people counting, etc
- Alarm: 2 in, 1 out; audio: 1 in, 1 out; supports max. 1 TB Micro SD card; built-in Mic
- 12 VDC/PoE power supply; ePoE
- IP67 and IK10 protection, heater
Form factor: Dome
Power source type: PoE,DC
Type: IP security camera
Power consumption (typical): 3.7
Power consumption (max): 12.9
DC output voltage: 12
Connectivity technology: Wired
Built-in HDD: No
Number of cameras: 1
Ethernet LAN (RJ-45) ports: 1
Card reader integrated: Yes
Ethernet LAN: Yes
Maximum resolution: 2960 x 1668
Camera pan control: Yes
Placement supported: Outdoor
Ethernet interface type: Fast Ethernet
Night vision: Yes
Networking standards: IEEE 802.1x/IEEE 802.3at
Compatible memory cards: MicroSD (TransFlash)
Camera tilt control: Yes
Supported network protocols: IPv4, IPv6, HTTP, TCP, UDP, ARP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, SFTP, DHCP, DNS, DDNS, QoS, UPnP, NTP, ICMP, IGMP, NFS, SAMBA, PPPoE, SNMP, P2P
Maximum memory card size: 1000
Wi-Fi: No
Night vision distance: 60
Minimum illumination: 0.0005
Mounting type: Ceiling/Wall/Pole
Product colour: Black
Bluetooth: No
LED type: IR
Housing material: Metal
Total megapixels: 5
Number of illumination LEDs: 4
Protection features: Vandal proof
Audio formats supported: G.711 µ-law/G.711 A-law/G.723/G.726/PCM
Video compression formats: H.264/H.264B/H.264H/H.265/M-JPEG
Alarm input channels: 2
International Protection (IP) code: IP67
Alarm output channels: 1
Video recording: Yes
Frame rate: 30
Optical sensor size: 1/2.7
Operating temperature (T-T): -40 – 60
Signal-to-Noise Ratio (SNR): 56
IK code: IK10
Mobile operating systems supported: Android/iOS
Video streaming: Yes
Storage temperature (T-T): -40 – 60
Built-in microphone: Yes
Noise reduction: Yes
Noise reduction technology: 3D noise reduction
People counting function: Yes
Manual: Yes
Height: 118
ROM capacity: 4096
Wide Dynamic Range (WDR): Yes
Diameter: 159
Day/night mode: Yes
Alarm input/output: Yes
Angle of rotation: 355
Lens viewing angle, horizontal: 110 – 32
DC-in jack: Yes
Focal length range: 2.7 – 13.5
Lens viewing angle, vertical: 57 – 18
Lens viewing angle, diagonal: 134 – 37
Progressive scan: Yes
Tilt angle range: 0 – 80
Pan range: 0 – 355
Gain control type: Auto/Manual
Maximum aperture number: 1.6
Number of users: 20
Compliance certificates: CE
Weight: 1160
Digital watermark: Yes
HTTPS encryption: Yes
Human and vehicle targets classification: Yes
Intelligent Video Surveillance (IVS) system features: Intrusion/People counting/Tripwire
Mirror: Yes
Network access storage (NAS): Yes
Video motion detection: Yes
RAM capacity: 2048
Quality of Service (QoS) support: Yes
Streaming method: Multicast
Back Light Compensation (BLC): Yes
Bit rate control: Constant Bit Rate (CBR),Variable Bit Rate (VBR)
Highlight Compensation (HLC): Yes
Image stabilizer: Yes
Region of Interest (ROI) encoding: Yes
Smart IR: Yes
Closest focusing distance: 0.3
Detect distance (tele): 202
Detect distance (wide): 65.4
Identify distance (tele): 20.2
Identify distance (wide): 6.5
Observe distance (tele): 80.8
Observe distance (wide): 26.1
Recognize distance (tele): 40.4
Recognize distance (wide): 13.1
Sensor type: CMOS
White balance: Auto/Manual/Natural/Outdoor/Regional custom/Street lamp
Dynamic range: 120
Camera shutter speed: 1/3 – 1/100000
Package weight: 1360
Units per Shipping Box: 1
Unit Calculated Volume: 0.003288
Unit Calculated Weight: 1.3
