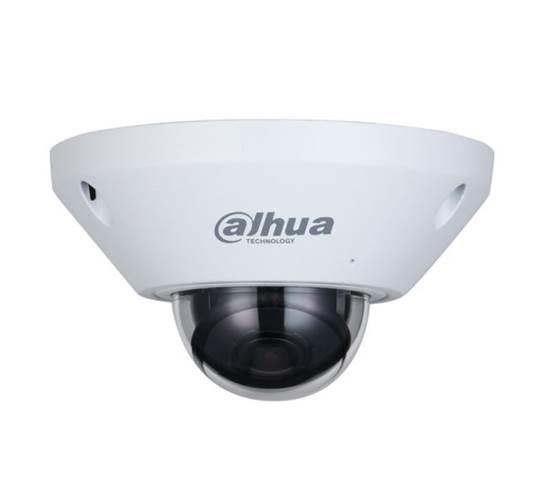

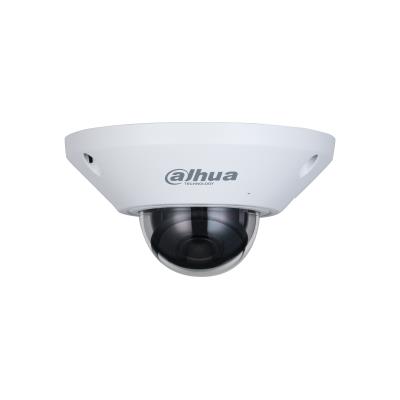

Description: 1/2.7” 5MP progressive scan CMOS,
2592×1944 @ 25FPS
Minimum illumination: 0 0.006 Lux @F2.0
Electronic Day/Night, BLC/HLC/True WDR/3D DNR
1.4 mm fixed lens (180°)
Memory Slot: Micro SD, Max 256GB,
1/1 Alarm In/Out, 1/1 Audio In/Out (+Built in Mic)
H.265; H.264; H.264H; H.264B; MJPEG encoding, ONVIF (Profile S/Profile G/Profile T); CGI; Milestone; Genetec; P2P
IP67, IK10, -30°C~+55°C, PoE / 12VDC power, 5.1W, indoor/outdoor use, metal case
Free IP monitoring software available
Advanced Intelligent Functions: Tripwire, Intrusion, Heat map, People counting
Vendor Homepage: www.dahuasecurity.com/ceen/products/All-Products/Network-Cameras/Panoramic-Series/Fisheye/IPC-EB5541-AS
Camera design: Dome
Network Camera Type: Fixed Dome/Outdoor
Pixel Resolution: 5
Focal Length: 1.4 mm
Sensor size: 1/2.7”
Lens Mount: M12
Min. Illumination: 0.006
Electronic Shutter Speed: Auto/Manual 1/3 s–1/100,000 s
Alarm In: 1
Alarm Out: 1
Audio-In: 1
Audio-Out: 1
Supports card capacities up to: 256GB
Power options: 12V/PoE
Power supply requirements: 12V DC/PoE
Power consumption: 5.1
Environment: Outdoor
Operating temperature range: -30°C~+55°C
Dimensions: 62.0 mm × Φ110.0 mm
Shipping box quantity: 1
Shipping Box Depth: 13.3
Shipping Box Height: 11.4
Shipping Box Weight: 0.536/0.536
Shipping Box Width: 13.6
Unit Brutto Volume: 0.002062
Unit Net Weight: 0.387
Unit Gross Weight: 0.536
CnCode: 85258900
Unit Box Width: 0.136
Unit Box Length: 0.133
Unit Box Height: 0.114
Full Description Line: Type Fixed Dome/Outdoor|Pixel Resolution 5 Mega Pixel|Focal Length 1.4 mm|Sensor size 1/2.7”|Lens Mount M12|Min. Illumination 0.006 Lux|Electronic Shutter Speed Auto/Manual 1/3 s–1/100,000 s|1xAudio-In|1xAudio-Out|1xAlarm In|1xAlarm Out|Supports card capacities up to 256GB|Power options PoE/12V|Power supply requirements 12V DC/PoE|Environment Outdoor|Operating temperature range -30°C~+55°C|Dimensions 62.0 mm × Φ110.0 mm
Category Code: FNC
