Description:
– 1/2.7”5Megapixel progressive CMOS, 2960 × 1668 @ 20FPS
– Minimum illumination: 0.005 lux @ F1.5 (Color, 30 IRE), 0.0005 lux @ F1.5 (B/W, 30 IRE), 0 lux (Illuminator on)
– True Day/Night (ICR), BLC / HLC / True WDR 120dB /3D DNR
– Motorized vari-focal 2.7 mm-13.5 mm fixed lens (99°-28°)
– Up to 60 meters Smart IR Illumination
– H.265; H.264; H.264H; H.264B; MJPEG encoding, ONVIF(Profile S/Profile G);CGI;P2P;Milestone;Genetec
– 1/1 Audio I/O, G.711a; G.711Mu; PCM; G.726; G.723 encoding
– 1/1 Alarm I/O
– Micro SD card up to 256GB supported
– Metal case, IP67, IK10, -30°C~+60°C, PoE / 12VDC power, 7.3W max
– Smart capabilities: Tripwire; intrusion (Recognition of human and vehicle). Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos
– Free IP monitoring software available
Vendor Homepage: www.dahuasecurity.com/products/All-Products/Network-Cameras/WizSense-Series/3-Series/5MP/IPC-HFW3541T-ZAS-S2
Model: HFW3541T-ZAS-27135-S2

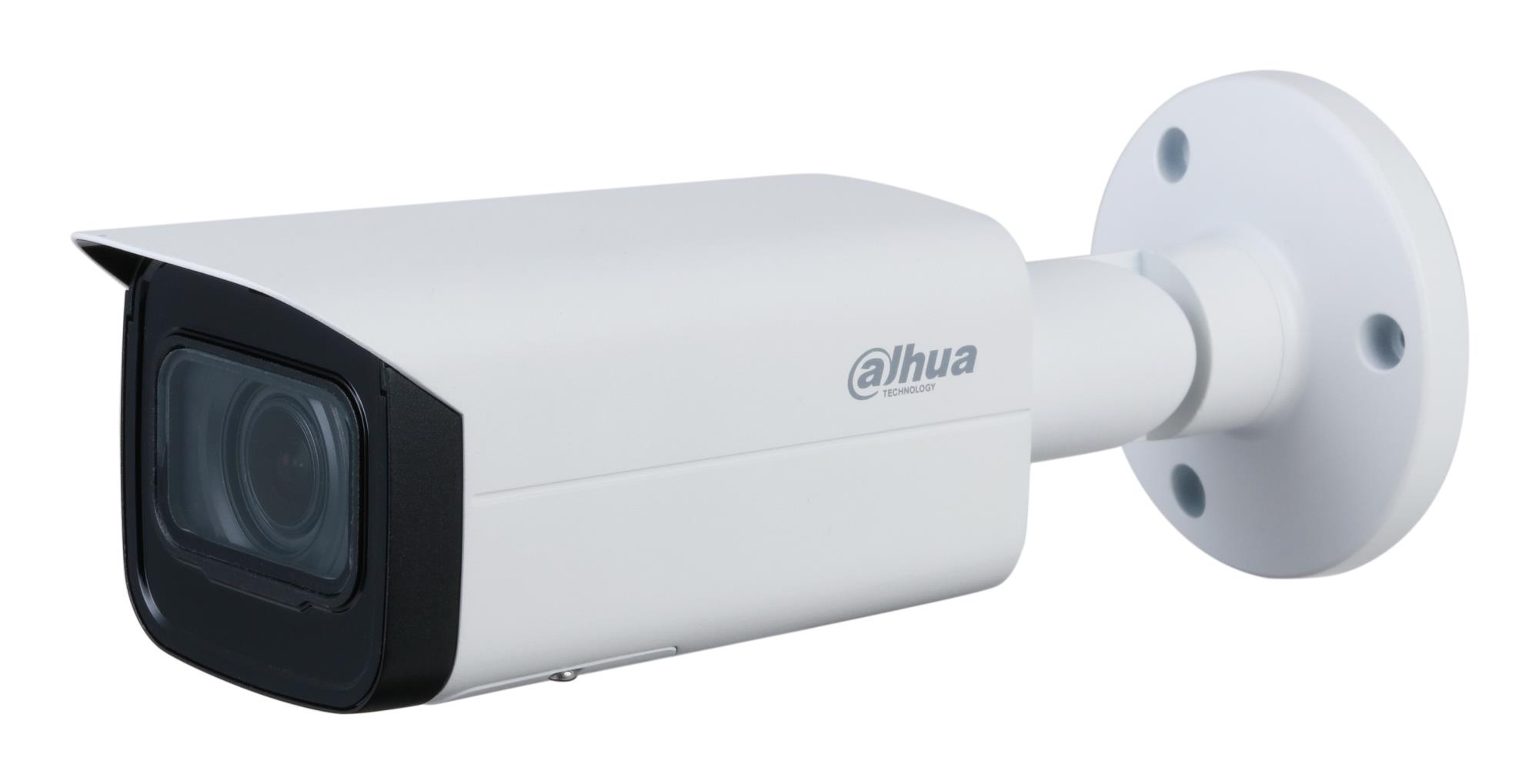

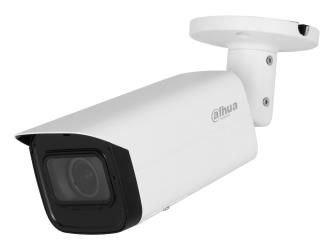

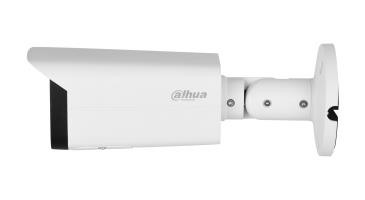

Camera design: Bullet
Network Camera Type: HDTV/Megapixel/Outdoor
Pixel Resolution: 5
Focal Length: 2.7 mm-13.5 mm
IR Illumination: Yes
Sensor size: 1/2.7”
Lens Mount: M14
Min. Illumination: 0.005
Electronic Shutter Speed: Auto/Manual 1/3 s–1/100000 s
Alarm In: 1
Alarm Out: 1
Audio-In: 1
Audio-Out: 1
MicroSD Card Slot: 1
RJ45: 1
Supports card capacities up to: 256GB
Power options: 12V/PoE
Power supply requirements: 12 VDC
Power consumption: 7.3
Environment: Outdoor
Operating temperature range: -30°C~+60°C
Colour: White
Dimensions: 244.1 x 79.0 x 75.9 mm
Shipping box quantity: 1
Shipping Box Depth: 31
Shipping Box Height: 14.5
Shipping Box Weight: 1.16
Shipping Box Width: 15.5
Unit Brutto Volume: 0.0069673
Unit Net Weight: 0.82
Unit Gross Weight: 1.16
CnCode: 85258900
Unit Box Width: 0.155
Unit Box Length: 0.31
Unit Box Height: 0.145
Full Description Line: Type HDTV/Megapixel/Outdoor|Pixel Resolution 5 Mega Pixel|Focal Length 2.7 mm-13.5 mm|IR Illumination|Sensor size 1/2.7”|Lens Mount M14|Min. Illumination 0.005 Lux|Electronic Shutter Speed Auto/Manual 1/3 s–1/100000 s|1xAudio-In|1xAudio-Out|1xMicroSD Card Slot|1xRJ45|1xAlarm In|1xAlarm Out|Supports card capacities up to 256GB|Power options PoE/12V|Power supply requirements 12 VDC|Environment Outdoor|Operating temperature range -30°C~+60°C|Colour White|Dimensions 244.1 x 79.0 x 75.9 mm
Category Code: FNC
