Description: 1/2.7” 5Megapixel progressive scan CMOS, 2960 × 1668 @30FPS
Minimum illumination: 0.0009 Lux @ F1.6 (Color,30IRE); 0.0005 Lux @ F1.6 (B/W,30IRE); 0 lux (Illuminator on)
True Day/Night with ICR Filter, BLC / HLC / True WDR (120dB), 3D DNR, Defog
2.8 mm fixed lens (111°)
Up to 80 meters Smart IR Illumination
H.265+, H.265, H.264+, H.264, H.264B, H.264H, MJPEG, ONVIF (Profile S/Profile G/Profile T); CGI
Micro SD: Max 512GB, 1/1 Audio I/O, 1/1 Alarm I/O
With deep learning algorithm, it supports: video metadata, smart sound detection, IVS, face detection, smart object detection, and people counting, etc.
Bullet design, metal shell, IP67, IK10, -40°C~+60°C
Power ePoE / PoE / 12VDC power, 9.8W max
Free IP monitoring software available
Vendor Homepage: www.dahuasecurity.com/ceen/products/All-Products/Network-Cameras/WizMind-S-Series/5MP/IPC-HFW5541T-ASE-S3=S3
Model: IPC-HFW5541T-ASE-0280B-S3

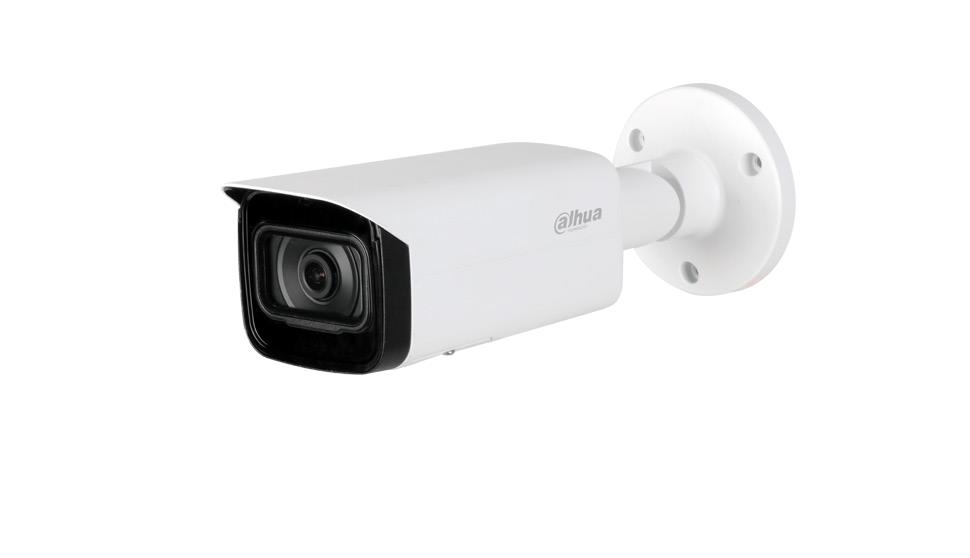

Camera design: Bullet
Network Camera Type: HDTV/Megapixel/Outdoor
Pixel Resolution: 5
Focal Length: 2.8 mm
IR Illumination: Yes
Sensor size: 1/2.7”
Lens Mount: M12
Min. Illumination: 0.0005
Effective pixels: 2960 (H) × 1668 (V)
Electronic Shutter Speed: Auto/Manual 1/3 s–1/100,000 s
Alarm In: 1
Alarm Out: 1
Audio-In: 1
Audio-Out: 1
RJ45: 1
Supports card capacities up to: 512GB
Power options: 12V/PoE
Power supply requirements: ePoE / PoE / 12VDC power, 9.8W max
Power consumption: 9.8
Environment: Outdoor
Operating temperature range: -40°C~+60°C
Colour: White
Dimensions: 244.1 × 79.0 × 75.9 mm
Shipping box quantity: 10
Shipping Box Depth: 57
Shipping Box Height: 26
Shipping Box Weight: 13.3
Shipping Box Width: 32
Unit Brutto Volume: 0.004742
Unit Net Weight: 0.82
Unit Gross Weight: 1.33
CnCode: 85258900
Unit Box Width: 0.12
Unit Box Length: 0.3
Unit Box Height: 0.11
Full Description Line: Type HDTV/Megapixel/Outdoor|Pixel Resolution 5 Mega Pixel|Focal Length 2.8 mm|IR Illumination|Sensor size 1/2.7”|Lens Mount M12|Min. Illumination 0.0005 Lux|Effective pixels 2960 (H) × 1668 (V)|Electronic Shutter Speed Auto/Manual 1/3 s–1/100,000 s|1xAudio-In|1xAudio-Out|1xRJ45|1xAlarm In|1xAlarm Out|Supports card capacities up to 512GB|Power options PoE/12V|Power supply requirements ePoE / PoE / 12VDC power, 9.8W max|Environment Outdoor|Operating temperature range -40°C~+60°C|Colour White|Dimensions 244.1 × 79.0 × 75.9 mm
Category Code: FNC
