Description:
5 MP DHOP IR-Bullet Box Network Camera
> 5 MP 1/2.7" CMOS image sensor, low luminance, and high definition image.
> Outputs max. 5 MP (2592 × 1944)@20 fps and supports 4 MP (2688 × 1520)@25/30 fps.
> H.265 codec, high compression rate, ultra-low bit rate.
> Built-in IR LED; the max. IR illumination distance is 30 m.
> ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments
> Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, appli cable to various monitoring scenes.
> Abnormality detection: motion detection, privacy masking, scene changing, audio detection, no SD card, SD card full, SD card error,network disconnection, IP conflict, illegal access, and voltage detection.
> Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 256 G Micro SD card.
> 12 VDC/PoE power supply, ePoE, transmission over long distance, easy for installations of various scenes.
> IP67/IK10 protection.
Vendor Homepage: www.dahuasecurity.com/ceen/products/All-Products/Discontinued-Products/Network-Cameras/IPC-HDBW5541R-ASE-OPAT
Category Code: FNC
CnCode: 85258900
Alarm In: 1
Alarm Out: 1
Audio-In: 1
Audio-Out: 1
RJ45: 1

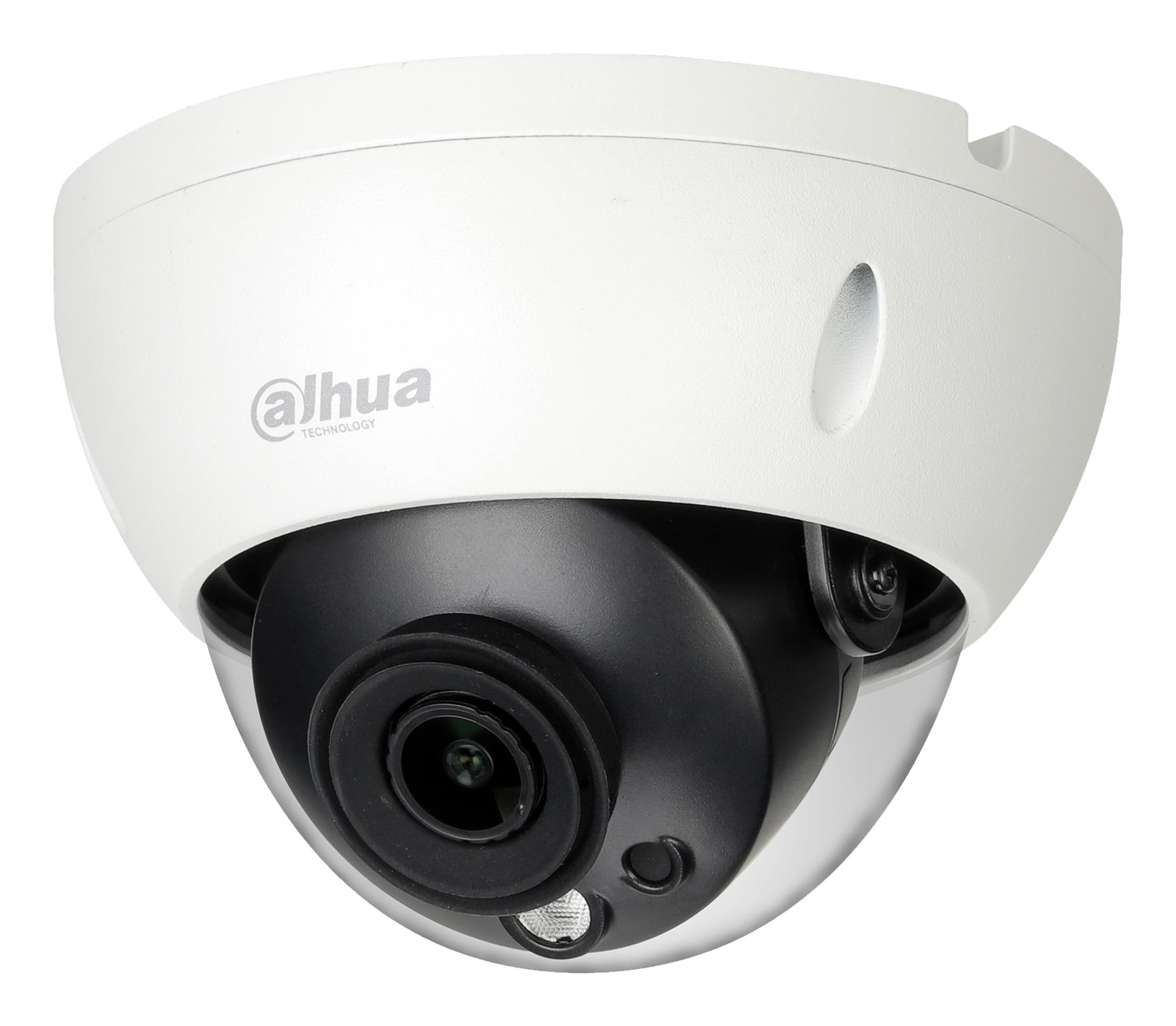

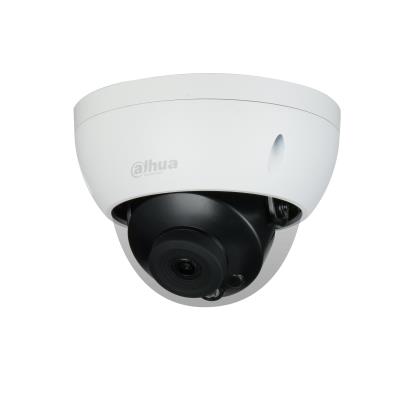

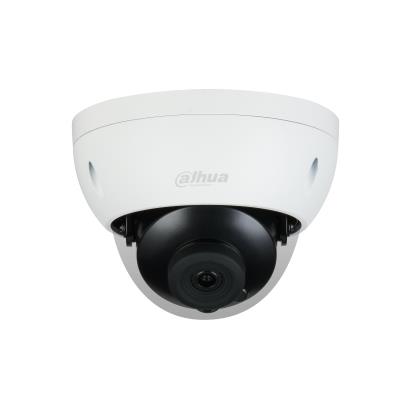

Model: IPC-HDBW5541R-ASE-OPAT
Camera design: Dome
Network Camera Type: Fixed Dome/HDTV/Megapixel/Outdoor
Resolution: 5
Focal Length: 2.8mm
IR Illumination: Yes
Sensor size: 1/2.7″
Microphone: Built-in
Lens Mount: M12
Min. Illumination: 0.0002
Effective pixels: Auto/Manual 1/3 s–1/100,000 s
Electronic Shutter Speed: Auto/Manual 1/3 s–1/100,000 s
Supports card capacities up to: 256GB
Power options: 12V/PoE
Power supply requirements: 12 VDC/PoE (802.3af)/ePoE
Power consumption: 6.1
Environment: Outdoor
Operating temperature range: –40 °C to +60 °C
Colour: White
Dimensions: 88.9 mm × Φ122 mm
Units per Pallet: 0
Units per Shipping Box: 1
Unit Calculated Volume: 0.002734
Product Net Weight: 0.46
Unit Calculated Weight: 0.707
