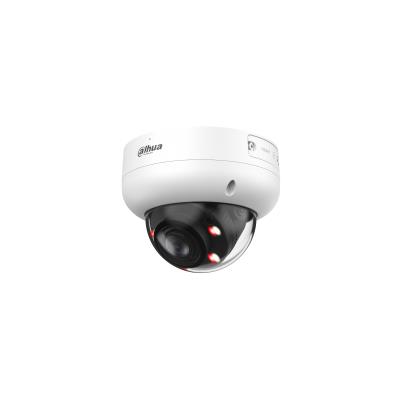

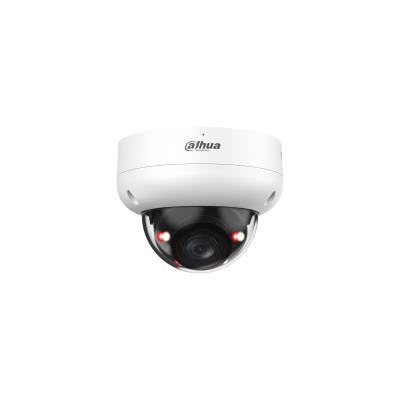

NET CAMERA 6MP DOME/HDBW3649R-ZAS-IL-27135 DAHUA

Description: > 6-MP 1/2.7″ CMOS image sensor, low luminance, and high definition image.

> Outputs max. 6 MP (3288 × 1850)@25/30 fps.

> H.265 codec, high compression rate, ultra-low bit rate.

> Built-in multi-core light, the max. IR distance is 50 m and the max. warm light distance is 50 m.

> ROI, SMART H.264+/H.265+, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environments.

> Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.

> Intelligent monitoring: Intrusion, tripwire (the two function support the classification and accurate detection of vehicle and human).

> Abnormality detection: Motion detection,video tampering, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection.

> Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 512 G Micro SD card; built-in Mic.

> 12 VDC/PoE power supply.

> IP67, IK10 protection.

> SMD 4.0.

> Supports AI SSA.

> SMD area can be set in warm light areas that support triggering alarms.

> Focal Length 2.7 mm-13.5 mm, Field of View 114°–32°
Vendor Homepage: www.dahuasecurity.com/products/All-Products/Network-Cameras/WizSense-Series/3-Series/Smart-Dual-Light/IPC-HDBW3649R-ZAS-IL
CnCode: 85258900
Category Code: FNC
Model: IPC-HDBW3649R-ZAS-IL-27135
Camera design: Dome
Network Camera Type: HDTV/Megapixel/Outdoor
Pixel Resolution: 6
Focal Length: 2.7 mm-13.5 mm
IR Illumination: Yes
Sensor size: 1/2.7″ CMOS
Microphone: Built-in
Min. Illumination: 0.0005
Effective pixels: 3288 (H) × 1850 (V)
Electronic Shutter Speed: Auto/Manual 1/3 s–1/100,000 s
Supports card capacities up to: 512GB
Power supply requirements: 12 VDC/PoE (802.3af)
Power consumption: 9.8
Operating temperature range: –30 °C to +60 °C
Colour: White
Dimensions: 94.0 mm × Φ122.0 mm
Units per Shipping Box: 1
Unit Calculated Volume: 0.003352
Product Net Weight: 0.56
Unit Calculated Weight: 0.74
Full Description Line: Type HDTV/Megapixel/Outdoor|Pixel Resolution 6 Mega Pixel|Focal Length 2.7 mm-13.5 mm|IR Illumination|Sensor size 1/2.7″ CMOS|Microphone Built-in|Min. Illumination 0.0005 Lux|Effective pixels 3288 (H) × 1850 (V)|Electronic Shutter Speed Auto/Manual 1/3 s–1/100,000 s|Supports card capacities up to 512GB|Power supply requirements 12 VDC/PoE (802.3af)|Operating temperature range –30 °C to +60 °C|Colour White|Dimensions 94.0 mm × Φ122.0 mm
