Description:

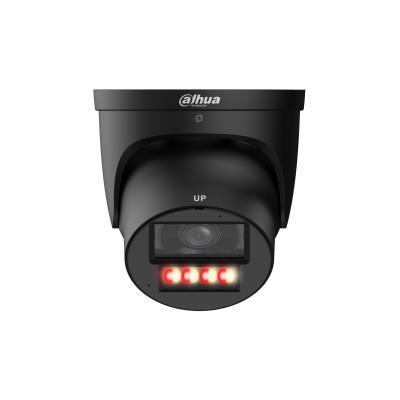

6MP WizColor Fixed-focal Eyeball WizMind Network Camera
> 1/1.8" CMOS image sensor, low luminance, and high definition image.
> Outputs max. 6 MP (3072 × 2048) @25/30 fps.
> Built-in multi-core light, the max. IR distance is 60 m and the max. warm light distance is 50 m.
> ROI, SVC, SMART H.264+/H.265+, AI H.264/H.265, encoding after filter, flexible coding, applicable to various bandwidth and storage environments.
> Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
> Features AI Rule Assist, which automatically creates highly accurate IVS rules based on the Xinghan Vision Models.
> With deep learning algorithm, it supports: AcuPick, video metadata, IVS, face detection, and people counting, etc.
> Alarm: 1 in, 1 out; audio: 1 in, 1 out; RS-485; supports max. 1 TB Micro SD card; built-in dual Mic; 1-ch speaker; support two-way talk.
> 12 VDC/PoE power supply; ePoE; 12 VDC power output, and max. current 165mA, easy for installation.
> IP67 and IK10 protection.
> Focal Length: 2.8 mm
> Field of View: 109°
Vendor Homepage: www.dahuasecurity.com/products/All-Products/Network-Cameras/WizMind-5-Series/Pro/6MP/IPC-HDW5659H-ASE-PV-PRO
Category Code: FNC
CnCode: 85258900
Unit Box Height: 0.135
Unit Box Length: 0.155
Unit Box Width: 0.155
Form factor: Eyeball
IK code: IK10
International Protection (IP) code: IP67
Product colour: Black
Connectivity technology: Wired
Type: IP security camera
Wide Dynamic Range (WDR): Yes
Camera shutter speed: 1/3 s–1/100,000 s
Field of view (FOV) angle: 109
Number of sensors: 1
Optical sensor size: 1/1.8
Sensor type: CMOS
Fixed focal length: 2.8
B/W night vision distance: 60
LED type: IR
Night vision: Yes
3D NR (Noise Reduction): Yes
Back Light Compensation (BLC): Yes
Highlight Compensation (HLC): Yes
Maximum resolution: 3072 × 2048
Total megapixels: 6
Built-in microphone: Yes
Compatible memory cards: MicroSD (TransFlash)
Maximum memory card size: 1000
RS-485 ports: 1
Alarm input channels: 1
Alarm output channels: 1
DC output voltage: 12
Power source type: DC,PoE
Operating temperature (T-T): –40 °C to +60 °C
Storage temperature (T-T): –40 °C to +60 °C
Diameter: 122
Height: 127.6
Weight: 920
Audio input: 1
Audio output: 1
Model: IPC-HDW5659H-ASE-PV-0280B-PRO
Units per Pallet: 0
Units per Shipping Box: 1
Unit Calculated Volume: 0.003243
Unit Calculated Weight: 1.14
