Description:

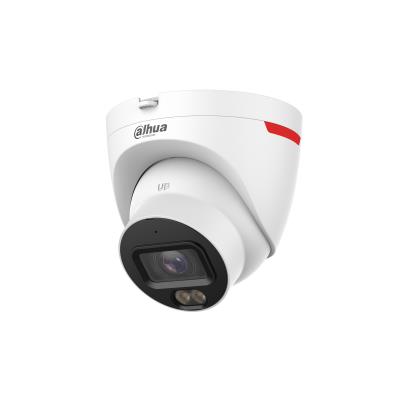

6MP WizColor Fixed-focal Eyeball WizSense Network Camera
> 1/1.8" CMOS image sensor, low luminance, and high definition image.
> Outputs max. 6MP (3288 ×1850) @20 fps, and supports 4MP (2688 × 1520) @25/30 fps.
> H.265 codec, high compression rate, ultra-low bit rate.
> Built-in warm light, and the max. illumination distance is 30 m.
> ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments.
> Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
> Intelligent monitoring: Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human)
> Abnormality detection: Motion detection, video tampering, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection.
> Supports max. 256 G Micro SD card; built in Mic.
> 12 VDC/PoE power supply, easy for installation.
> IP67 protection.
> SMD Plus.
> 2.8 mm (92°)
Vendor Homepage: www.dahuasecurity.com/products/All-Products/Network-Cameras/WizSense-Series/2-Series/WizColor/IPC-HDW2649T-S-PRO
Category Code: FNC
CnCode: 85258900
Unit Box Height: 0.137
Unit Box Length: 0.156
Unit Box Width: 0.156
Form factor: Eyeball
Adjustment shutter speed: Auto/Manual
Camera shutter speed: 1/3 s–1/100,000 s
Number of effective pixels (H x V): 3288 (H) × 1850 (V)
Optical sensor size: 1/1.8″
Progressive scan: Yes
Sensor type: CMOS
Fixed focus: Yes
Focal length range: 2.8 mm; 3.6 mm
LED type: White
Flip & mirror: Yes
Gain control type: Auto
Noise reduction: Yes
Privacy masking: Yes
Total megapixels: 6
Built-in microphone: Yes
Compatible memory cards: MicroSD (TransFlash)
Maximum memory card size: 256
Ethernet LAN (RJ-45) ports: 1
Power consumption (max): 6.4
Power consumption (typical): 2.4
Operating temperature (T-T): –40 °C to +60 °C
Diameter: 109.9
Weight: 420
Width: 109.5
Lens mount interface: M16
Power requirements: 12 VDC (±30%); PoE (802.3af)
Model: IPC-HDW2649T-S-PRO
Units per Pallet: 0
Units per Shipping Box: 20
Unit Calculated Volume: 0.004092
Unit Calculated Weight: 0.65
