Description:

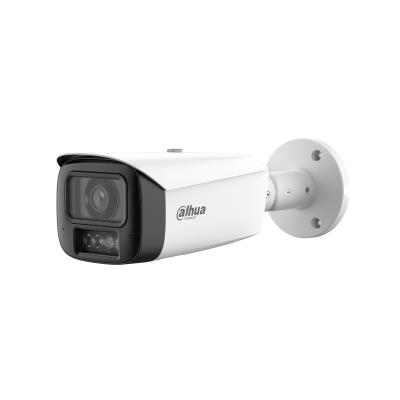

8MP WizColor Fixed-focal Bullet WizMind Network Camera
> 8-MP 1/1.8" CMOS image sensor, low luminance, and high definition image.
> Outputs max. 8 MP (3840 × 2160) @25/30 fps.
> Built-in multi-core light, the max. IR distance is 80 m and the max. warm light distance is 60 m.
> ROI, SVC, SMART H.264+/H.265+, AI H.264/H.265, encoding after filter, flexible coding, applicable to various bandwidth and storage environments.
> Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
> Features AI Rule Assist, which automatically creates highly accurate IVS rules based on the Xinghan Vision Models
> With deep learning algorithm, it supports: AcuPick, video metadata, IVS, face detection, and people counting, etc.
> Alarm: 1 in, 1 out; audio: 1 in, 1 out; RS-485; supports max. 1 TB Micro SD card; built-in dual Mic; 1-ch speaker; support two-way talk.
> 12 VDC/PoE power supply; ePoE; 12 VDC power output, and max. current 165mA, easy for installation.
> IP67 and IK10 protection.
> 2.8 mm (109°)
Vendor Homepage: www.dahuasecurity.com/products/All-Products/Network-Cameras/WizMind-5-Series/Pro/8MP/IPC-HFW5859T1-ASE-PV-PRO
Category Code: FNC
CnCode: 85258900
Unit Box Height: 0.14
Unit Box Length: 0.34
Unit Box Width: 0.145
Form factor: Bullet
Product colour: White
Connectivity technology: Wired
Adjustment shutter speed: Auto/Manual
Camera shutter speed: 1/3 s–1/100,000 s
Effective sensor resolution: 8
Optical sensor size: 1/1.8″
Sensor type: CMOS
Fixed focal length: 2.8
B/W night vision distance: 80
Night vision: Yes
Audio input channels: 1.0
Audio output channels: 1.0
Built-in microphone: Yes
Built-in speaker(s): Yes
Compatible memory cards: MicroSD (TransFlash)
Maximum memory card size: 1024
Ethernet LAN (RJ-45) ports: 1
RS-485 ports: 1
Alarm input channels: 1
Alarm output channels: 1
DC output voltage: 12
Power consumption (max): 24.2
Power over Ethernet (PoE): Yes
Operating temperature (T-T): –40 °C to +60 °C
Diameter: 122
Height: 127.6
Lens mount interface: M16
Suitable for outdoor use: Yes
Model: IPC-HFW5859T1-ASE-PV-PRO
Units per Pallet: 0
Units per Shipping Box: 1
Unit Calculated Volume: 0.006902
Unit Calculated Weight: 1.53
