Description:

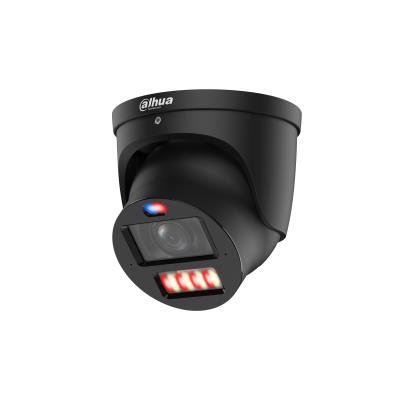

8MP WizColor TiOC PRO Vari-focal Eyeball WizSense Network Camera
> 8-MP 1/1.8" CMOS image sensor, low luminance, and high definition image.
> Outputs max. 8 MP (3840 ×2160)@25/30 fps.
> H.265 codec, high compression rate, ultra-low bit rate.
> Built-in multi-core light, the max. IR distance is 50 m and the max. warm light distance is 50 m.
> ROI, SMART H.264+/H.265+, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environments.
> Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
> Intelligent monitoring: Intrusion, tripwire (the two function support the classification and accurate detection of vehicle and human), stay detection, loitering detection, face detection (full image).
> Abnormality detection: Motion detection, privacy masking, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection.
> Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 512 G Micro SD card; built-in dual Mic; 1-ch speaker; support two-way talk.
> 12 VDC/PoE power supply.
> IP67 protection.
> Sound and light alarm (red and blue lights). · SMD 4.0.
> Supports AI SSA and one-tap arming and disarming.
> SMD area can be set in warm light areas that support triggering alarms
> Focal Length: 2.7 mm–12 mm
> Field of View: 112°–48°
Vendor Homepage: www.dahuasecurity.com/products/All-Products/Network-Cameras/WizSense-Series/3-Series/TiOC-PRO-WizColor/IPC-HDW3849H-ZAS-PV-PRO
Category Code: FNC
CnCode: 85258900
Unit Box Height: 0.135
Unit Box Length: 0.155
Unit Box Width: 0.155
Form factor: Eyeball
International Protection (IP) code: IP67
Product colour: Black
Alarm input/output: Yes
Wide Dynamic Range (WDR): Yes
Camera shutter speed: 1/3 s–1/100,000 s
Number of sensors: 1
Optical sensor size: 1/1.8
Sensor type: CMOS
Focal length range: 2.7 mm–12 mm
B/W night vision distance: 50
LED type: IR
Night vision: Yes
3D NR (Noise Reduction): Yes
Back Light Compensation (BLC): Yes
Highlight Compensation (HLC): Yes
Maximum resolution: 3840 ×2160
Total megapixels: 8
Built-in microphone: Yes
Compatible memory cards: MicroSD (TransFlash)
Maximum memory card size: 512
Ethernet LAN (RJ-45) ports: 1
Alarm input channels: 1
Alarm output channels: 1
DC output voltage: 12
Power source type: DC,PoE
Operating temperature (T-T): –30 °C to +60 °C
Storage temperature (T-T): –40 °C to +60 °C
Diameter: 122
Height: 127.6
Weight: 940
Audio input: 1
Audio output: 1
Model: HDW3849H-ZASPV2712PRO-B
Units per Pallet: 0
Units per Shipping Box: 1
Unit Calculated Volume: 0.003243
Unit Calculated Weight: 1.15
